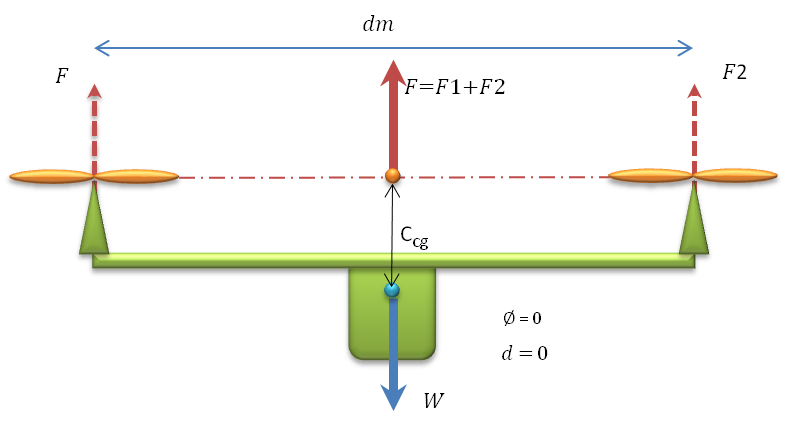

FPV Flight Controller and the Center of Mass: What You Need to Know
When building or configuring an FPV drone, the placement of the flight controller (FC) in relation to the center of mass (COM) is a common question. Does it need to be perfectly centered on all axes? What about vertical placement? Let’s explore how FC placement affects drone performance and stability.
Does the Flight Controller Need to Be at the Center of Gravity?
The short answer: Not necessarily, but there are considerations.
Horizontal Placement (X and Y Axes)
- Gyroscope Sensitivity: The gyroscope in the FC measures angular velocity. Its performance is unaffected by horizontal placement, as the gyroscope detects rotational movement regardless of its position.
- Accelerometer Sensitivity: The accelerometer, however, can be influenced by how far it is from the COM. When located too far from the COM, it may misinterpret rotational accelerations as linear forces, especially in auto-level or stabilization modes. For this reason, aligning the FC closer to the COM can improve accuracy in these modes.
Vertical Placement (Z Axis)
- Gyroscope Perspective: Gyroscopes remain unaffected by vertical displacement. Whether the FC is a few millimeters above or below the COM, it still measures rotational rates consistently.
- Accelerometer Perspective: The further the FC is from the COM vertically, the more likely it is to detect non-gravitational accelerations during flips and rolls. While this effect is minimal in smaller drones, larger drones with significant vertical displacement may experience minor discrepancies.
Why Centering Isn’t Always Critical
In most drones, FC placement doesn’t need to be millimeter-perfect. Modern FCs with advanced sensors and software algorithms can compensate for minor misalignments. For instance:
- Gyro Drift Compensation: Gyroscopes may drift due to temperature or other factors, but accelerometers help recalibrate during flight.
- Sensor Orientation Adjustments: Many FCs allow you to digitally offset sensor orientations, ensuring proper calibration even if the FC isn’t perfectly aligned.
Practical Advice for FC Placement
- Prioritize Centering Between Motors: Place the FC as close as possible to the midpoint of the motor layout (center of thrust) on the X and Y axes. This improves overall balance and weight distribution.
- Minimize Vertical Distance: While vertical placement has less impact, keeping the FC close to the COM reduces unnecessary accelerometer interference.
- Level the FC: Regardless of its position, ensure the FC is level and aligned with the drone’s roll, pitch, and yaw axes.
- Consider Frame Design: If space constraints force you to offset the FC, configure the software to adjust for the offset.
Insights from the FPV Community
- Smaller Drones: For smaller drones, such as racing quads, FC placement is less critical. Their compact size minimizes any measurable difference caused by sensor displacement.
- Larger Drones: In larger drones, such as octocopters or cinematic rigs, precise FC placement becomes more significant due to increased distances between the COM and the sensors.
- Auto-Level Modes: For drones that rely heavily on auto-level or stabilization, centering the FC helps improve performance and reduces potential calibration errors.
Common Misconceptions
- Perfect Centering is Mandatory: While ideal, most drones fly flawlessly with slight FC misalignments.
- Gyros Require Centering: Gyros measure angular velocity uniformly, regardless of position.
- A Few Inches Offset Breaks Performance: For most hobby-grade drones, minor vertical or horizontal offsets won’t noticeably affect performance.
Conclusion
The placement of your FPV drone’s flight controller should aim for proximity to the center of mass but doesn’t need to be exact. Prioritize aligning the FC with the COM horizontally, minimize vertical displacement where possible, and ensure the FC is level and aligned. With proper setup and calibration, modern flight controllers are forgiving, allowing for flexibility without sacrificing performance.
