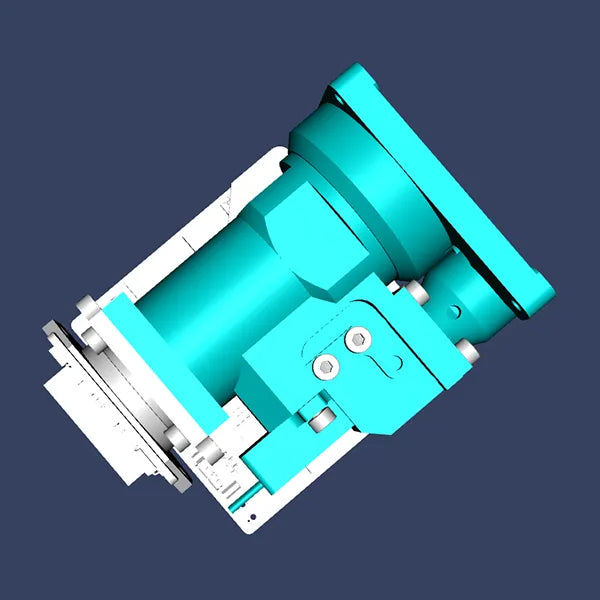

M0408X 1535nm 8km Laser Range Finder Module for UAV Drone Pod

December 9, 2024

The M0408X Laser Range Finder Module is a military-grade miniature pulse laser rangefinder designed for diverse applications, including aircraft, UAVs, tanks, and aerial guns. With its small size, lightweight design, low power consumption, and high performance, the M0408X provides reliable and accurate distance measurements up to 8km. Developed by JIOPTICS®, it ensures human eye safety while delivering superior aiming precision and operational reliability.

Key Features

Precise Ranging Capability: Measures distances up to 8km for high-reflectivity targets under optimal visibility.
Compact and Lightweight: Weighing only 75g with dimensions of ≤65mm×44mm×35mm, it is ideal for portable systems and UAV integration.
High Accuracy: Delivers ±2m measuring precision with a success rate of ≥98%.
Adjustable Ranging Frequency: Configurable from 1Hz to 10Hz to suit various operational requirements.
Versatile Communication Interfaces: Supports 422, 485, 232, and TTL (3.3V), ensuring seamless system integration.
Energy Efficient: Low power consumption (≤1.2W during operation, ≤0.2W in standby mode).

Technical Parameters

Item	Technical Parameter	Instruction
Working Wavelength	1535±5nm
Ranging Capability	50m ~ 8km	High-reflectivity targets, visibility ≥10km
Ranging Accuracy	±2m	3δ
Ranging Frequency	1Hz ~ 10Hz	Adjustable
Divergence Angle	≤0.5mrad
Receiving Aperture	25mm
Communication Interface	422, 485, 232, TTL (3.3V)
Voltage	DC9 ~ 36V
Power Consumption	≤1.2W (Operating), ≤0.2W (Standby)	Normal temperature test
Size	≤65mm×44mm×35mm
Weight	≤75g
Environmental Conditions	Operating Temperature: -40°C to +60°CStorage Temperature: -45°C to +70°C
Vibration Resistance	15 ~ 2000Hz, 3 directions	Test conditions available upon request

Application Scenarios

The M0408X Laser Range Finder Module is suitable for:

Unmanned Aerial Vehicles (UAVs): Enhances navigation and targeting systems.
Military Equipment: Integrates seamlessly into tanks, aerial guns, and portable weapon systems.
Thermal Imaging Devices: Compact and lightweight for handheld applications.
System Integration: Ideal for integrators seeking reliable, customizable solutions.

Custom OEM/ODM Solutions

The M0408X supports customized OEM/ODM solutions tailored to meet specific application needs. With its advanced features and compact design, it is an excellent choice for both military and civil systems.
