QIANJUE QD-155T Two-Axis and Three-Sensor EO Pod for UAV Drone

QIANJUE QD-155T Two-Axis and Three-Sensor EO Pod for UAV Drone

Overview

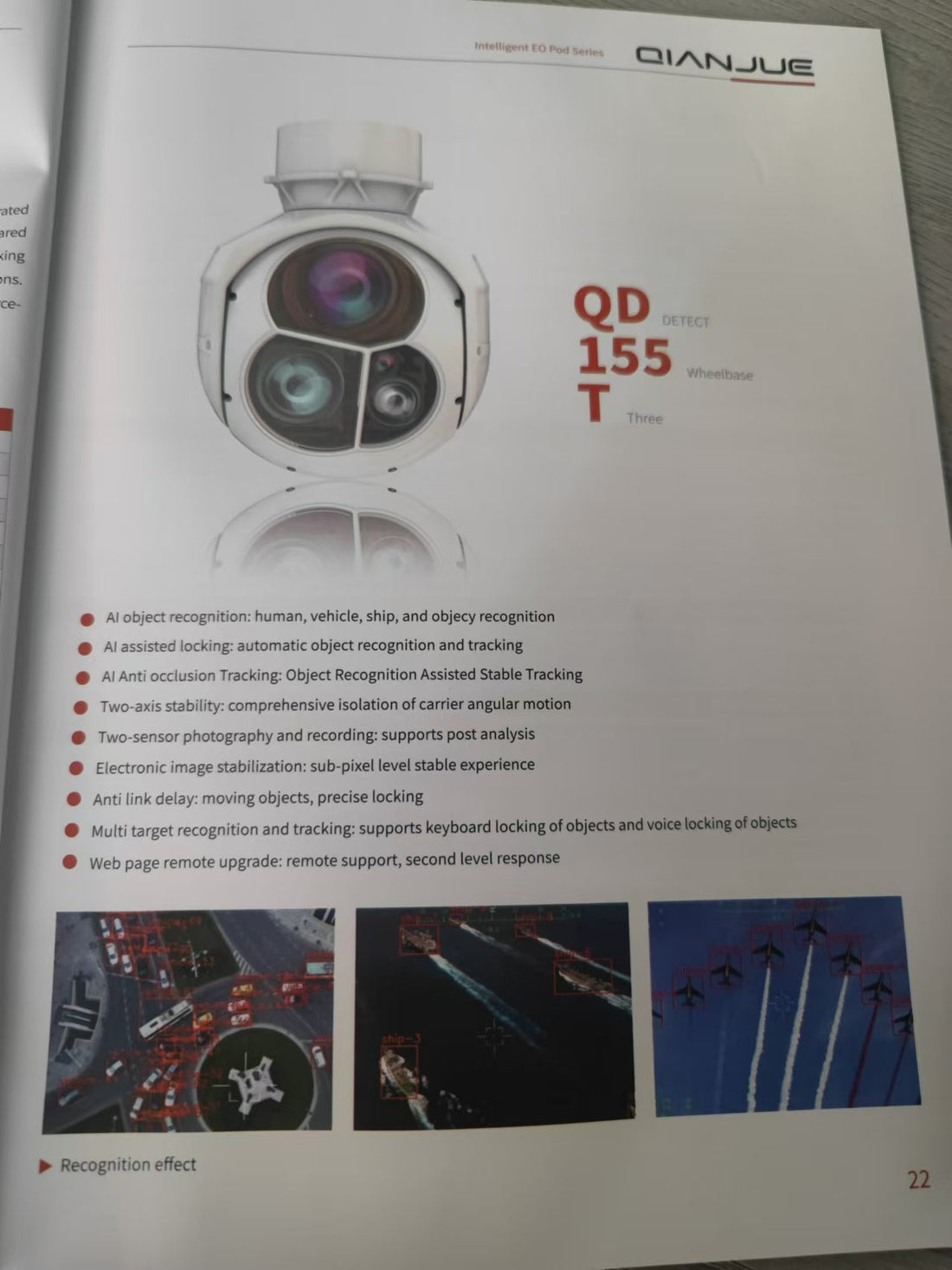

The QIANJUE QD-155T is an advanced two-axis, two-frame gyro-stabilized EO pod equipped with three high-performance sensors: a 30x continuous optical zoom visible light camera, a long-wave infrared camera, and a precision laser range finder. Specifically designed for UAV drones, it excels in imaging, detection, and tracking for applications in surveillance, emergency response, industrial inspections, and military operations. With AI-assisted object recognition, multi-target tracking, and robust anti-latency modules, the QD-155T delivers precise and reliable performance under demanding conditions.

Technical Specifications

Laser Ranging

Parameter Details
Band 1535nm
Range 50m–5000m
Range Accuracy ±1m
Ranging Frequency 1~10Hz

Visible Light Camera (TV)

Parameter Details
Band 0.4µm–0.9µm
Resolution 1920 x 1080
Focal Length F4.3~129mm
Field of View (FOV) 63.7°~2.3°
Optical Zoom 30x
Detection Range Human: 6km, Vehicle: 15km
Recognition Distance Human: 2km, Vehicle: 8km

Infrared Camera (IR)

Parameter Details
Band 8µm–12µm
Resolution 640 x 512
Pixel Size 12µm
Focal Length 55mm / F1.0
Field of View (FOV) 8° x 6.4°
Detection Range Human: 1.8km, Vehicle: 7.8km
Recognition Distance Human: 0.4km, Vehicle: 1.9km

Servo Control

Parameter Details
Heading Range N x 360°
Pitch Range -120° ~ 40°
Angular Measurement Consistency ≤100μrad (2Hz)
Angular Velocity ≥60°/s
Angular Acceleration ≥150°/s²

Object Tracking

Feature Details
Single Object Tracking Generic objectives, ≥32 pixels/frame
Multiple Object Tracking Tracks humans, vehicles, ships, and airplanes
Recall ≥90%
Accuracy ≥80%
Minimum Target Size 32x32 at 1080P
Tracking Quantity Up to 20 objects
Update Frame Rate ≥50FPS
Tracking Transition Rate ≤15%

Video and Storage

Parameter Details
Photo Format JPEG
Video Format MP4
Encoding Format H.264, H.265
Video Protocol TS, RTSP, RTMP, UDP
Storage Capacity 128GB

Environmental and Interface Parameters

Parameter Details
Dimensions ≤155mm x 205mm
Weight ≤2.2kg
Operating Temperature -40°C to 60°C
Storage Temperature -45°C to 70°C
Power Supply 18–32VDC
Power Consumption 20W (average), 50W (peak)
Communication Interface Serial port, 100Mbps network
Video Interface 1Gbps, SDI

Key Features

  1. Three-Sensor Integration

    • Laser Range Finder: High-precision ranging up to 5000m for accurate distance measurement.
    • Visible Light Camera: 30x optical zoom for high-resolution imaging at extended ranges.
    • Infrared Camera: Thermal imaging for enhanced visibility in low-light and adverse conditions.

  2. AI Object Recognition
    Tracks humans, vehicles, ships, and other objects with high accuracy and recall for reliable performance.

  3. Two-Axis Stabilization
    Ensures smooth and stable imaging by isolating carrier angular motion, even under dynamic conditions.

  4. Multi-Target Tracking
    Supports simultaneous tracking of up to 20 objects with real-time frame rates.

  5. Electronic Image Stabilization
    Sub-pixel-level stabilization for clearer and sharper imagery.

  6. Durable Design
    Withstands extreme environmental conditions, ensuring reliable performance in the field.

Applications

  • Aerial Surveillance: Boost UAV drone capabilities for border patrol, law enforcement, and security missions.
  • Industrial Inspection: Monitor critical infrastructure such as pipelines, powerlines, and solar farms with precision.
  • Search and Rescue: Locate and track individuals or assets in disaster recovery and emergency situations.
  • Military and Defense: Conduct reconnaissance and gather real-time intelligence for mission-critical operations.
