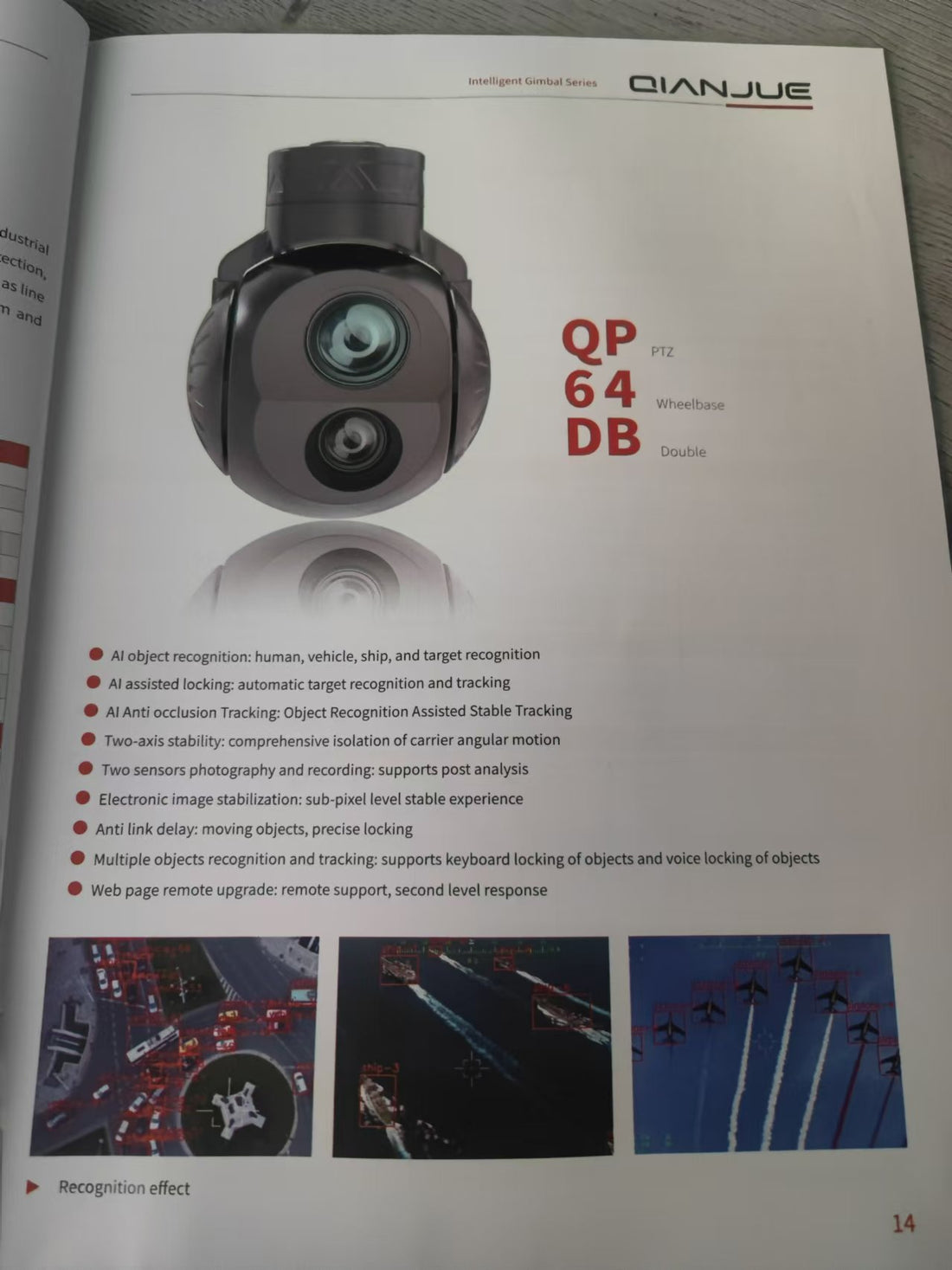

QIANJUE QP-64DB Two-Axis Two-Sensor Gimbal Camera for UAV Drone
Overview
The QIANJUE QP-64DB is a precision-engineered two-axis gyro-stabilized gimbal camera tailored for UAV drones and professional surveillance applications. This cutting-edge device integrates a dual-camera system with wide-field and narrow-field visible light capabilities, delivering exceptional performance in imaging, tracking, and recognition tasks. Its lightweight, durable design and advanced AI-powered features make it the ideal solution for industries such as law enforcement, industrial inspection, emergency response, and military operations.
Technical Specifications
Wide-Field Visible Light Camera
| Parameter | Details |
|---|---|
| Band | 0.4µm–0.9µm |
| Resolution | 3840 x 2160 |
| Focal Length | 10.44mm |
| Field of View (FOV) | 42.1° x 23.7° |
| Detection Range | Human: 2.4km, Vehicle: 10km |
| Recognition Distance | Human: 0.6km, Vehicle: 1.2km |
Narrow-Field Visible Light Camera
| Parameter | Details |
|---|---|
| Band | 0.4µm–0.9µm |
| Resolution | 3840 x 2160 |
| Focal Length | 25mm |
| Field of View (FOV) | 14.7° x 11.1° |
| Detection Range | Human: 5.3km, Vehicle: 22.6km |
| Recognition Distance | Human: 1.3km, Vehicle: 5.7km |
Servo System
| Parameter | Details |
|---|---|
| Heading Range | ±150° |
| Pitch Range | -90° ~ 30° |
| Angular Measurement Accuracy | <0.3° |
| Angular Velocity | ≥60°/s |
| Angular Acceleration | ≥150°/s² |
Object Tracking Capabilities
| Feature | Details |
|---|---|
| Single Object Tracking | ≥32 pixels/frame |
| Multiple Object Tracking | Tracks up to 20 objects |
| Recall | ≥90% |
| Accuracy | ≥80% |
| Minimum Target Size | 32x32 at 1080P |
| Tracking Frame Rate | ≥50FPS |
| Tracking Transition Rate | ≤15% |
Environmental and Power Parameters
| Parameter | Details |
|---|---|
| Operating Temperature | -40°C to 60°C |
| Storage Temperature | -45°C to 70°C |
| Impact Resistance | 400g |
| Power Supply | 11–28VDC |
| Power Consumption | 20W (average), 50W (peak) |
Video and Storage
| Parameter | Details |
|---|---|
| Encoding Format | H.264, H.265 |
| Video Protocol | TS, RTSP, RTMP, UDP |
| Photo Format | JPEG |
| Video Format | MP4 |
| Storage Capacity | 128GB |
Interface
| Parameter | Details |
|---|---|
| Dimensions | ≤64mm x 90mm |
| Weight | <240g |
| Data Interface | Serial port, SBUS, 100Mbps network |
| Video Interface | 100Mbps network |
Key Features
-
Dual Camera System:
Combines wide-field and narrow-field cameras for unparalleled imaging clarity and long-range detection. -
AI-Powered Object Recognition:
Tracks humans, vehicles, ships, and airplanes with high accuracy and recall, making it ideal for UAV applications. -
Two-Axis Stabilization:
Eliminates motion distortions, ensuring smooth and precise footage even in dynamic environments. -
High-Performance Tracking:
Supports single and multiple-object tracking, with up to 20 targets tracked simultaneously. -
Rugged and Lightweight:
Compact design with IP54 durability, capable of operating in extreme temperatures and conditions. -
Integrated Connectivity:
Real-time data transmission through 100Mbps network interfaces and web-based remote support for efficient operation.
Applications
- Aerial Surveillance: Enables UAVs to monitor wide areas with pinpoint accuracy for defense, law enforcement, and border security.
- Industrial Inspection: Ideal for inspecting powerlines, pipelines, and infrastructure from the air.
- Emergency Response: Assists in disaster recovery and search-and-rescue missions by identifying and tracking targets.
- Agricultural Monitoring: Tracks movement and conditions over large agricultural fields.
- Counter-Terrorism and Security: Provides real-time tracking and situational awareness for high-stakes operations.
Why Choose the QP-64DB?
The QIANJUE QP-64DB Gimbal Camera is specifically designed for UAV professionals seeking unmatched imaging performance and versatility. Its dual-camera system, AI-powered tracking, and robust build make it the go-to choice for advanced aerial operations. From capturing high-detail images to enhancing situational awareness, this gimbal camera guarantees efficiency, accuracy, and reliability in every mission.
Explore the potential of the QP-64DB for your UAV drone projects today!
For Inquiries and Purchases
For pricing, customization, bulk orders, or further inquiries, please contact us at support@rcdrone.top.
