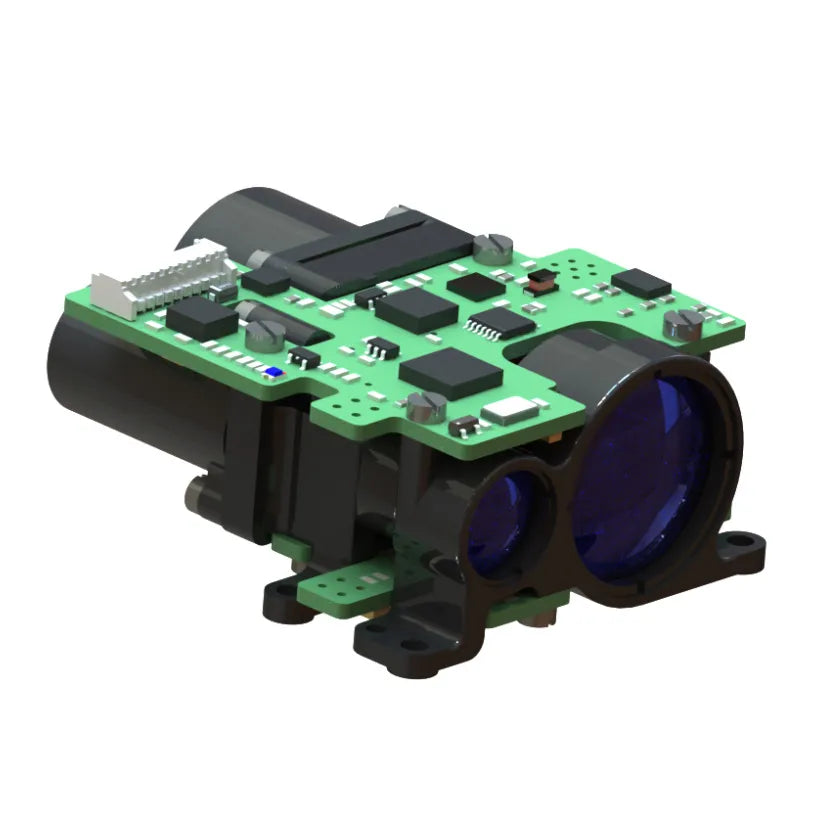

STA-DY0407X 1535nm Eye-safe Erbium Glass 4000m Laser Range Finder Module for UAV Drone Pod
The STA-DY0407X 4000m Laser Range Finder Module is a compact, high-precision solution built with Jioptics' advanced 1535nm eye-safe erbium glass laser module. Designed for UAVs, handheld devices, and weapon-mounted systems, this module offers exceptional range, low power consumption, and robust durability, making it an ideal choice for demanding applications.
Overview
-
Model: STA-DY0407X
-
Operating Wavelength: 1535nm ±10nm
-
Range Performance:
-
7,000m: Large target, visibility ≥16km
-
4,000m: Target with 0.3 reflectivity for 2.3m × 4.6m vehicles, visibility ≥8km
-
50m: Minimum range
-
-
Accuracy: Ranging accuracy of ±1m with a measurement accuracy rate of ≥98%
-
Size: ≤57mm × 50mm × 30mm
-
Weight: ≤75g
-
Power Consumption:
-
Working: ≤3W
-
Standby: ≤1W
-
Key Features
-
Integrated Structural Design
-
Multi-point sealing installation enhances anti-imbalance performance and ensures durability and long working life.
-
Eye-safe laser operation adhering to IEC 60825-1 Laser Class 1 standards.
-
-
Advanced Optical Design
-
Non-thermal receiving optical technology provides excellent optical noise suppression and ensures superior performance at various distances and temperatures.
-
-
Reliable Circuitry
-
Direct welded wire connections eliminate risks from connector loosening, oxidation, or water vapor, enhancing product reliability.
-
-
Compact and Lightweight
-
Lightweight construction (≤75g) allows for easy integration into UAVs and portable systems.
-
-
Wide Operational Range
-
Performs reliably in extreme temperatures, from -40℃ to +65℃ (operational) and -50℃ to +75℃ (storage).
-
Technical Specifications
| Parameter | Value |
|---|---|
| Model | STA-DY0407X |
| Operating Wavelength | 1535nm ±10nm |
| Ranging Range | 50m-7,000m |
| Humidity | ≤60% |
| Ranging Accuracy | ±1m |
| Accuracy Rate | ≥98% |
| Divergence Angle | ≤0.5mrad |
| Ranging Frequency | 1Hz, 5Hz, 10Hz |
| Size | ≤57mm × 50mm × 30mm |
| Voltage | 10V-14V |
| Working Power Consumption | ≤3W |
| Standby Power Consumption | ≤1W |
| Working Temperature | -40℃ to +65℃ |
| Storage Temperature | -50℃ to +75℃ |
| Weight | ≤75g |
Applications
-
UAV Drone Pods: Optimized for long-range, high-precision measurements in UAV systems.
-
Observation and Surveillance Systems: Ensures accuracy in challenging environmental conditions.
-
Weapon-Mounted Devices: Reliable targeting solution with robust shock resistance.
-
Handheld Devices: Lightweight and compact for portable applications.
Why Choose STA-DY0407X?
The STA-DY0407X Laser Range Finder Module combines advanced laser technology, compact design, and robust durability. Its exceptional performance and adaptability make it an indispensable tool for professionals in UAV operations, reconnaissance, and precision targeting.
