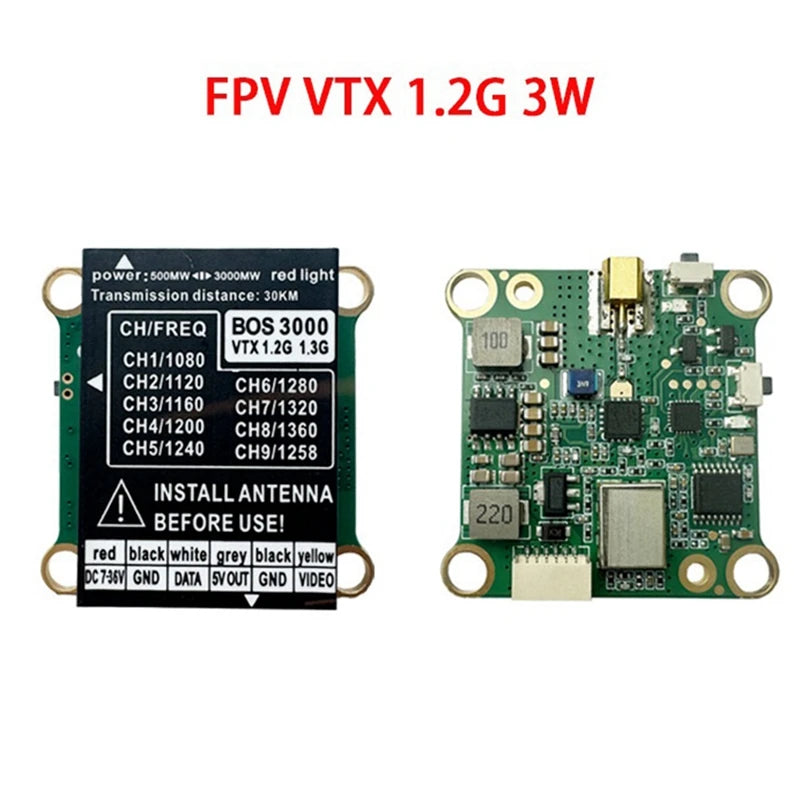

1.2G 1.3G 3W 9CH VTX - High Power 3000mW FPV Transmitter for DIY FPV Drones

Overview

The 1.2G/1.3G 3W VTX is a powerful FPV video transmitter designed for long-distance flights and DIY FPV drone applications. With adjustable power levels up to 3000mW, a 9-channel frequency band, and wide voltage input support from 7-36V, this transmitter ensures exceptional performance and versatility. It features temperature control protection to prevent overheating and supports standard 30.5x30.5mm (M3) mounting holes, making it compatible with most drone builds.

Features

1. Adjustable Power Levels:

   • Two power options: 500mW for shorter distances and 3000mW for long-range applications.

   • Includes Pit Mode for safe setup and configuration.

2. Wide Frequency Range:

   • Operates within the 1.2G/1.3G bands (1080MHz-1360MHz), offering 9 selectable channels.

   • Frequency stability of ±100KHz ensures a consistent and clear signal.

3. Wide Voltage Input:

   • Supports input from 7-36V, accommodating 2-8S batteries, perfect for a variety of FPV systems.

4. Temperature Protection:

   • Built-in temperature control protection prevents overheating and hardware damage.

5. Robust Build and Mounting:

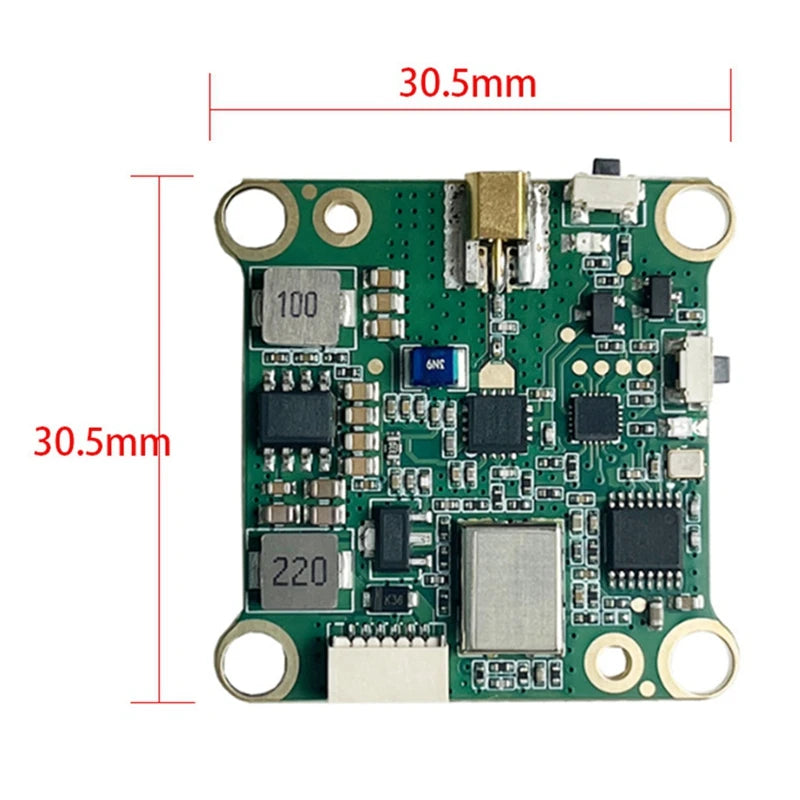

   • Compact design with 30.5x30.5mm (M3) mounting holes for easy integration.

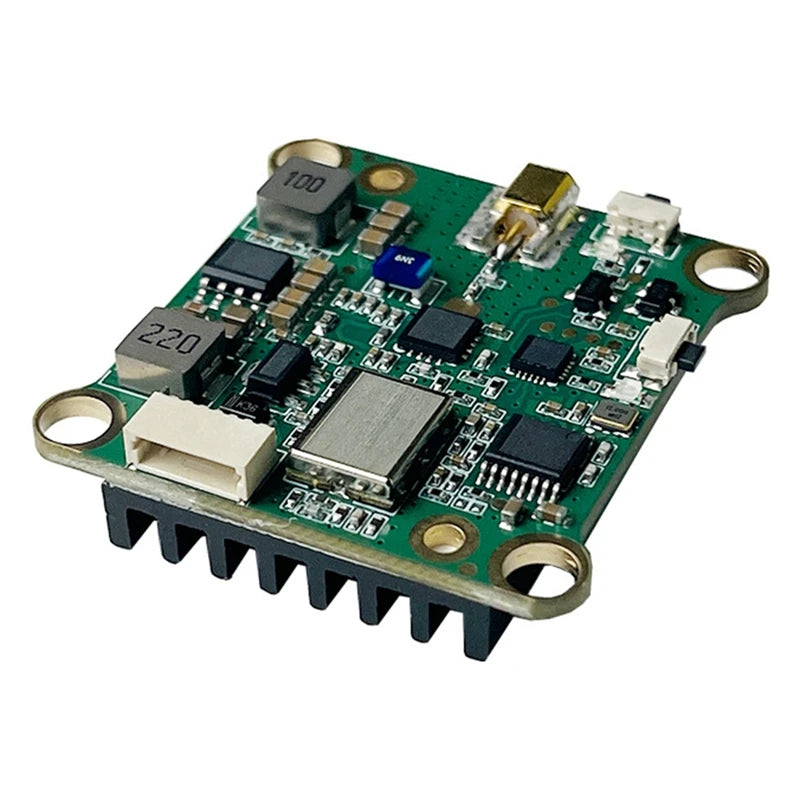

   • Enhanced heat dissipation and impact resistance for durability.

6. Versatile Connectivity:

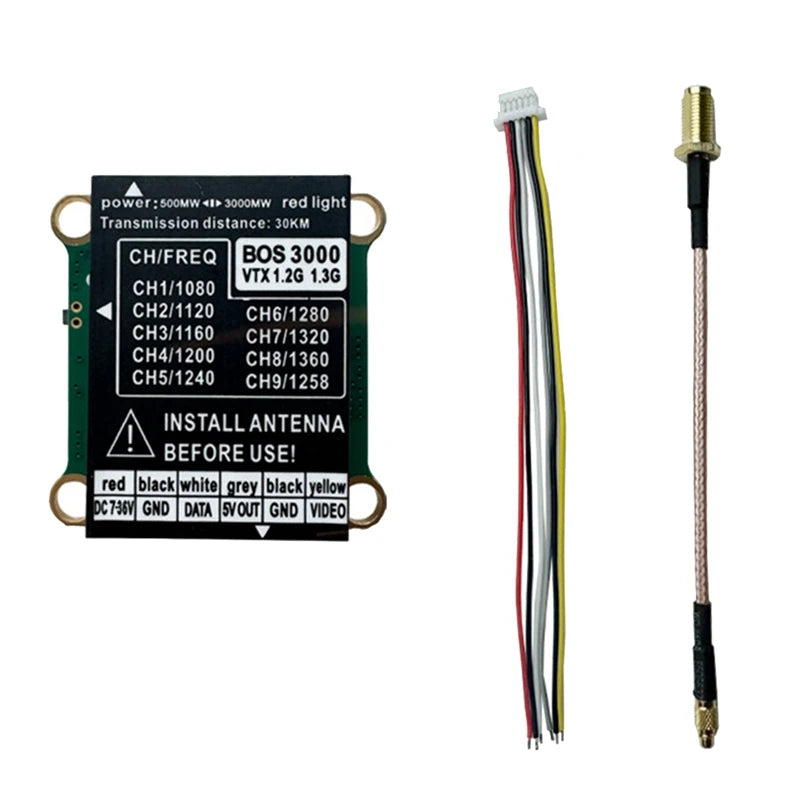

   • MMCX antenna interface ensures a secure connection.

   • SH1.25 6-pin cable interface simplifies installation.

Specifications

Applications

The 1.2G/1.3G 3W VTX is designed for a range of FPV and DIY drone projects, including:

• Long-Distance Flights: Suitable for professional and recreational FPV enthusiasts requiring extended transmission range.

• DIY FPV Drones: Easily integrates into custom drone builds with standard mounting holes.

• Complex Environments: High power and frequency stability provide reliable performance in challenging terrains.

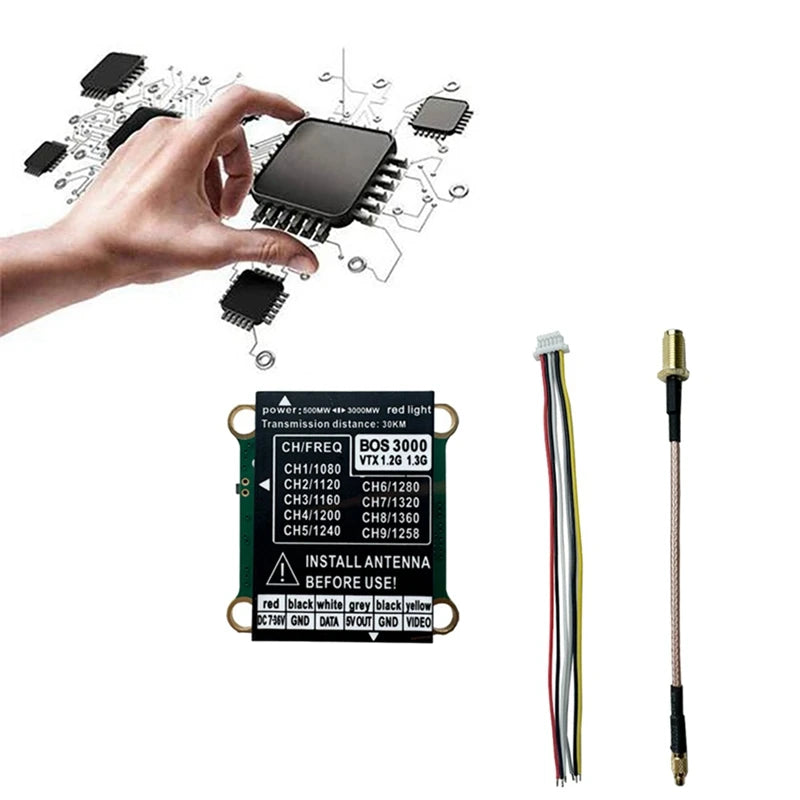

Package Includes

• 1 x 1.2G/1.3G 3W VTX Transmitter Kit

Note

• The product color may vary due to different manufacturing batches.

• Ensure the transmitter is used in compliance with local laws and regulations.

• Light reflection and display differences may cause minor color discrepancies.

The 1.2G/1.3G 3W VTX combines high power, durability, and versatile features, making it the perfect choice for FPV pilots and drone builders looking for a reliable and high-performance video transmitter. Whether for long-range flights or custom FPV setups, this VTX delivers unmatched quality and performance.
