Overview
The 1.2G 1.3G Analog VRX Receiver for RUSHFPV V2 is a high-performance 1.3GHz video receiver designed for FPV applications, offering full-band sensitivity of -95dB for stable and interference-free video transmission. Featuring an integrated DVR with a TF card slot (optional), this receiver allows real-time video recording for later analysis. The unit supports A/B dual bands, making it compatible with most VTX systems, and comes with a rugged aluminum alloy housing for enhanced durability. Equipped with a circularly polarized antenna, this receiver ensures optimal signal reception, reducing multipath interference and improving FPV performance.
Key Features
- High-Sensitivity Receiver: Supports full-band reception with -95dB sensitivity, ensuring stable and interference-free FPV signal reception.
- Wide Frequency Band: Covers 1080MHz to 1360MHz, supporting multiple FPV channels for flexible usage.
- Dual-Band Compatibility: Supports A/B dual bands, making it compatible with a variety of FPV transmitters (VTX).
- Integrated DVR: Built-in DVR with TF card slot (optional) for real-time video recording and playback.
- Digital Display and Knob Control: User-friendly LED digital display with an intuitive knob for easy channel selection and band switching.
- Durable Aluminum Alloy Housing: Rugged and compact aluminum alloy casing with a mounting bracket for secure installation.
- Wide Input Voltage Range: Supports DC 7-30V input, making it compatible with 3-6S LiPo batteries.

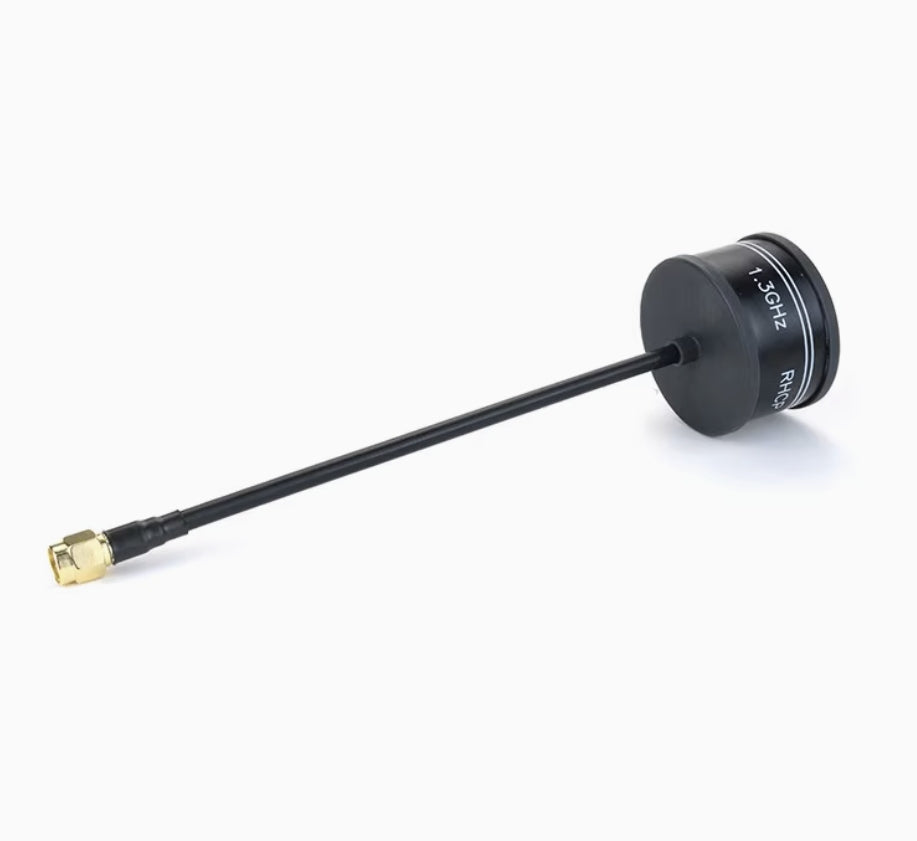

- Circularly Polarized Antenna: Ensures better signal reception, reducing interference and improving range and video stability.
Specifications
| Parameter | Details |
|---|---|
| Video Output Format | CVBS, PAL, NTSC |
| Frequency Band | 1080-1360MHz |
| Channel Frequencies |
BAND A: 1080, 1120, 1160, 1200, 1240, 1280, 1320, 1360 BAND B: 1200, 1220, 1240, 1258, 1280, 1300, 1320, 1340 |
| Receiving Sensitivity | -95dBm |
| Input Voltage | DC 7-30V (3-6S LiPo) |
| Operating Temperature | -10℃ to +60℃ |
| Dimensions | 83mm × 58mm × 27mm |
| Weight | 100g (VRX Only) |
| Accessories | 3.5mm A/V cable ×1, DC-XT60 cable ×1, Fixed Clip ×1 |
Operation Instructions
- Channel Selection: Use the knob and digital display to cycle through channels CH1-CH8.
- Band Switching: Press the knob to toggle between BAND A and BAND B.
- DVR Functionality: The DVR status LED remains on when powered up, indicating standby mode. Press the REC button to start recording.
- Lock Function: Long press the knob to lock/unlock the receiver, preventing accidental operation.
Applications
- FPV Drone Racing: Ideal for 1.3GHz FPV systems, providing stable and low-latency video reception.
- RC Aircraft & UAVs: Ensures reliable video downlink for long-range FPV flights.
- Surveillance Systems: Can be used for remote video monitoring applications.
- Hobbyists & Experimenters: Perfect for those needing a high-quality 1.3GHz analog receiver for custom projects.
Package Contents
- 1× 1.3GHz Analog VRX Receiver
- 1× 3.5mm A/V Cable
- 1× DC-XT60 Power Cable
- 1× Fixed Clip
- 1× Circularly Polarized Antenna (Optional)
This 1.3GHz VRX module is an essential tool for long-range FPV pilots, ensuring crystal-clear video transmission with integrated DVR functionality for recording and reviewing flight footage.
Details
1.3GHz Analog VRX module with a black antenna and control panel, featuring frequency settings for various channels. The text includes channel numbers and corresponding frequencies.
1.3GHz Analog VRX module with a built-in filter displays channel frequencies for Band A and Band B. It features a 3.5mm A/V output and supports up to 32GB storage capacity.

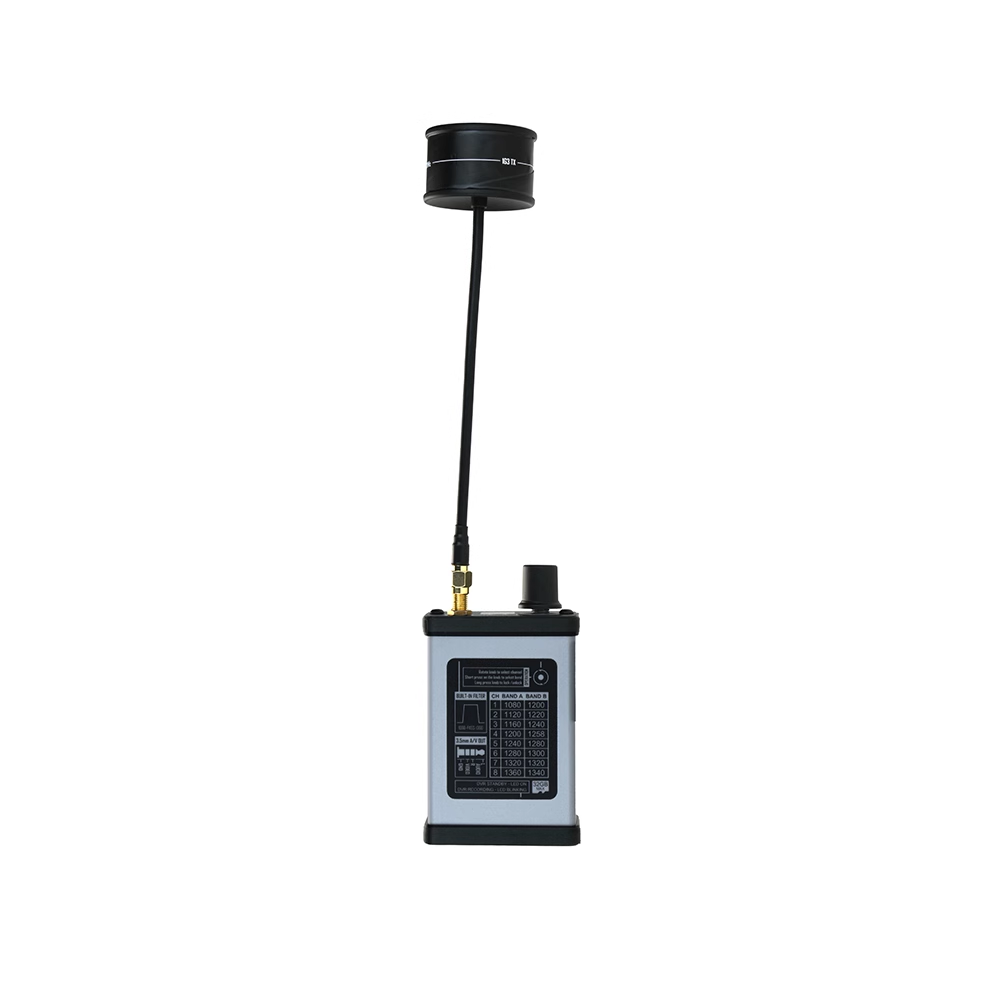

1.3GHz Analog VRX module with a built-in filter and channel settings, connected to an antenna via a cable.
7-30V DC-IN, A/V OUT, DVR, REC, TF CARD ports visible.
1.3GHz Analog VRX module features high-performance reception, integrated bandpass filter, optional DVR with TF card slot, A/B dual band support, and rugged aluminum alloy housing. Specifications include CVBS PAL/NTSC video output, 1080-1360MHz frequency band, -95dBm sensitivity, DC 7-30V input voltage, and dimensions of 83mm x 58mm x 27mm.
