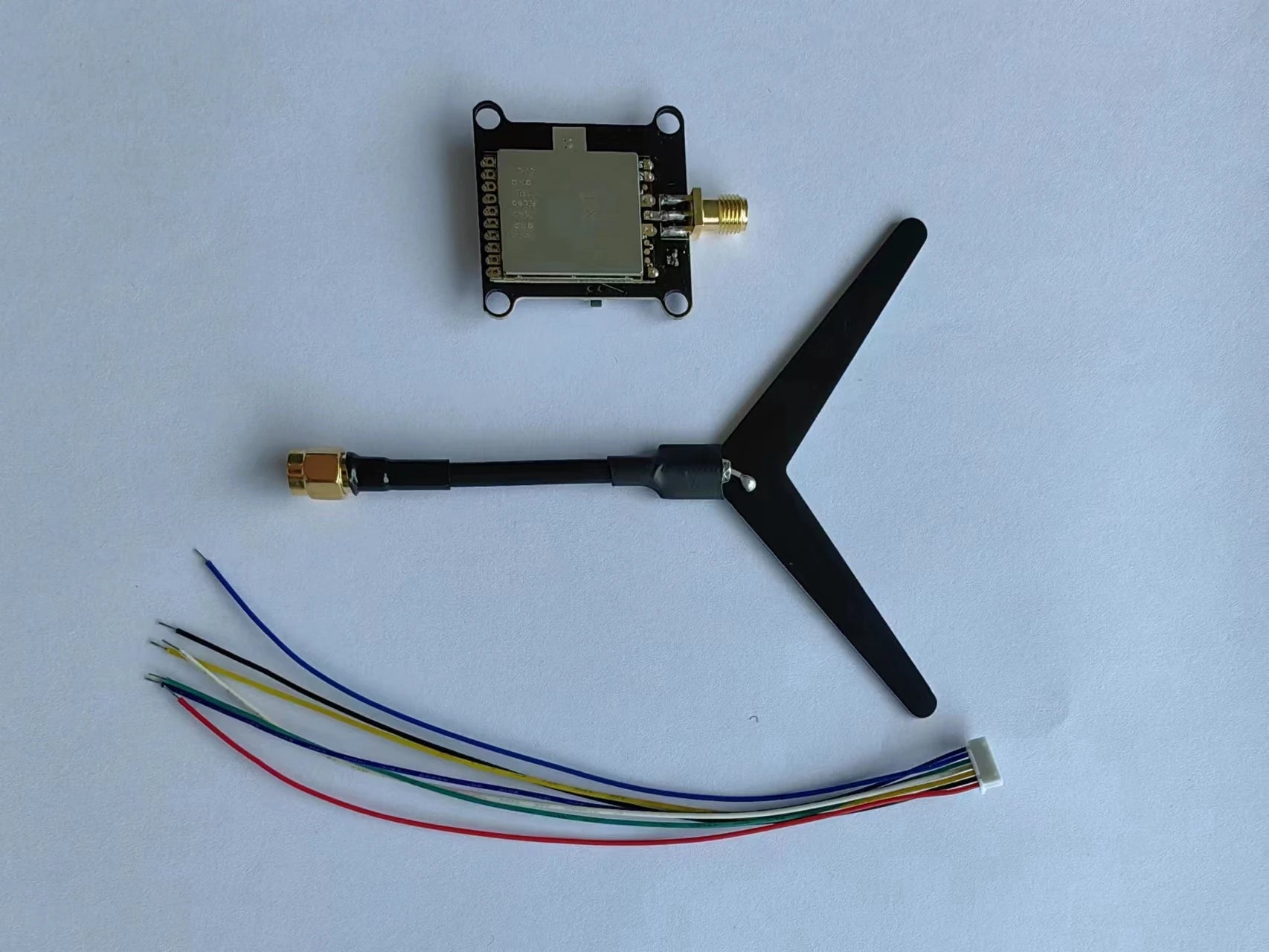

1.2GHz 2000mW 1600mW VTX / VRX-1G3-V2 SPECIFICATIONS

Brand Name: NoEnName_Null

Is Electric: No battery

Origin: Mainland China

Material: Plastic

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

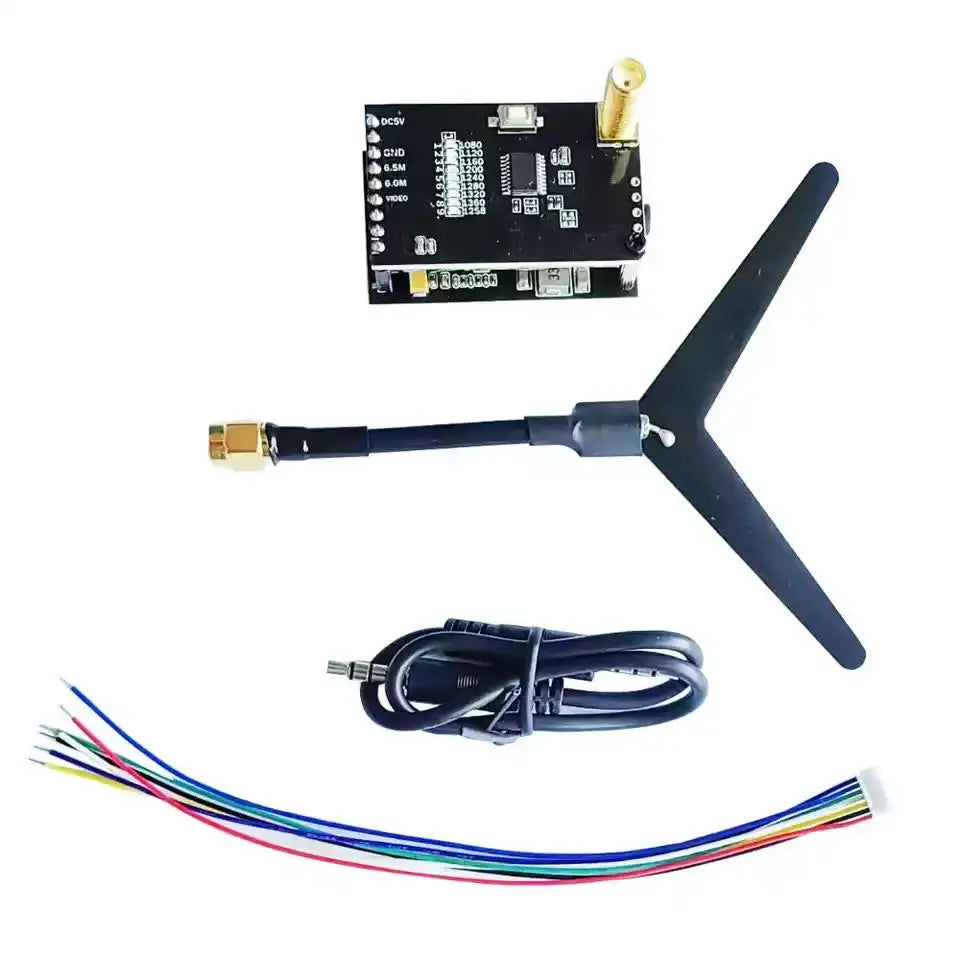

VRX

DC Characteristics）

POWER SUPPLY: 5.0V

Current Consumption: (280 ±40)mA

Environmental Specification）

RF Receiving frequency range 1050~1380MHz

Voltage Standing Wave Ratio 2:1

Demodulation system FM/PLL

IF 480MHz

ANT. input impedance: 50Ω, Typ.

Profile dimension: 44mm（L）*27mm(W)*27mm(H)

net weight :20g

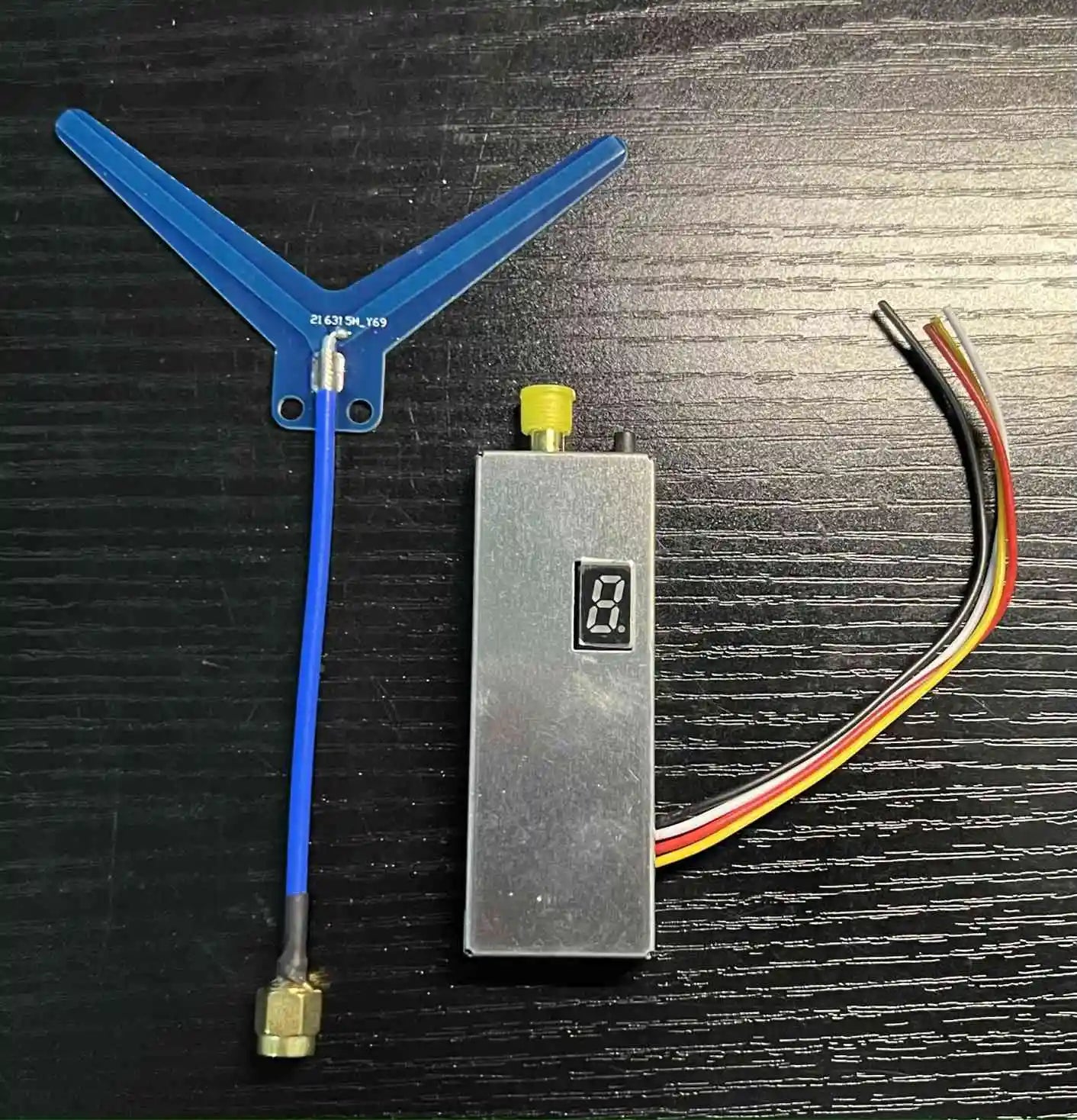

1500mW VTX Transmitter

Voltage:DC12V

Current:400mA

Frequency:1.2G-1.3

Channels:8CH

Connector: transmitter module side RP-SMA jack, antenna SMA plug

Frequency:CH4:1080 CH5:1120 CH6:1160 HC7:1200 HC8:1240 CH9:1280 CHH:1320 CHC12:1360

Power:1500mW

TRUERC SINGULARITY 1280 V2 – BLACK 1.3G Antenna

Specs:

• Gain: 1.9dBic

• Cross-Polar Rejection: -15 to -30dB, (2.2%)

• Bandwidth:1250MHz-1290MHz

• Radiation Efficiency:99%

• SWR:<=1.5:1

• Weight:x.xg

• Dimensions(head):40.5mm dia. X 22.5mm height.

• Length: xxmm

• Cable:RG402/RG316 coax.

• Connector:True-SMA ‘

•

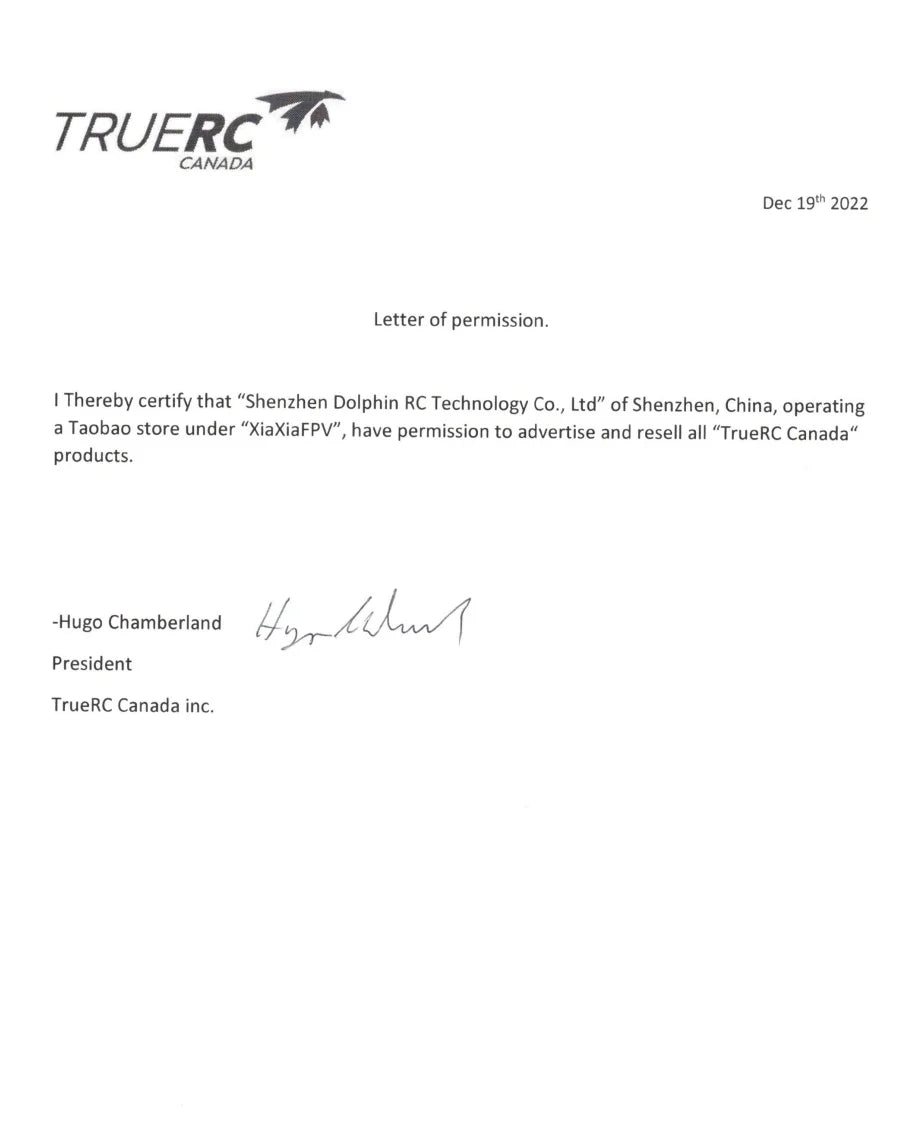

  certify that "Shenzhen Dolphin RC Technology Co , Ltd" have permission to advertise and resell all "TrueRC Canada products"

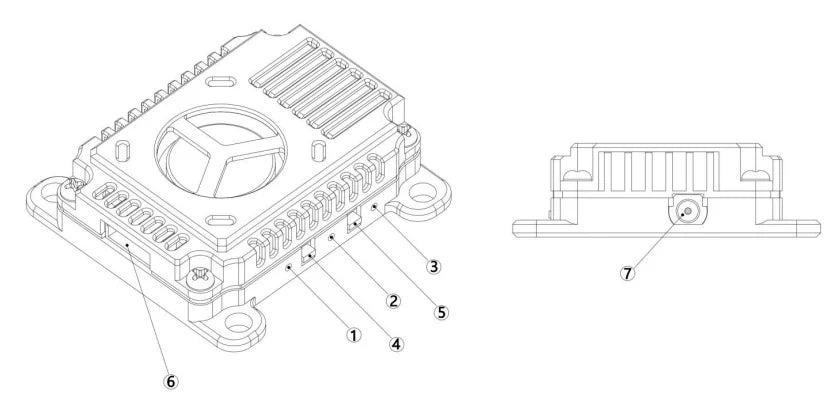

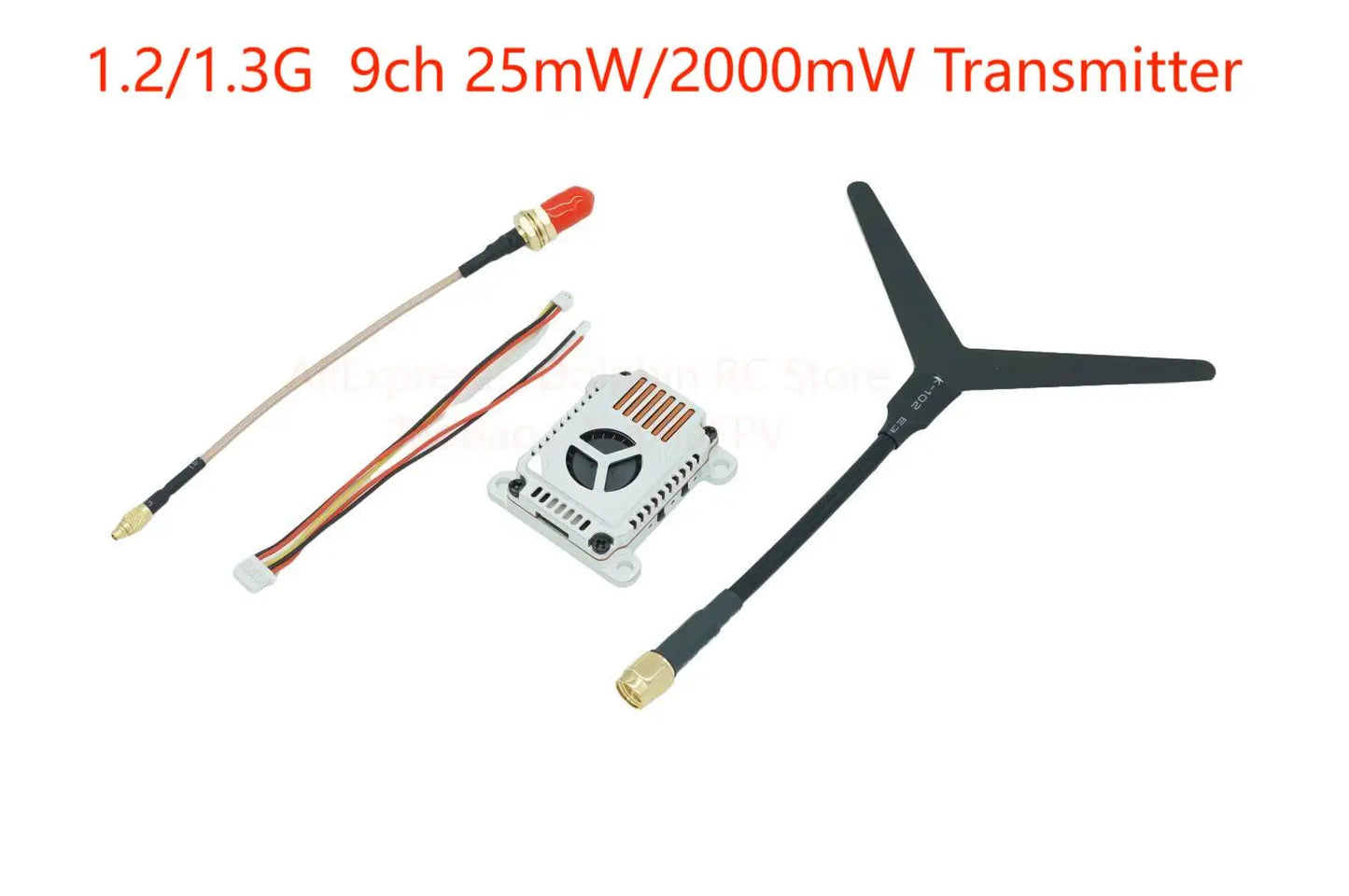

2W VTX Interface and key indicator layout:


1. Frequency point indicator light: red LED (1 frequency point-9 frequency points)
2. Power indicator light: blue LED (25mW)
3. Power indicator light: green LED (2000mW/Pit mode)
4. Frequency point adjustment key
5. Power adjustment key
6. 1.0 6P wiring socket
7. MMCX antenna pedestal
IV. Key control mode and LED indicator definition:

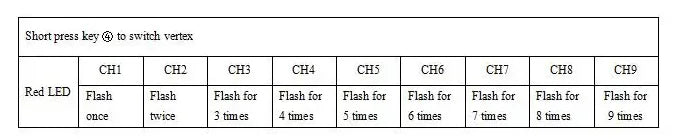

1. Key ④ is the frequency point switch key; every time when key ④ is pressed for a short time to switch to the next frequency point, the corresponding red LED ① will flash, 1.2.3.4.5.6.7.8.9 in turn. The operation can be cyclic; see the following diagram for details!

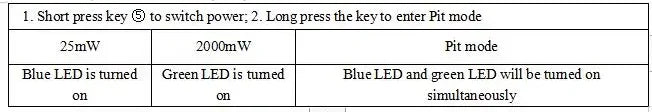

2. Key ⑤ is power adjustment key and and the power will be switched to the next one every time when the key is short pressed once, cyclic between 25mW and 2000mW. The current power is 25mW when the blue LED ② is turned on; the current power is 2000mW when the green LED ③ is turned on; The key is pressed and held for 3 seconds to enter pit mode and the blue LED ② and green LED ③ will be turned on simultaneously. See the following diagram for details!

Short press key to switch power; 2. Longpress thekeyto enter Pit mode 25mW 200OmW Pit mode Blue LED is tumed Green LED is

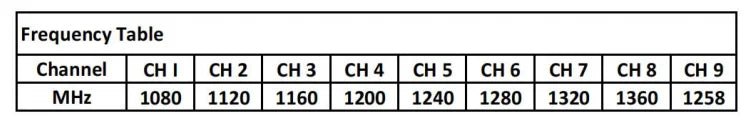

Frequency Table:

I. Performance and parameters:
1. 1.2G 9 frequency points: (1060MHz-1380MHz);
2. Maximum power: 2W (25mW/2000mW, two gears adjustable);
3. Input voltage: DC 7V-36V, supporting 2-8S battery input
4. Antenna interface: MMCX
5. Communication protocol: IRC Tramp
6. Heat-dissipating method: aluminum alloy heat sink+fan
7. Mounting hole location: 30.5mm*30.5mm /ø3.15mm
8. Product dimension: 37.7mm*36.1mm*11mm
9. Product weight: 16g

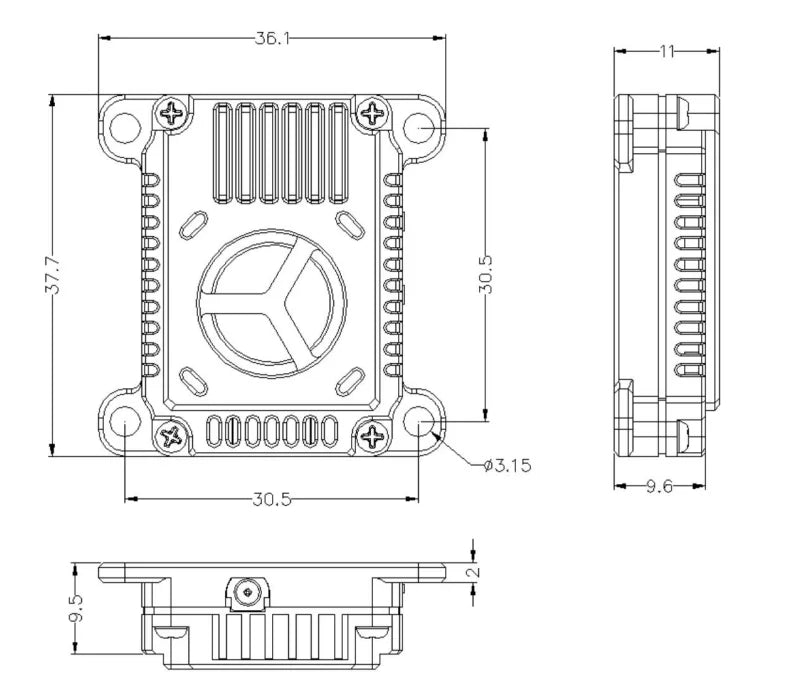

II. Product Size:
