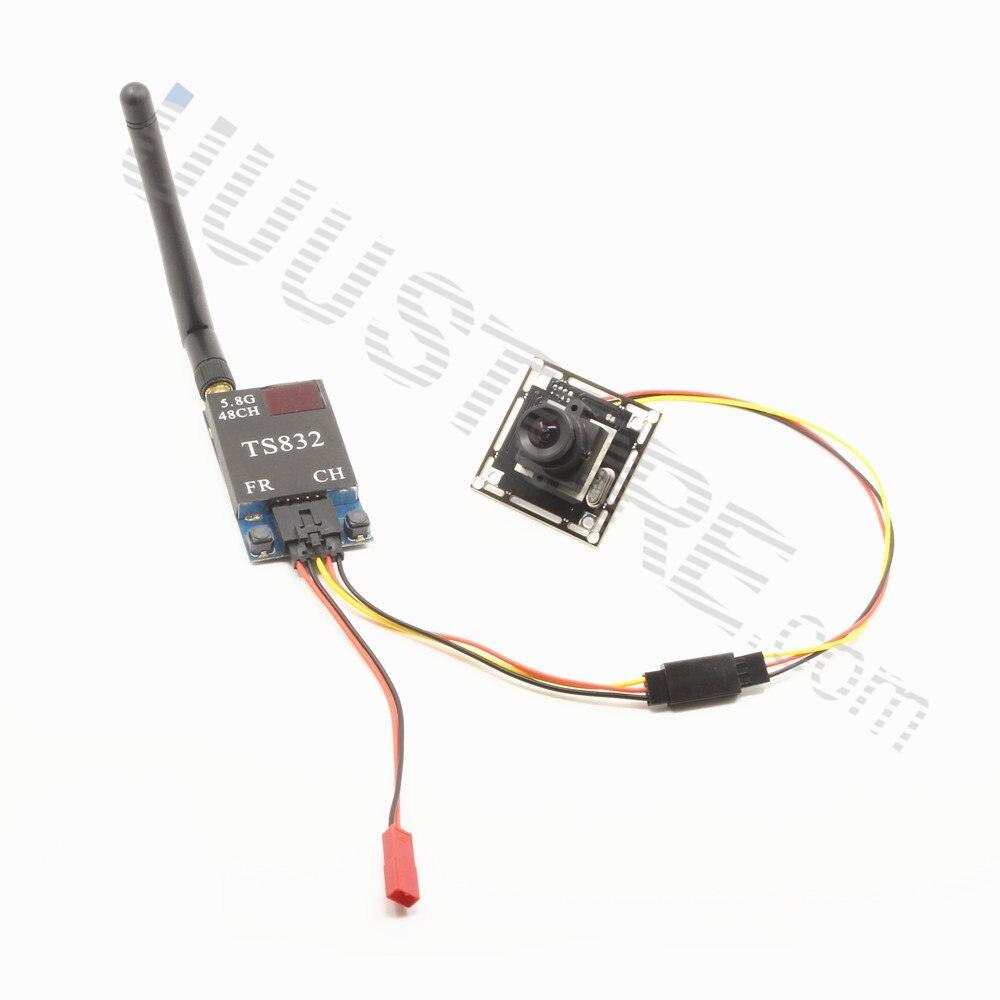

1000TVL Micro Camera w/ 2.8mm wide angle lens + TS832 5.8Ghz 48Ch 600mW FPV AV Wireless Transmitter for QAV-R 220 Quadcopter

1 x TS832 48CH transmitter with all cable

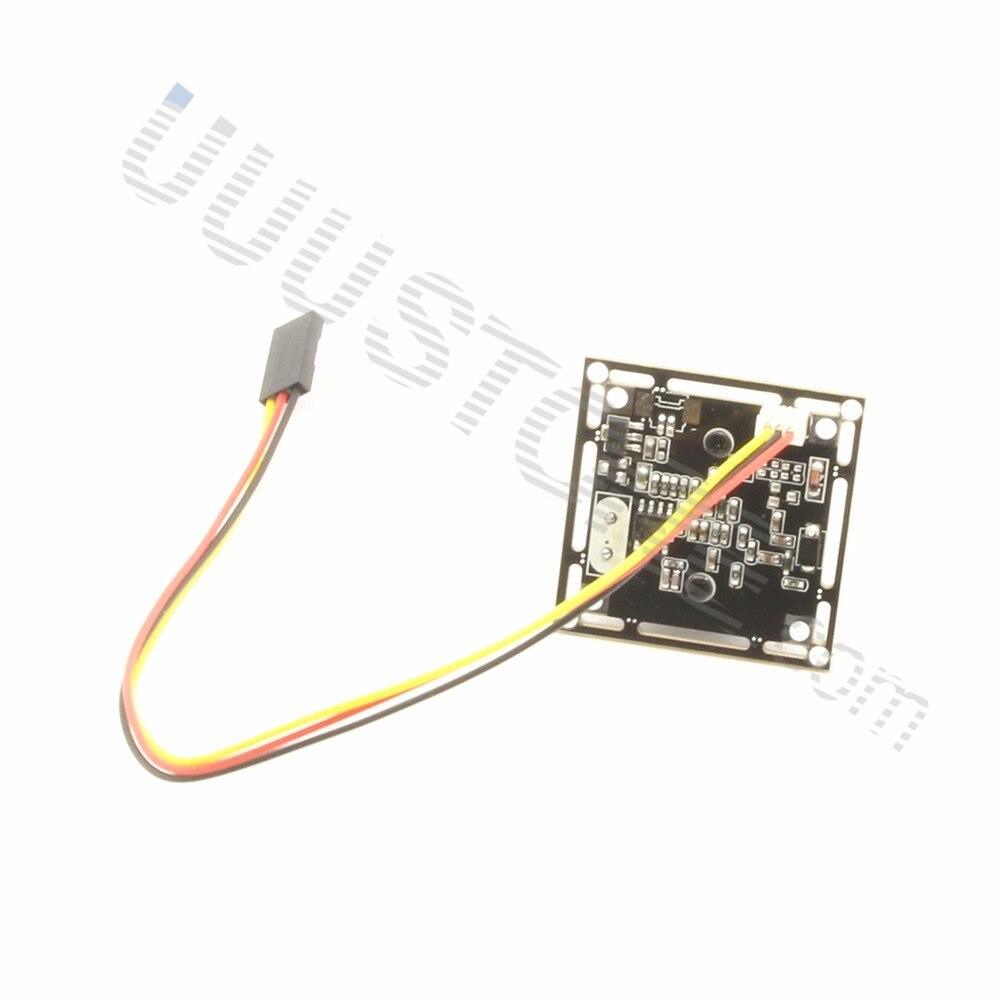

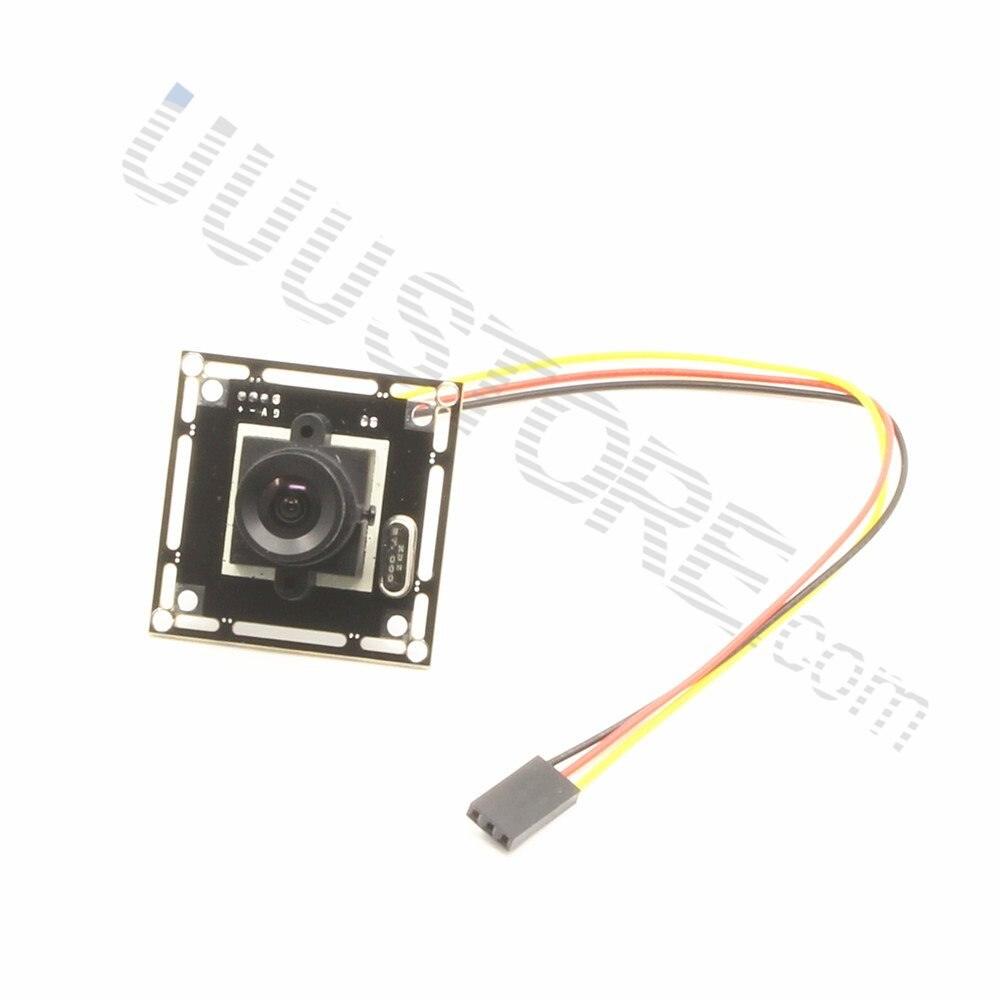

1 x 1000TVL Camere with cable

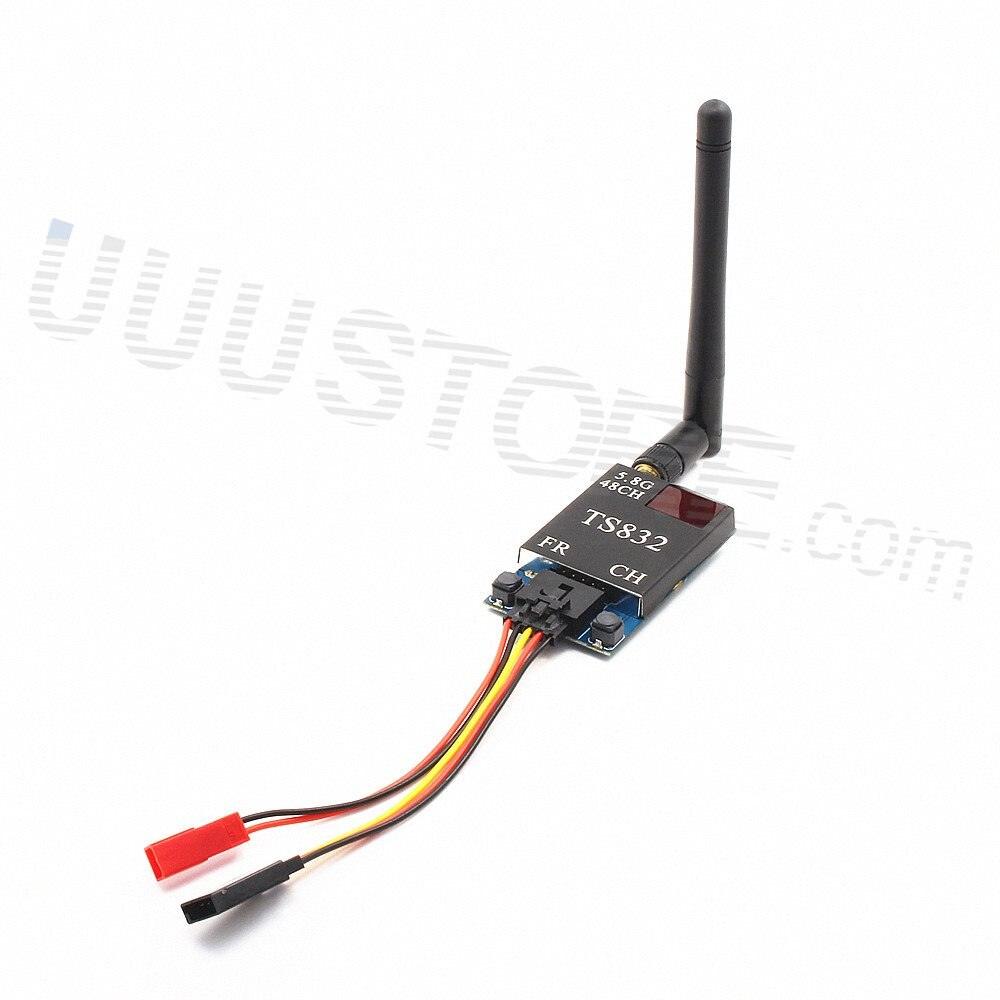

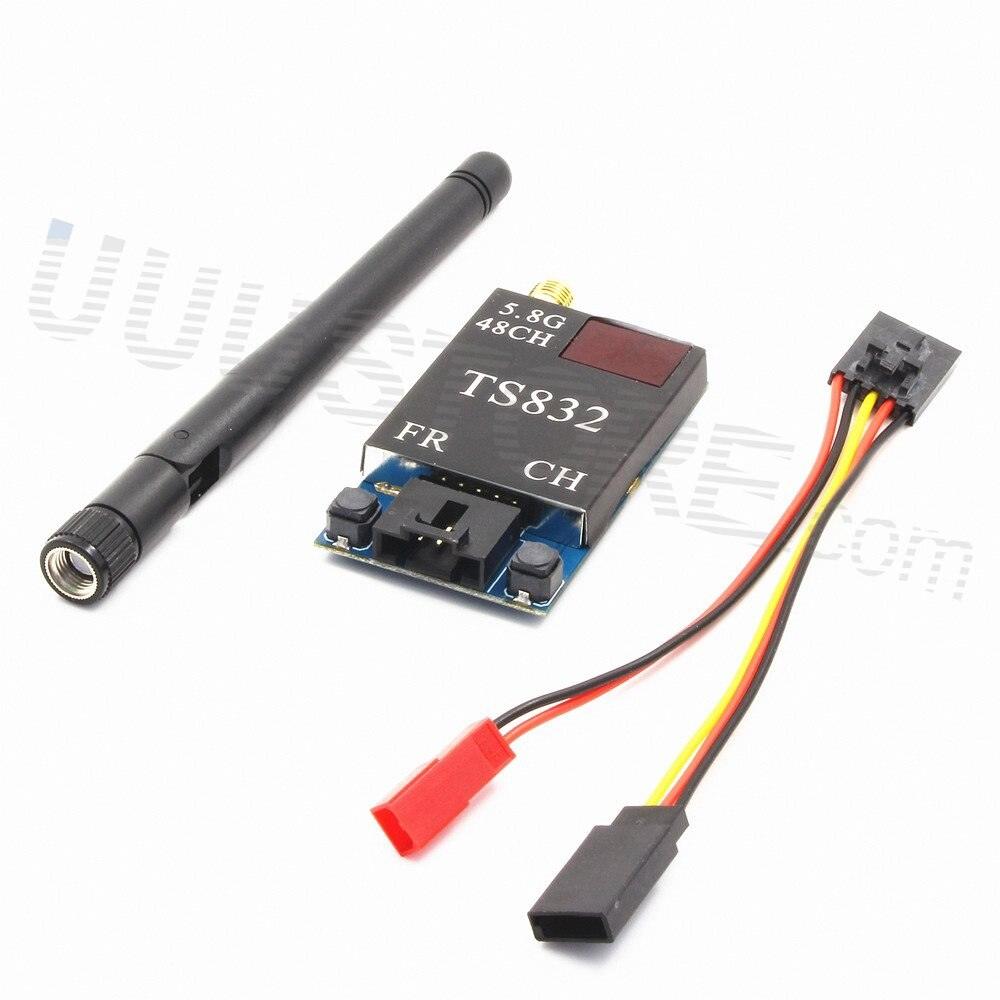

The TS832 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS832 is transmitting a full range of 32 channels and uses an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at a scant 21grams, it's Perfect for a wide range of aircraft!

*For best range and video link stability we recommend using the Boscam 5.8GHz Cloud Spirit circular-polarized Antenna Set (SMA-RP) available below in the accessory's tab

Features:
• 48 channels: Cover A, B,C,D,E bands and F bands
• Two switching buttons for the band and channel
• Two digits display for  the band and channel
• Power off memory for last channel and band

Specs:
Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack
Power input: 7.4-16V (3S Lipoly suggested)
Transmitting power: 600mW
Antenna gain: 2dbm
Working current: 220mA at 12V
Video bandwidth: 8Mhz
Audio bandwidth : 6.5Mhz
Weight: 21g
Dimension: 54x 32x 10mm(excluding antenna)


Frequency range:
