1406 3300KV Brushless Motor Kit for 2S–3S RC Aircraft – Options with ESC, 4025 Propeller, Mounts and Banana Connectors

Overview

This 1406 3300KV brushless motor is engineered for small fixed-wing RC aircraft and multi-rotor drones, delivering up to 320g thrust while maintaining stable low-current operation. It supports 2S–3S LiPo and can be paired with 4025 3-blade propellers for efficient lift and control. Multiple kit options are available, including motor + propeller sets, motor + ESC + mount, and full power systems.

Note: The black propeller version is discontinued. All orders now come with white 4025 propellers.

Motor Specifications

• KV: 3300KV

• Weight: 10.8g

• Shaft Diameter: 2.0mm

• Cable Length: 50mm

• Recommended Voltage: 7.4V–12.6V (2S–3S)

Performance Test Data

@11.1V (3S)

• Idle Current: 0.5A

• RPM: 37500

• Load Current (4” Prop): 7.3A

• Load RPM: 28000

• Thrust: 270g

@12.6V (Fully Charged 3S)

• Idle Current: 0.55A

• RPM: 42500

• Load Current (4” Prop): 8.6A

• Load RPM: 30500

• Thrust: 320g

Available Options

1. Power System (Full Kit)

• 1 × 1406 Brushless Motor

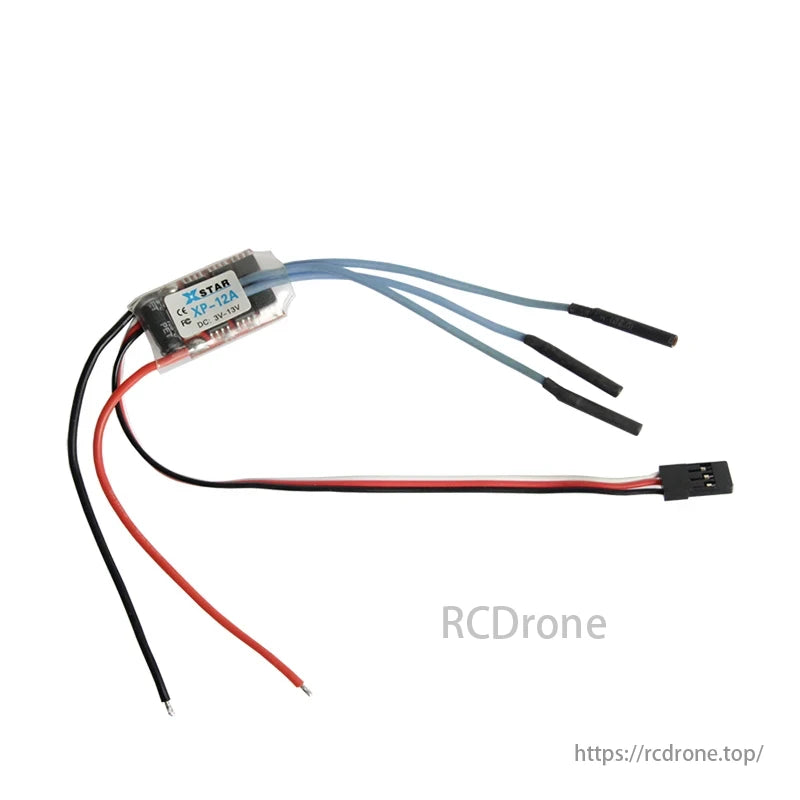

• 1 × XP-12A ESC

• 1 × Motor Mount with Screws

• 3 Pairs × 2.0mm Banana Connectors (male & female, pre-soldered)

• 1 × 4025 3-Blade Propeller (white)

2. 1 Pair CW + CCW Motors Set

• 1 × CW 1406 Motor

• 1 × CCW 1406 Motor

• 2 × Motor Mounts with Screws

• 6 × 2.0mm Male Banana Connectors (pre-soldered)

• 6 × 2.0mm Female Banana Connectors

• Heat Shrink Tubes

3. CW Motor with Propeller

• 1 × CW 1406 Motor

• 1 × Motor Mount with Screws

• 1 × White 4025 3-Blade CW Propeller

• 3 × 2.0mm Male Banana Connectors (pre-soldered)

• 3 × 2.0mm Female Banana Connectors with Heat Shrinks

4. CCW Motor with Propeller

• 1 × CCW 1406 Motor

• 1 × Motor Mount with Screws

• 1 × White 4025 3-Blade CCW Propeller

• 3 × 2.0mm Male Banana Connectors (pre-soldered)

• 3 × 2.0mm Female Banana Connectors with Heat Shrinks

5. 10 Propeller Set

• 5 × 4025 3-Blade CW Propellers (white)

• 5 × 4025 3-Blade CCW Propellers (white)

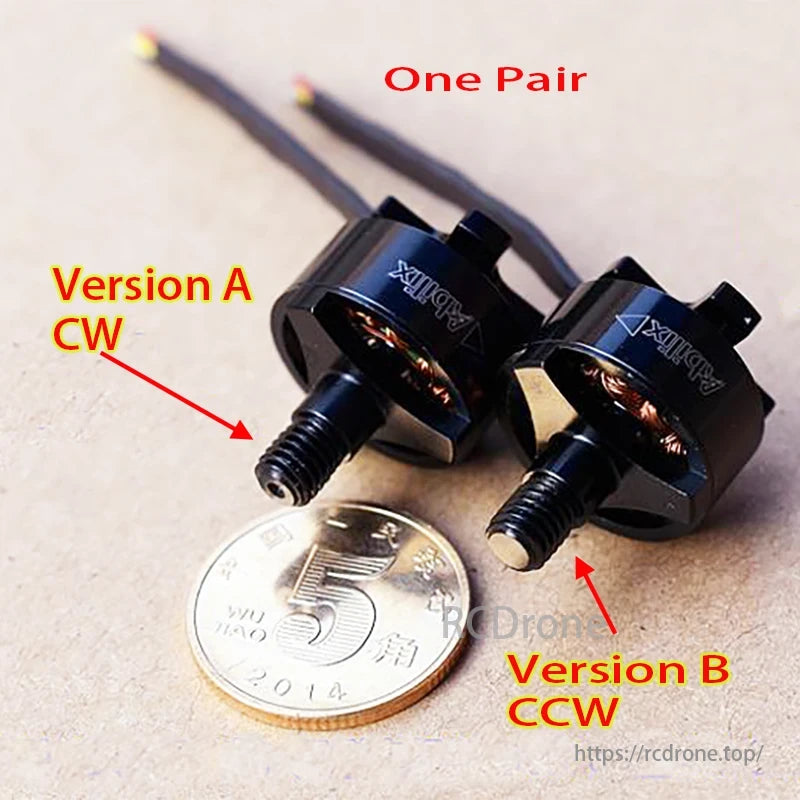

1406 3300KV Brushless Motor pair: Version A (CW) and Version B (CCW), with coin for scale.

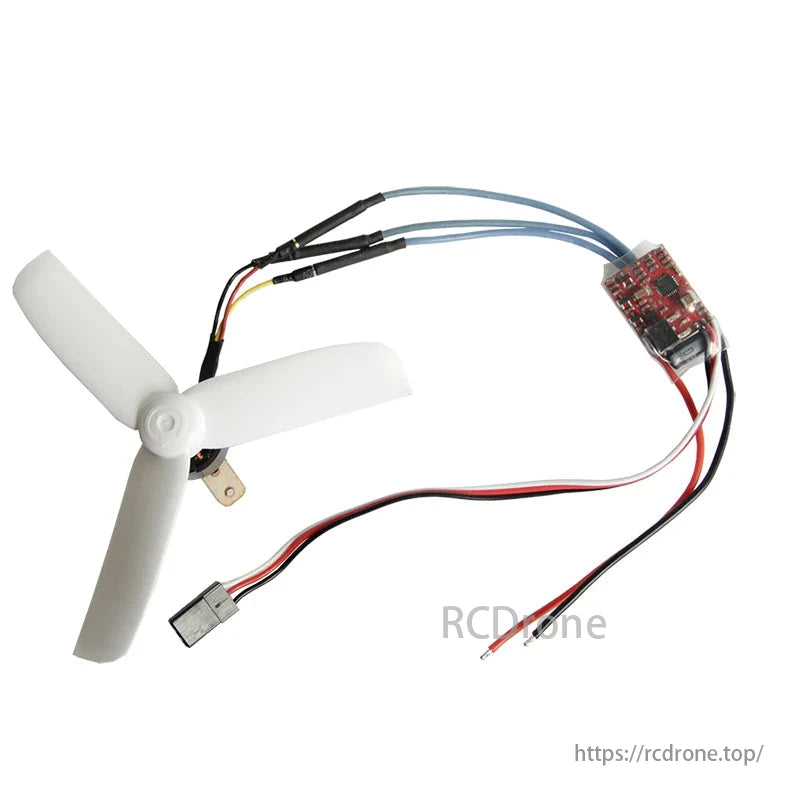

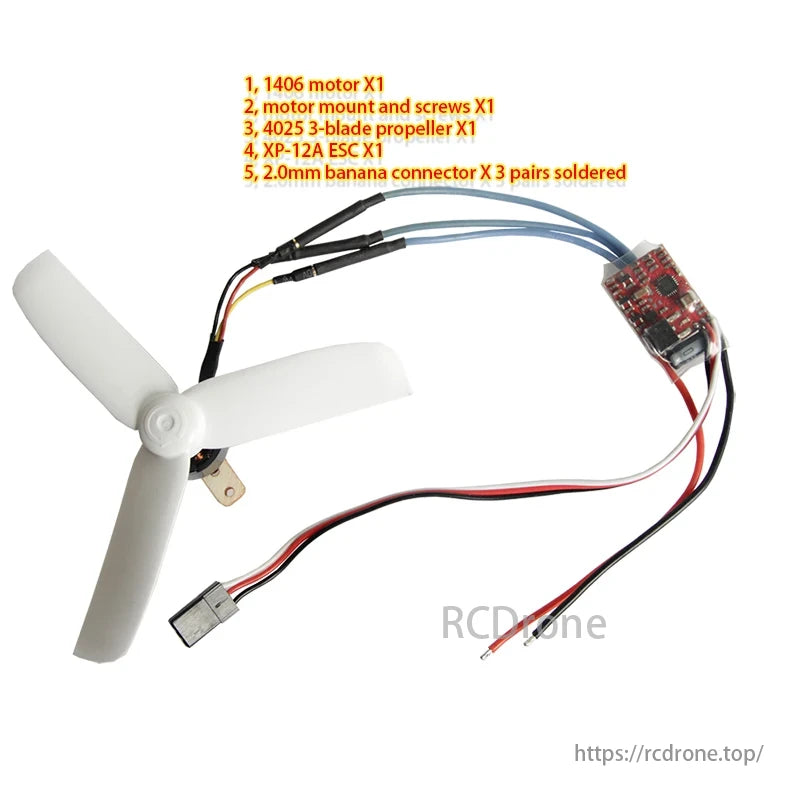

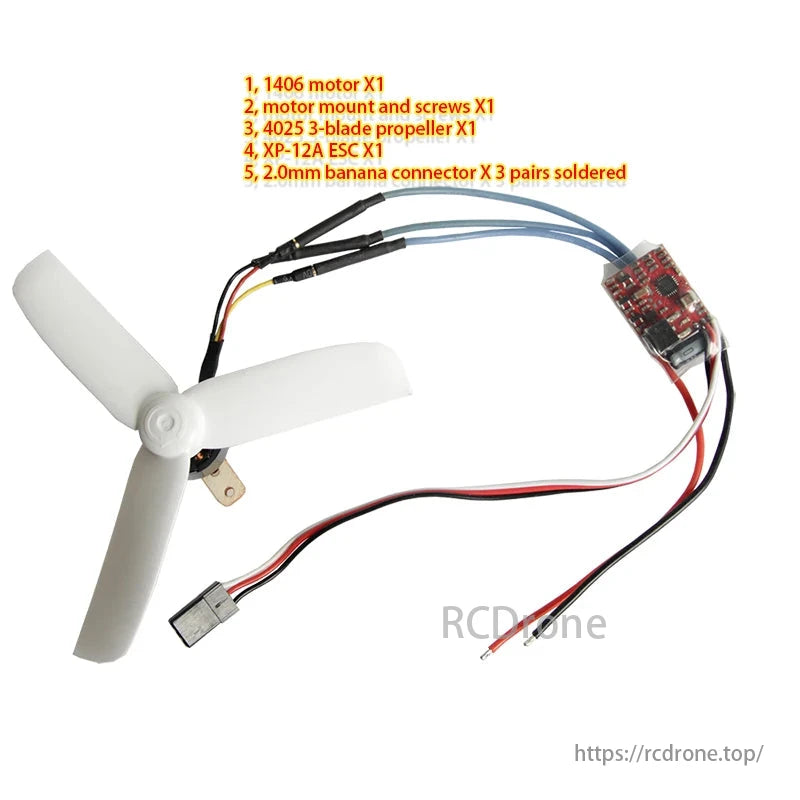

1406 motor, mount, 4025 3-blade propeller, XP-12A ESC, 2.0mm banana connectors included.

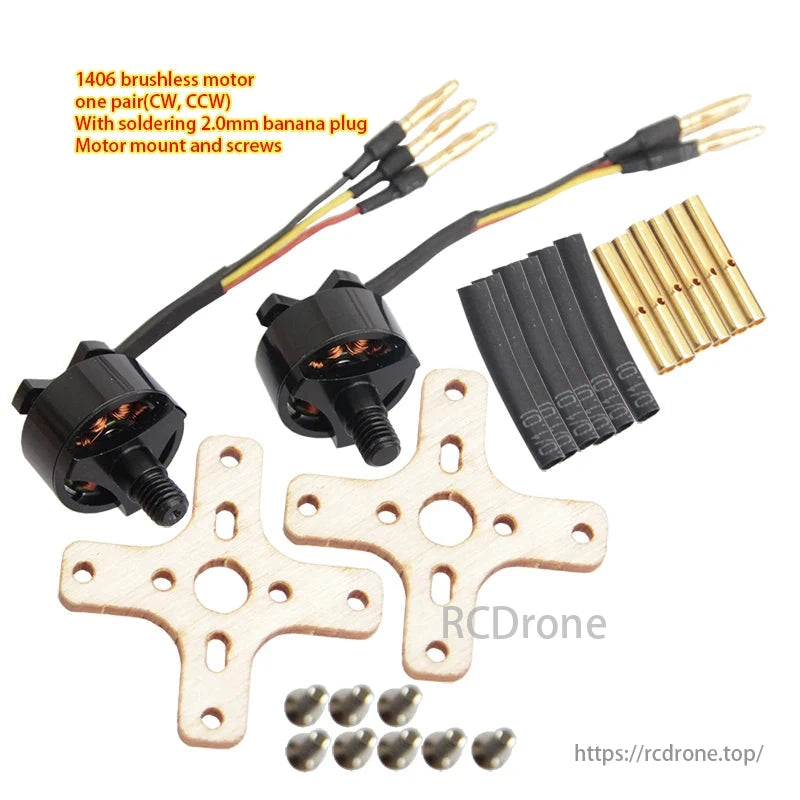

1406 brushless motor pair (CW, CCW) with 2.0mm banana plug, motor mount, screws, and heat sink included for RC applications.

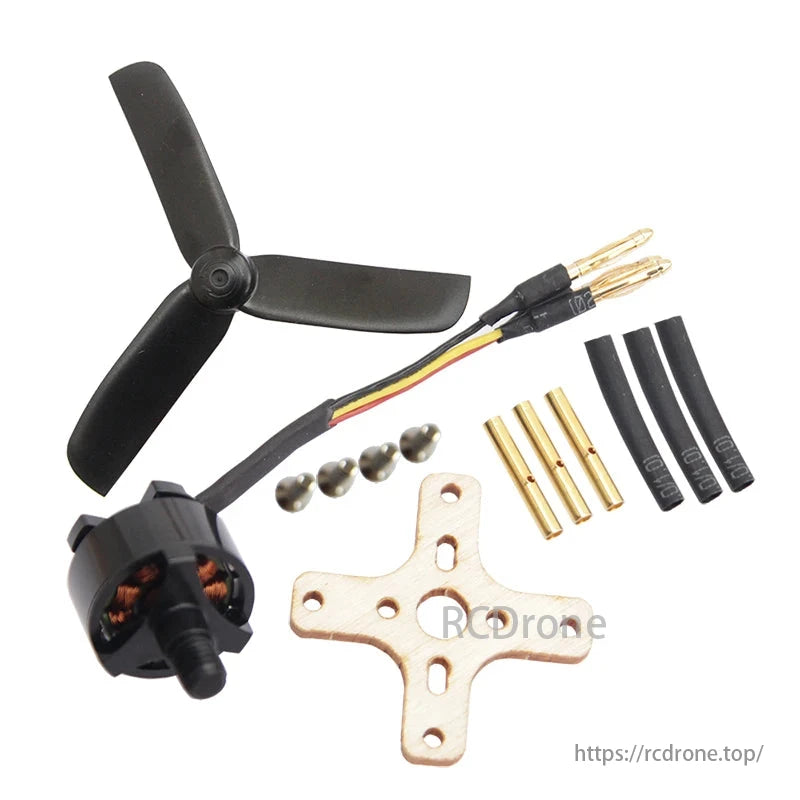

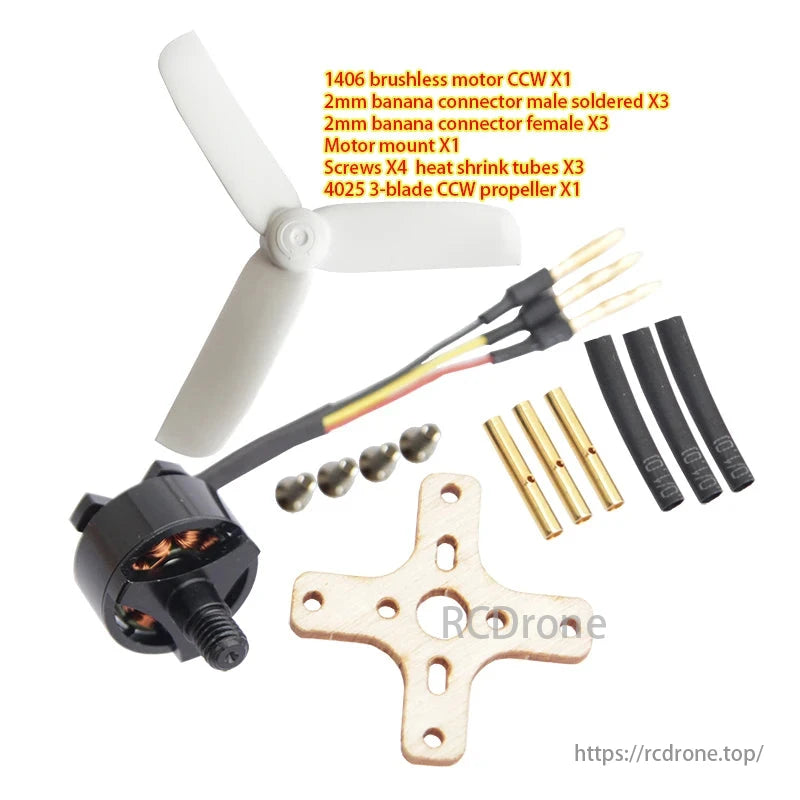

1406 brushless motor CCW, 2mm banana connectors (male & female), motor mount, screws, heat shrink tubes, 4025 3-blade CCW propeller.
