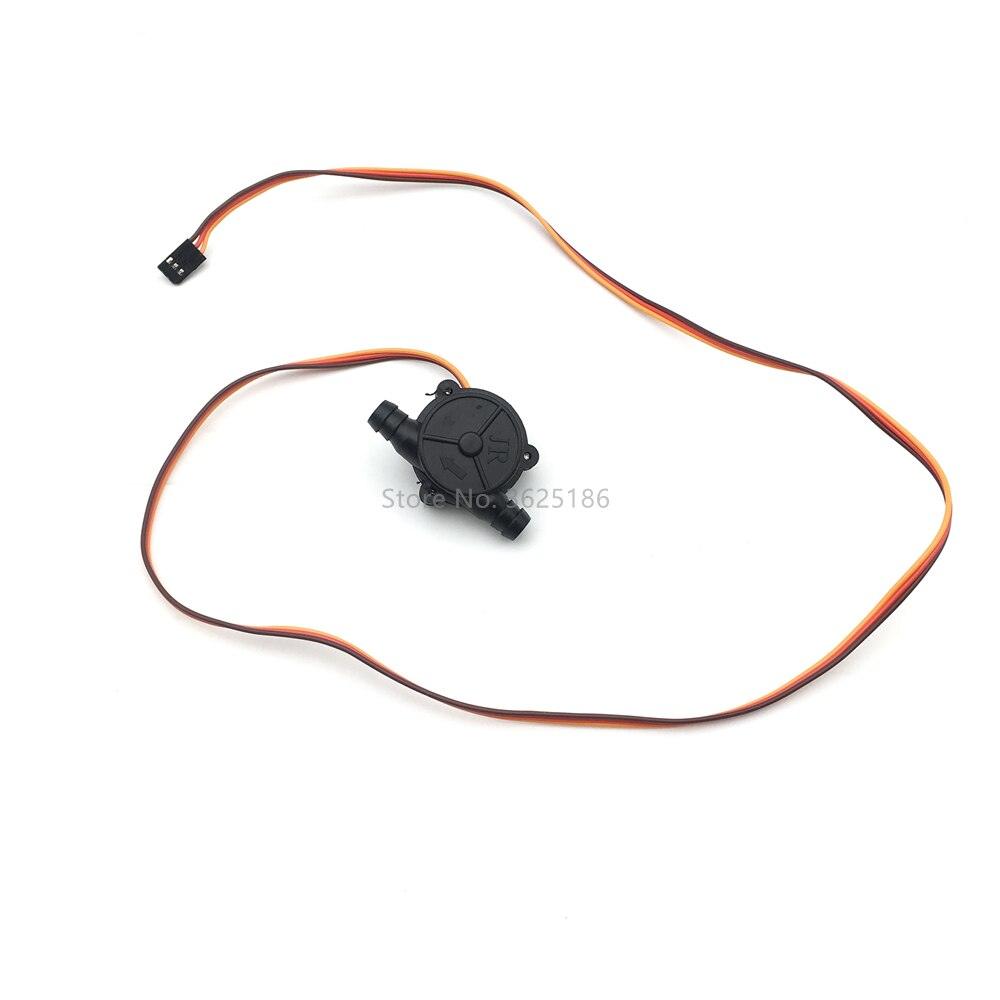

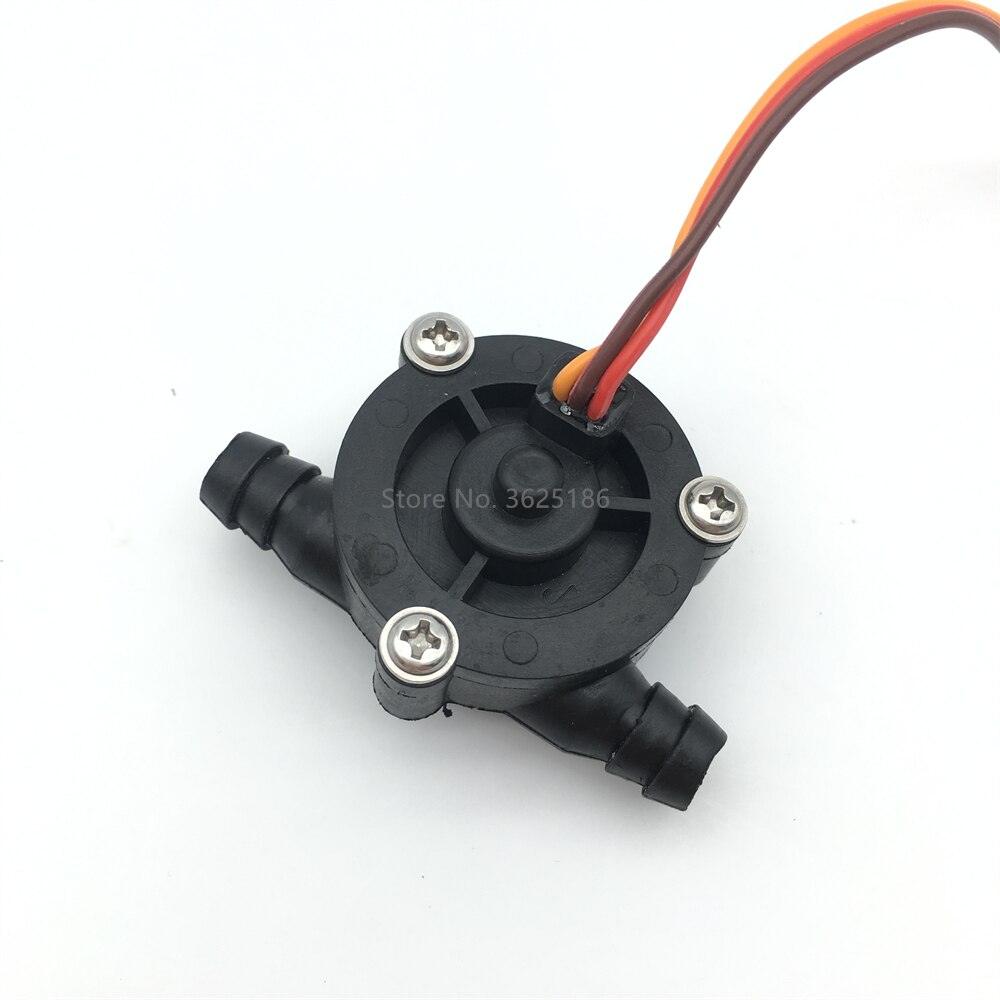

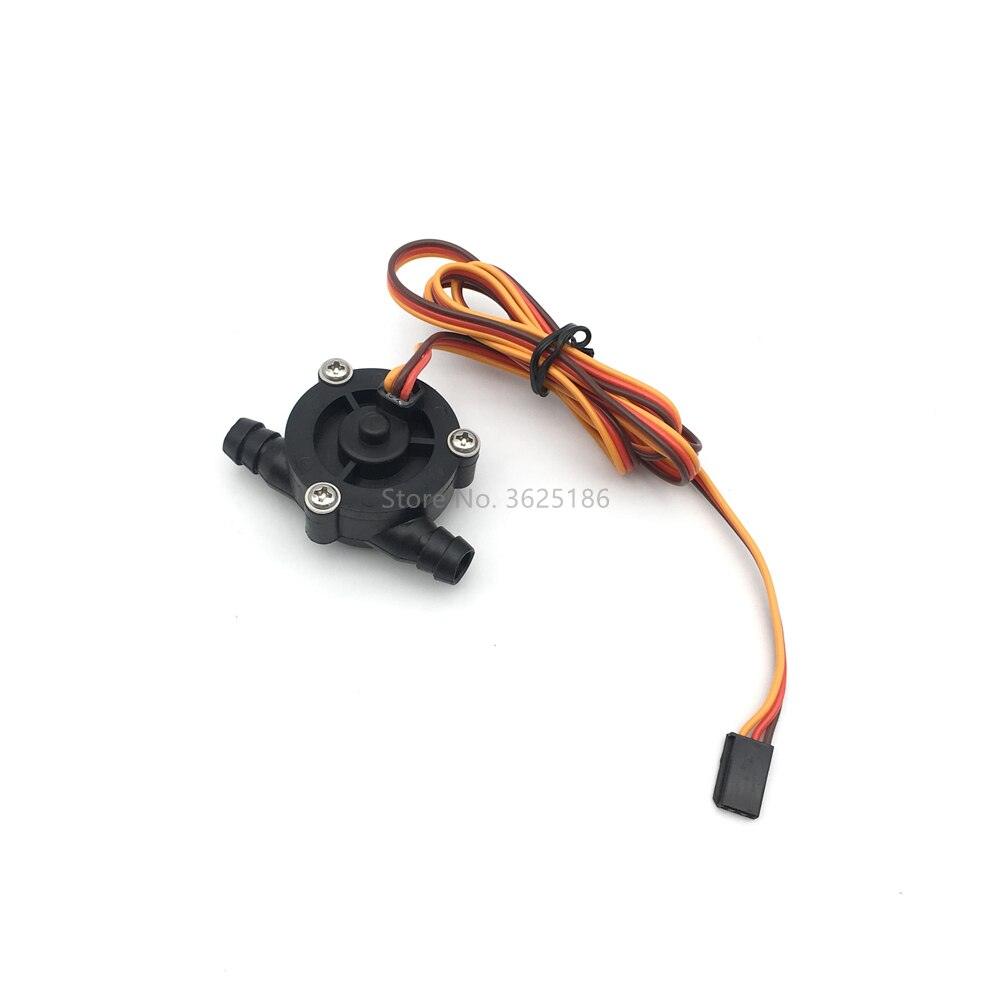

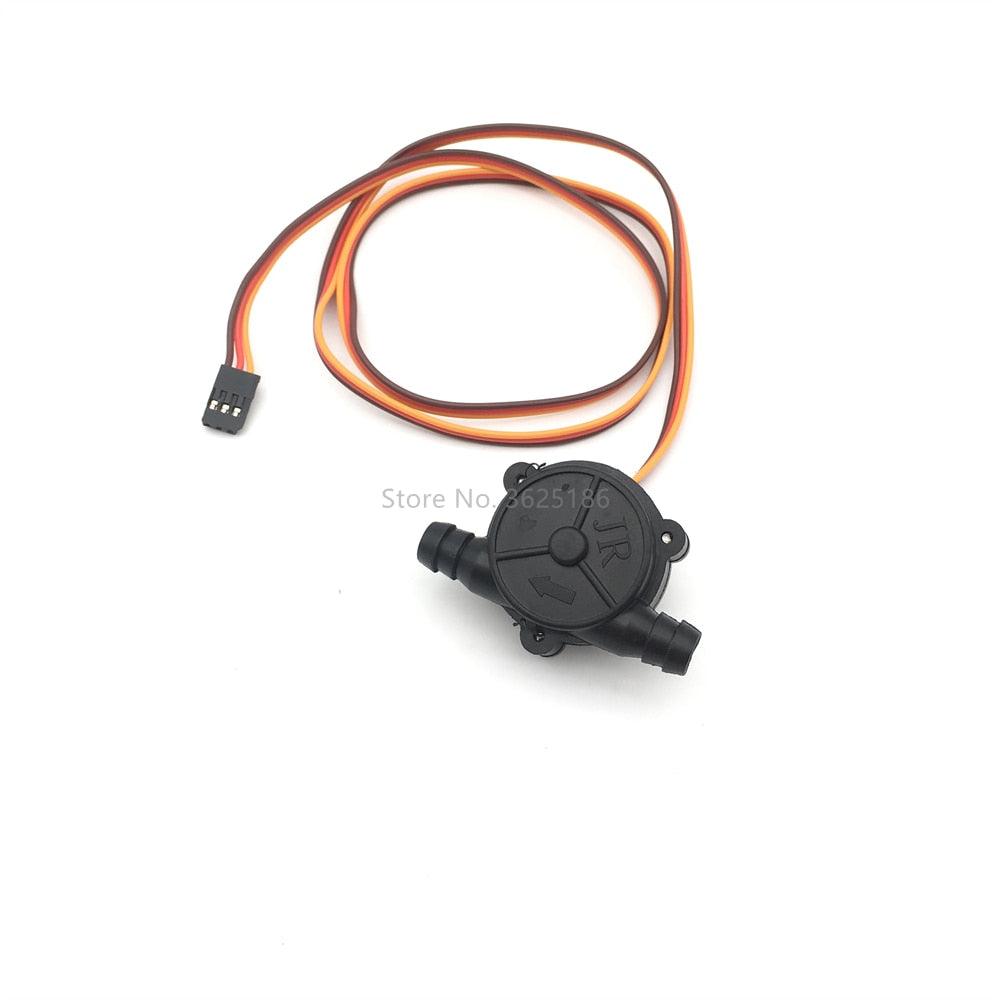

1pc 0.2-6L/min Water Flow Sensor - 8mm Pipe Interface Black Turbine Flowmeter Liquid Measuring Device for RC Plant UAV Accessories

1pc 0.2-6L/min Water Flow Sensor - 8mm Pipe Interface Black Turbine Flowmeter Liquid Measuring Device for RC Plant UAV Accessories

RCDrone

$19.91 USD
$39.82 USD $19.91 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

97 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Size: Water Flow Sensor

Recommend Age: 12+y,14+y

Quantity: 1 pcs

Plastic Type: PC

Origin: Mainland China

Model Number: 0.2-6L/min

Material: Plastic

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

1pc 0.2-6L/min Water Flow Sensor 8mm Pipe Interface Black Turbine Flowmeter Liquid Measuring Device for RC Plant UAV Accessories

Parameters:
-Flow accuracy: (0.2-6L/min) ±10%
-Working water pressure: 0.1-0.35MPa
-Interface outer diameter: 8-10mm (inserted inner diameter 8mm hose)
-Operating voltage: DC5-24V (rated 5V)
-Signal output: NPN pulse signal
-Electrical access DC5V/10ma condition: output high level DC4.5V or more, low level DC0.5V or less
-Response time: 0.2S (seconds)
-Pulse characteristics: F = (23 * Q) ± 10% Q = L / min
-Wiring method: red positive, black negative, yellow signal output
-Lead length: 75CM
Description:
-The flowmeter is divided into water inlet and outlet, which need to be installed in the direction of the arrow on the product, and the arrow direction is the direction of water flow. It is recommended to install the flowmeter between the medicine box and the water pump, which will help improve the accuracy of the medicine liquid measurement.

Package included:
1pc x flow meter


1pc 0.2-6L/min Water Flow Sensor, flowmeter should be installed between the medicine box and the water pump . this will help improve1pc 0.2-6L/min Water Flow Sensor - 8mm Pipe Interface1pc 0.2-6L/min Water Flow Sensor - 8mm Pipe Interface1pc 0.2-6L/min Water Flow Sensor, Flowmeter is divided into water inlet and outlet, which need to be installed in the1pc 0.2-6L/min Water Flow Sensor, flowmeter should be installed between the medicine box and the water pump . this will help improve1pc 0.2-6L/min Water Flow Sensor, flowmeter should be installed between the medicine box and the water pump . this will help improve1pc 0.2-6L/min Water Flow Sensor - 8mm Pipe Interface1pc 0.2-6L/min Water Flow Sensor - 8mm Pipe Interface
