SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Tool Supplies: Grinded

Technical parameters: Value 3

Remote Control Peripherals/Devices: ESC

RC Parts & Accs: Motors

Model Number: OEM

Material: Metal

Four-wheel Drive Attributes: Slot

For Vehicle Type: Airplanes

Brand Name: Readytosky





Question 1: How to connect the cable?



ch2Hn ( #AE 975 & RadioLink LED ChJidH4 Ln Blue Lod-$ BUS Quih Lham R9D Roi CdoMa 9CHANNEL RECEIVER 1 chSidia 404 Hu Choidja cuutuc Spread Spactrum Technology 09i41y PCB Diagram .



Question 2: Why the gimbal shaking so much after power supply?



1:When receive the gimbal, first install the camera, then supply the power, otherwise the gimbal will shake if not install the camera.

2:The gimal can only load the camera, becausethe gimbal has requirement to the weight, if equipped with a light camera , it will also shake, because it is too light.

3: If the cable bind the gimabl , the motor will also shake, pls let the cable far away from the gimbal.



Question 3: The Gimal cannot work after supply the power?



1: pls insert the sensor again, the sensor may be loose during transportation. Just INSERT once again



Question 4: Why the gimbal board  burned?



1: the current is too large, the breakdown of the IC module,pls use batteriy of low Amperage.



Question 5: What voltages can be used of the gimbal?



1:we proposed using 12V(3S battery )



GOPRO3/3+/4-compatible camera straps are suitable for Runcam, Ant, and similar cameras, compatible with DJI Wizard 1, 2, and other DIY UAV platforms.





Warm notice:



1. Recommended power supply is 12V(3s battery);

2, Camera must be fixed in the head (without any loosening);

3. Adjust the Gopro camera to the left or right,so that the camera is at Horizontal level;

4. Before camera fixed in the gimbal , please do not push " on " button to have power.

5,The gimbal camera must be use belt tight, otherwise it will have problems. And if you do this many times, it will cause damage to the flight controller.







Features of new Gimbal:



1. The exclusive new goods, welcome to wholesale new Russian version of GoPro two axis brushless gimbal, which support on the market a variety of multi axis,like DJI wizard, F450 , 550 650, etc.;

2. The gimbal in my store has already been calibrated for you, so you do not go to tedious debugging;

3. After receiving the gimbal, please do not electrify, first put the GOPRO3, keep the gimbal horizontal before it get power,  otherwise it will cause pan tilt, shake and so on;

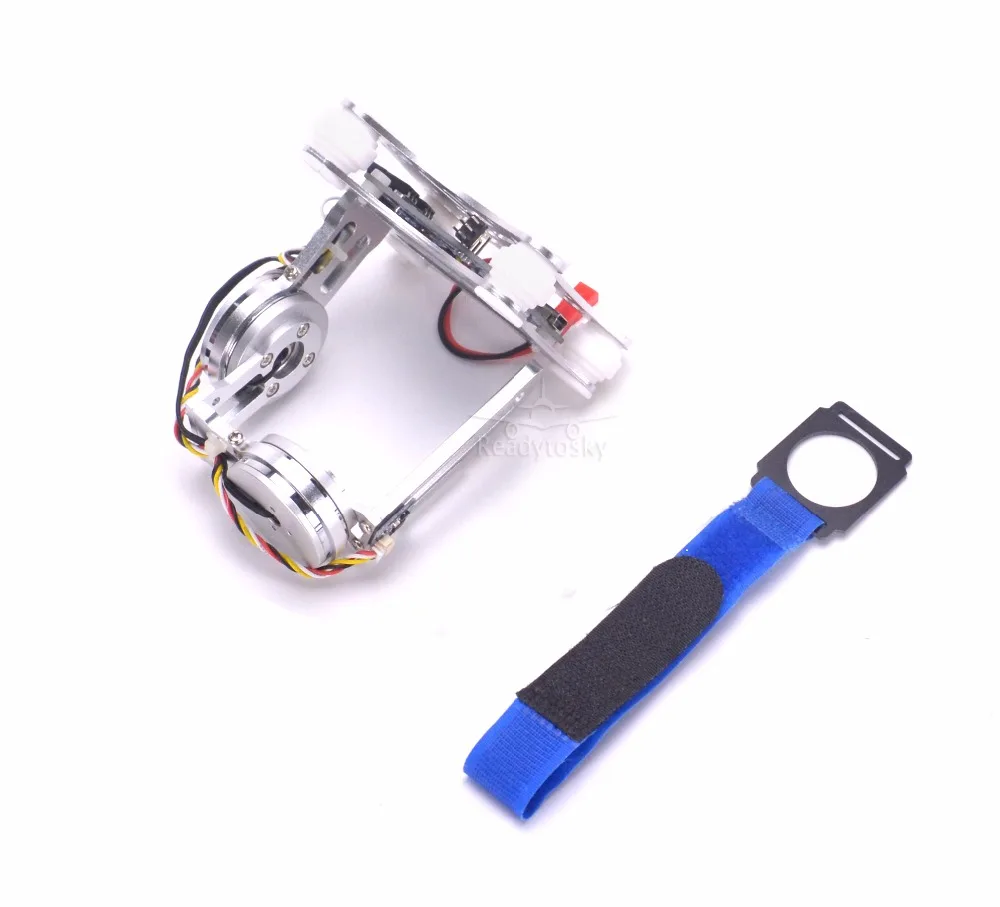

Package included:



1x gimbal and accesories

1x manual

1x camera belt ( blue and black color  send at random)



Note: camera is not included.
