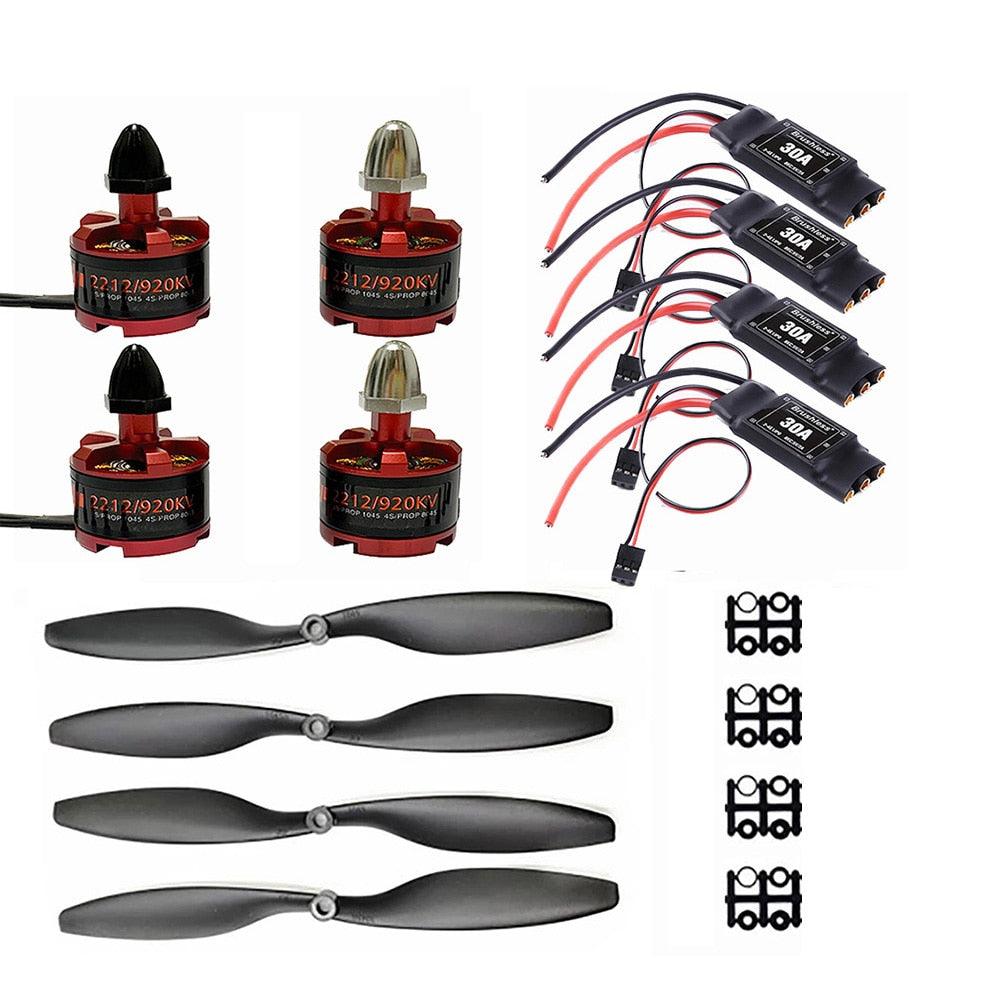

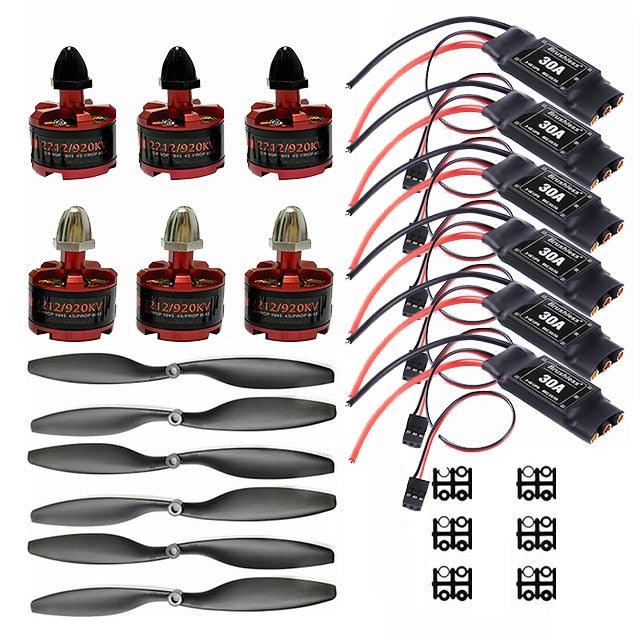

2212 920KV CW CCW Brushless Motor & 30A ESC Brushless with 3.5mm banana head for F450 F550 Multicopter

2212 920KV CW CCW Brushless Motor & 30A ESC Brushless with 3.5mm banana head for F450 F550 Multicopter

RCDrone

$41.40 USD
$62.10 USD $41.40 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

194 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: motor

Tool Supplies: Assembled class

Technical parameters: Value 4

Remote Control Peripherals/Devices: Motor

Recommend Age: 18+

RC Parts & Accs: Speed Controllers

Quantity: 1 pcs

Origin: Mainland China

Model Number: X2212

Material: Metal

For Vehicle Type: Airplanes

Brand Name: Skyquist

with BEC, the MCU separates the power supply and works more stably

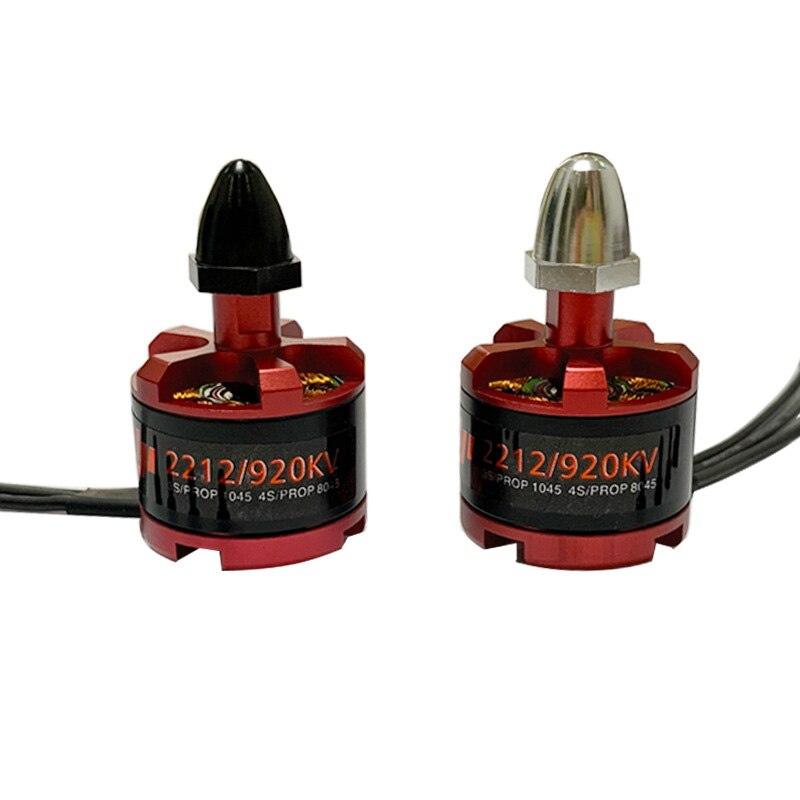

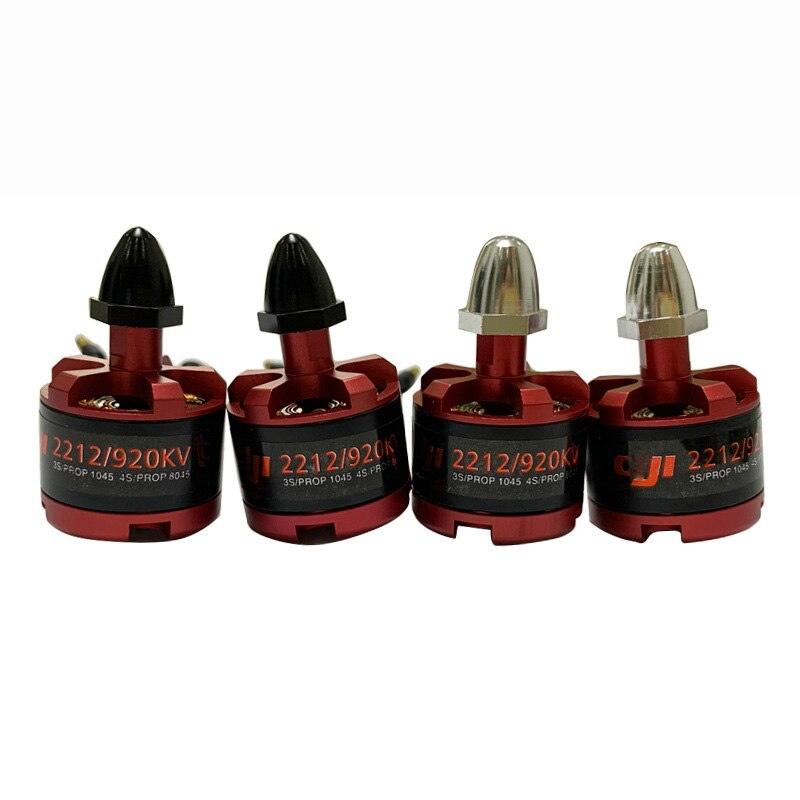

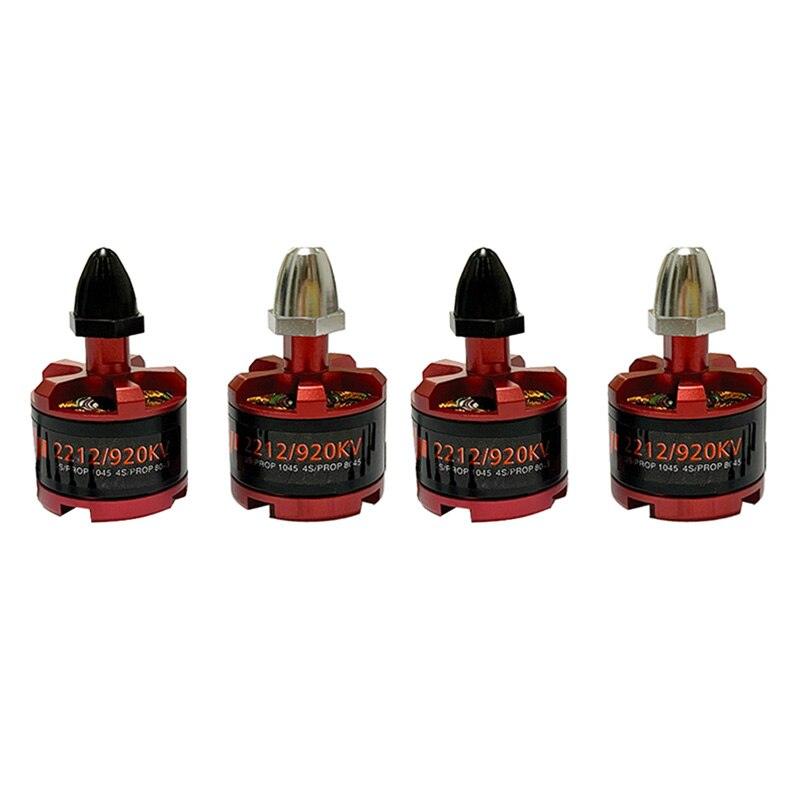

212 920KV CW Brushelss motor:
Outer diameter
28.0 mm
24.0 mm
920kv
Voltage: DC 7-12V
Weight: 53g
Fit for Dji Phantom F330 F450 F550 X525
Rotation direction Right right hand tread

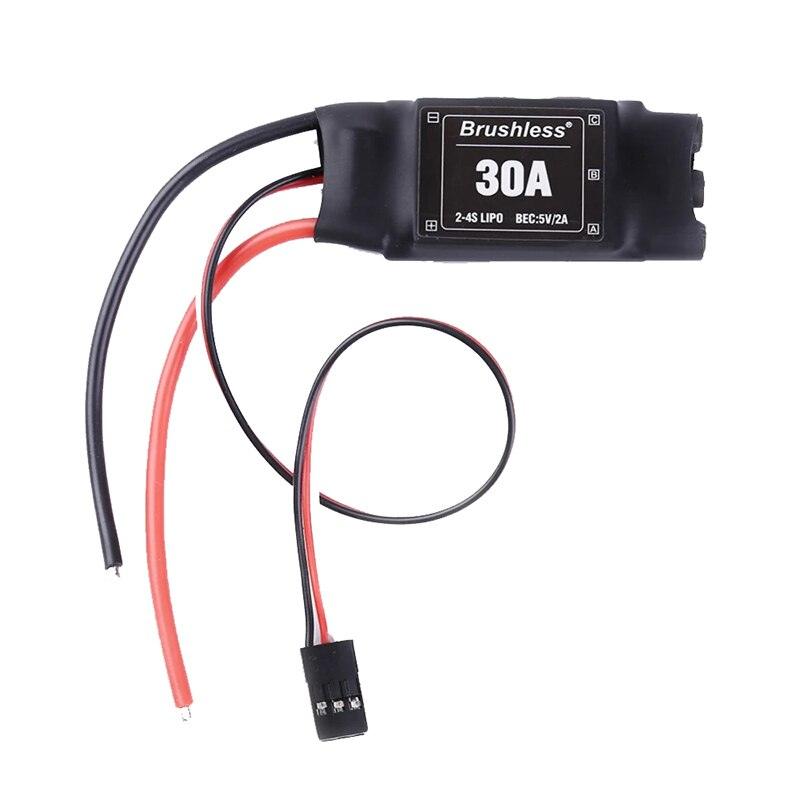

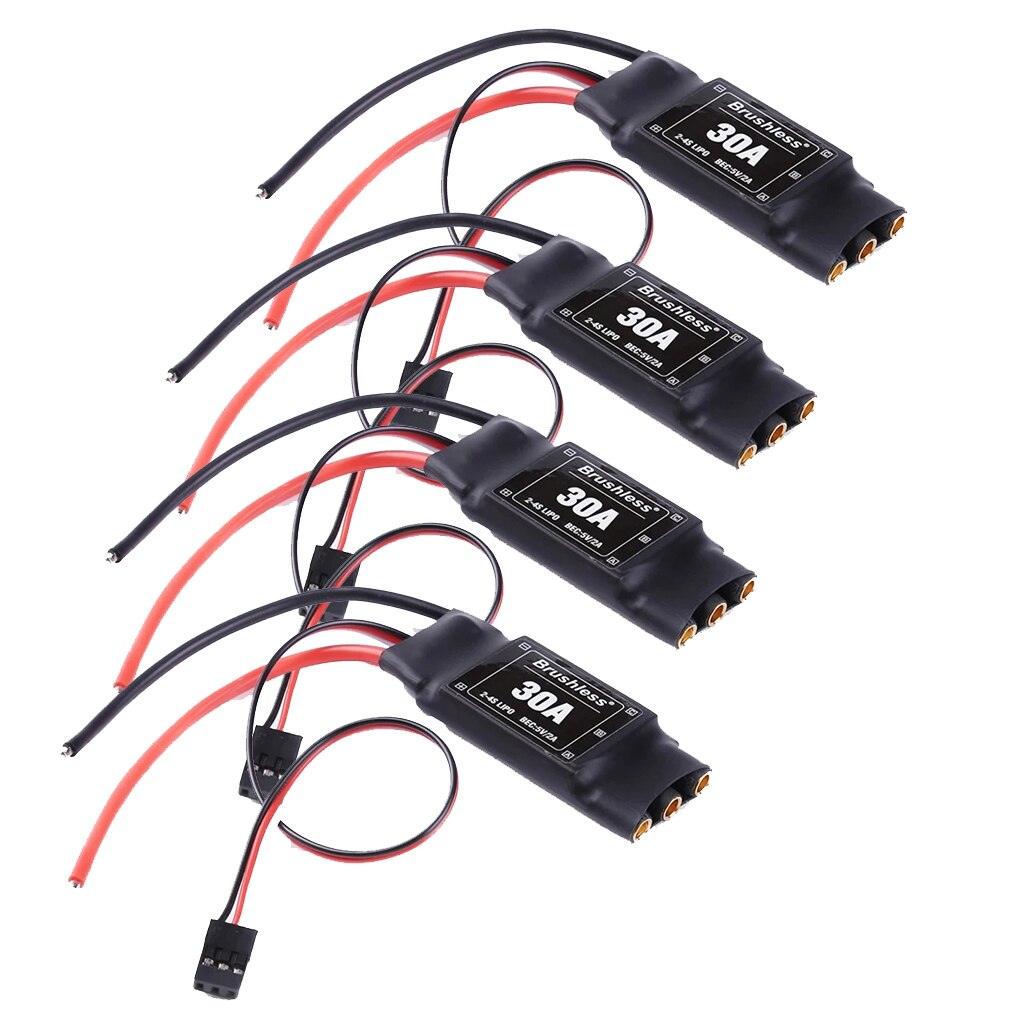

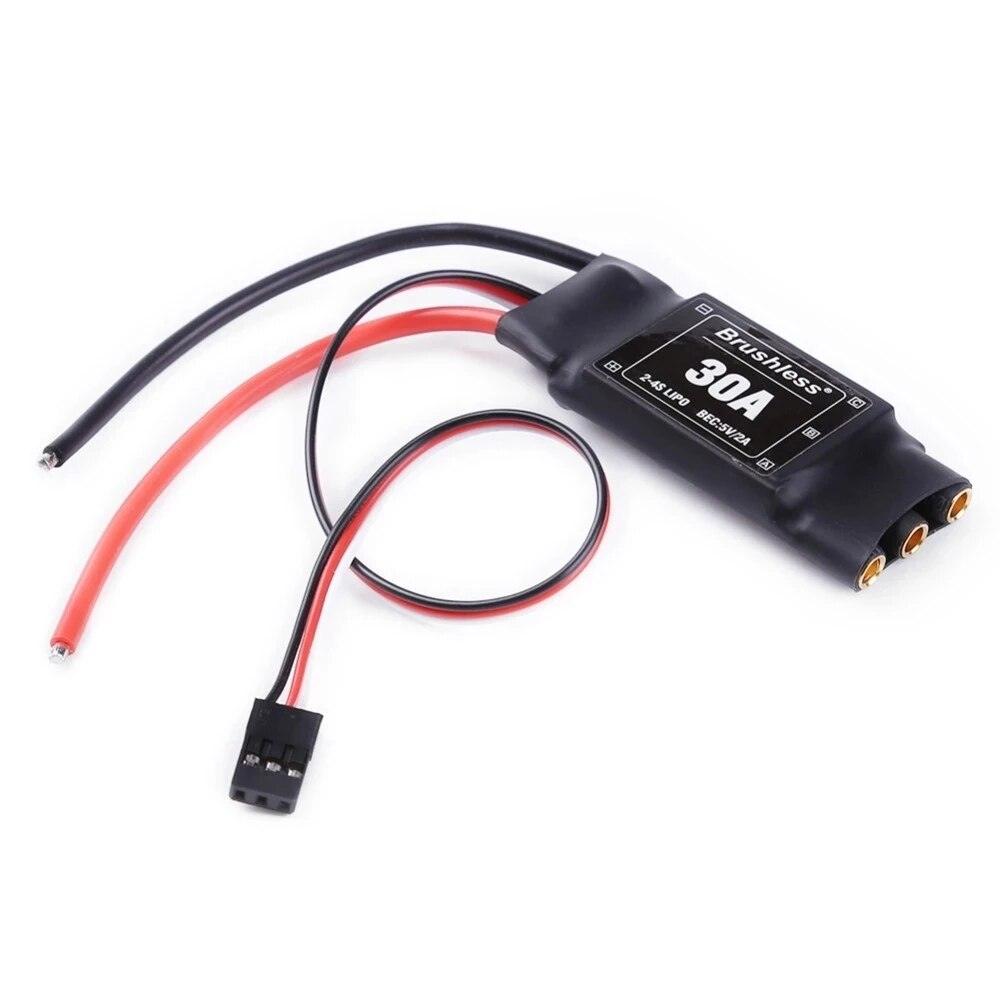

30A ESC:
Continuous current 30A, instant 35A, 40A for 10 seconds.
Dimensions / weight: 45 * 24 * 11 (mm), 25 grams (including line)
Voltage range: 4V-16V
Number of batteries: 2-4LIPO (4LIPO does not allow BEC output)
BEC output: 2A continuous, (instantaneous 3A)
2LIPO 4-5 Miniature Servo
3LIPO 3-4 micro servo
Protective function:
Automatically select 2-3LIPO, the protection voltage is 6V/9V respectively;
Automatically select NIMH, the protection voltage of each section is 0.8V;
Safe start, throttle position is not allowed to start;
Temperature protection, 110 degree surface temperature shutdown;
Out of control protection, no signal stops after 1 second.
Performance description:
The upper limit of the speed is 210,000 rpm in 2 poles, 35,000 rpm in 12 poles, and 42,000 rpm in 14 poles.
8KHz PWM control with speed control curve.
Automatic throttle adaptation for more remote control devices.
With BEC, the MCU separates the power supply and works more stably.


Skyquist 2 12 920KV CW Brushelss motor: Outerwith BEC, the MCU separates the power supply and works more stablySkyquist 2 12 920KV CW Brushelss motor: OuterSkyquist 2 12 920KV CW Brushelss motor: Outer"Brushless" 30A 245 LIPO BEC 5Automatic throttle adaptation for more remote control devices8KHz PWM control with speed control curvethe upper limit of the speed is 210,000 rpm in 2 poles, 35,000
