CNHL Battery SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Lithium Battery
Technical parameters: Value 2
Size: 1501004BK Combo 2
Remote Control Peripherals/Devices: Battery
Recommend Age: 12+y,14+y
RC Parts & Accs: Batteries - LiPo
Origin: Mainland China
Model Number: 1501004BK Combo 2
Material: lipo
Four-wheel Drive Attributes: Battery
For Vehicle Type: Airplanes
Certification: CE
Brand Name: CNHL

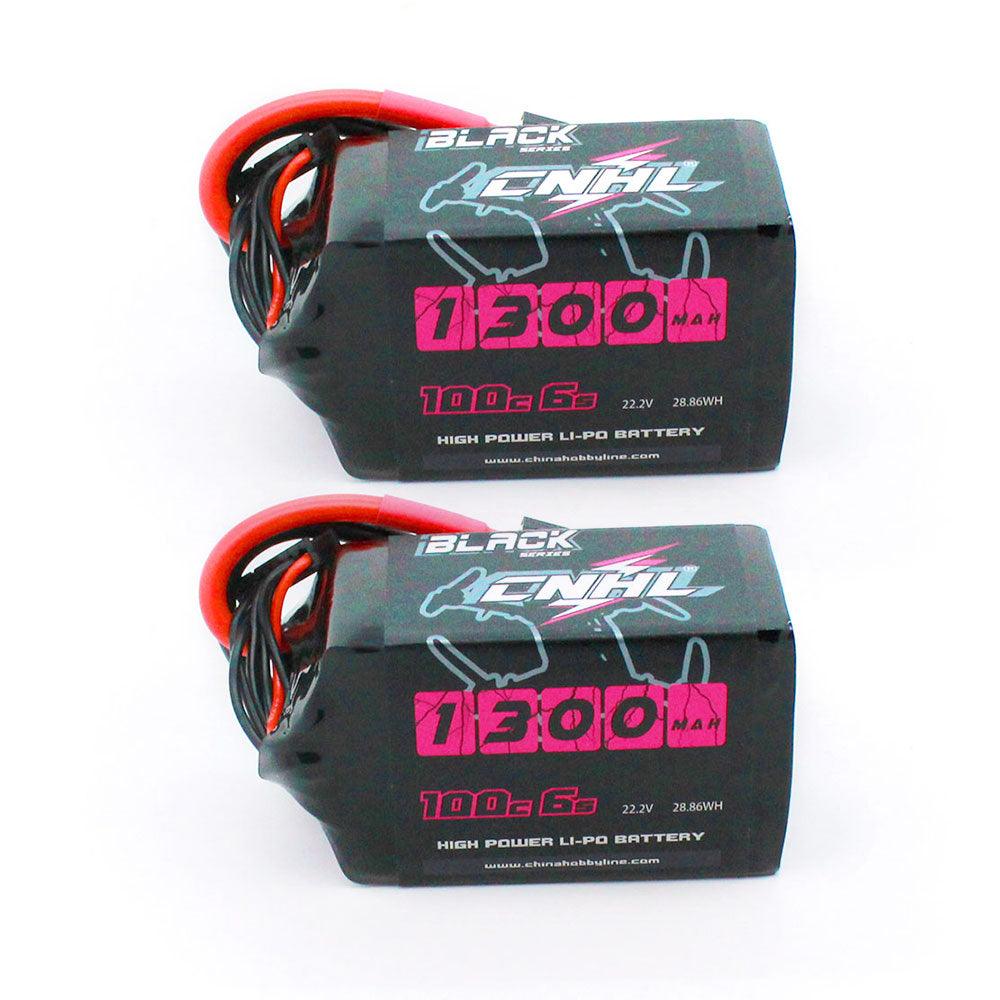

2PCS CNHL 4S 6S 14.8V 22.2V Lipo Battery 1100mAh 1300mAh 1500mAh 100C With XT60 For FPV Airplane Drone Quadcopter Helicopter
Specification:

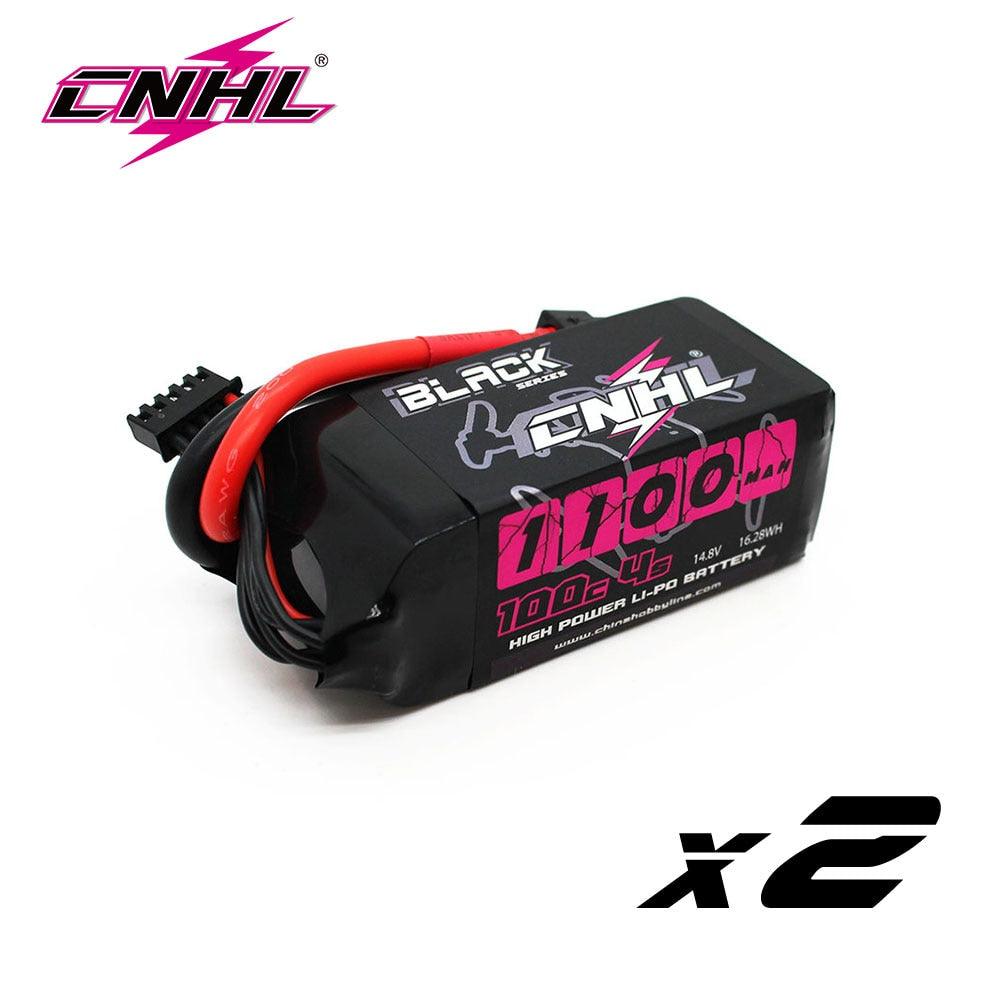

1.Model:1100mah-4S1P-14.8V-100C-XT60
Stock Number:1101004BK
Capacity :1100mAh
Voltage:14.8V / 4-Cell / 4S1P
Discharge Rate:100C Continual / 200C Burst
Charge Rate:5C Max
Size:30x34x76mm
Weight :146g (Including wire and connector)
Output Connector:XT60
Balance Connector:JST / XH

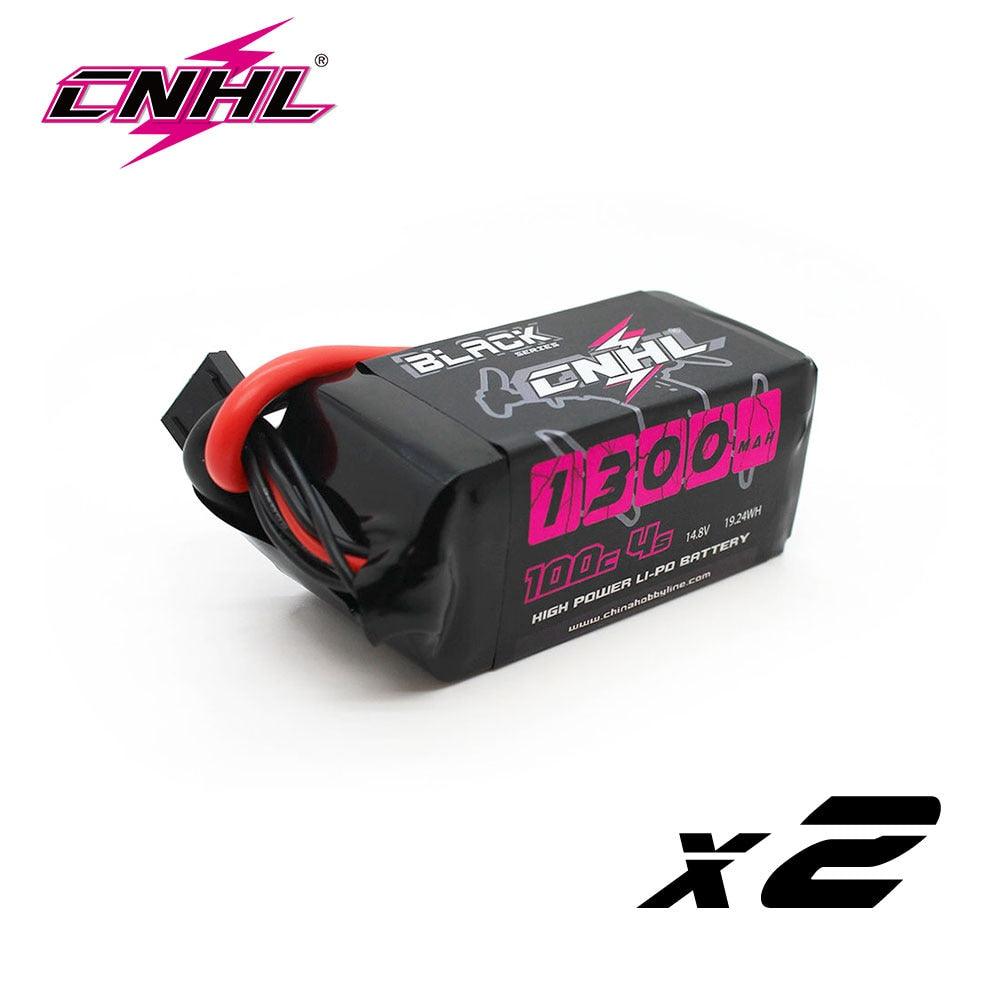

2.Model:1300mah-4S1P-14.8V-100C-XT60
Stock Number:1301004BK
Capacity :1300mAh
Voltage:14.8V / 4-Cell / 4S1P
Discharge Rate:100C Continual / 200C Burst
Charge Rate:5C Max
Size:33.5X34X74mm
Weight :163g (Including wire and connector)
Output Connector:XT60
Balance Connector:JST / XH
Remarks:N/A

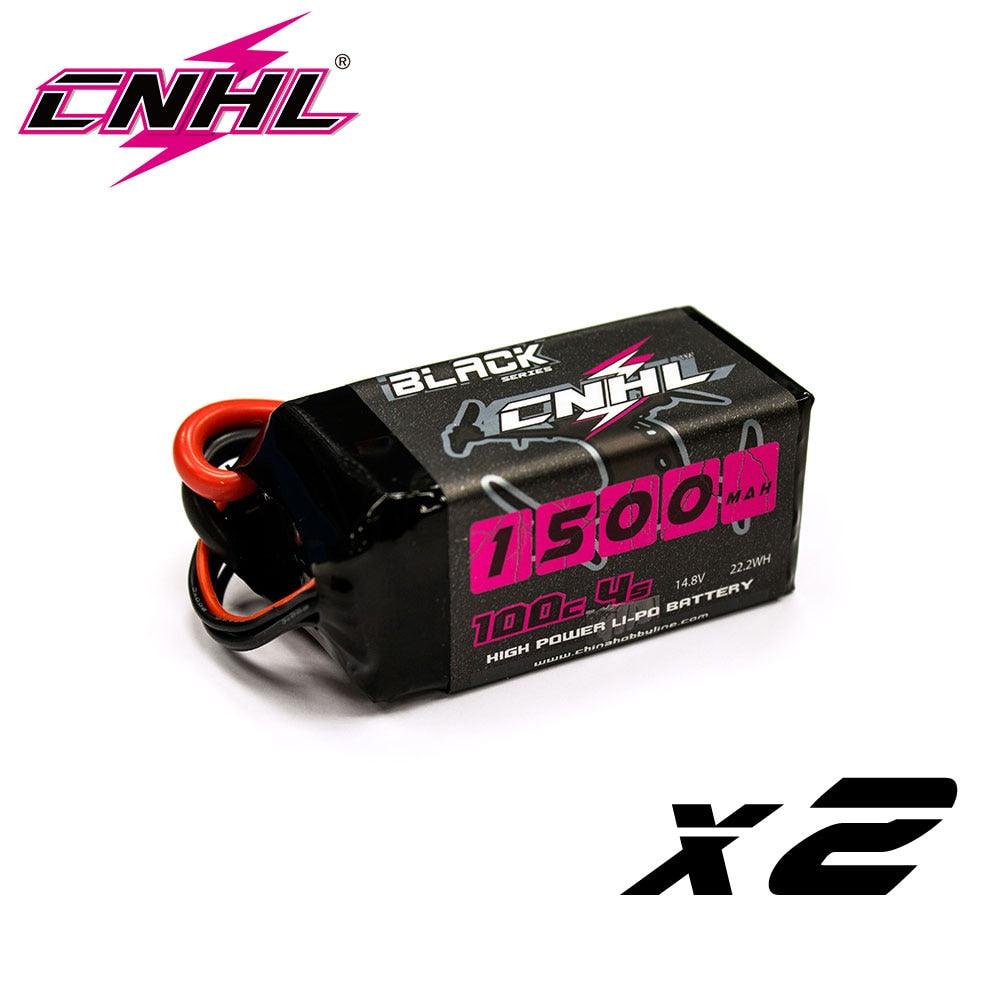

3.Model:1500mah-4S1P-14.8V-100C-XT60
Stock Number: 1501004BK
Capacity : 1500mAh
Voltage: 14.8V / 4-Cell / 4S1P
Discharge Rate: 100C Continual / 200C Burst
Charge Rate: 5C Max
Size: 34X35X73.5mm
Weight: 183g (Including Wire And Connector)
Output Connector: XT60
Balance Connector: JST / XH
Remarks: N/A

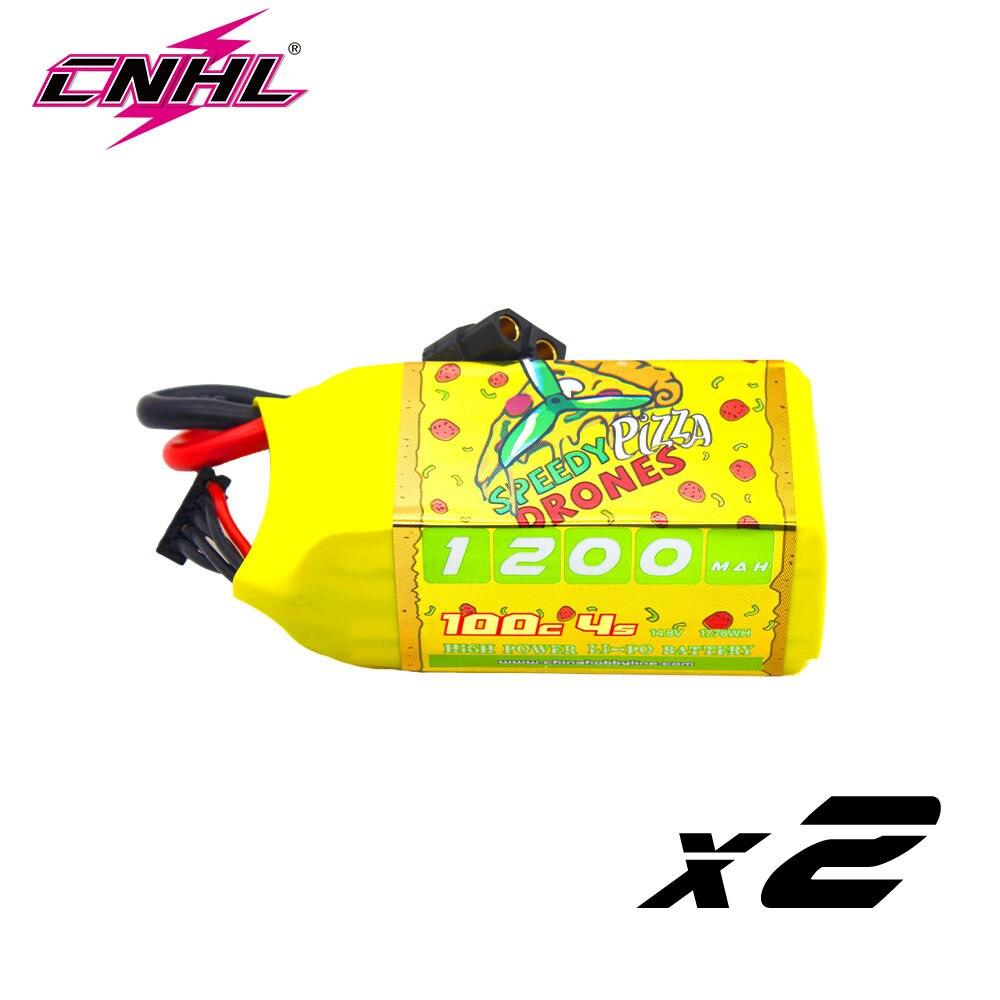

4.Model:Stock Number:1201004PZ
Capacity:1200mAh
Voltage:14.8V / 4-Cell / 4S1P
Discharge Rate:100C Continual / 200C Burst
Charge Rate:5C Max
Size:31*35*75mm
Weight:153g
Output Connector:XT60
Balance Connector:JST / XH
Remarks:N/A
Wire Size (AWG):12#

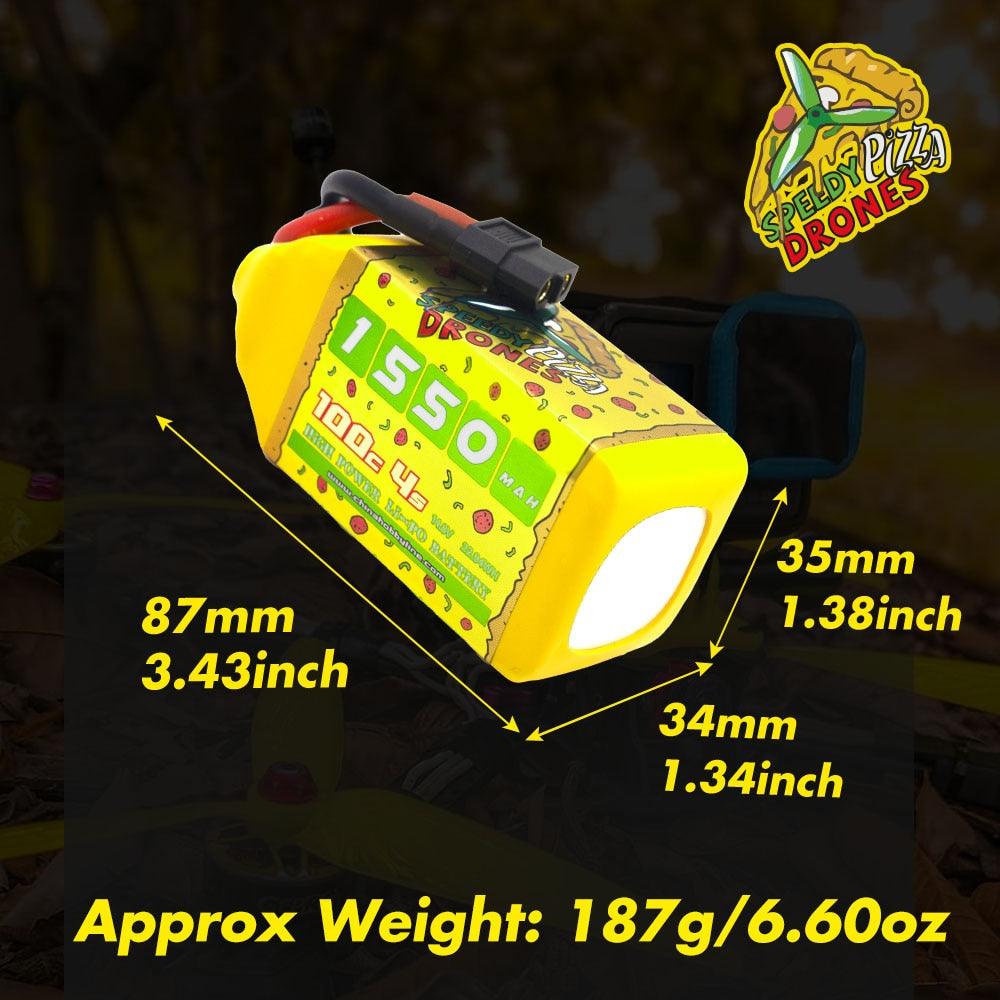

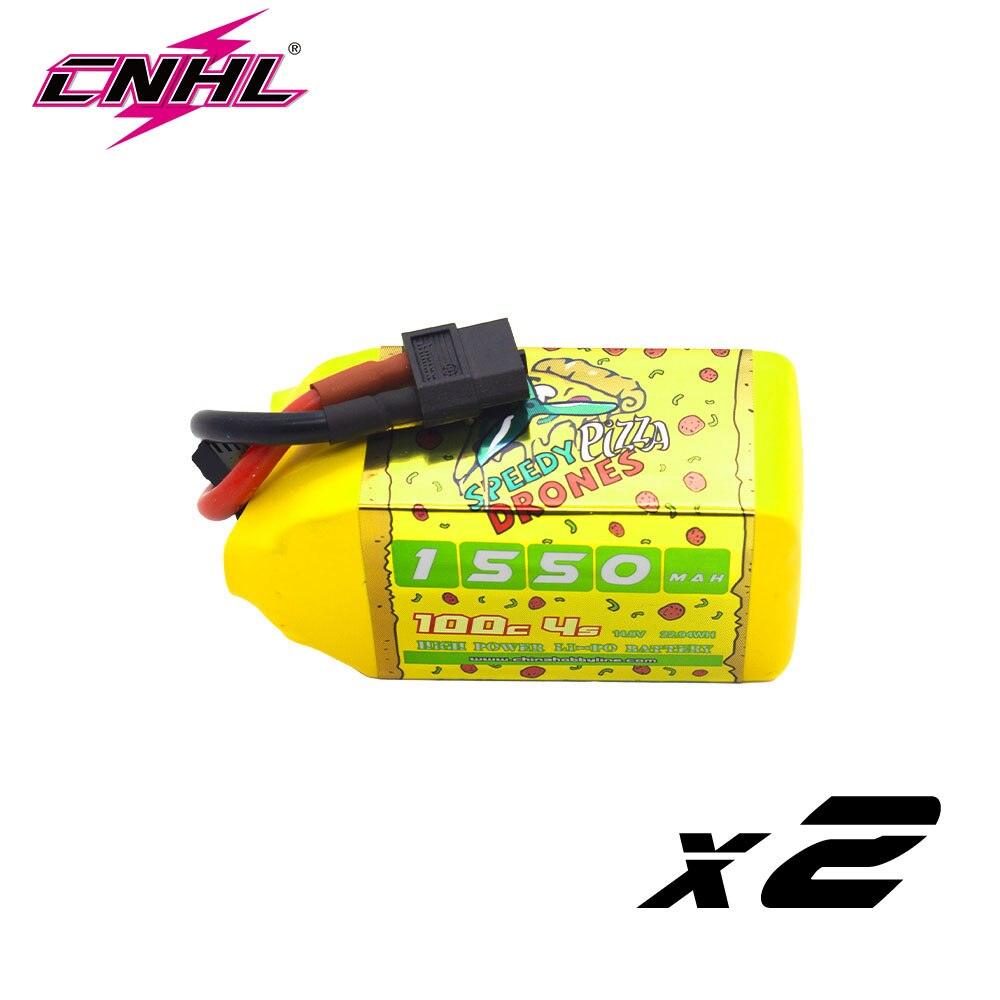

4.Model:Stock Number:1551004PZ
Capacity:1550mAh
Voltage:14.8V / 4-Cell / 4S1P
Discharge Rate:100C Continual / 200C Burst
Charge Rate:5C Max
Size:35X34X87mm
Weight:187g
Output Connector:XT60
Balance Connector:JST / XH
Remarks:N/A
Wire Size (AWG):12#
Application Scenarios
CNHL 4S 1100mAh 1300mAh 1500mAh lipo battery fit for FPV Drone Skylark m4-fpv250,Mini Shredder 200,Indy250 plus mojo 280,Qav250, Vortex and Emax nighthawk 250, Nemesis 240 Mini, HOVERSHIP MHQ2 (270), ZMR 250, Mini H, QAV250, QAV180/210, Danaus, Vortex 285, FLIP FPV FRAME, HOVERSHIP MHQ2, etc..
Notice: For the RC battery, only if the voltage and the plug match, then it will fit.
Description Ei_ AEX ZZAI Capacity: 11OOmah Iroo Ka Voltage: 14.8V TlB3 148v 16.28wH High power L-Po batterY Fnnreennnenenneninn SeCtn Discharge Rate: 1OOC Cell Conflgurtion: 4S1P Connector Type: XT6O Balancer Connector: JST-XH Weight: 146g BiACk SERIES T
Description EBLAEK Capacity: 130mah Voltage: 14.8V "ag ] TfkQ JaSV J9zah Higk DOWEA LIPD RTTAY Aeeenneneunn Discharge Rate: 1OOC Cell Conflgurtion: 4S1P Connector Type: XT6O Balancer Connector: JST-XH Weight: 163g Bi_ACK SER
BiAZK Capacity: 150Omah ZVI Voltage: 14.8V @sa01 TlkOJ Ta 3el Aen Ancnt Discharge Rate: 1OOC Cell Conflgurtion: AS1P Connector Type: XT6O Balancer Connector: JST-XH Weight: 183g BiACK SERIES

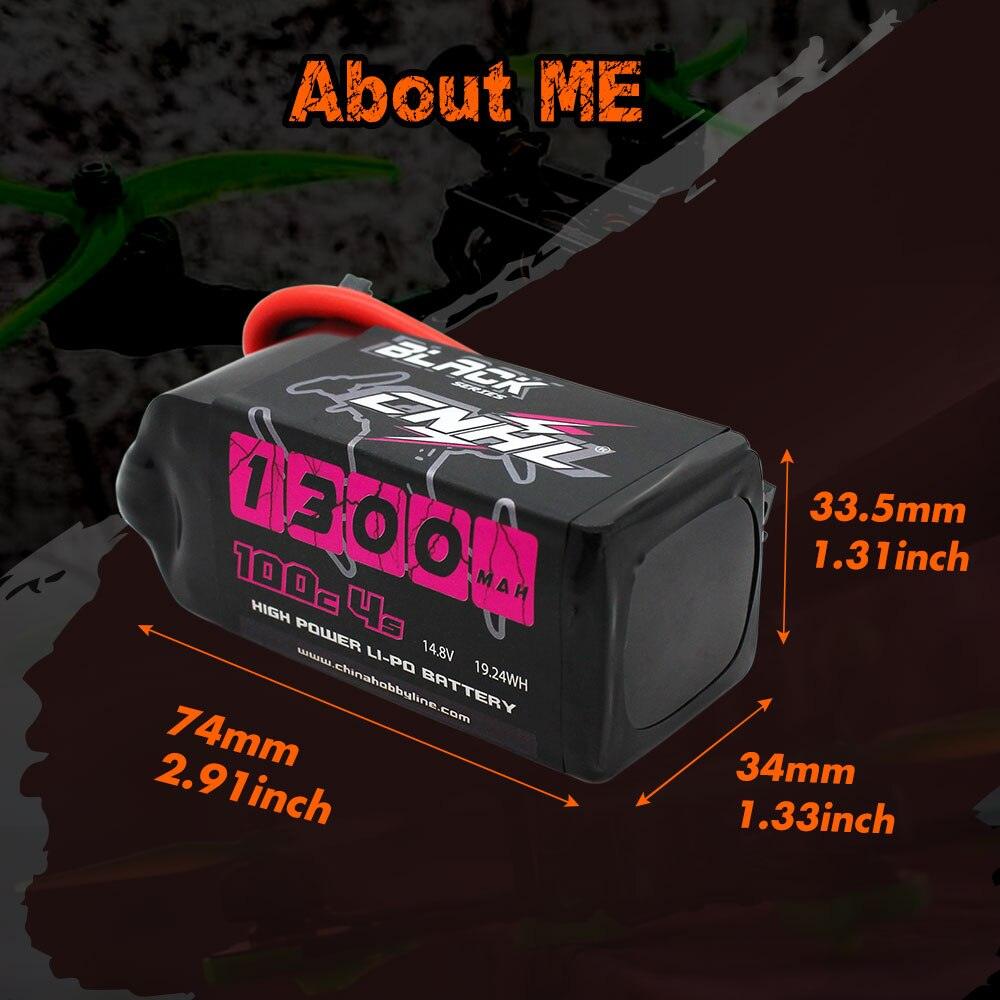

ME 33.Smm 1.31inch 34mm 1.33inch EZE daida nE QJ High PoWeR 148v Li-Po Qutot 1924wH thinbhebbunng BATTERY Eom 74mm 2.91inch

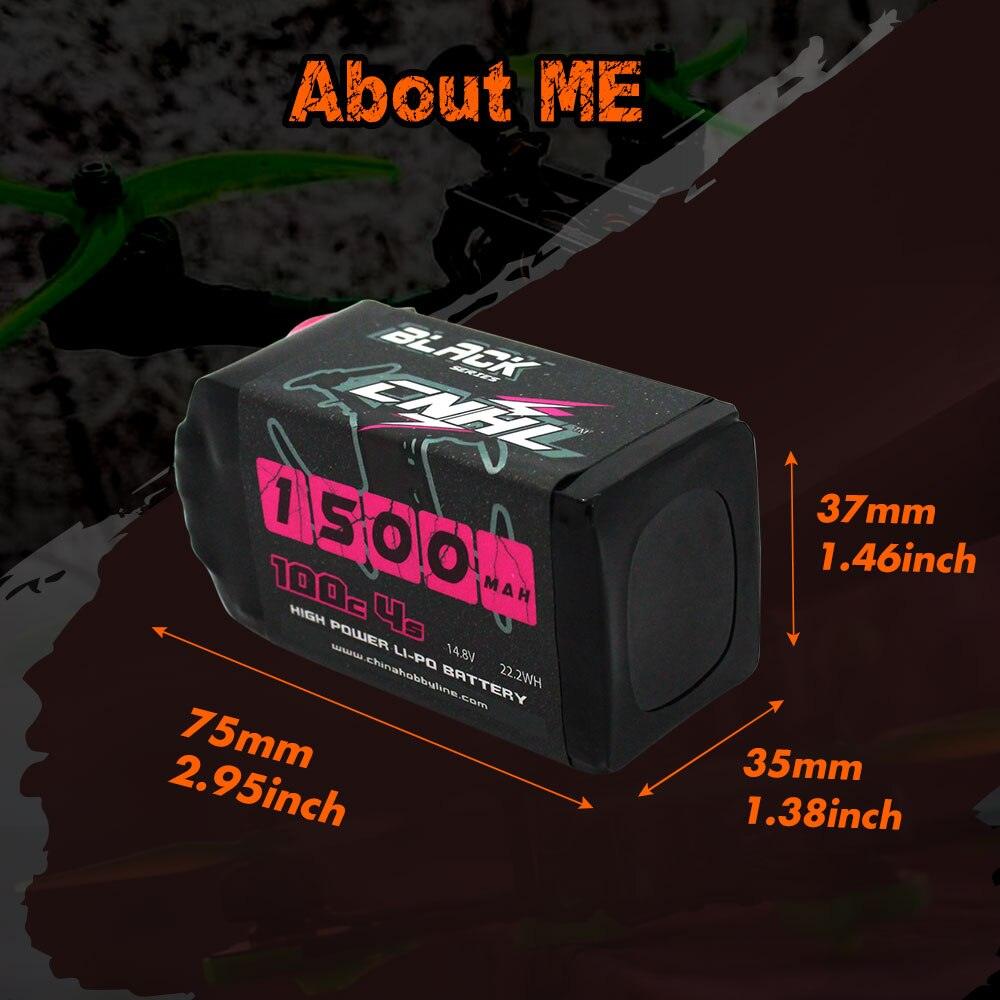

Abcut ME 37mm 1.46inch 35mm 1.38inch EZFEK 27EZ ds00 io0LC 0b Mgx Poler Ant L-Po 448v erinenebbuune baTTERY 227wH eon 75mm 2.95
Weight BiAEK 71500 TfkO 48v 22RWh POWERLPo ROTTEn Olaex O24 dGpoa 183.8 8 Approx Weight: 1839/6.45oz IBi0 SCLE '
