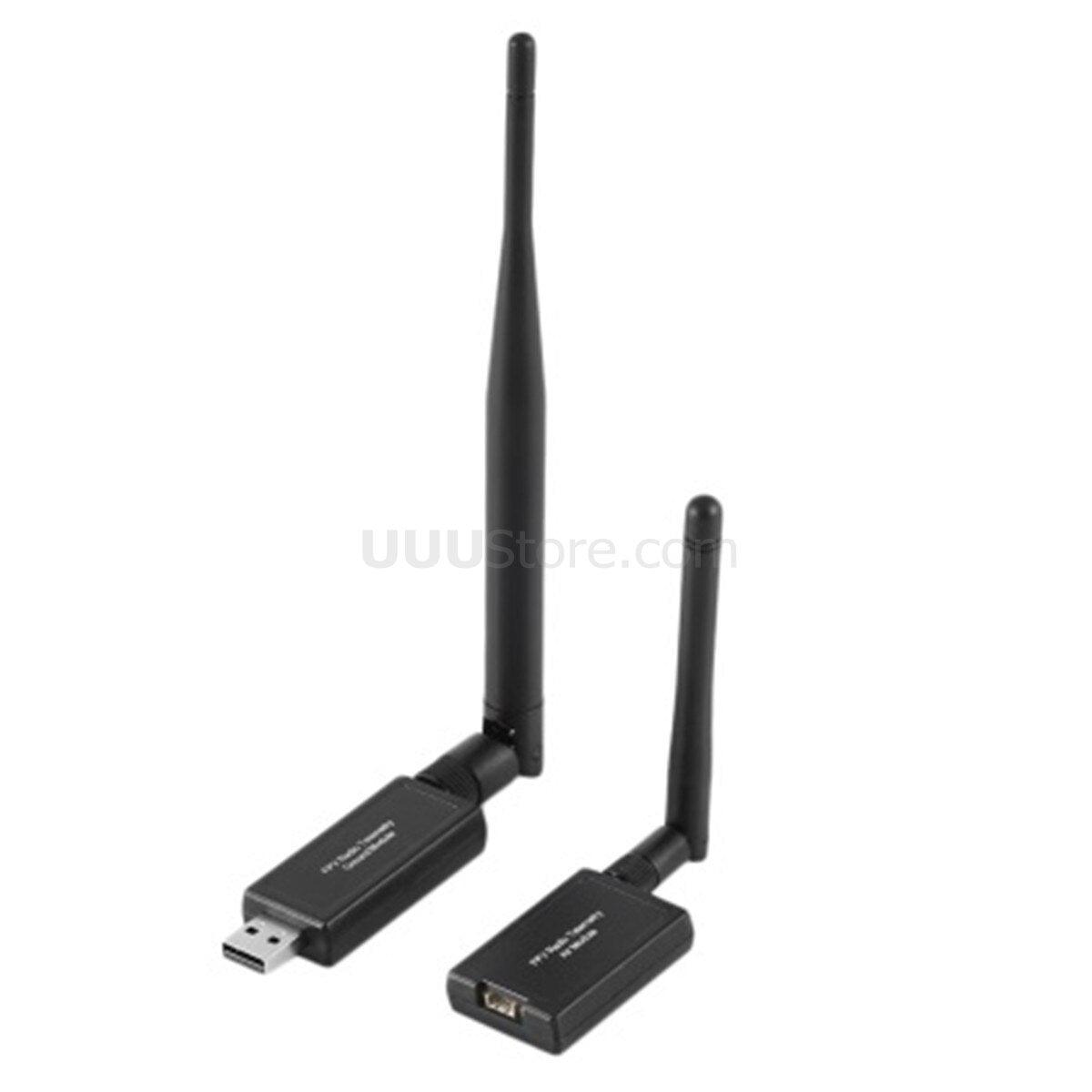

3DR Radio Telemetry Transmitter - 500mw 915Mhz/433Mhz Air & Ground Data Transmit Module for FPV Droen APM Pixhawk Flight Control

3DR Radio Telemetry Transmitter - 500mw 915Mhz/433Mhz Air & Ground Data Transmit Module for FPV Droen APM Pixhawk Flight Control

3DR

$112.62 USD
$168.93 USD $112.62 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

31 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

3DR Radio Telemetry Transmitter SPECIFICATIONS

Upgrade Parts/Accessories: Adapter

Tool Supplies: Battery

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Radio Systems

Origin: Mainland China

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: uuustore

RC 3DR 500MW Radio Telemetry 915Mhz/433Mhz Air & Ground Data Transmit Module for FPV APM Pixhawk Flight Control

  Features:
Very small size,light weight
915Mhz frequency band
Receiver sensitivity to -117 dBm
Transmit power up to 20dBm (100mW)
Transparent serial link
Air data rates up to 250kbps
Range of approx 1 mile with supplied antennas
Demonstrated range of several kilometers with a small omni antenna
Can be used with a bi-directional amplifier for even more range
MAVLink protocol framing and status reporting
Frequency hopping spread spectrum (FHSS)
Adaptive time division multiplexing (TDM)
Support for LBT and AFA
Configurable duty cycle
Built in error correcting code (can correct up to 25% data bit errors)
Open source firmware
AT commands for radio configuration
RT commands for remote radio configuration
Adaptive flow control when used with APM
Based on the HopeRF HM-TRP radio module, featuring an SiLabs Si1000 RF microcontroller.

Specification:
Item Name: 3DR Radio Telemetry Module
Band: 915MHz
Antenna connectors: RP-SMA connector
Power: 500mw
Sensitivity: -117dBm sensitivity
Interface: Standard TTL UART
Connection status: LED indicators
Net weight: 63g

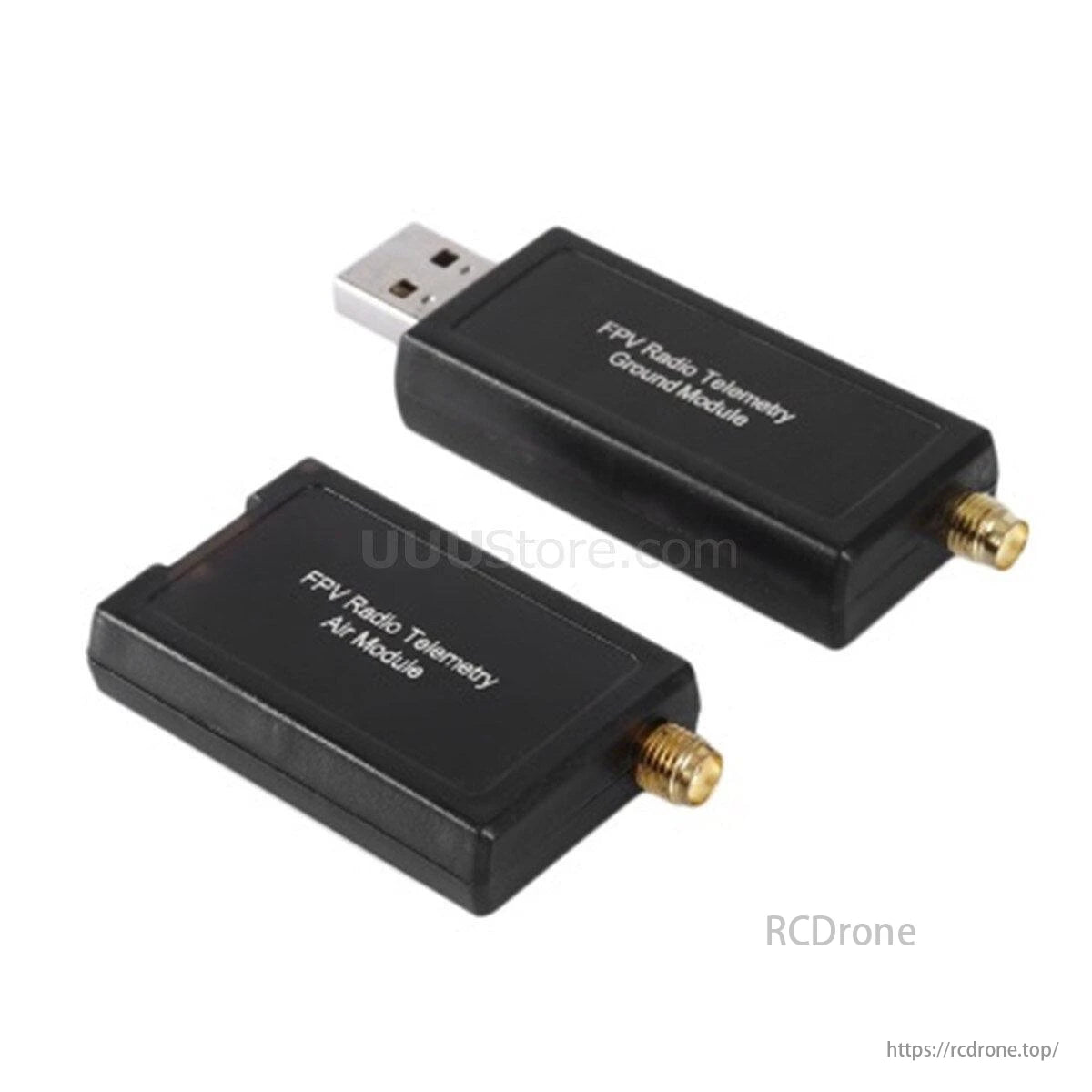

RadioTelemetry Air Module Dimension: 51*30*10mm/12g
RadioTelemetry Ground Module Dimension: 70*25*12mm/15g

Package Included:
1 X Radio Telemetry base station (USB Connection)
2 X 500mw Radio Telemetry
1 X lead set
2 X Antenna
