SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: ESC

Tool Supplies: Assembled class

Technical parameters: Value 2

Size: 68 x 25 x 8mm/2.68 x 0.98 x 0.35in

Remote Control Peripherals/Devices: ESC

Recommend Age: 12+y

RC Parts & Accs: Speed Controllers

Origin: Mainland China

Model Number: 40A brushless ESC

Material: Composite Material

Four-wheel Drive Attributes: ESC

For Vehicle Type: Airplanes

Brand Name: QYWWRC

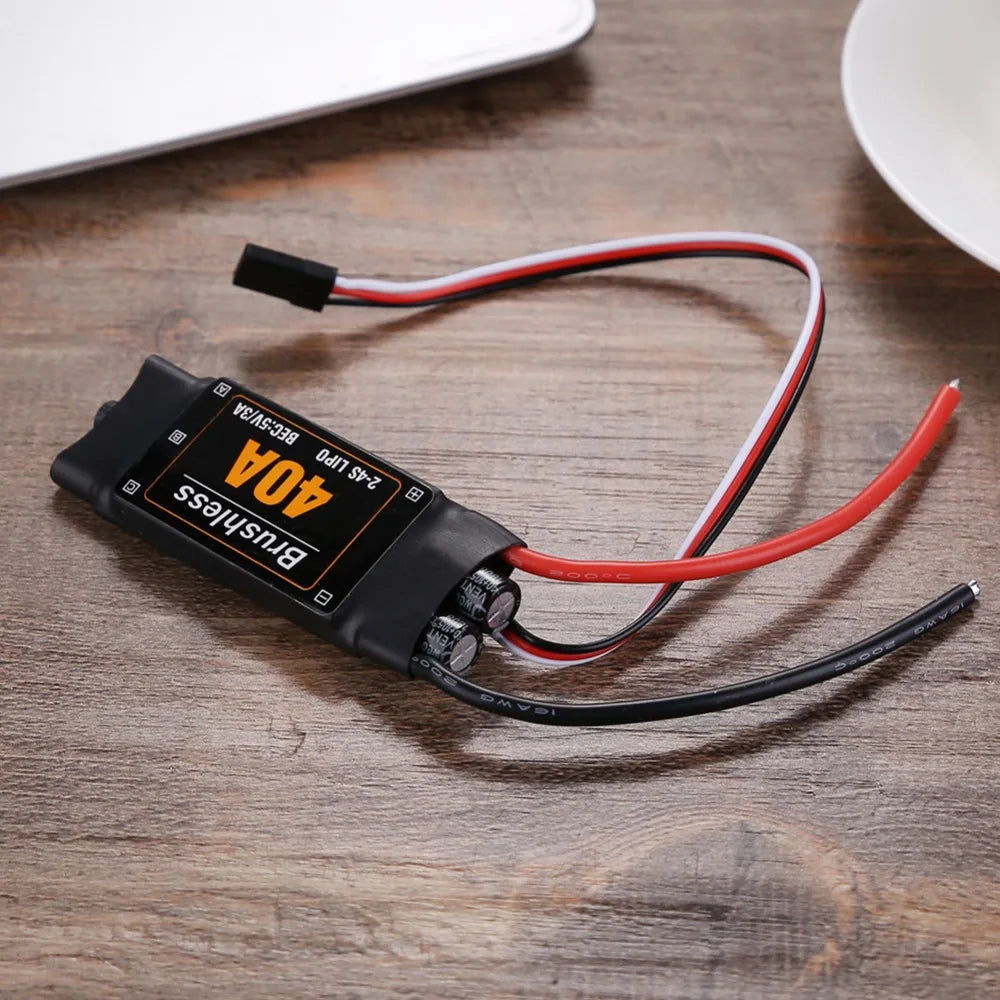

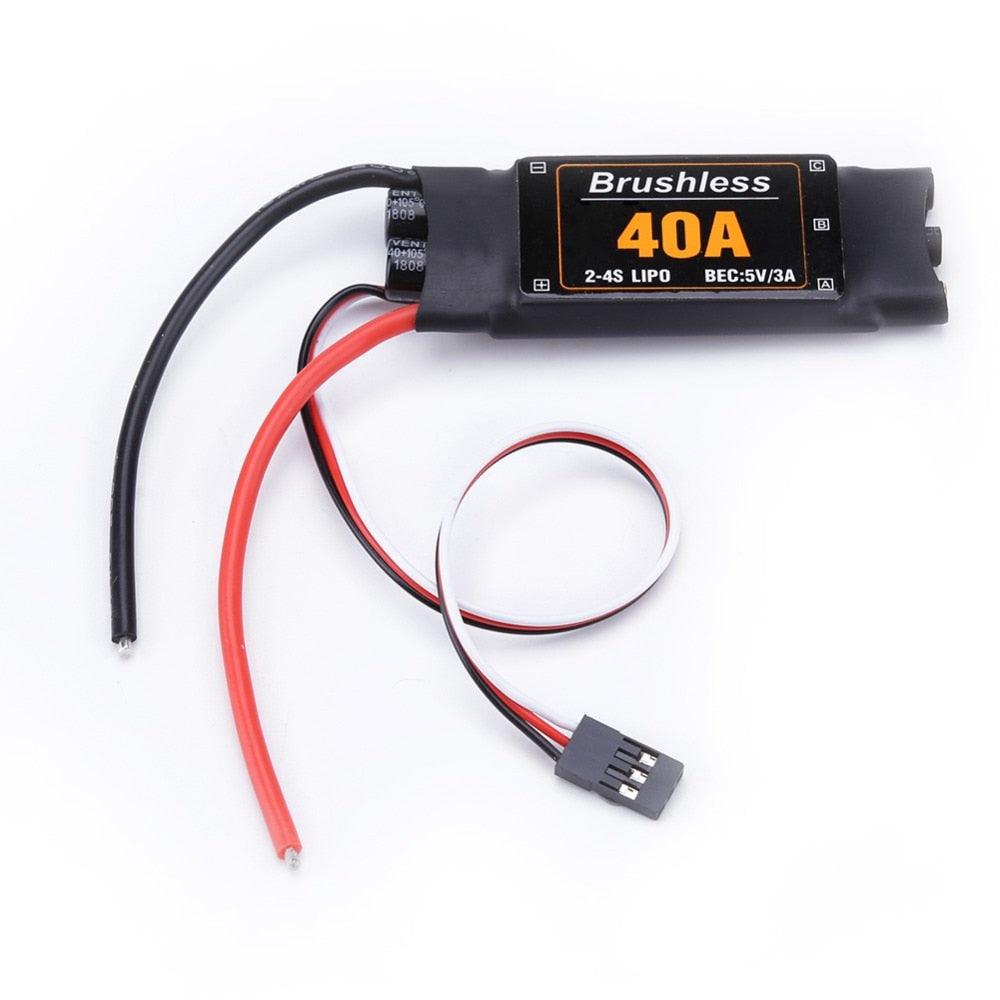

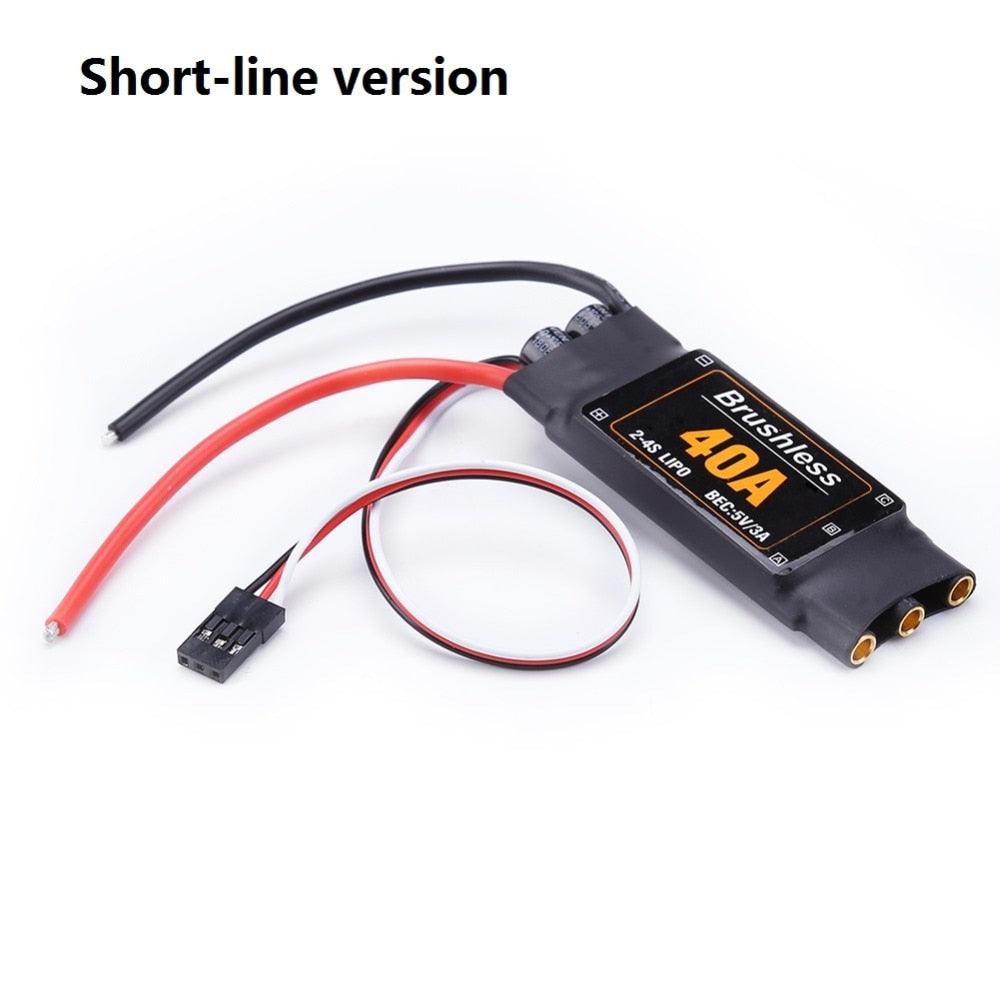

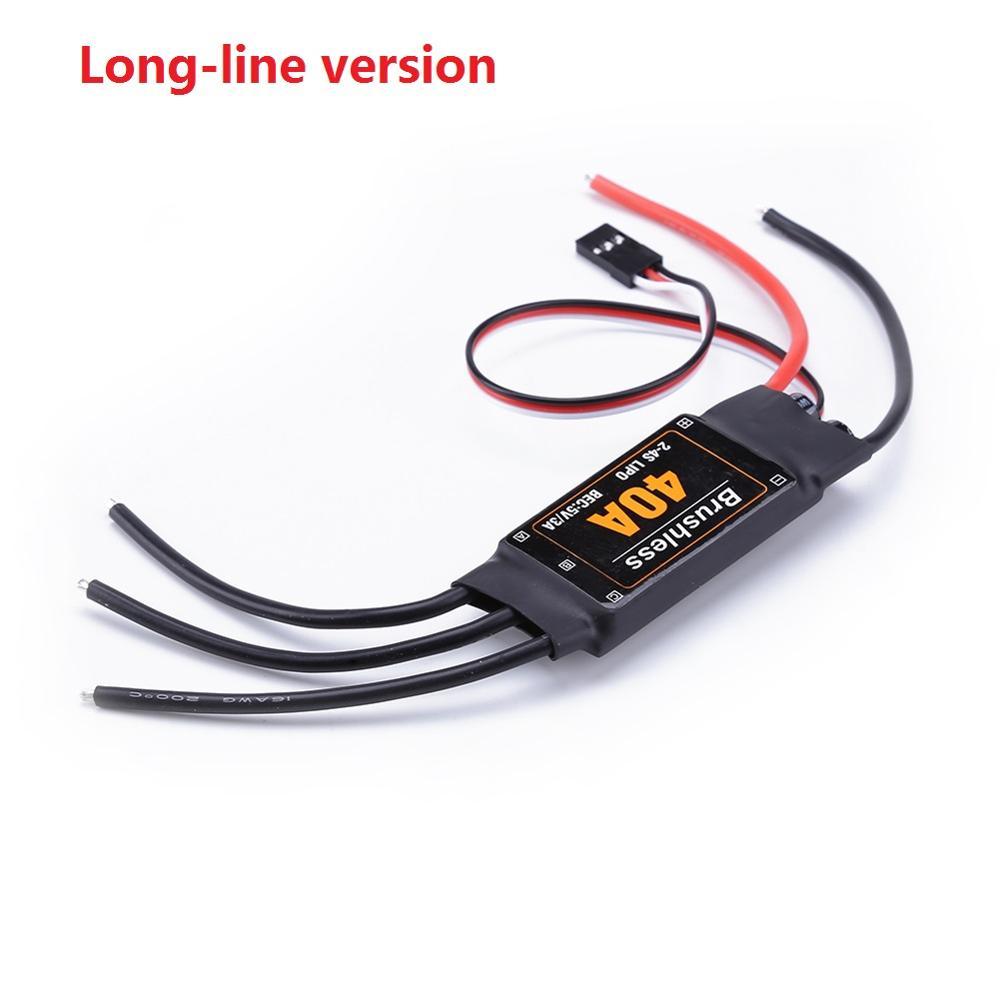

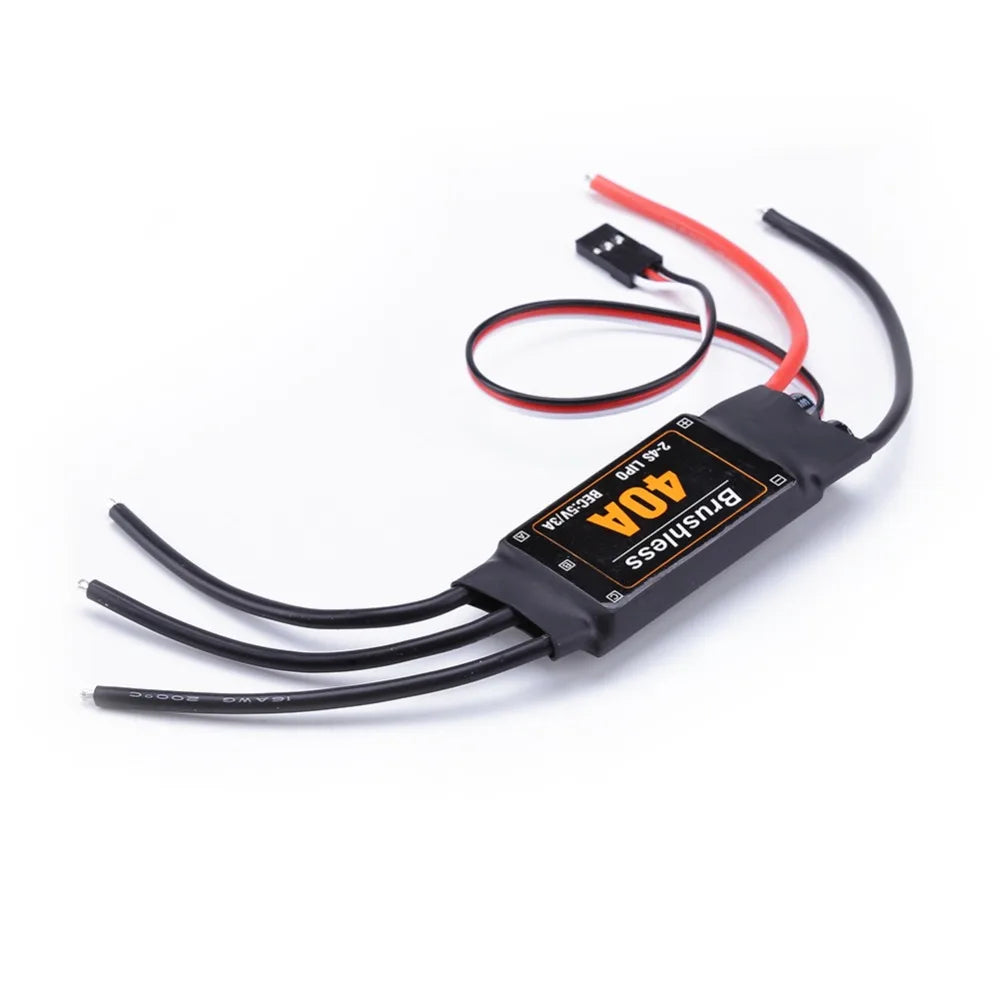

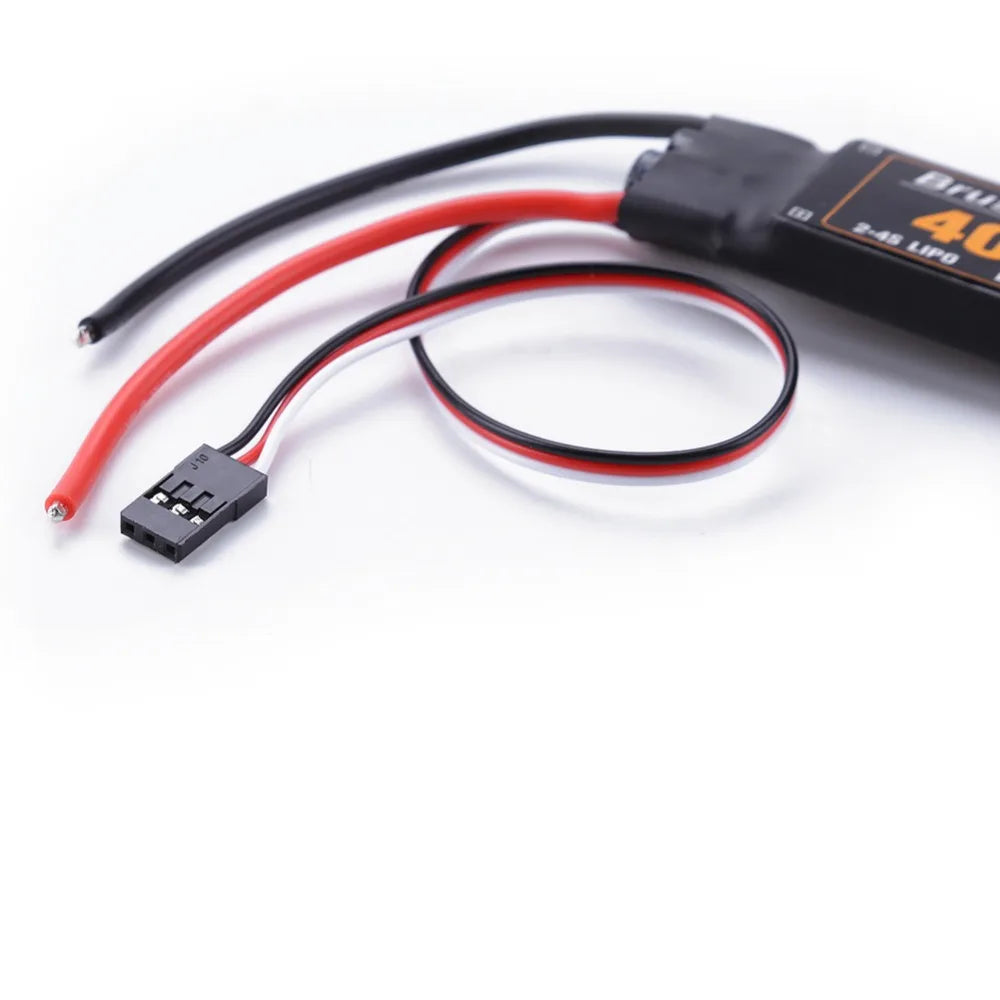

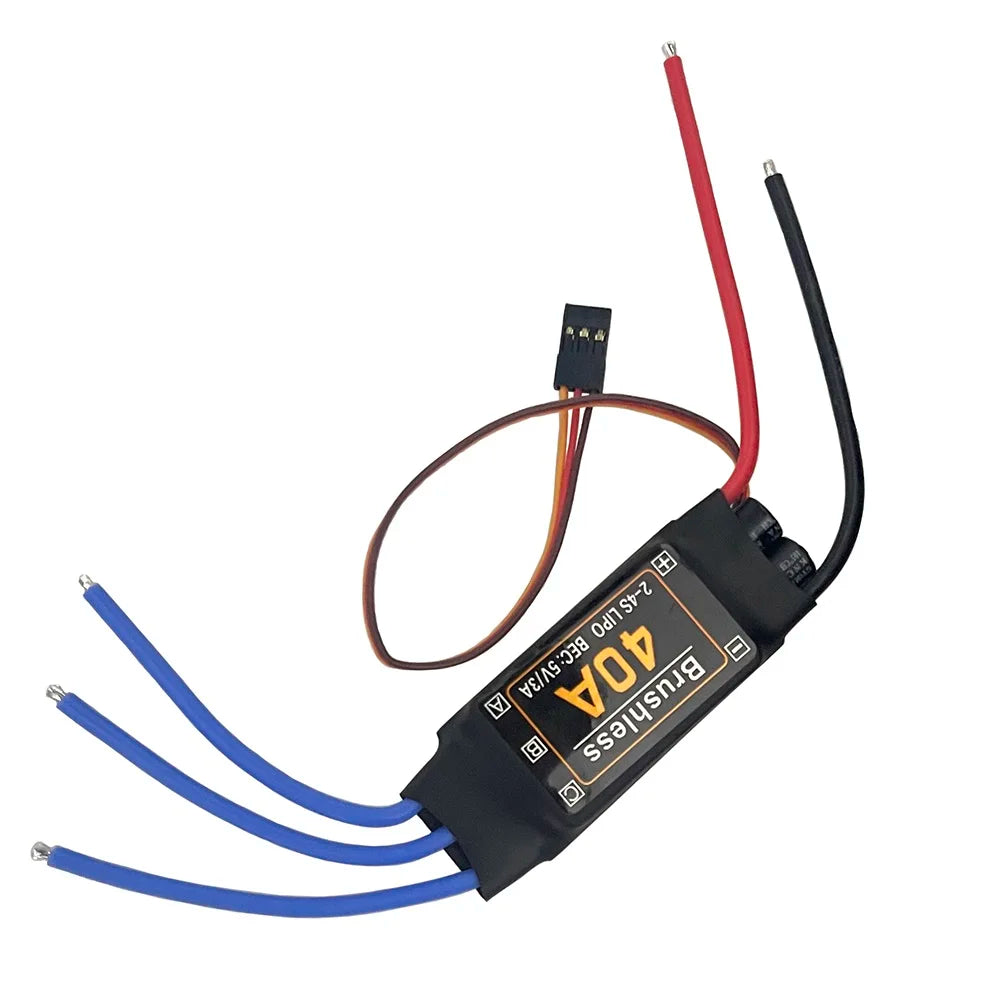

1pcs  40A ESC Speed Controler With UBEC For RC FPV Quadcopter RC Airplanes Helicopter



100% Brand New

Special core program for multi-rotor controllers meets various functional requirements against multi-rotors.

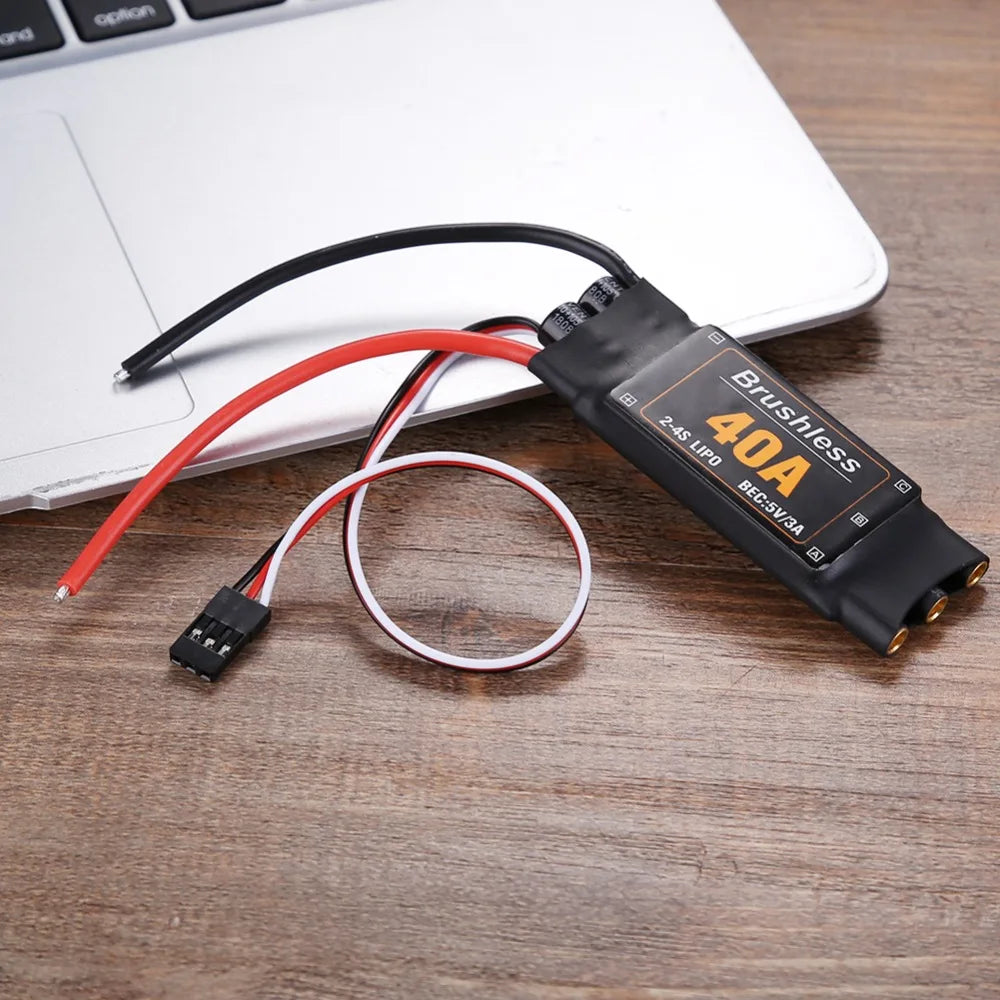

Specially optimized software for excellent compatibility with disc-type motors.

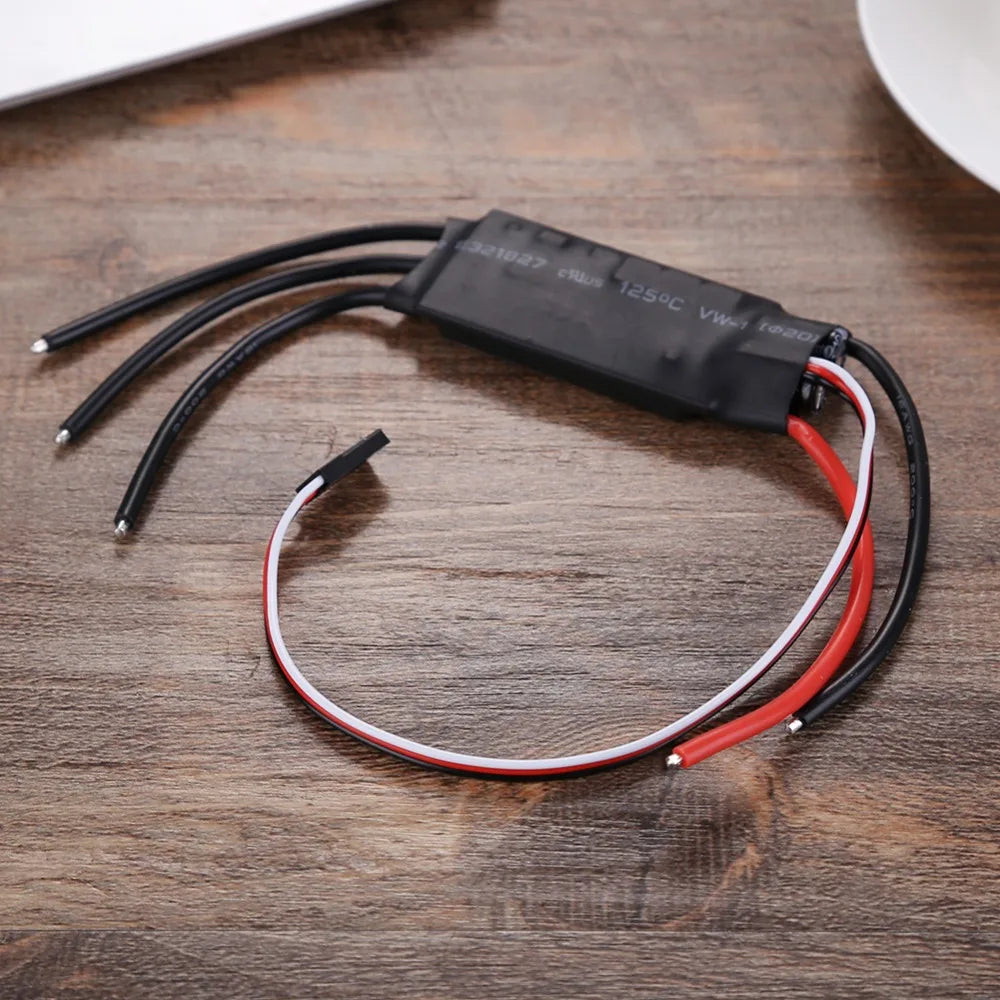

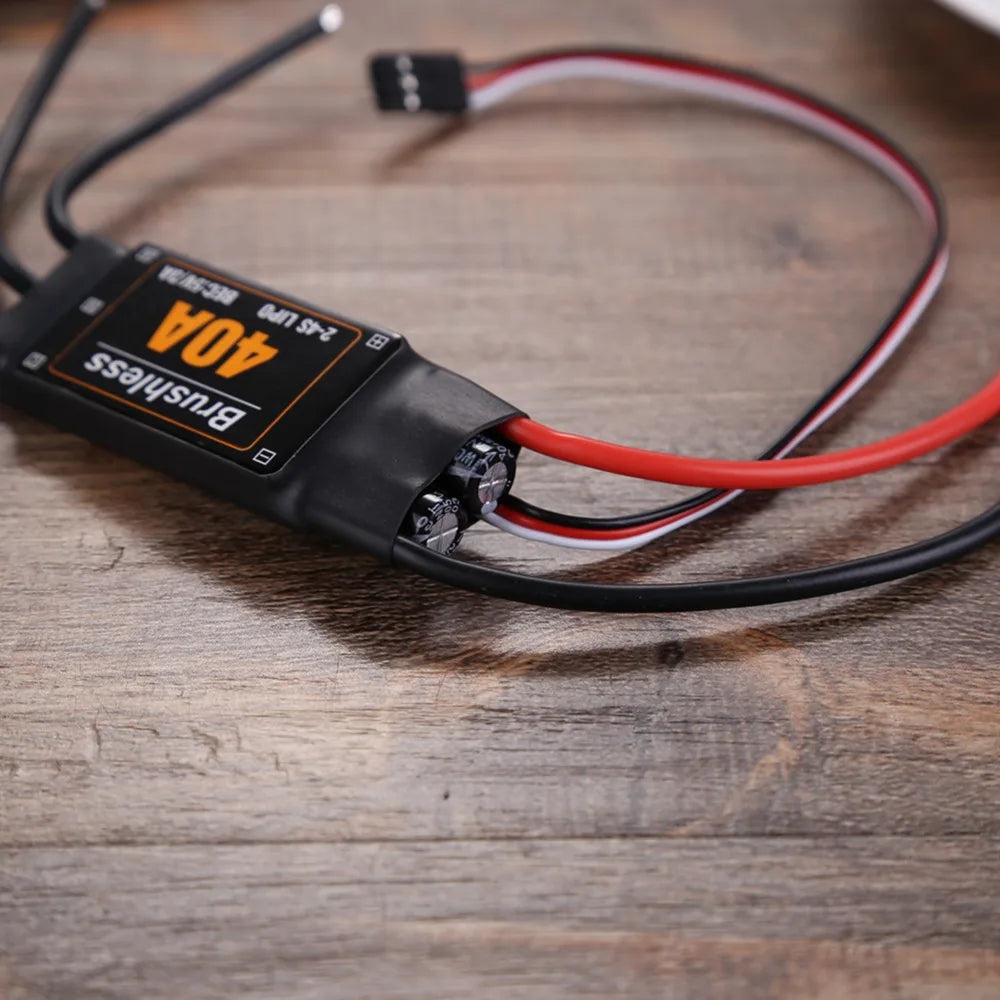

The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.

Specifications:

Model: 40A

Continuous Current: 40A

Burst Current (>10s): 55A

BEC Mode: Linear

BEC output: 5V@3A (linear regulator mode - linear mode)

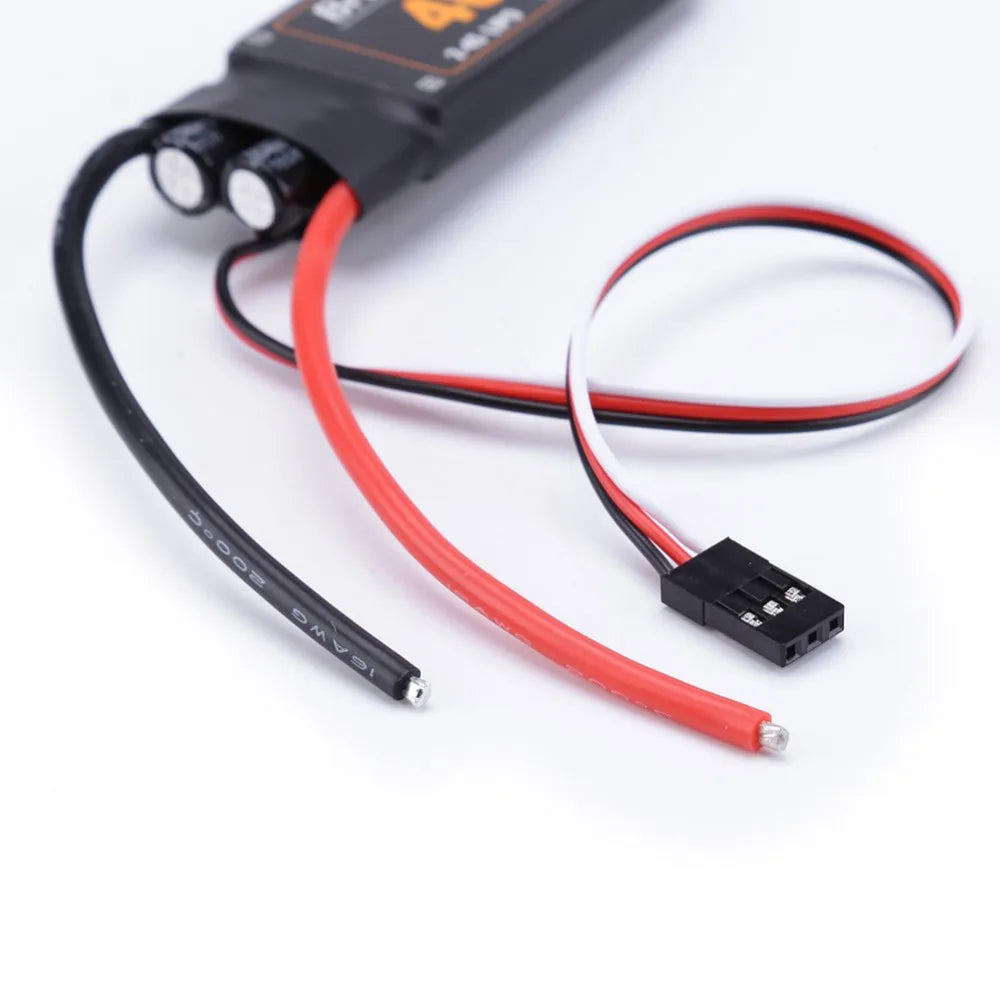

BEC Output Capability: 4 Servos (2-4S Lipo)

Battery Cell: 2-4S (Lipo)

Maximum speed: 210,000 rpm/min for 2-pole motor, 7000 rpm/min for 6-pole motor ,35,000 rpm/min for 12-pole motor

Net Weight: 30g

Dimension (L x W x H): 68 x 25 x 8mm/2.68 x 0.98 x 0.35in

Packet content:

1*40A ESC
