4810 Centrifugal Metal Atomization Nozzle Sprinkler With 12S 14S ESC For Dji T20 T30 T40 Agricultural Plant Protection Drone UAV Agriculture Drone Accessories

4810 Centrifugal Metal Atomization Nozzle Sprinkler SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Atomization Nozzle

Tool Supplies: Atomization Nozzle

Technical parameters: Value 2

Size: 4810

Remote Control Peripherals/Devices: Atomization Nozzle

Recommend Age: 12+y

Recommend Age: 14+y

RC Parts & Accs: Atomization Nozzle

Origin: Mainland China

Model Number: 4810

Material: nylon

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: BDUAV

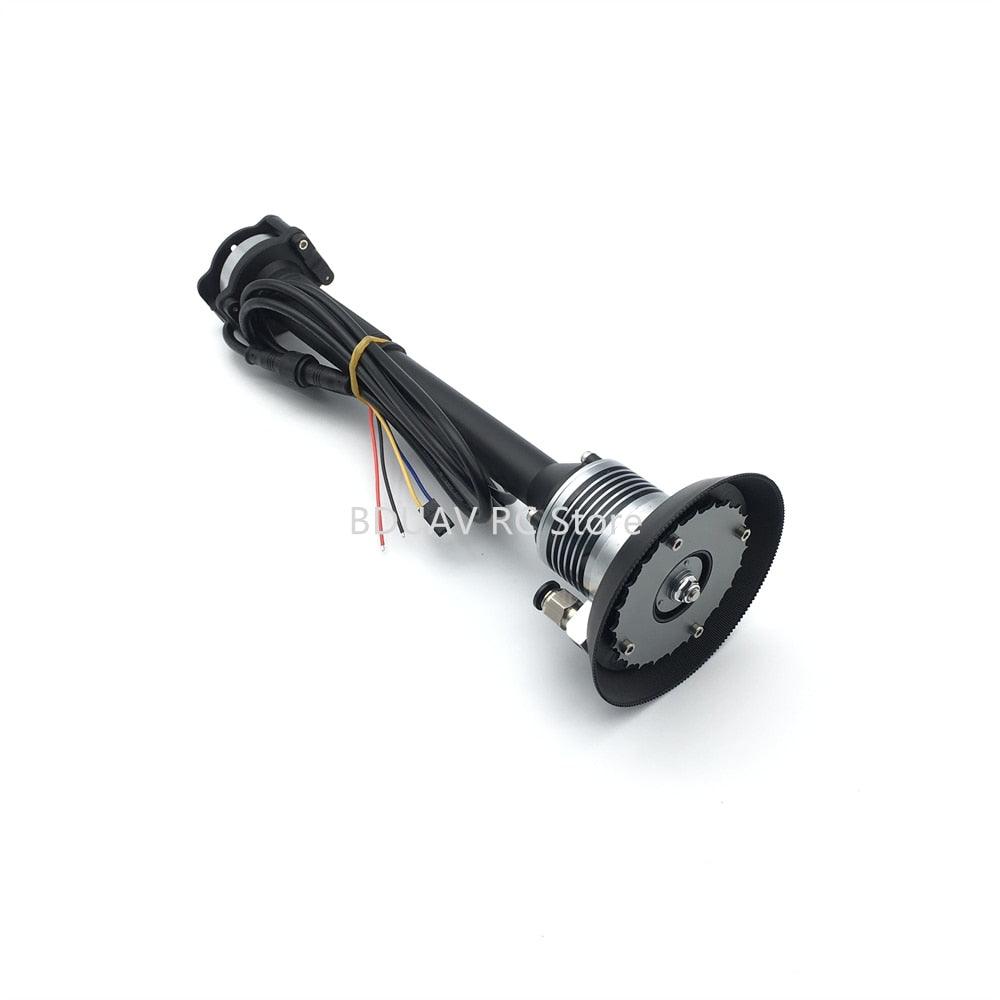

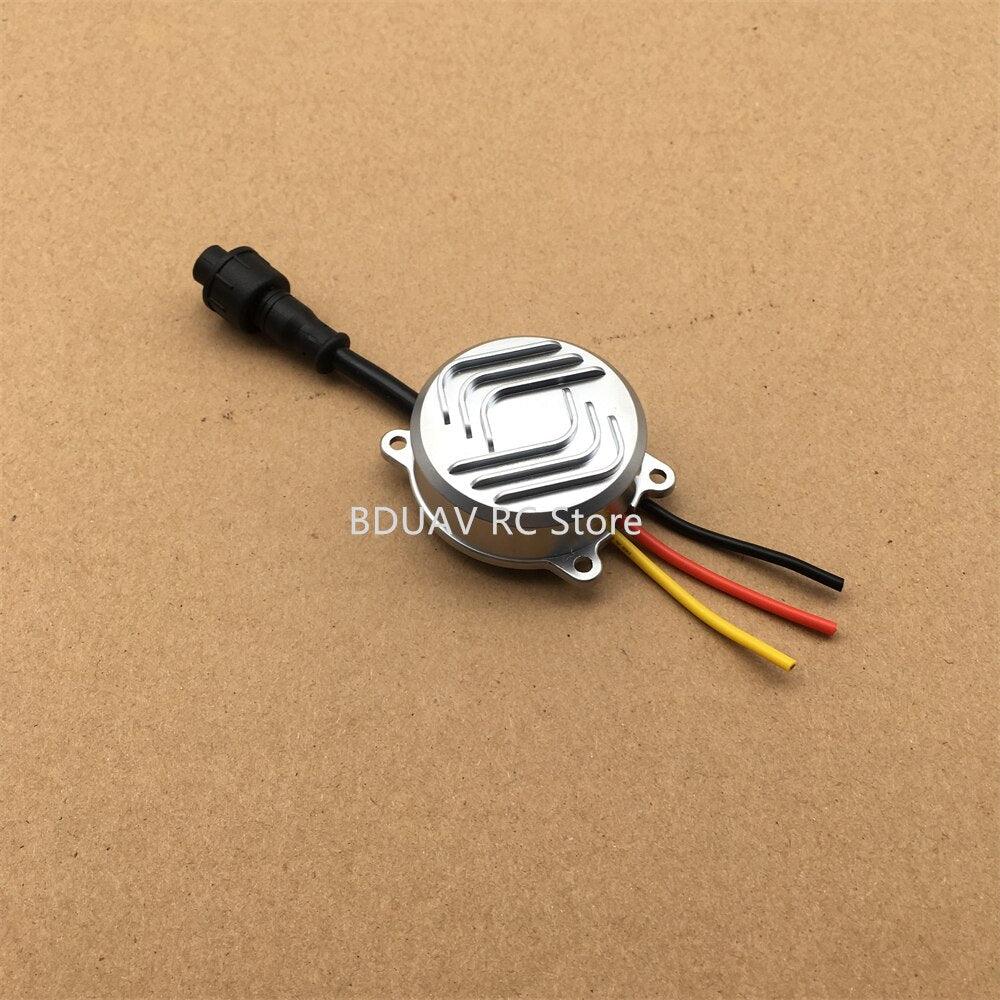

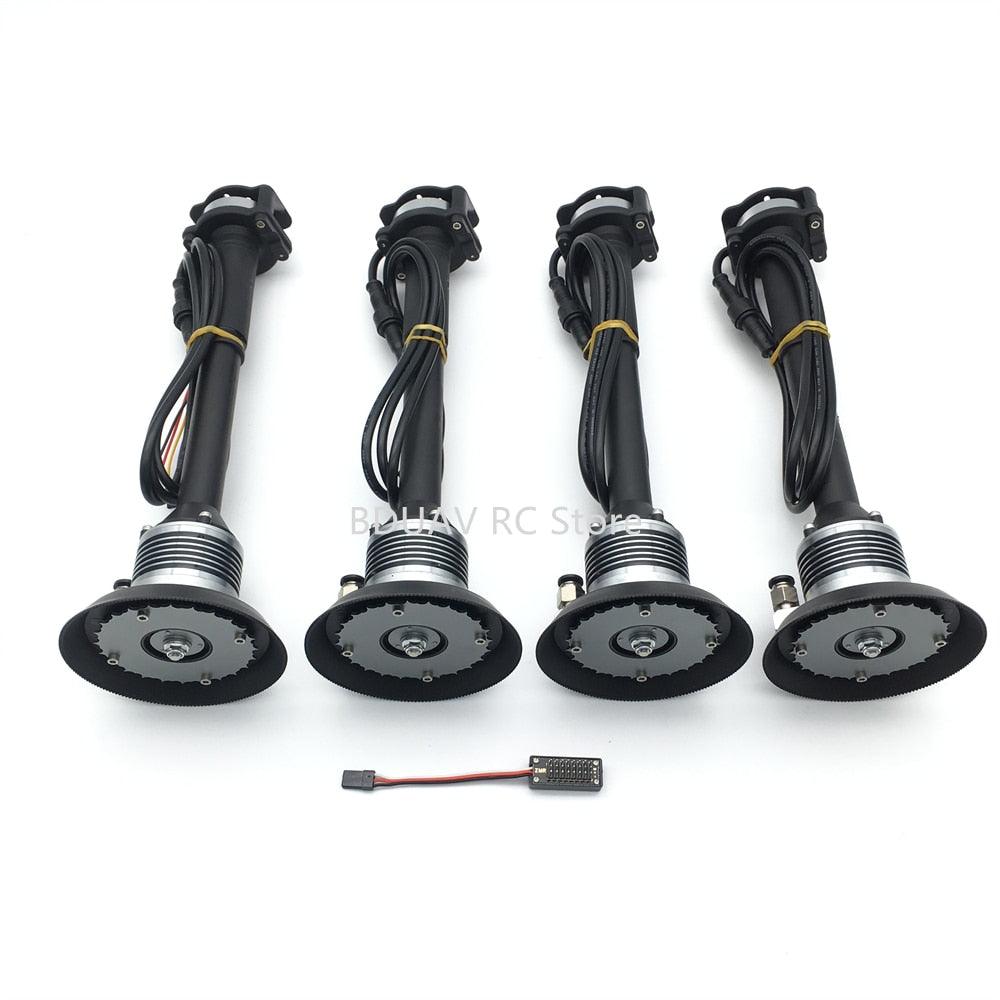

       4810 Centrifugal Metal Atomization Nozzle Sprinkler With 12S 14S ESC For Dji T20

T30 T40 Agricultural Plant Protection Drone UAV

Specifications:

Shell material: aluminum alloy
Mist particle diameter: 50-200 microns
Working range: water supply 200-2000mL / min
Atomized spray width: 1.5-2.0 meters

Voltage: 12-14S power supply

Speed: 20,000 rpm

Signal: PWM (1000-2000)

Power: 60W

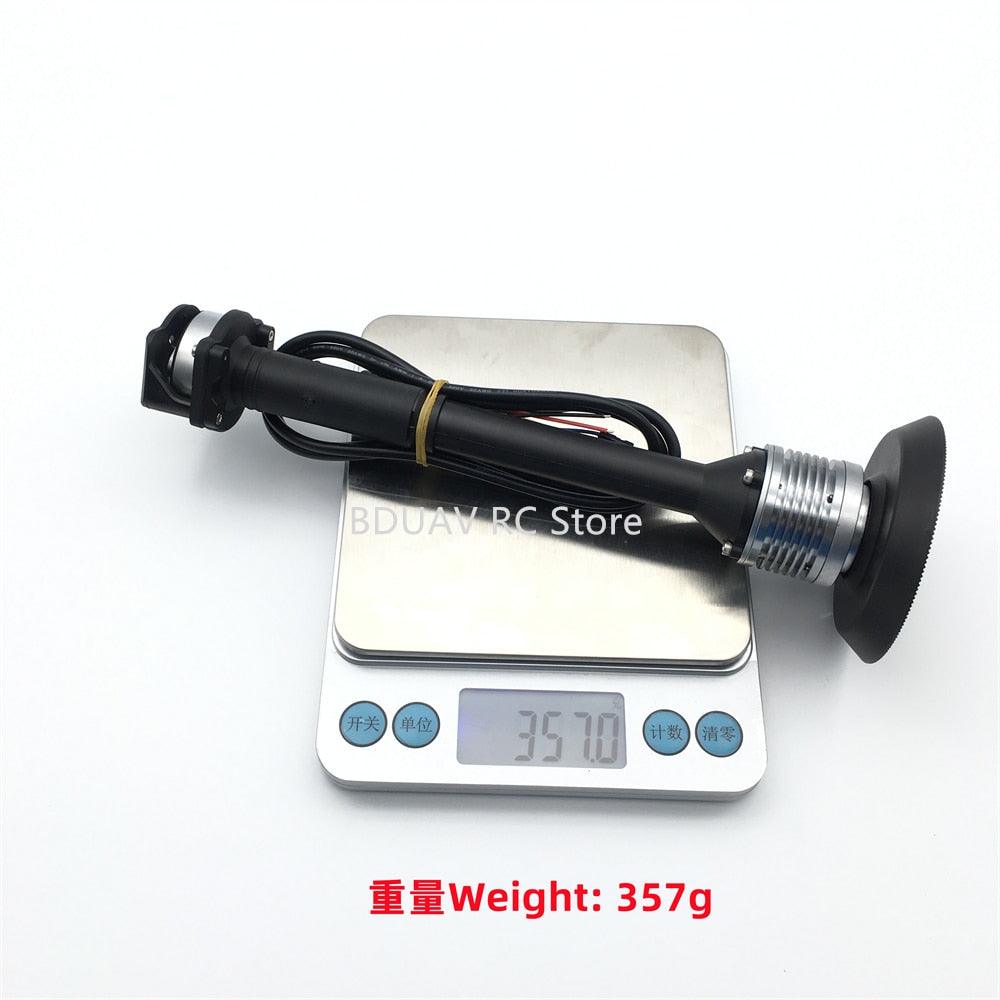

Weight: 357g

Length: total length 30cm

Outgoing cable length: 1.25 meters

Red wire positive

Black wire negative

White wire signal

Yellow wire ground wire

Note:

When 12S power supply, the sprinkler rotation speed is 85% (analog 1000-1850), the life will be prolonged.

Try not to run at full speed. The speed of the nozzle is 75% when the 14S is powered (analog 1000-1750)

Precautions:

After each operation is completed, a tank of clean water must be filled, add cleaning fluid, turn on the centrifugal nozzle, spray a tank of water, and then idling for 1 minute. The purpose is to clean the residual pesticides to prevent corrosion, solidification and damage to the motor bearings.

The Teknology wire colors are as follows: red (positive), black (ground), yellow (signal), and negative/white wires (negative).
