4PCS IFlight XING 2814 - 880KV 1100KV 3-6S FPV Motor for RC Multirotor 8inch 9inch 10inch FPV Long Range X-Class Cinelifter Drones

4PCS IFlight XING 2814 - 880KV 1100KV 3-6S FPV Motor for RC Multirotor 8inch 9inch 10inch FPV Long Range X-Class Cinelifter Drones

iFlight

$157.34 USD
$220.27 USD $157.34 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

33 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

4PCS IFlight XING 2814 SPECIFICATIONS

Brand Name: AIRFORTH

Origin: Mainland China

Material: Metal

RC Parts & Accs: Motors

Size: As Show

For Vehicle Type: Helicopters

Upgrade Parts/Accessories: Other

Remote Control Peripherals/Devices: Motor

Tool Supplies: Assembled class

Technical parameters: Value 2

Model Number: iFlight XING 2814

Four-wheel Drive Attributes: Assemblage




4PCS IFlight XING 2814, 4PCS iFlight XING 2814 SPECIFICATIONS Brand



XING X2814 FPV NextGen Motor

PRODUCT DESCRIPTION

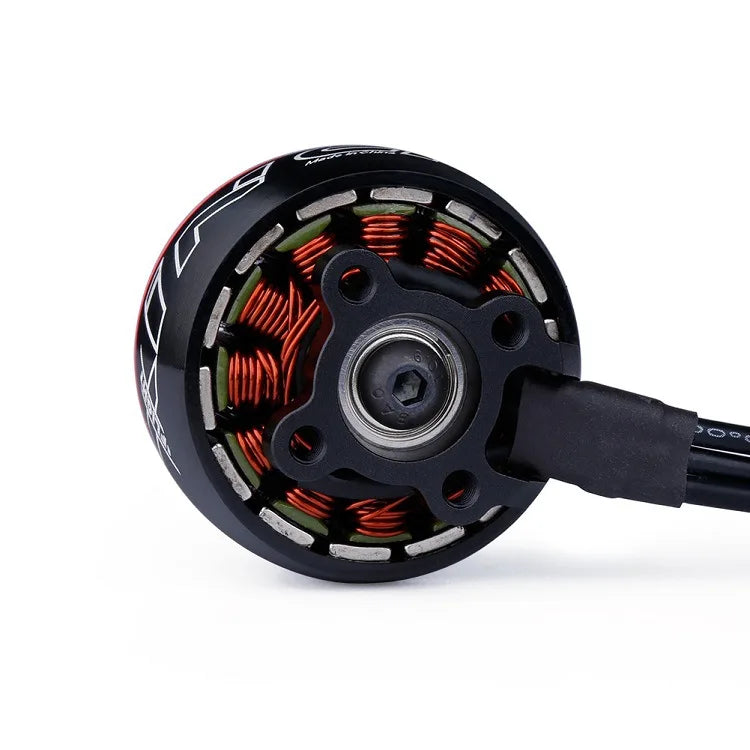

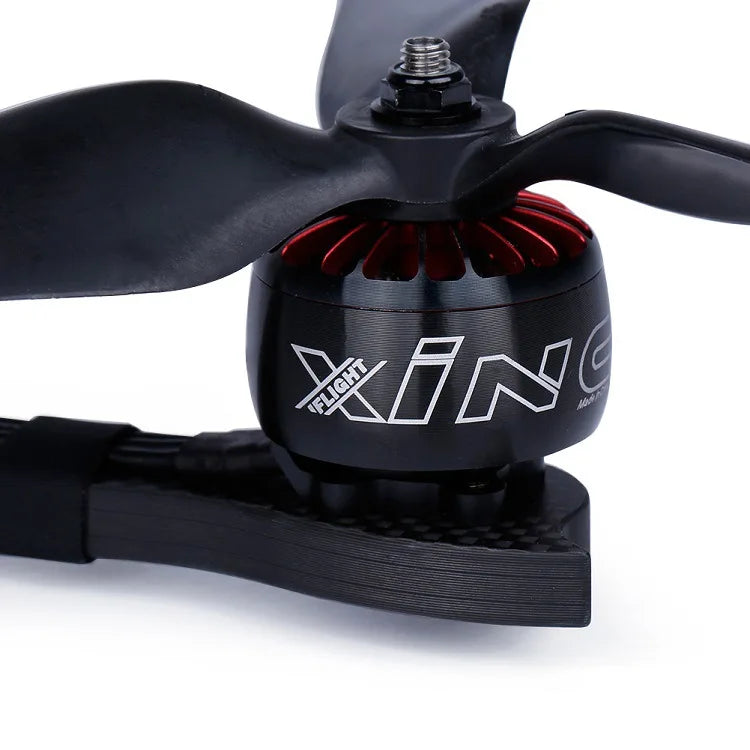

The Motor XING 2814 designed for bigger quads like 9-10 inch quad frames, which is with better efficiency in this range frames. The XING 2814 features adopt Japan NSK bearing, N52H arc magnets. It offers incredible thrust number, highly responsive and extremely smooth flight characteristics. The bigger stator size of 2814 allows it to provide instant power to save you from those crazy mountain dives last minute. It's a great motor if you're building bigger drones like 9 inch or 10 inch.

Features:

* 7075 aluminum Bell and Base

* Electromagnetically matched magnets and stator

* Japanese NSK 11*5*5 bearings

* N52H Arc curve  magnets

* Motor wires protected

* Hex bolt shaft set screw

* Dynamically balanced

Specification:

-Voltage Range: 2-6S(for different KV, different power support, please refer to the Test Report to choose your suitable KV and batteries)

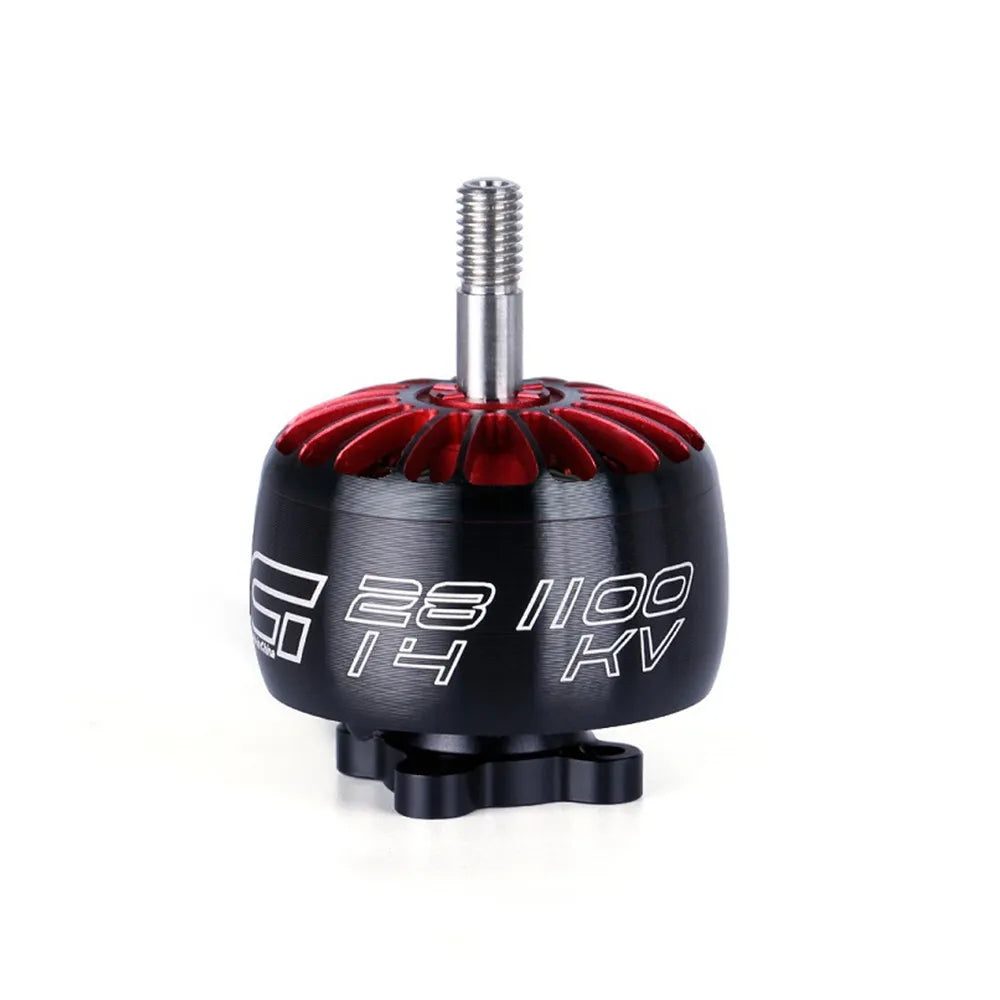

-KV Option: 880KV/1100KV/1700KV/2200KV

-Configuration: 12N14P

-Bearing: NSK/11*5*5

-Stator Diameter: 28

-Stator Length: 14mm

-Shaft Diameter: 5mm

-No.of Cells(Lipo): 2-6S

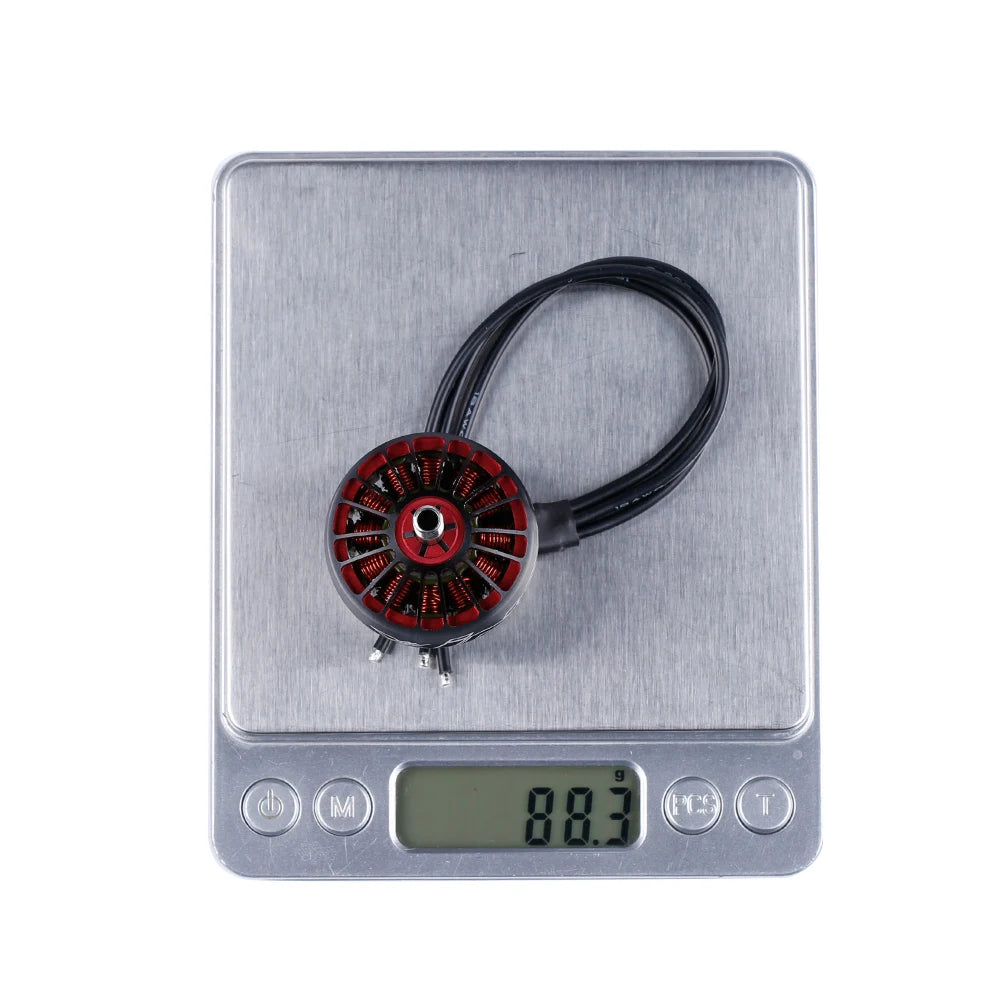

-Weight: 88.3g(with a short cable)

-Motor mount hole: 19*19 φ3mm

Package included:

1pc x X2814 motor

1pc x M5 Screw nut

4pc x M3*8 screws


4PCS IFlight XING 2814, Japanese NSK 11*5*5 bearings * N52H Arc curve magnets
4PCS IFlight XING 2814, iFlight XING 2814 880KV Technical Datas KV 8

iFlight XING 2814 motor specifications: KV rating - 880, configuration: 12N14P stator diameter - 28mm, stator length - 14mm, shaft diameter - 5mm. Dimensions: φ36*30mm, weight - 88.3g. Idle current: 6A, voltage: 41.25V, current at 1V/cell (I0A) @ 10V - 24A. Number of cells (Lipo): 3-6S. Max continuous power: 1221.6W.

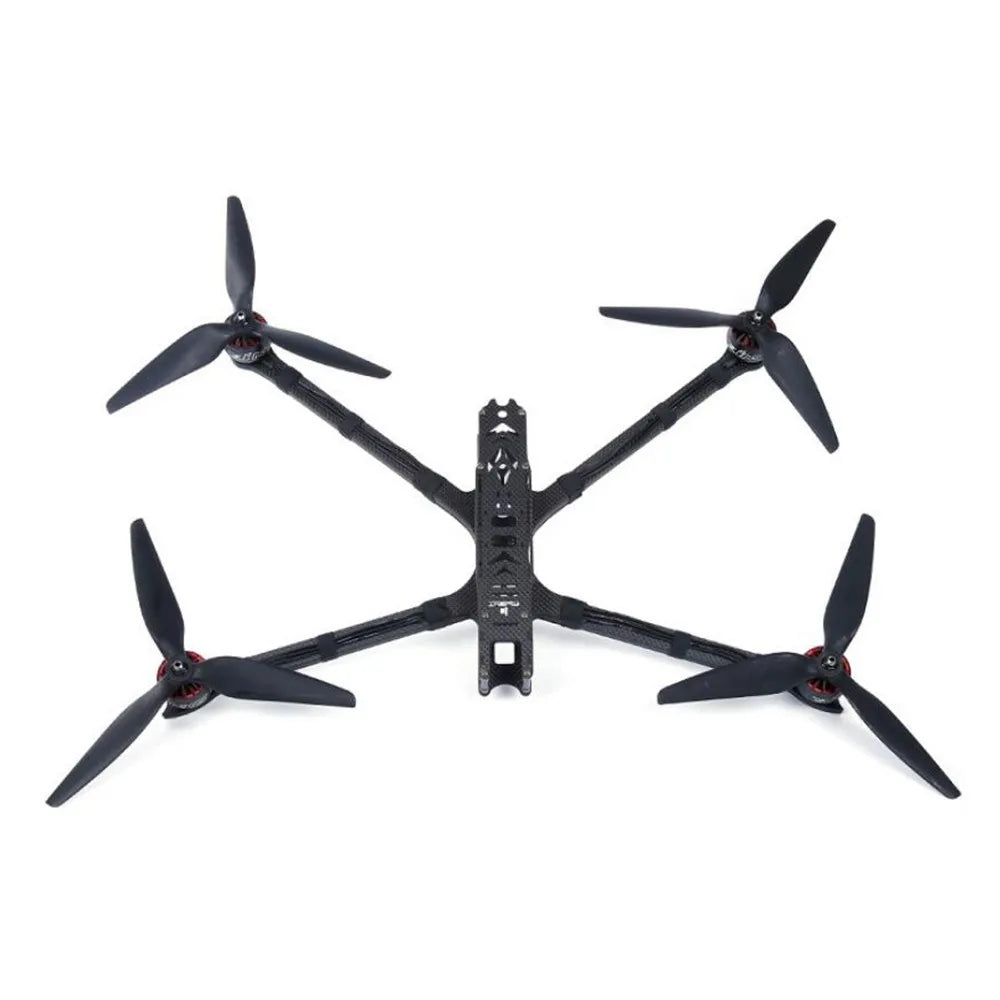

4PCS IFlight XING 2814, it's a great motor if you're building bigger drones like 9 inch
4PCS IFlight XING 2814, it's a great motor if you're building bigger drones like 9 inch4PCS IFlight XING 2814, 4PCS iFlight XING 2814 SPECIFICATIONS Brand4PCS IFlight XING 2814, it offers incredible thrust number, highly responsive and extremely smooth flight characteristics4PCS IFlight XING 2814, the XING 2814 features adopt Japan NSK bearing, N52H arc magnet4PCS IFlight XING 2814, 4PCS iFlight XING 2814 SPECIFICATIONS Brand
4PCS IFlight XING 2814, it's a great motor if you're building bigger drones like 9 inch
4PCS IFlight XING 2814, SHOPPING PROCESS Browse the Add to cart Pay with goods Escrow Con

Shopping Process: Browse, then add to cart. Next, pay through escrow. Confirm your order and provide shipping information. Once confirmed, dispatch will start and the parcel will be sent to you.

4PCS IFlight XING 2814, if you can't checkout immediately after auction close,please wait for few minutes and

If you're unable to check out immediately after the auction closes, please wait for a few minutes and try again. In case of any unexpected situations (such as delays that prevent us from shipping your order within 48 hours), we will contact you as soon as possible to resolve the issue.


4PCS IFlight XING 2814, OUR SERVICE On- Time Delivery Full refund if product isn't received in guaranteed

Our Service: On-time Delivery - We ensure that your products are delivered promptly. Guaranteed Refund Policy: If you don't receive your order within our guaranteed delivery time, we will provide a full refund. Return & Refund Policy: If your product doesn't arrive within the guarantee delivery time, we offer extended protection for 15 days after order completion. Returns: You can return any product that arrives in perfect condition. Guaranteed Quality: We guarantee the quality of our products, and if you're not satisfied, we'll provide a full refund.


4PCS IFlight XING 2814, if vou are satisfied with our product and service,please contact us befo

We appreciate your satisfaction with our product and service! If you're happy with your purchase, please leave us a positive review and 5-star feedback. However, if you're not satisfied or encounter any issues, please contact us before leaving feedback. We will work with you to resolve the problem immediately.
