JX Servo BLS6034HV - 7.4V 33kg Servo SPECIFICATIONS
Brand Name: JX
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Servos
Size: 40.5X20.5X40mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Technical parameters: Value 5
Model Number: BLS6034HV
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Gear Teeth: 25T
Control Angle: 120 Degree
Factory supply, Huge stocks, Support wholesale!
FEATURE:
-----CNC metal On the cover In the shell
-----High-precision Taiwan-made aluminium gears with hard anodizing
-----High Voltage Brushless Digital Servo
SPECIFICATIONS:
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: Brushless
Operating Speed6.6v 0.13 sec/60°
Operating Speed7.4v 0.11 sec/60°
Stall Torque 6.6v 26.7 kg.cm
Stall Torque 7.4v 33.7 kg.cm

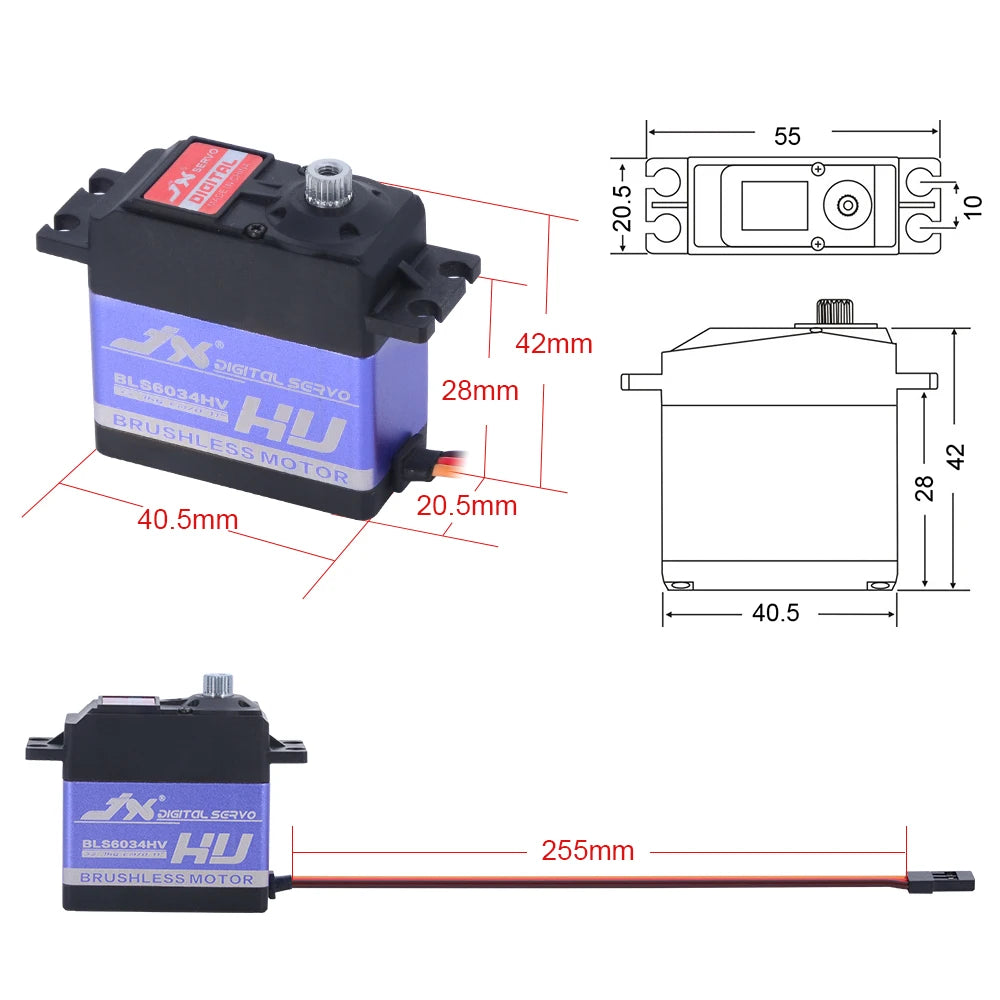

Dimensions: 40.5X20.5X40mm
Gear Teeth:25T

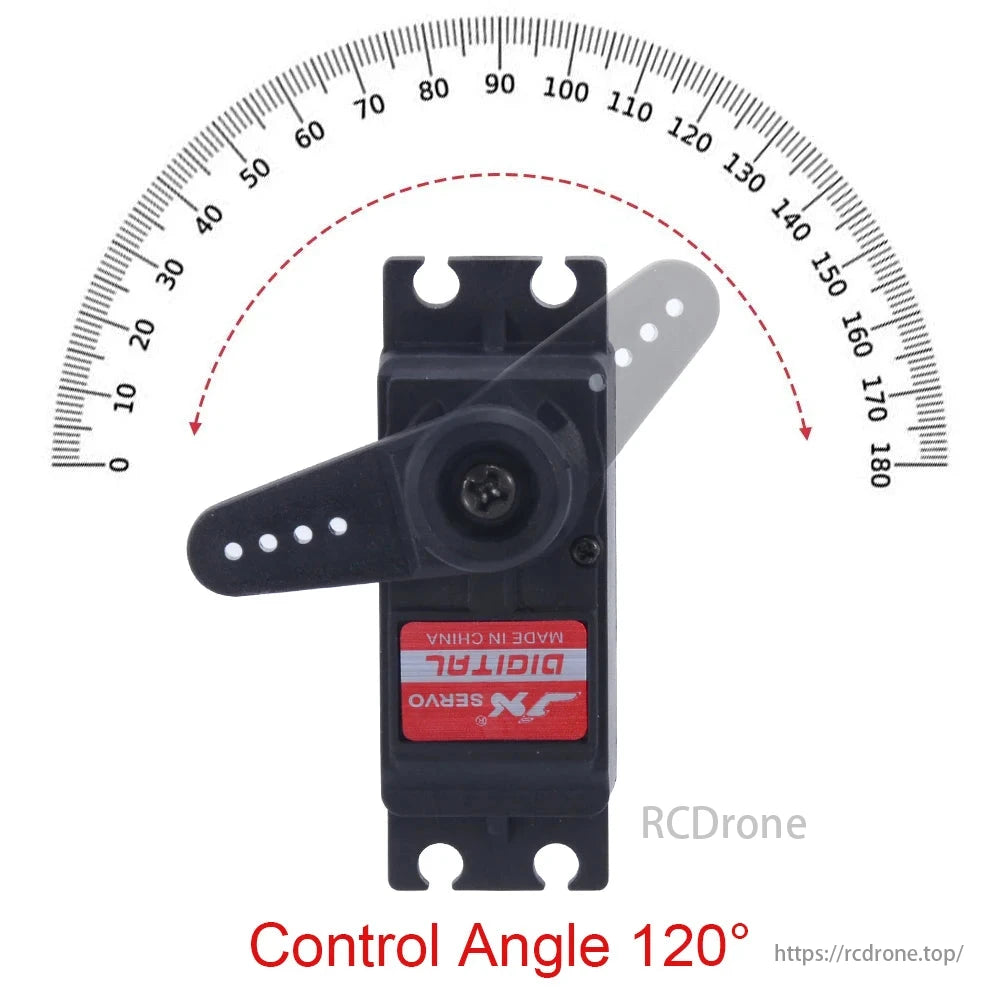

Control Angle:120 Degree
Weight: 60 g
Wire/Color: JR 265 mm/ -Brown +Red S Orange
Bearing: 2BB
Package includes:

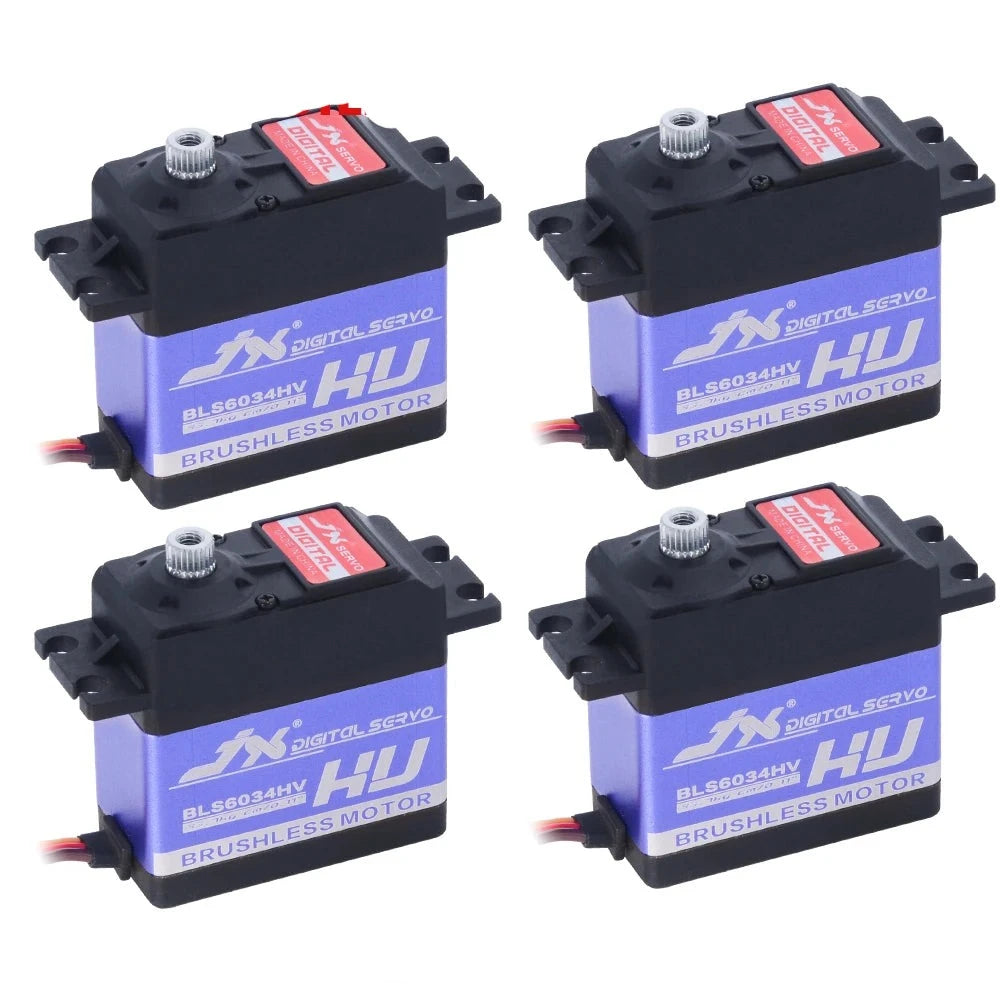

4 pcs x JX BLS6034HV
40.5mm 40.5 DIGITOLSCRvO BLSBOBAHV KW 255mm BRUSHLESS MOToR 1J 4 pldta ELeeoeAHV ScavO KW BRUSHLE ESS MoToR .
