4Sets XXD A2212 A2208 Brushless Motor 930KV 1000KV 1400KV 2200KV 2600KV 1100KV 30A ESC Propeller Combo for RC Multirotors

4Sets XXD A2212 A2208 Brushless Motor 930KV 1000KV 1400KV 2200KV 2600KV 1100KV 30A ESC Propeller Combo for RC Multirotors

XXD

Regular price $61.18 USD
Regular price $91.77 USD Sale price $61.18 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

93 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

 XXD A2212 A2208 Brushless Motor  SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Lithium Battery

Tool Supplies: Battery

Technical parameters: Value 2

Remote Control Peripherals/Devices: Battery

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: XXD

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: NoEnName_Null

XXD A2212 2700KV brushless outrunner motor: Rpm

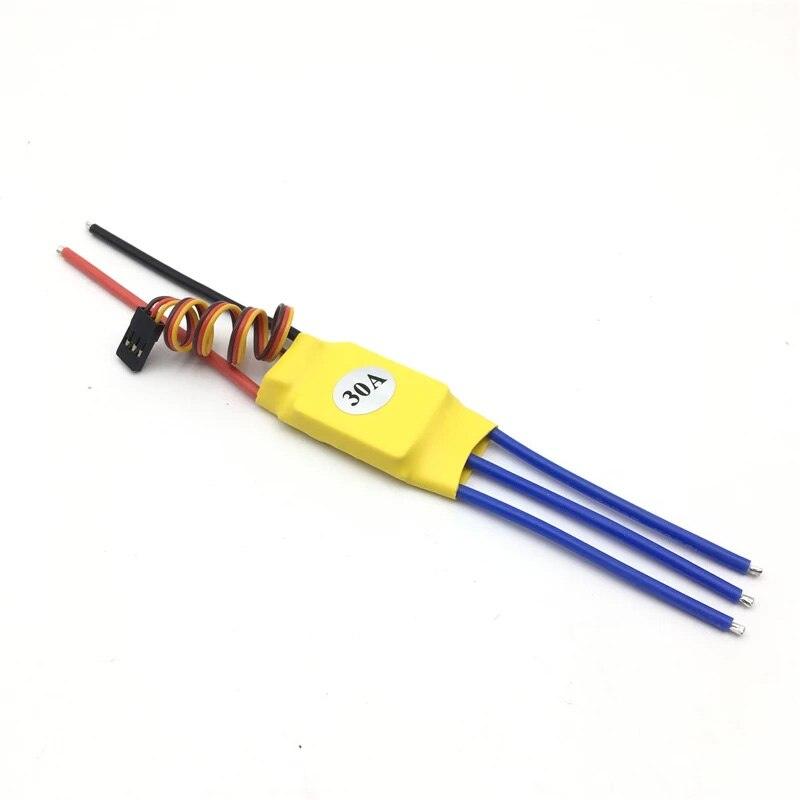

30A Brushless ESC:
Output: Continuous 30A, burst 40A up to 10 Secs.
Input voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery
BEC: 2A / 5V (Linear mode).
Max speed: 210,000rpm for 2 poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: Brushless Motor)
Size: 45 * 24 * 11mm / 1.8 * 0.9 * 0.4in
Weight: 25g / 0.9oz
Item total weight: 480g / 1.06Lbs

XXD A2212 930KV brushless outrunner motor:

- Mode:Wester A2212
- KV: 930 / 1000 /1400 /2200 according to your order
- Max Efficiency: 80%
- Max Efficiency Current: 4-10A (>75%)
- Current Capacity: 12A/60s
- No Load Current @ 10V: 0.5A
- No. Of Cells: 2-3 Li-Poly
- Motor Dimensions: 27.5 x 30mm
- Shaft Diameter: 3.17mm
- Weight: 47g

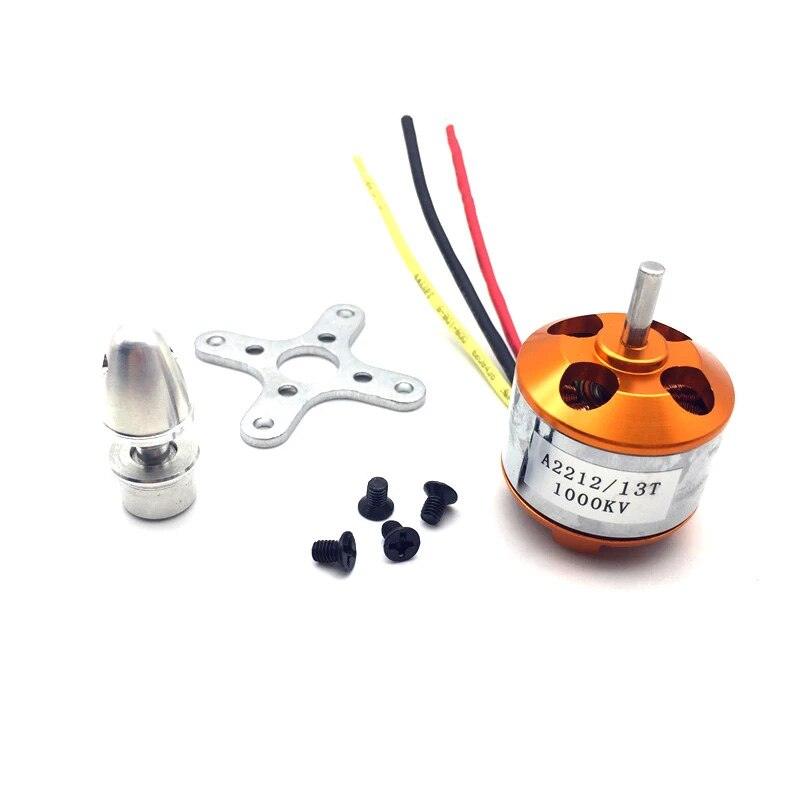

XXD A2212 1000KV brushless outrunner motor:
KV: 1000
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz

XXD A2212 1400KV brushless outrunner motor:
- Shaft diameter: 3.17mm
- Dimension : 27.8mm x 27mm
- Recommended Propeller: 2-cells 7*3.5 , 3-cells 6x3
- Weight: 48g

XXD A2212 2200KV brushless outrunner motor:
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: ?27.5 x 30mm
Shaft Diameter: ?3.17mm
Weight: 47g

XXD A2212 2700KV brushless outrunner motor:
Rpm/V: 2700KV
Net Weight: 50g
Weight: 60g
Motor Dimensions: 27* 26mm
Battery Opernating: 2-3 Lipo
Idle current: 1.8A
Load current: 18.5A
Power (Watt): 240
ESC(A): 30A,20A
Peak.Amps :14-22 A

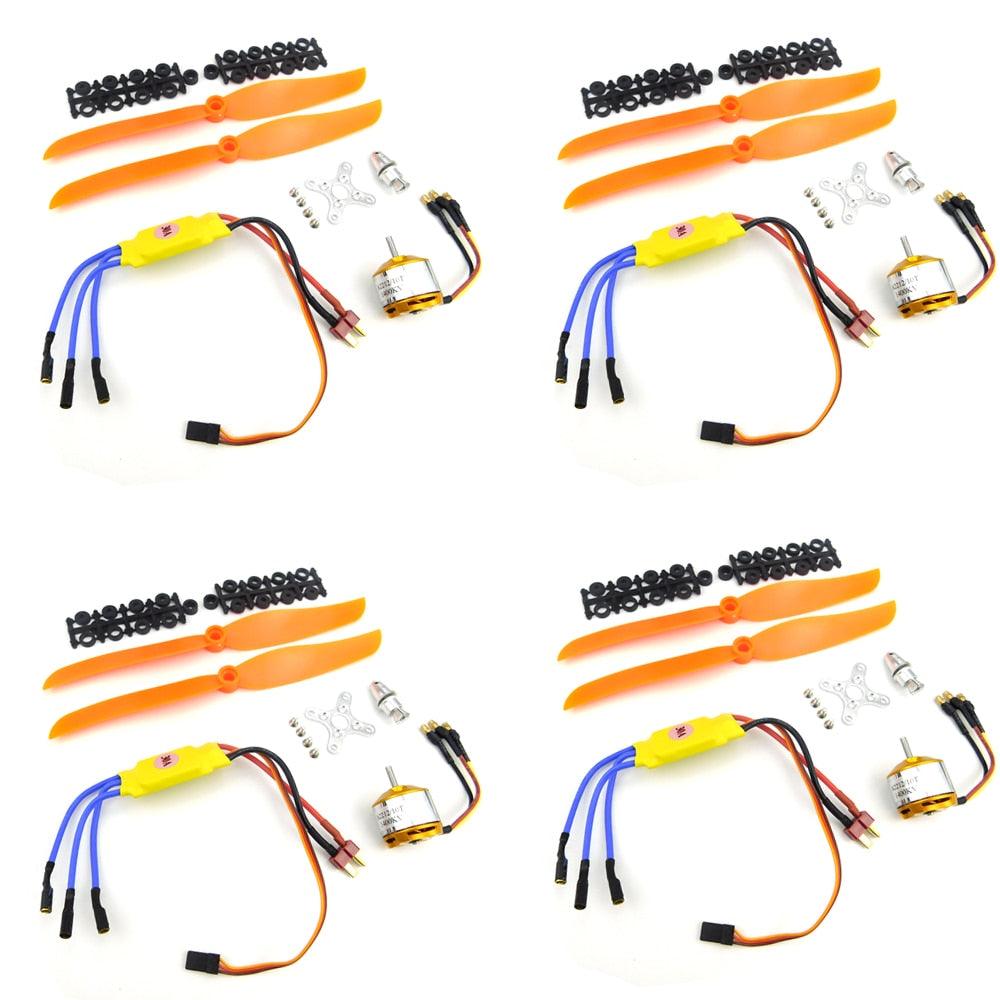

Package  included :
4x A2212 Brushless Outrunner Motor
4x 30A ESC

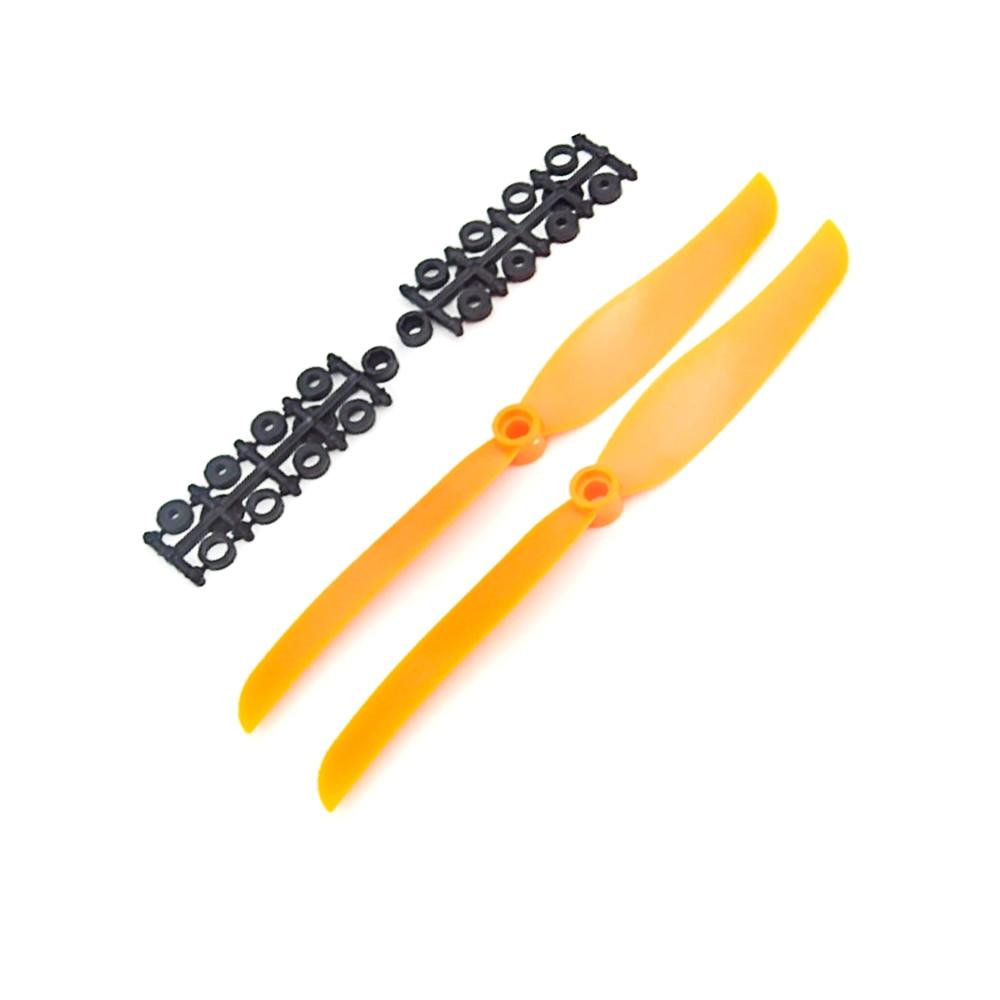

8x propeller  The propeller is matched according to the KV value of the motor

XXD A2212 2700KV brushless outrunner motor: RpmXXD A2212 2700KV brushless outrunner motor: Rpmspeed: 210,000rpm for 2 poles BLM, 70,000rpm .

XXD A2212 A2208 Brushless Motor SPECIFICATIONSrecommended Propeller: 2-cells 7*3.5 , 3-cells 6x3 efficiency current: 4-10A (>75%) Current capacity: 12A/60s NoXXD A2212 2700KV brushless outrunner motor: Rpm4Sets XXD A2212 A2208 Brushless Motor 930KXXD A2212 1000KV brushless outrunner motor: KV:
