5.8GHz 3W 48CH VTX - 25mW/1000mW/2000mW/3000mW adjustable Video Transmitter For Long Rang FPV Racing Drone

5.8GHz 3W 48CH VTX - 25mW/1000mW/2000mW/3000mW adjustable Video Transmitter For Long Rang FPV Racing Drone

RCDrone

$63.27 USD
$82.25 USD $63.27 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

187 orders in last 90 days

Default Title
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

5.8GHz 3W 48CH VTX SPECIFICATIONS

Brand Name: Mitoot

Is Electric: No battery

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Speed Controllers

Size: 30.5*30.5

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: 5.8G 3W VTX

Remote Control Peripherals/Devices: MOTOR

Tool Supplies: VTX 48CH 3000mW

Quantity: 1 pcs

Technical parameters: Value 2

Model Number: 5.8G 5.8GHz 3W Video Transmitter

Four-wheel Drive Attributes: 2.5W VTX

Wheelbase: Screws

for: Airplane

Place of Origin: Guangdong, China (Mainland)

Radio Control Style: RC Model

Power Source: Electric

Type: Helicopter

5.8GHz 3W 48CH VTX - 25mW/1000mW5.8GHz 3W 48CH VTX - 25mW/1000mW


1. 48CH 5.8G frequency range: (A.B.E.F.R.L; 5362MHz-5945MHz);

2. Max power: 3W (25mW/1000mW/2000mW/3000mW adjustable);

3. Input voltage: DC 7V-36V, supporting 2-8S battery input

4. Antenna connector: MMCX

5. Smart audio: IRC Tramp

6. Heat-dissipating method: aluminum alloy heat sink&fan

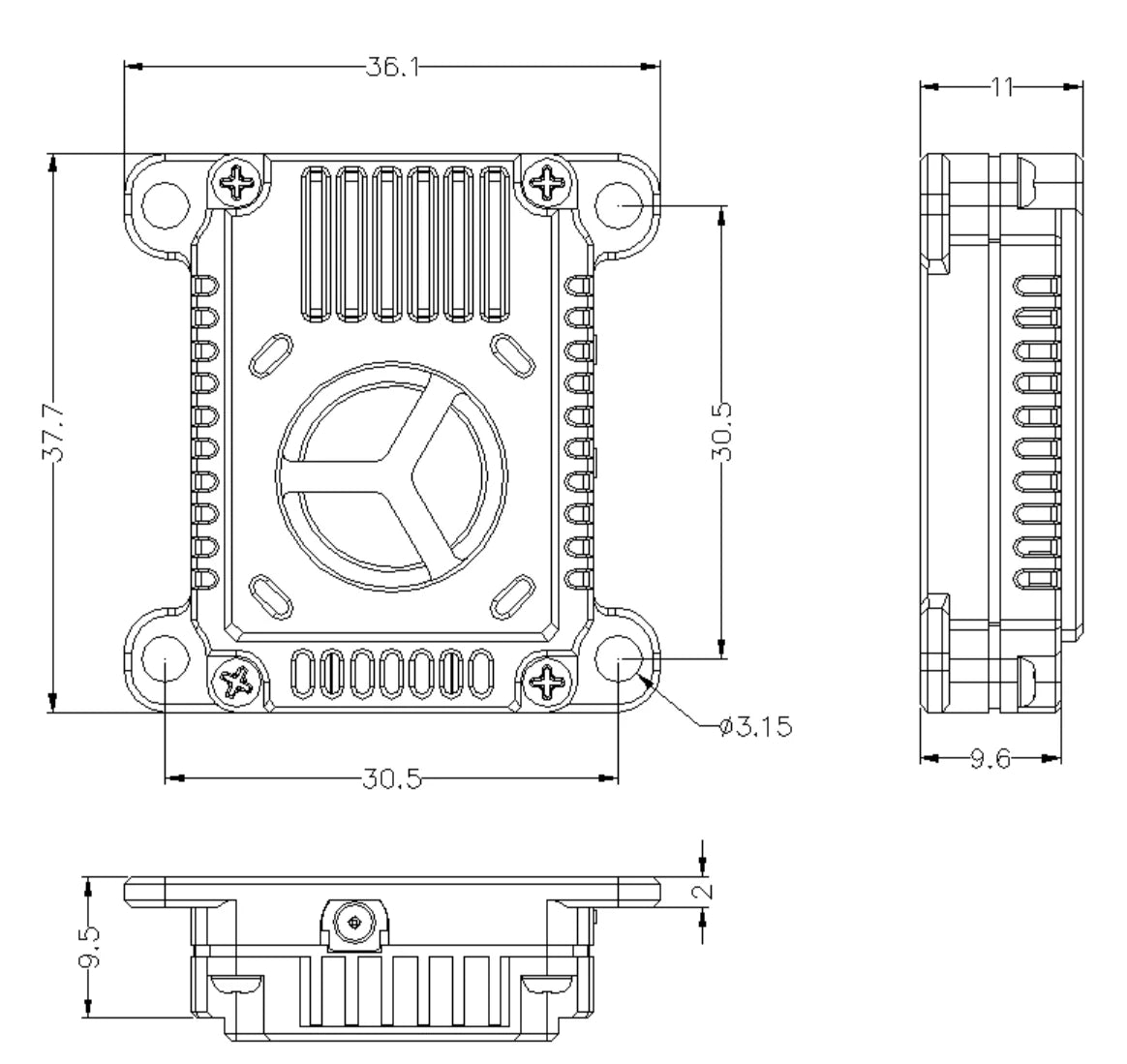

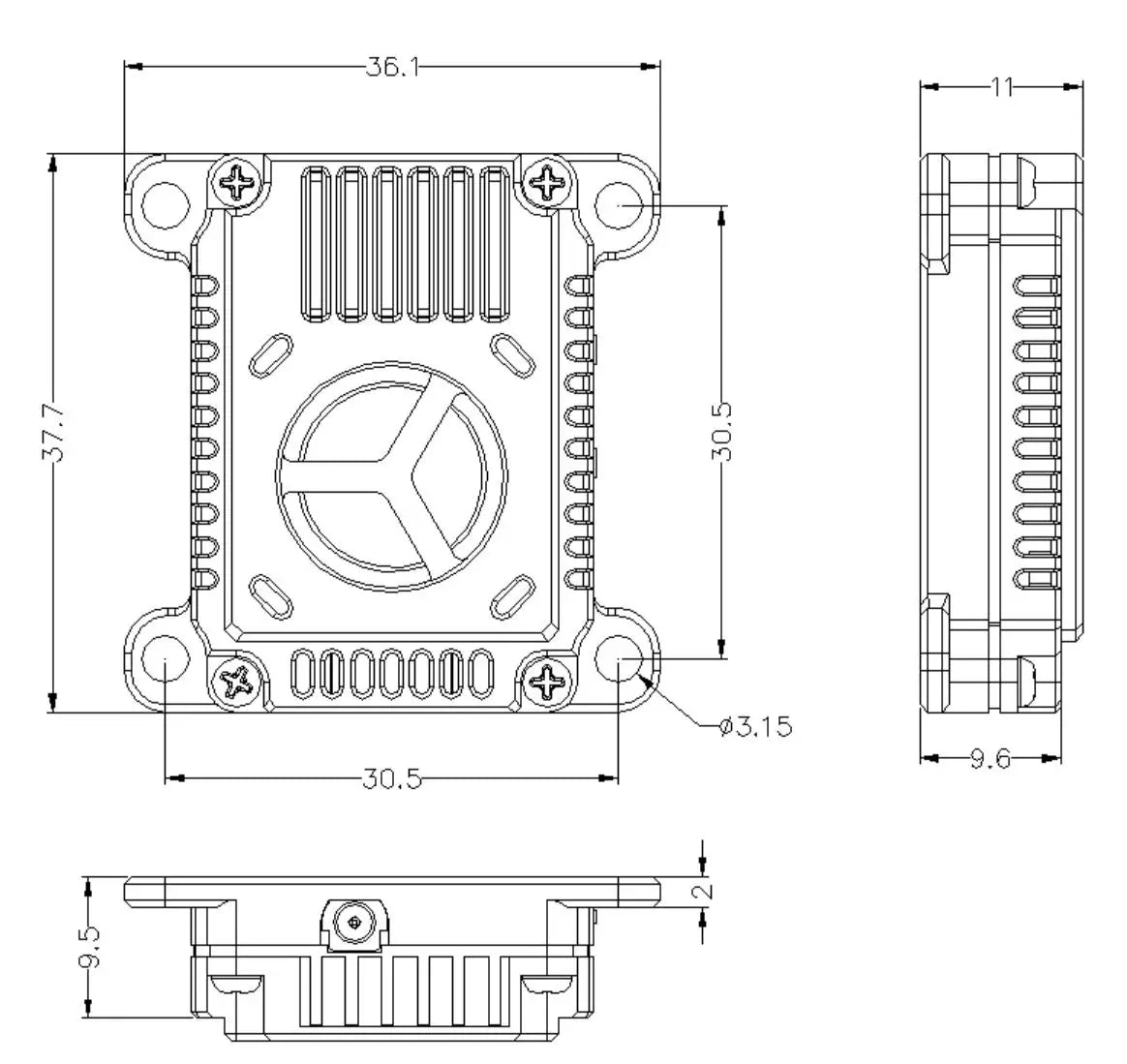

7. Hole spacing: 30.5mm*30.5mm /ø3.15mm

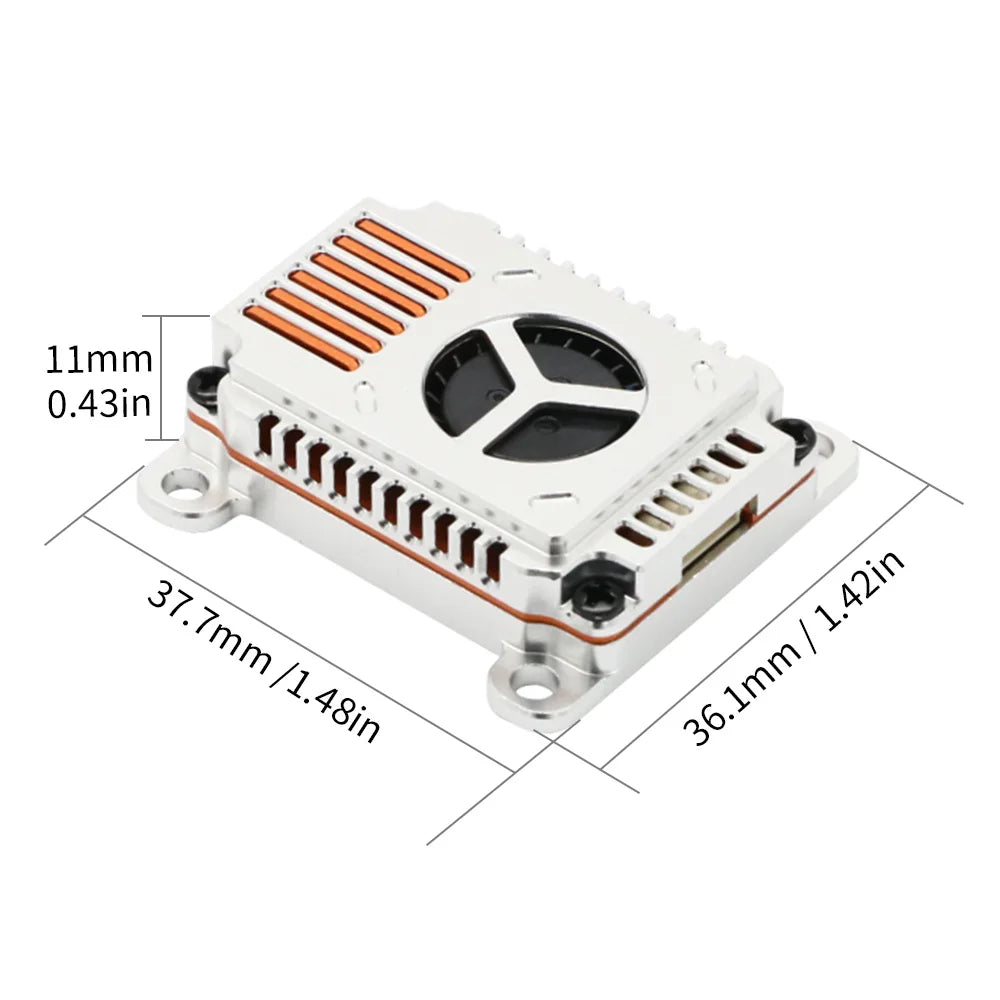

8. Dimension: 37.7mm*36.1mm*11mm

9. Weight: 16g

5.8GHz 3W 48CH VTX - 25mW/1000mW

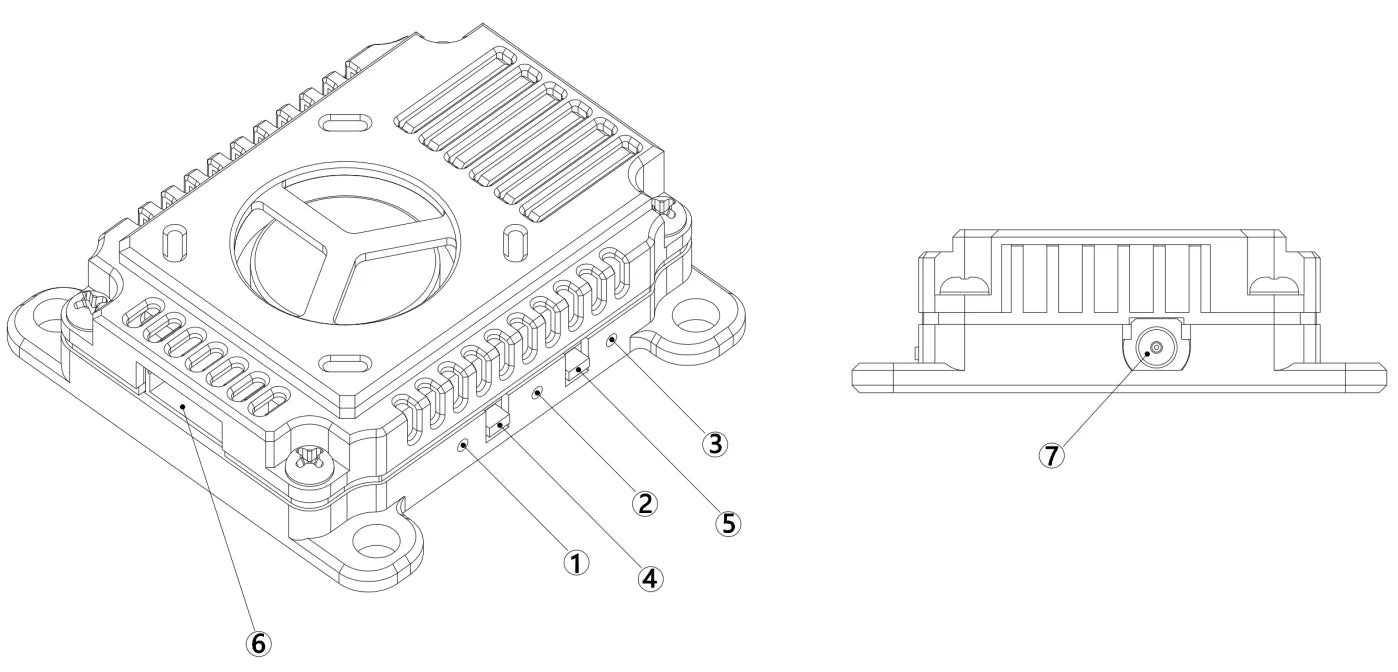

Function introduction:

1. Channel indicator: Red LED

2. Band indicator: Blue LED

3. Power level indicator: Green LED

4. Band and channel changer button

5. Power changer button

6. 1.0 6P Power connector

7. MMCX antenna connector


Notice: The transmitter is equipped with temperature protection function. When the temperature of transmitter is higher than 100℃, the RF power of the Transmitter will be lowered for one level. If the temperature is still greater than 100℃, the power can be lowered for another level until the lowest power (25mW) is reached; at this time, the temperature of the Transmitter module will drop. When the temperature is lower than 95℃, the Transmitter power will return to the originally power level.
