Product Functions

-Transmission Range: 656ft-820ft transmission range between TX and RX:

-0.1s Latency: Lowest transmission latency 0.1s.

-Designed with a battery compartment:
Supports various NP-F series battery inputs.

-Support 1TX to 4RXs (Max)

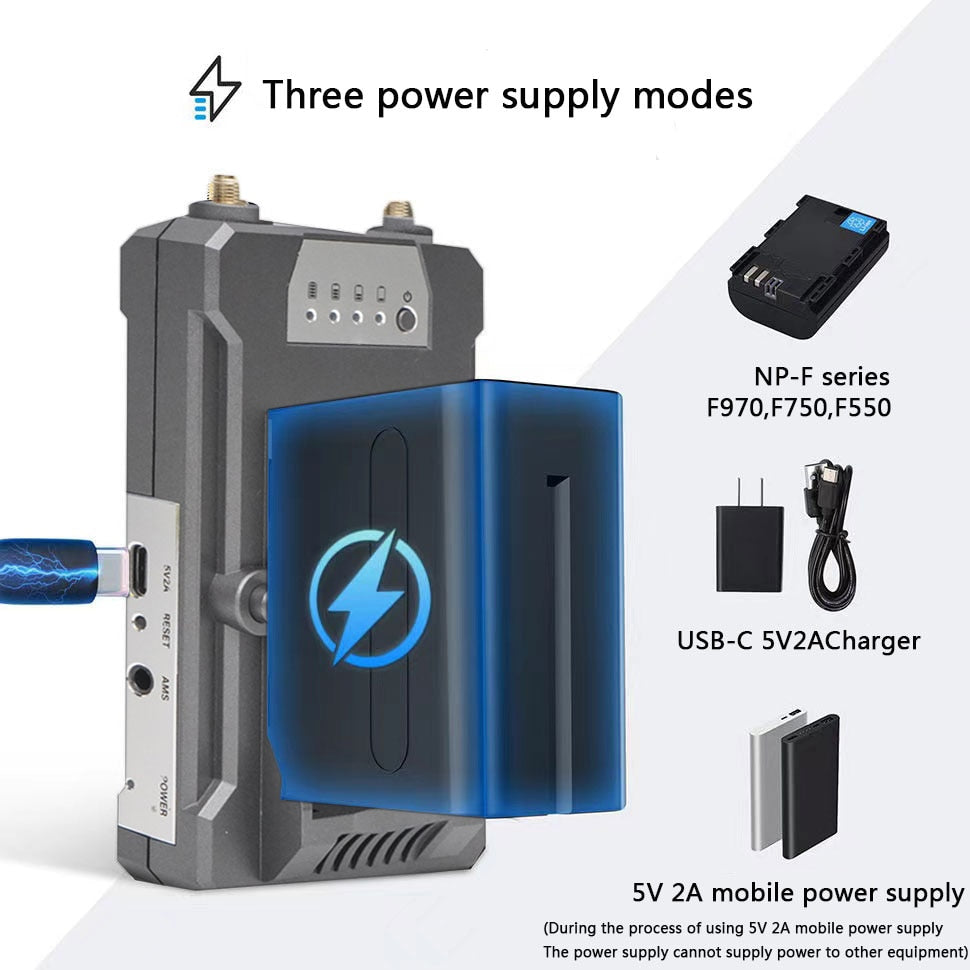

-Three Charging Ways: 5V/2A DC power input, 5V/2A Portable charger input, various NP-F series battery input.

-Easy to Install: Multiple pre-drilled screw ports for easier installation and fixing.

-Compatible with various HDMI devices:
Including DVD, DVR, IPTV, CCTV Blu-ray players, set-top boxes, cable/satellite boxes and computer systems, game consoles,
and more/connected HDTVs , projectors, monitors, etc.

-IR control:Supports an infrared remote control that allows you to control the source device at the receiver.

-Used in multiple scenarios：Live Streaming，Film Production，Sporting events，Educational Recordings，Wedding ceremonies
Corporate Events, etc.

Installation Steps

1.First connect the HDMI cable, the signal source connect Sender (transmitter) IN input; local display device connect Sender(transmitter) OUT output.
2.Then connect the receiver to a remote display device (such as a television, a splicing screen and so on).
3.IR remote control function: pay attention to the infrared head of the sender should face and close to the signal source.

Transmission distance

1 TX to 1 RX transmission distance: 200-250m;
1 TX to 2 RX transmission distance: 150m;
1 TX to 3 RX transmission distance: 120m;
1 TX to 4 RX transmission distance: 100m;

((*The above data are from outdoor testing of fixed values.
the data may vary or be inaccurate due to objective environmental changes.))

Package List

Only RX:
Wireless Receiver *1
Antenna *2
5V2A Power Adapter *1
Usb Charging Cable *1
IR Cable * 1
User Manual *1

1TX 1RX：
Wireless Transmitter *1
Wireless Receiver *1
Antenna *4
5V2A Power Adapter *2
Usb Charging Cable *2
IR Cable * 2
User Manual *1

MP3 Mobile phone FER FORD WORLD L Mm TENME External microphone comaro Transmitter Audio input AMS interface on TX is used to collect external audio,and the sound is transmitted to RX through TX to play the collected sound .

This wireless HDMI extender kit features a 200M transmission range, with a 5.8 GHz frequency and low latency of just 0.01 seconds. It utilizes a new design that enables seamless transmission of high-definition video signals up to 1080p.

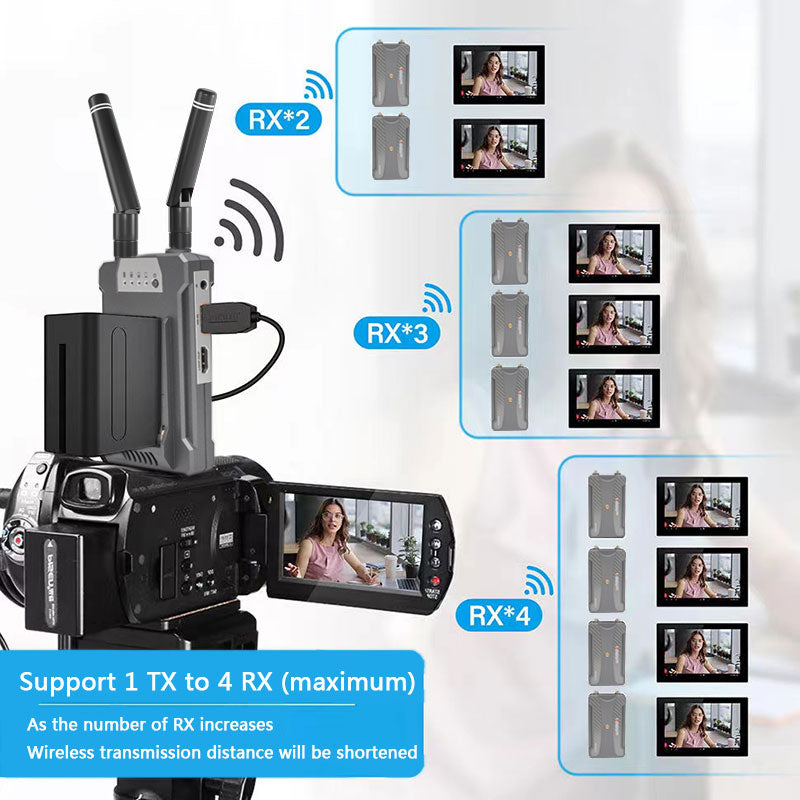

This wireless HDMI extender kit supports up to 4 receiver units (RX) connected to a single transmitter unit (TX), with a maximum transmission distance that decreases as the number of receivers increases.

This wireless video transmitter and receiver kit supports high-definition (1080P) transmission up to 200m, making it compatible with various HDMI devices such as TVs, monitors, projectors, cameras, set-top boxes, Blu-ray players, CD/DVD players, PCs, notebooks, VCRs, and more. The kit is designed for barrier-free transmission and features a screw-based connection system (1/4 inch screw).

This wireless HDMI extender kit uses NP-F series batteries (F970, F750, or F500) and includes a USB-C charger with a mobile power supply output of 2A. The battery life varies depending on the transmitter (TX) or receiver (RX) usage: * F970 (6000mAh): approximately 14 hours TX, 22 hours RX, or 7.5 hours TX and 13 hours RX * F750 (2000mAh): approximately 10 hours TX, 13 hours RX, or 4.5 hours TX and 6.75 hours RX * F500 (1000mAh): approximately 4.5 hours TX, 7.5 hours RX, or 2.25 hours TX and 3.75 hours RX

The package includes: * 1 x Wireless HDMI Transmitter (TX) * 1 x Wireless HD Receiver * 3 x Wireless Packages * 4 x Pro Antennas * 2 x Power Cables * 2 x Power Adapters * 2 x IR Cables * 1 x Instruction Manual
