XXD A2212 2212 A2208 2208 930KV 1000KV 1400KV 2200KV 2450KV 2700KV Brushless Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Lithium Battery

Tool Supplies: Battery

Technical parameters: Value 6

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: A2212

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: NoEnName_Null

Item Name: Motor Holder
Suit for: XXD 2204 2212 2208 2216 2218 22 Brushless Outrunner Motor

XXD A2212 930KV brushless outrunner motor:

- Mode:Wester A2212
- KV: 930 / 1000 /1400 /2200 according to your order
- Max Efficiency: 80%
- Max Efficiency Current: 4-10A (>75%)
- Current Capacity: 12A/60s
- No Load Current @ 10V: 0.5A
- No. Of Cells: 2-3 Li-Poly
- Motor Dimensions:27.5 x 30mm
- Shaft Diameter:3.17mm
- Weight: 47g

XXD A2212 1000KV brushless outrunner motor:
KV: 1000
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz

XXD A2212 1400KV brushless outrunner motor:
- Shaft diameter: 3.17mm
- Dimension : 27.8mm x 27mm
- Recommended Propeller: 2-cells 7*3.5 , 3-cells 6x3
- Weight: 48g

XXD A2212 2200KV brushless outrunner motor:
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: ?27.5 x 30mm
Shaft Diameter: ?3.17mm
Weight: 47g

XXD A2212 2700KV brushless outrunner motor:
Rpm/V: 2700KV
Net Weight: 50g
Weight: 60g
Motor Dimensions: 27* 26mm
Battery Opernating: 2-3 Lipo
Idle current: 1.8A
Load current: 18.5A
Power (Watt): 240
ESC(A): 30A,20A
Peak.Amps :14-22 A

Item Name: SG90 Mini Analog Servo
Operating Speed (4.8V no load): 0.12sec/60 degrees
Stall torque: 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)
operating voltage: 3.0-7.2V
Temperature range: -30~60
Dead band width: 7us
Item size: 3.2 x 3 x 1.2cm
Item weight: about 9g
Connector wire length: 24.5cm

Item Name: SG90 Mini Analog Servo
Operating Speed (4.8V no load): 0.12sec/60 degrees
Stall torque: 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)
operating voltage: 3.0-7.2V
Temperature range: -30~60
Dead band width: 7us
Item size: 3.2 x 3 x 1.2cm
Item weight: about 9g
Connector wire length: 24.5cm


Package  included :

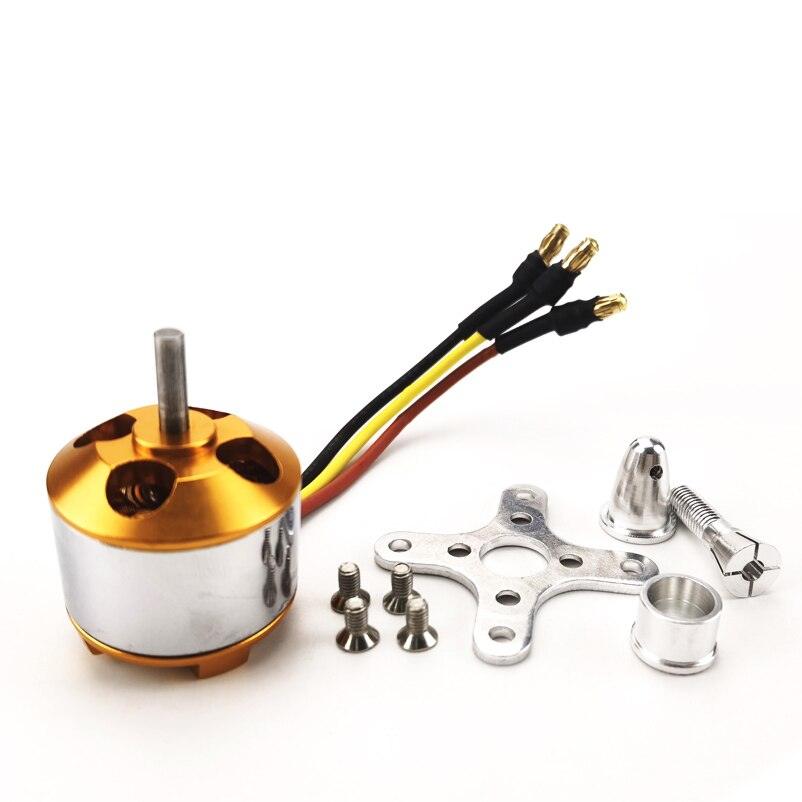

5x A2212 Brushless Outrunner Motor with Mounts
5x SG90 Servo(optional)
