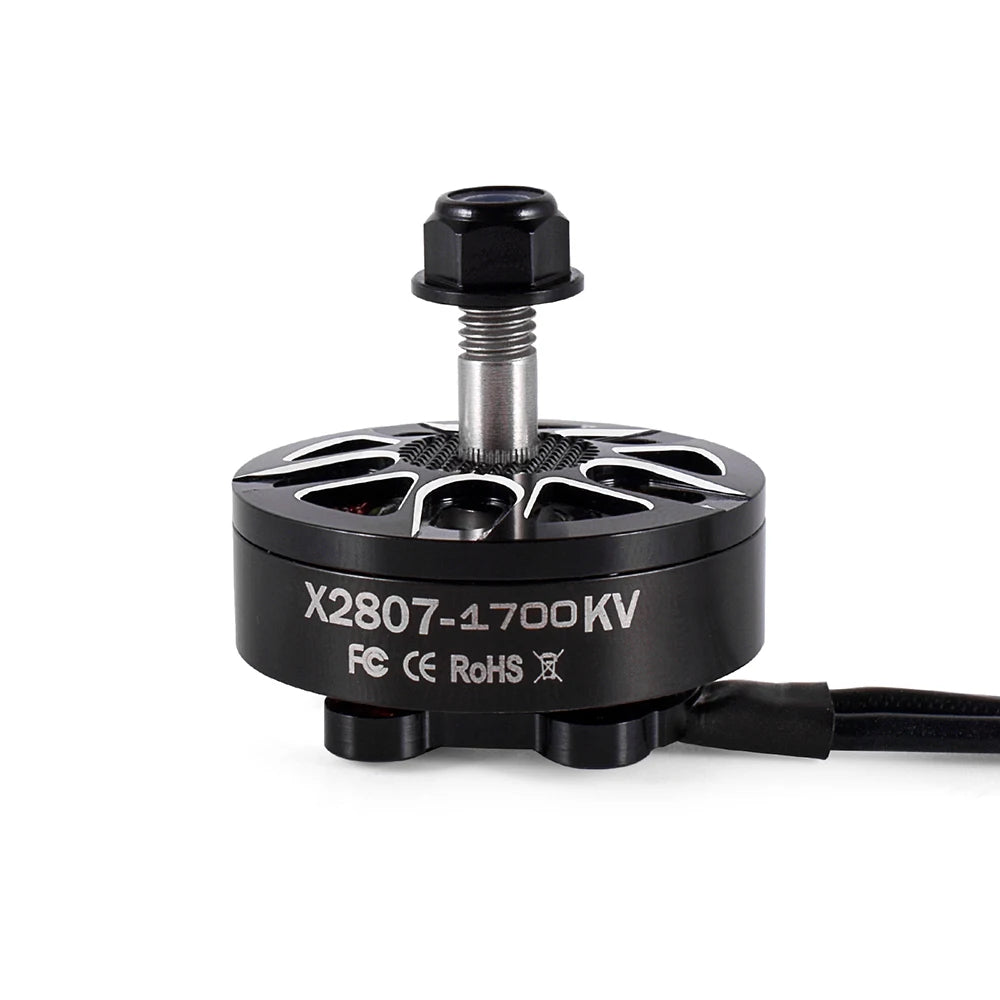

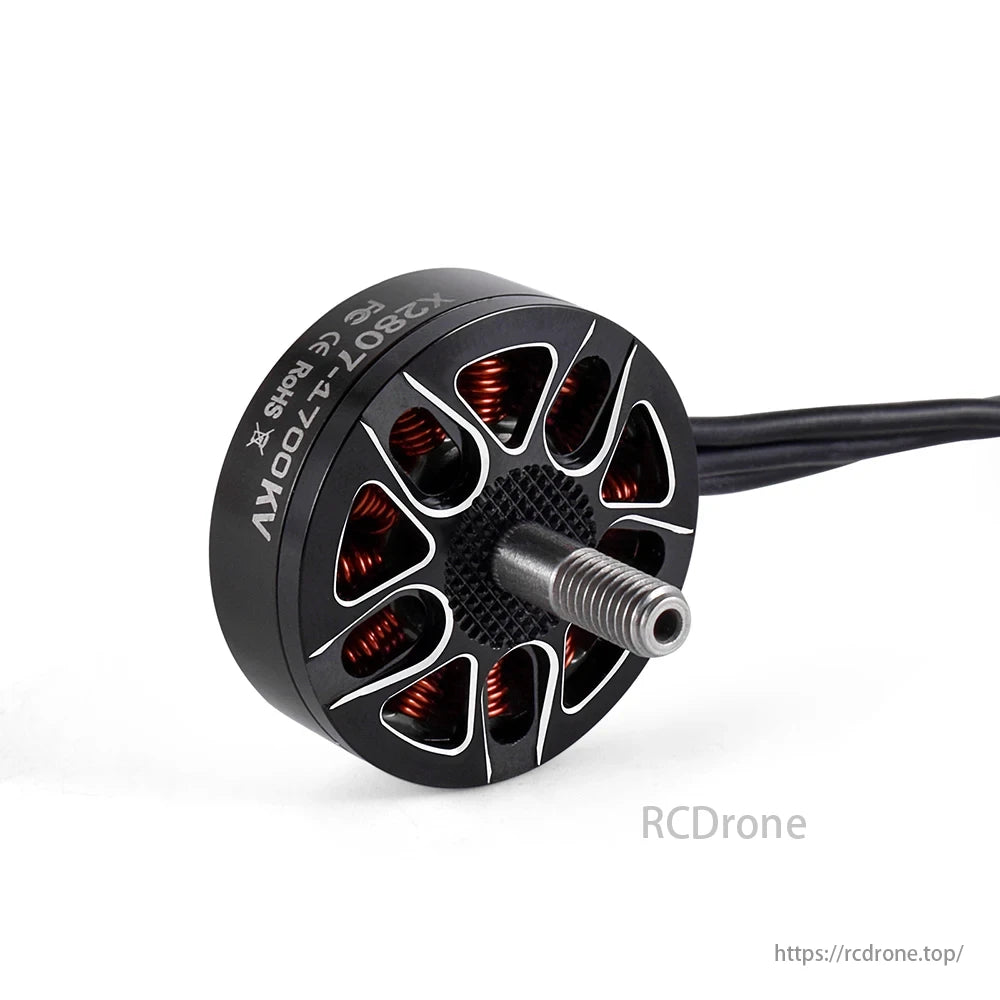

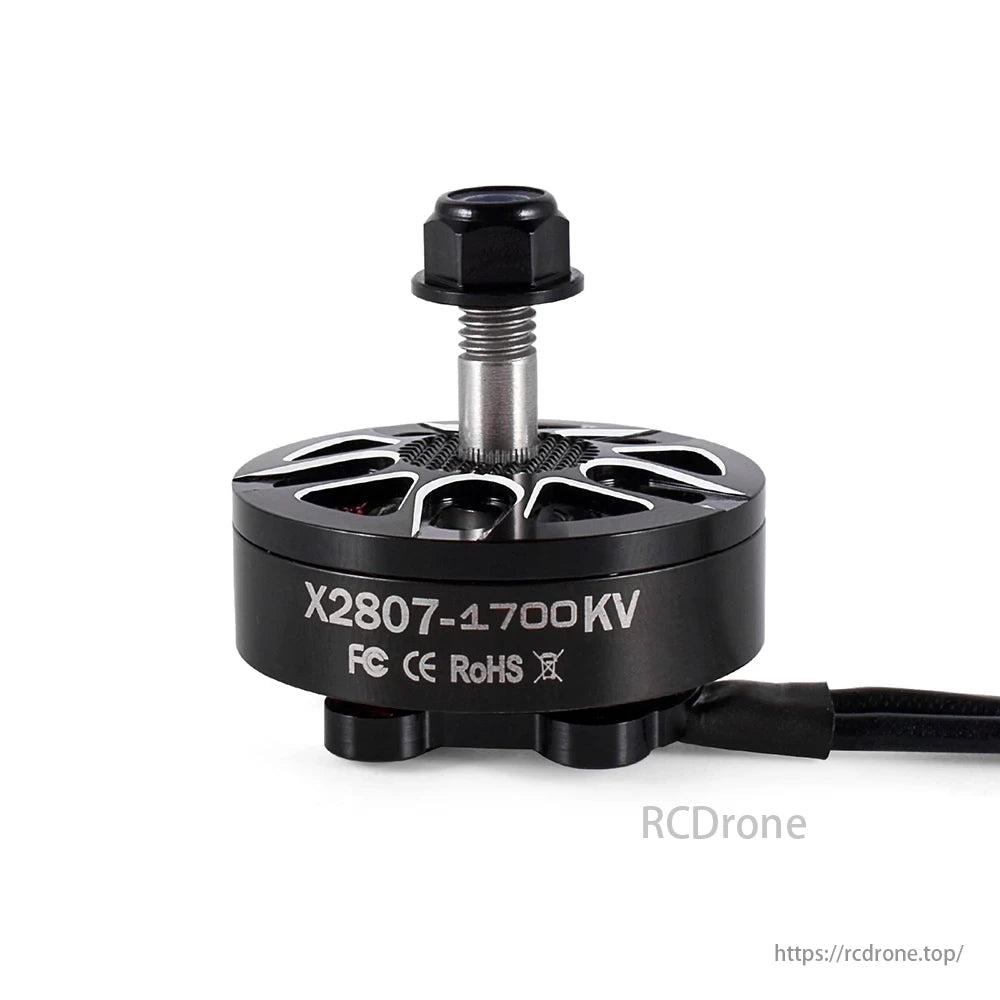

  • 2807 1700KV brushless motor for RC FPV racing drone with 4mm shaft.

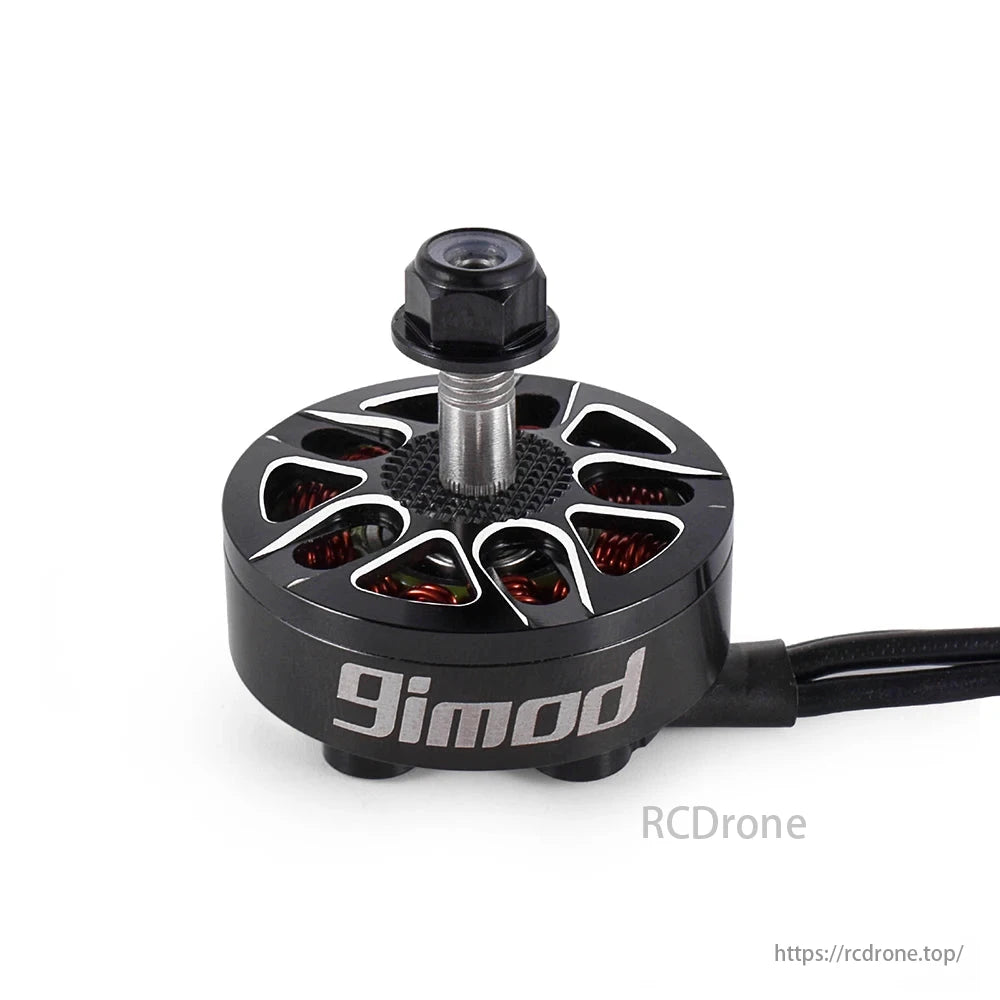

  • 9IMOD brushless motor for RC FPV racing drones, compatible with 2-6S batteries, offering various KV options for performance tuning.
  • 9IMOD brushless motor for RC FPV racing drones, with 2-6S compatibility and multiple KV options.

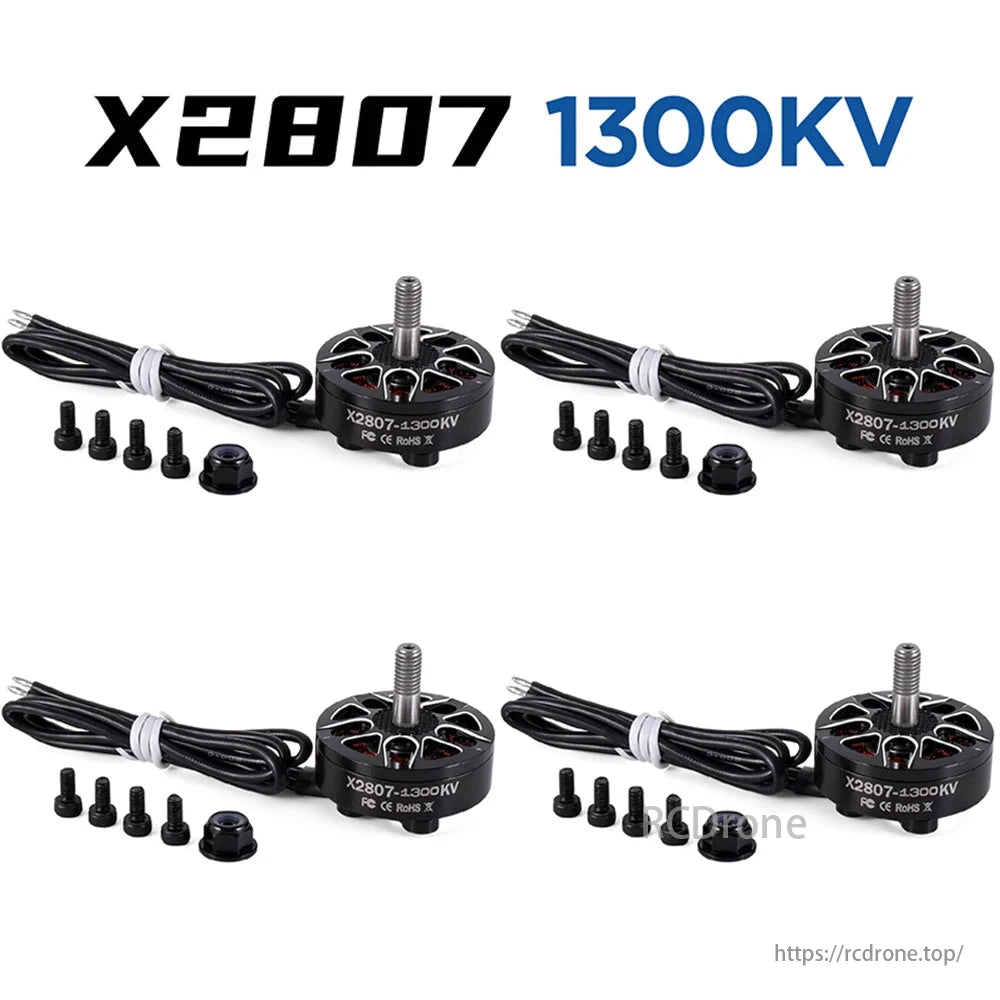

  • X2807 1300KV brushless motor for RC FPV racing drone multicopter, featuring a 4mm shaft.

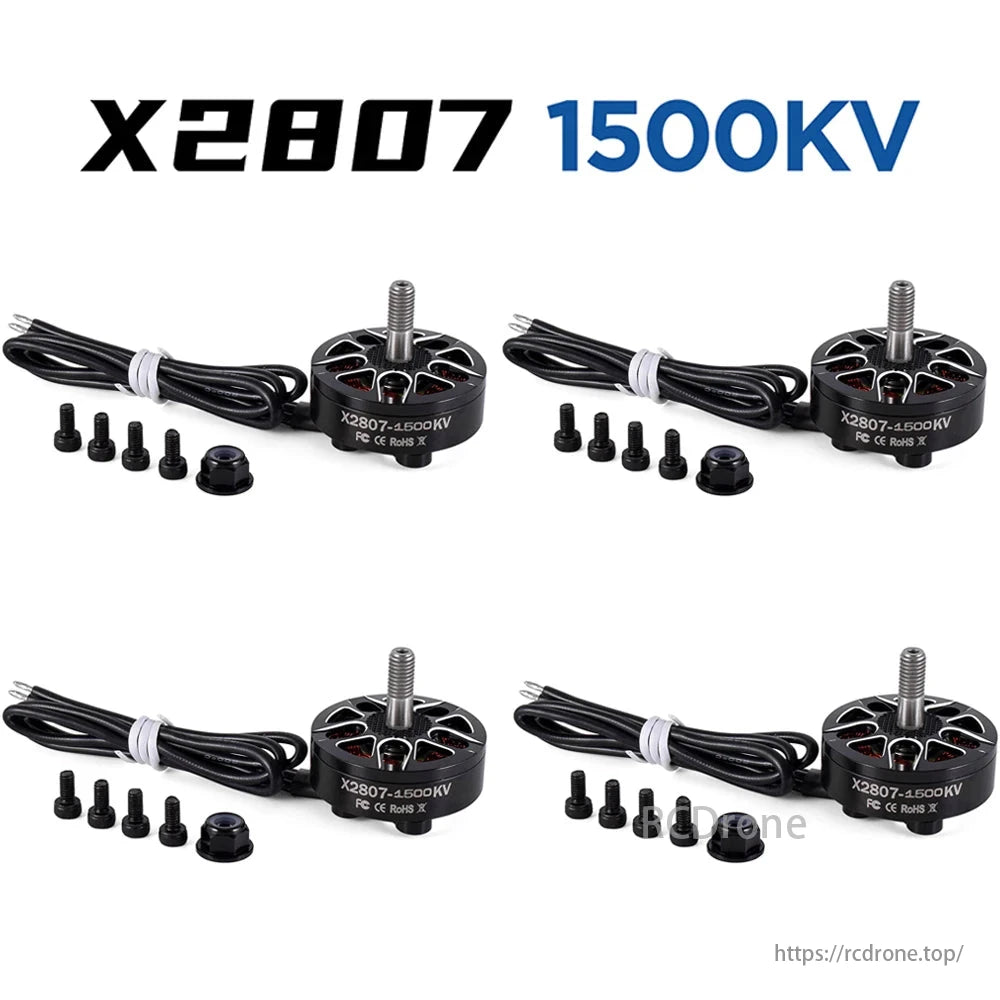

  • X2807 1500KV brushless motors for RC FPV drones, includes four motors with accessories, suited for multicopters, 2-6S battery compatibility, 4mm shaft.
  • X2807 1300KV brushless motor for RC FPV drone. 2-6S, 4mm shaft. Includes motors, screws, connectors. Perfect for high-performance use.

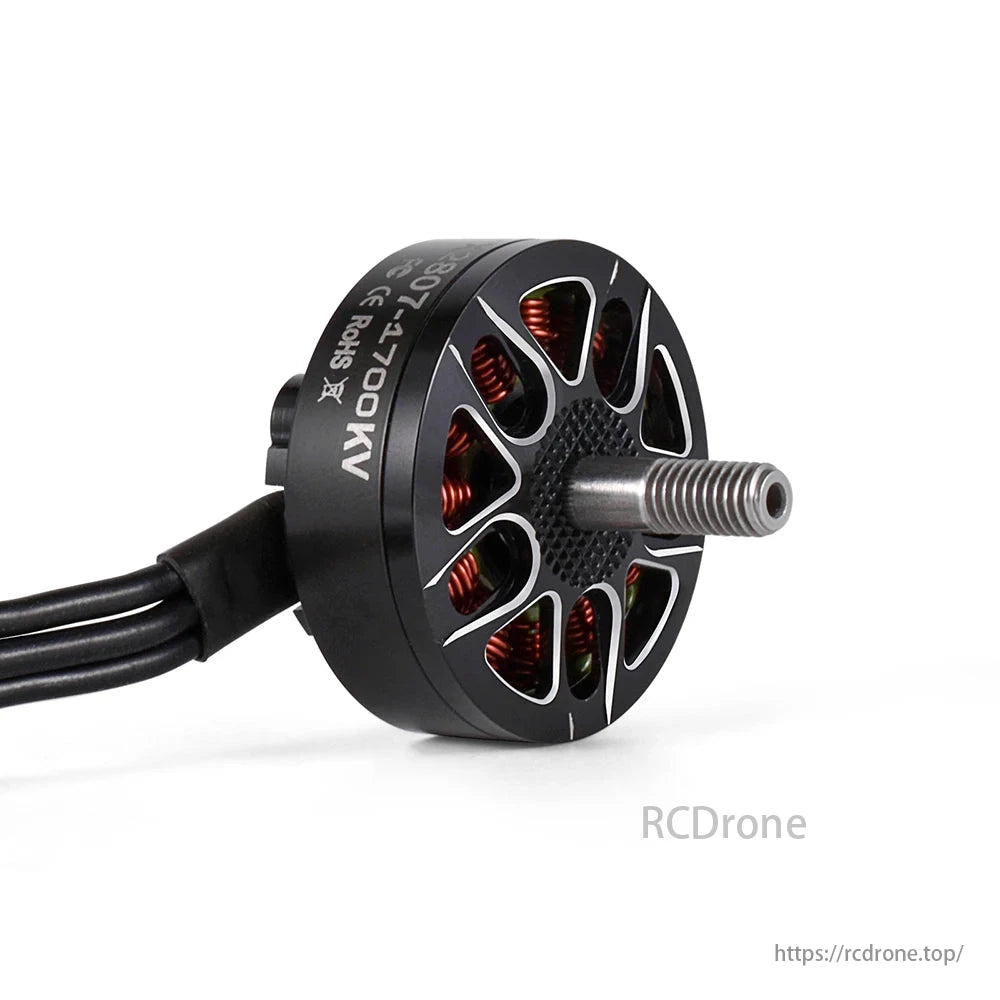

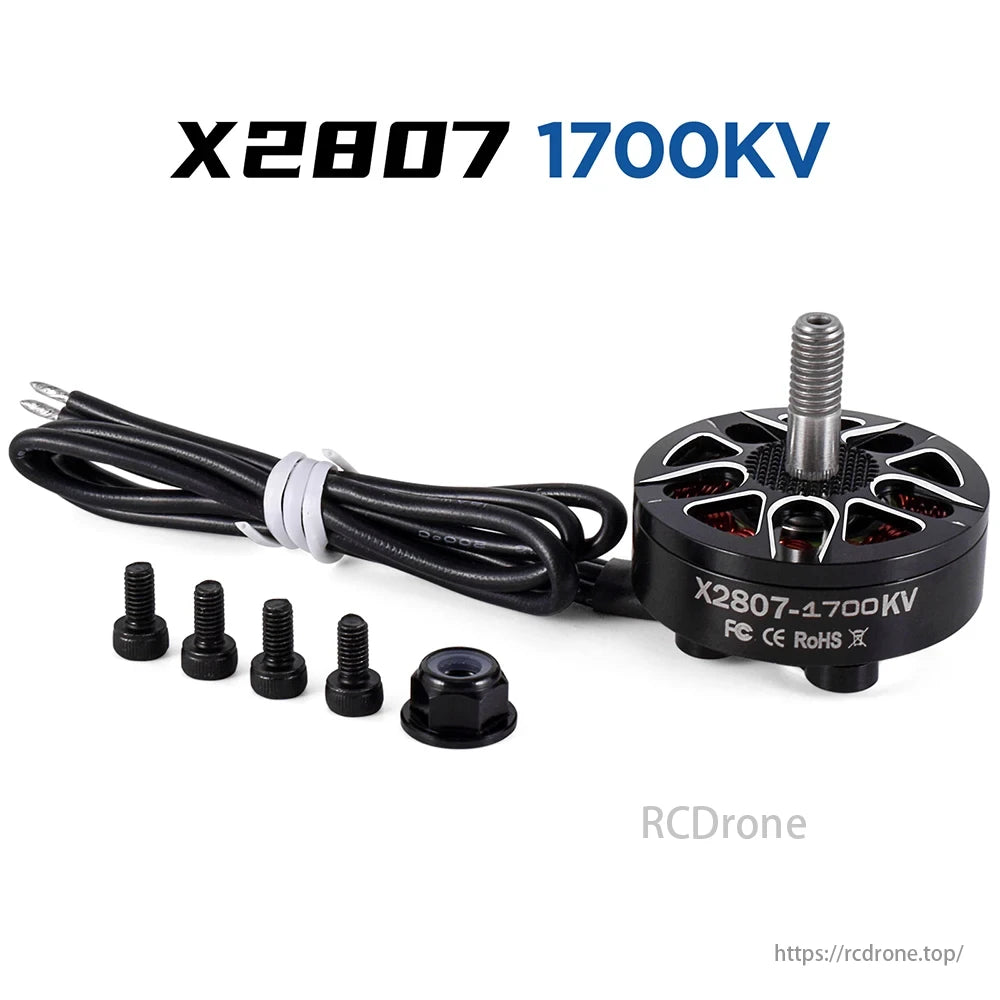

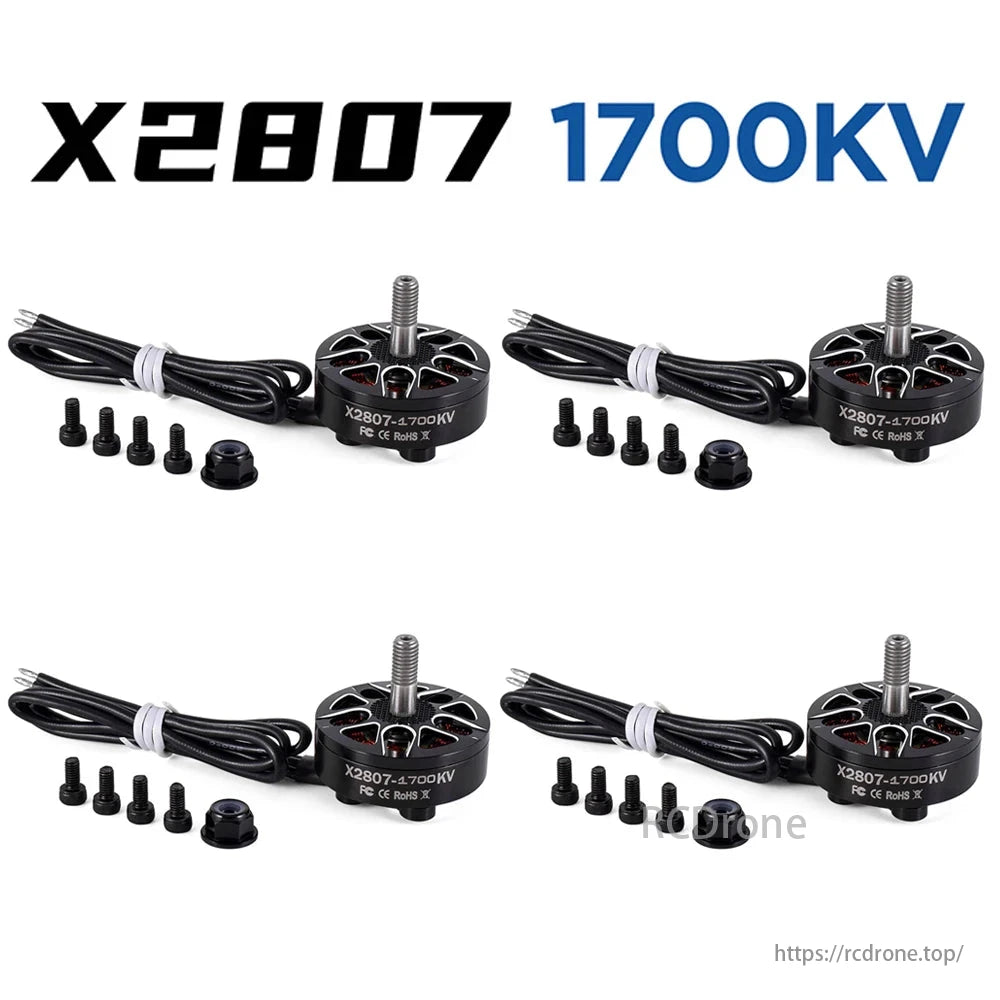

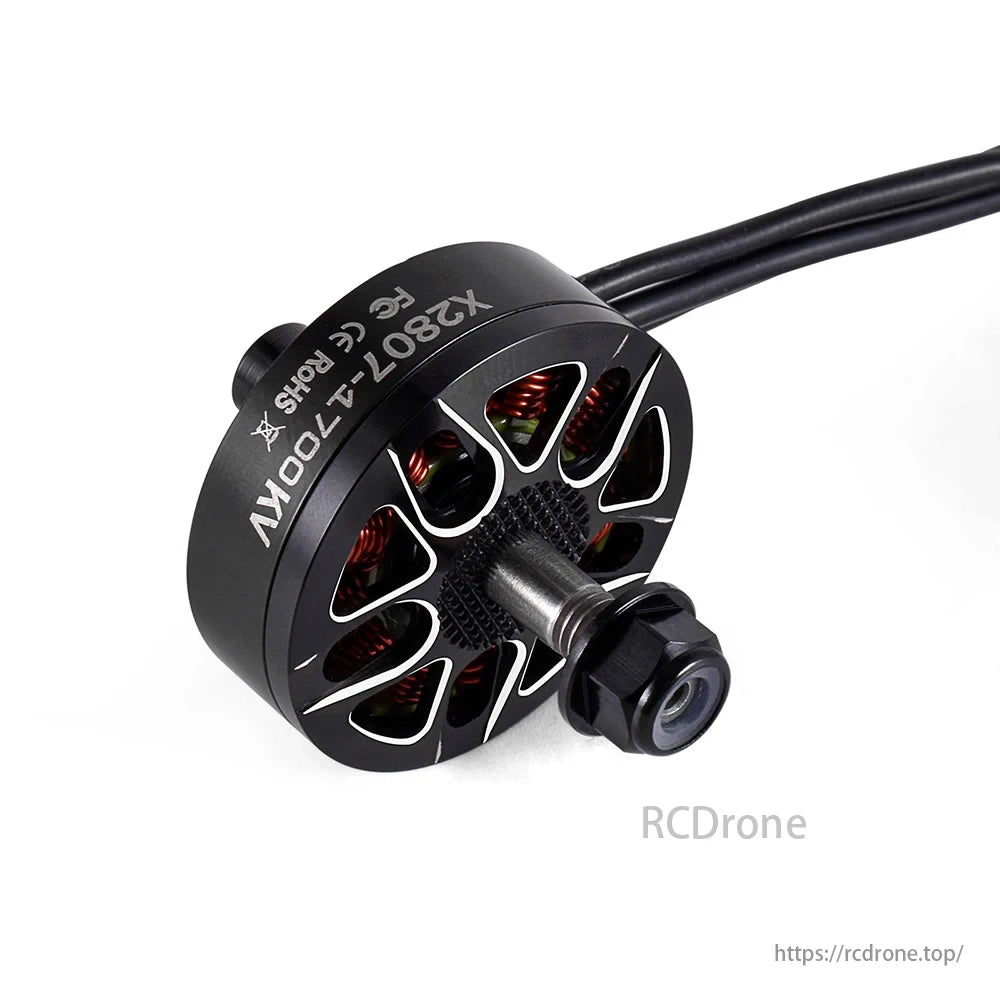

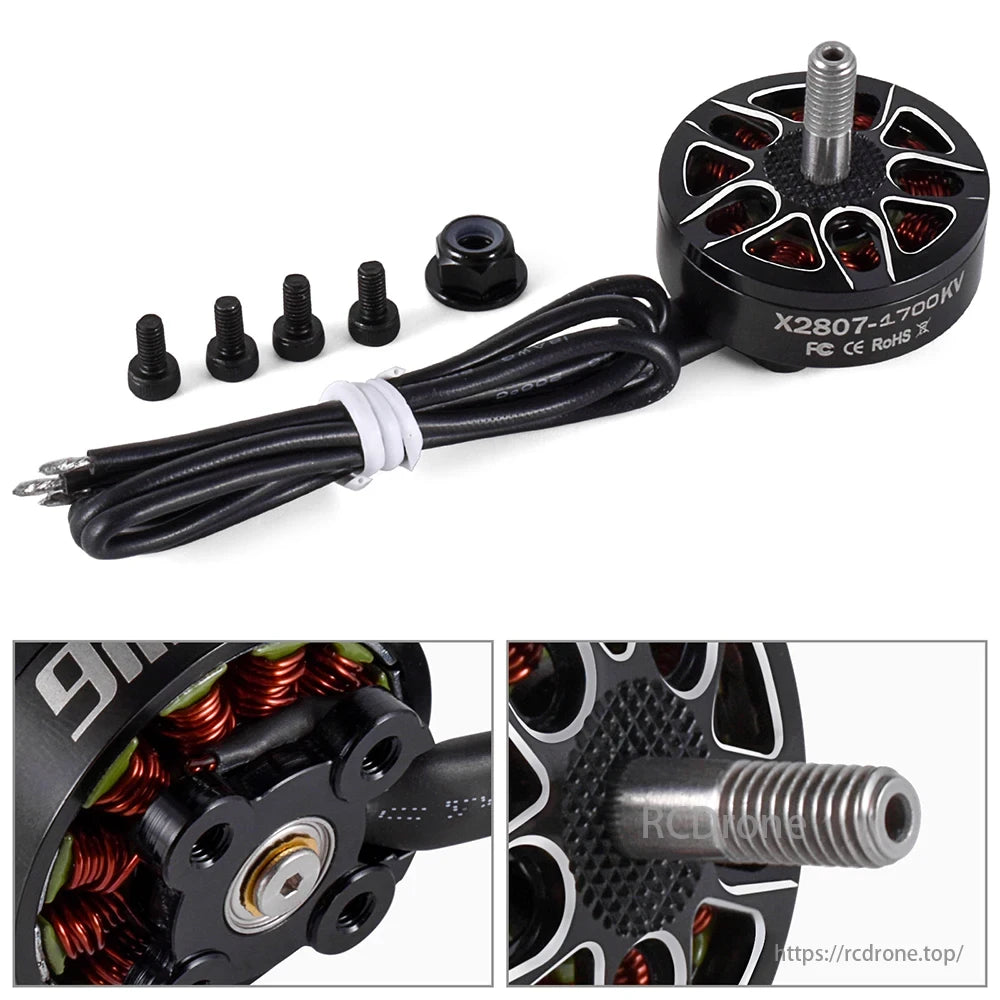

  • X2807 1700KV brushless motor for RC FPV racing drone multicopter, includes screws.
  • X2807 1500KV brushless motor for RC FPV racing drone multicopter, includes screws.

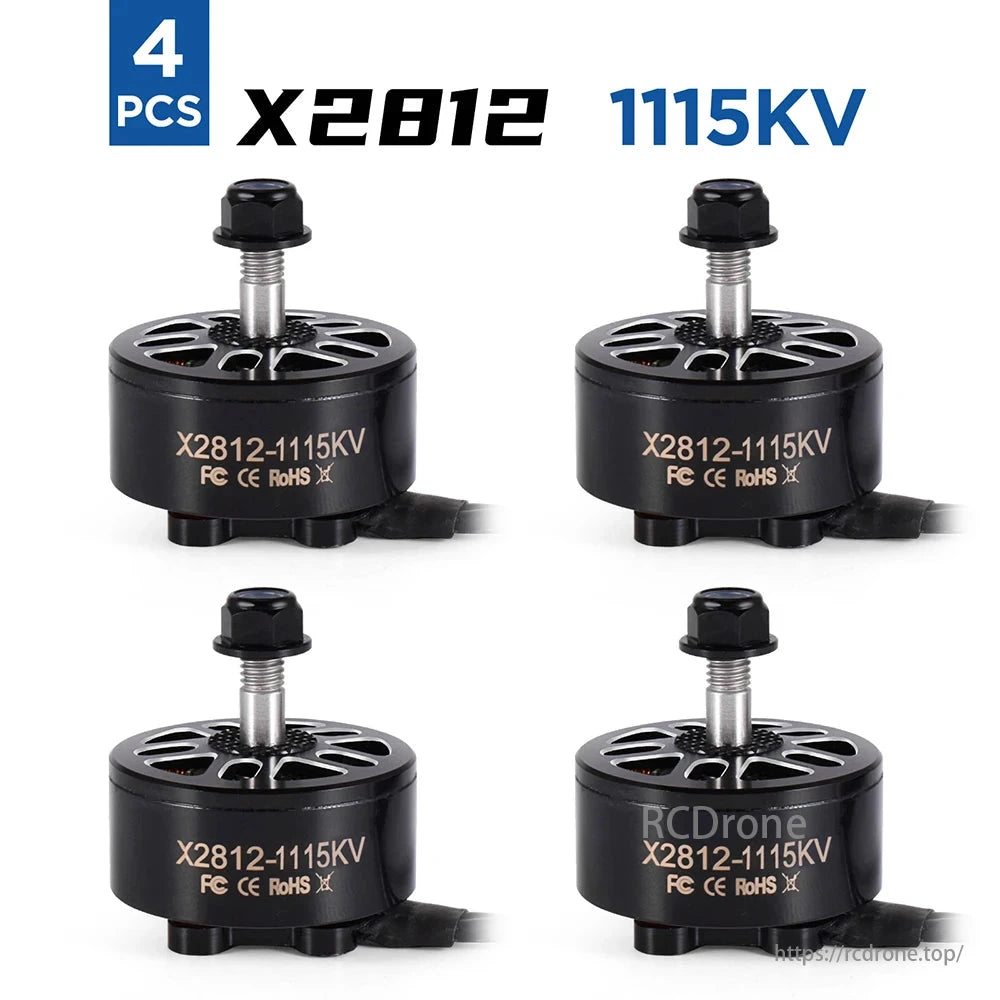

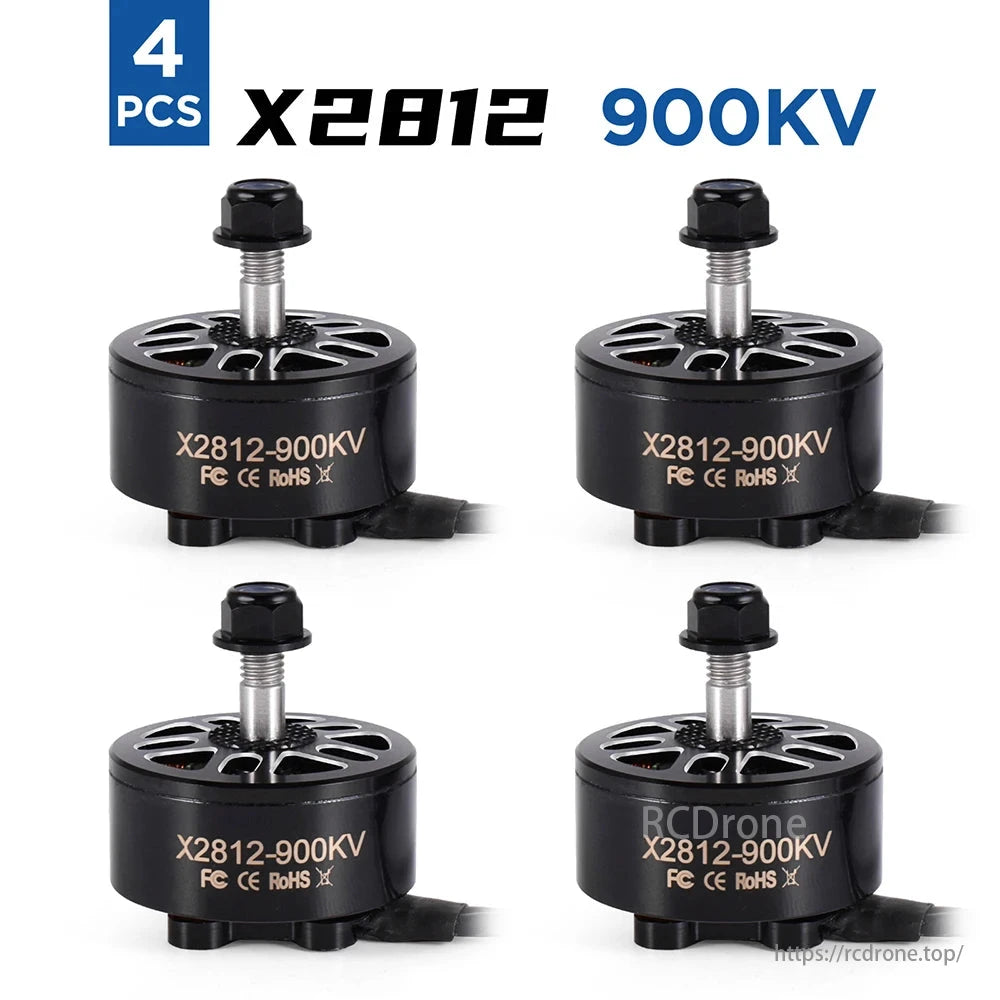

  • X2812 1115KV brushless motor, 2-6S, 4mm/5mm shaft, FC/CE/RoHS certified, compact design for FPV drones.
  • 9IMOD X2807 1300KV/1500KV/1700KV & X2812 900KV/1115KV Brushless Motor 2-6S 4mm/5mm Shaft for RC FPV Racing Drone Multicopter

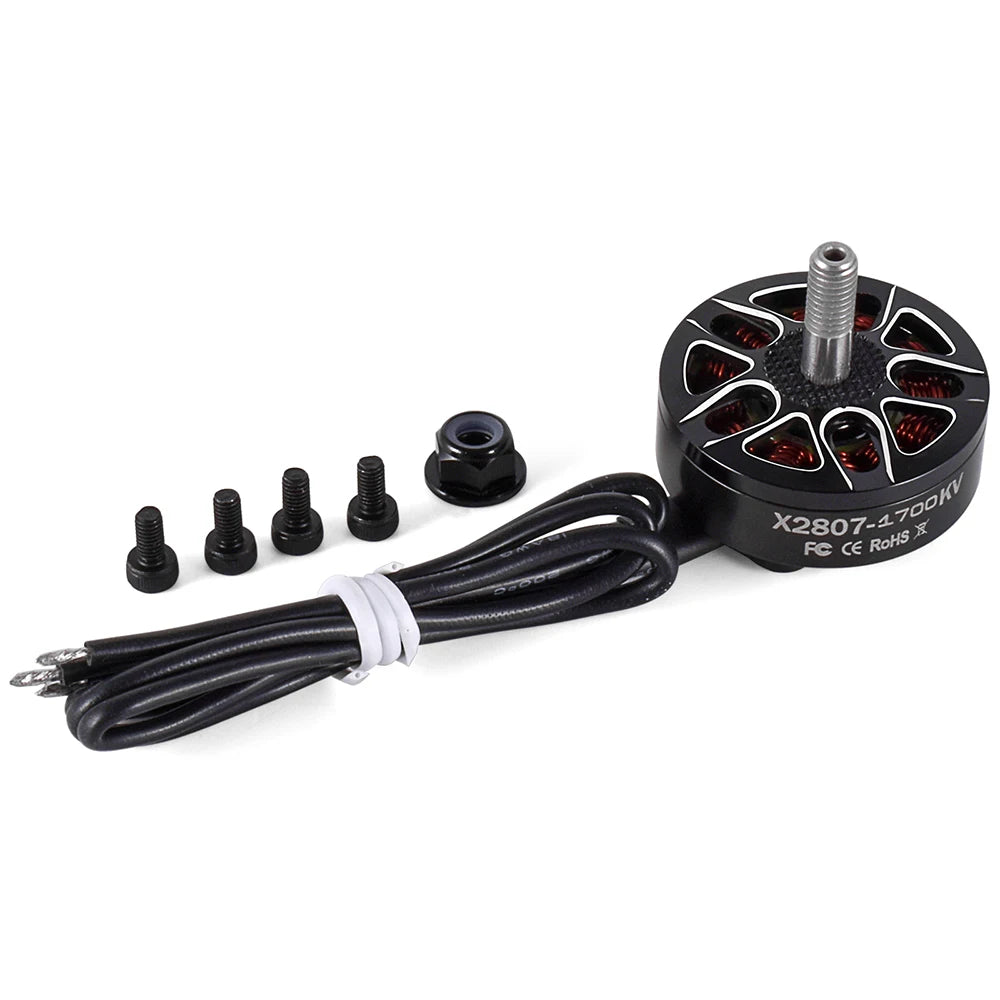

  • X2807 1700KV brushless motors for RC FPV drones, multicopter-compatible, include cables, screws, nuts, support 2-6S, 4mm/5mm shaft, compact, high-performance.
1 14

9IMOD X2807 1300KV/1500KV/1700KV & X2812 900KV/1115KV Brushless Motor 2-6S 4mm/5mm Shaft for RC FPV Racing Drone Multicopter

9IMOD X2807 1300KV/1500KV/1700KV & X2812 900KV/1115KV Brushless Motor 2-6S 4mm/5mm Shaft for RC FPV Racing Drone Multicopter

RCDrone

$37.81 USD
$37.81 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The 9IMOD X2807 and X2812 brushless motors deliver exceptional thrust and efficiency for 6–7″ and 9×4.7″ propellers on 2–6 S LiPo setups. Built on a 12N14P high-torque design with dynamically balanced rotors and high-purity copper windings, they offer smooth operation, reliable power delivery, and superior heat resistance—ideal for RC FPV racing drones and multicopters.

Features

  • High-Torque 12N14P Design: Maximizes thrust and responsiveness

  • Wide Voltage Range: Compatible with 2–6 S LiPo batteries

  • Precision Shaft & Mounting: 4 mm hollow shaft, M3 (X2807) or M5 (X2812) mount for easy installation

  • Lightweight Construction: 50 g (X2807) / 72 g (X2812) without wires

  • Dynamic Balance: Each rotor balanced at high speed for minimal vibration

  • Durable Windings: Oxygen-free copper with excellent insulation and heat resistance

Specifications

Model KV Options Size (L × Ø) Shaft / Mount Propeller Cells Weight
X2807 1300 / 1500 / 1700 KV 32 × 33.5 mm 4 mm / M3 6–7 inch 2–6 S 50 g
X2812 900 / 1115 KV 37 × 33.5 mm 4 mm / M5 CF 9 × 4.7 inch 2–6 S 72 g

Package Includes

  • 1 × 9IMOD X2807 Brushless Motor

  • 1 × 9IMOD X2812 Brushless Motor

  • 1 pack × Mounting Screws

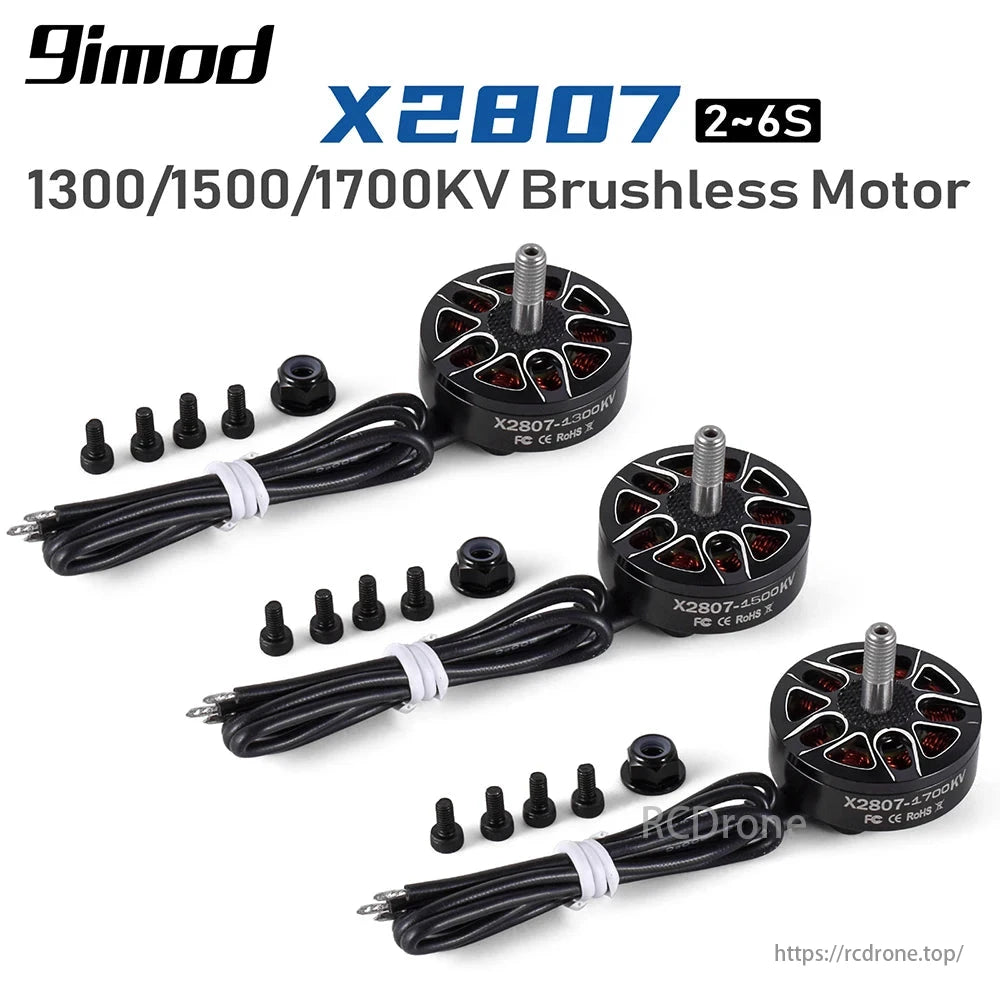

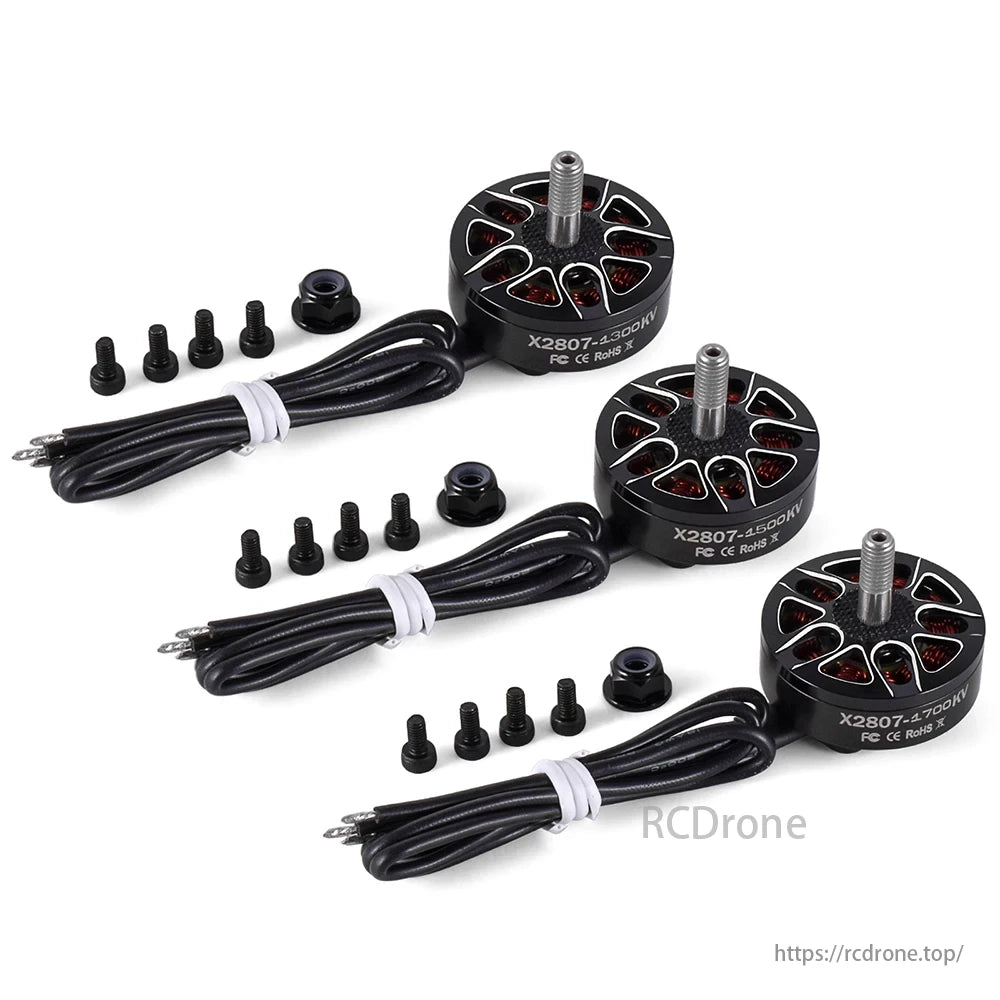

9IMOD Brushless Motor set includes three motors with varying KV ratings and accessories.

9IMOD Brushless Motor set includes three motors with varying KV ratings and accessories.

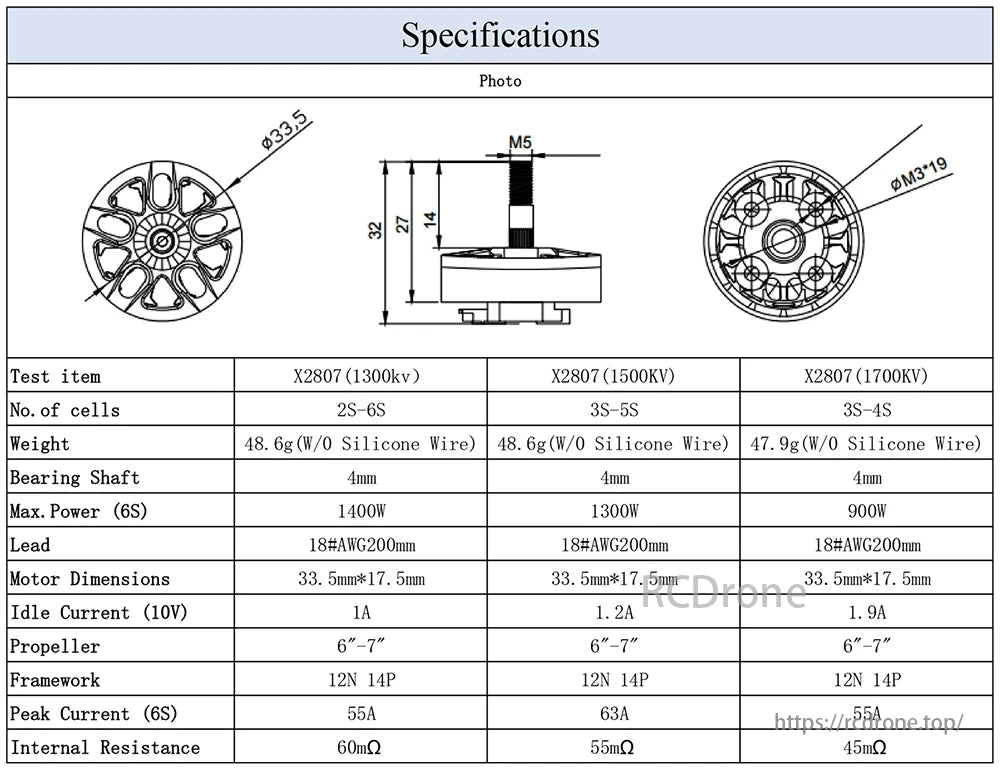

9IMOD Brushless Motor, IMOD brushless motor specs: 33.5x17.5mm, 48-49g, 4mm shaft, 12N 14P, 6S max 900-1400W, idle 1-1.9A, peak 55-63A, resistance 45-60mΩ.

9IMOD Brushless Motor specs: 33.5mm x 17.5mm, 48-49g weight, 4mm shaft, 12N 14P framework, 6S max power 900-1400W, idle current 1-1.9A, peak current 55-63A, internal resistance 45-60mΩ.

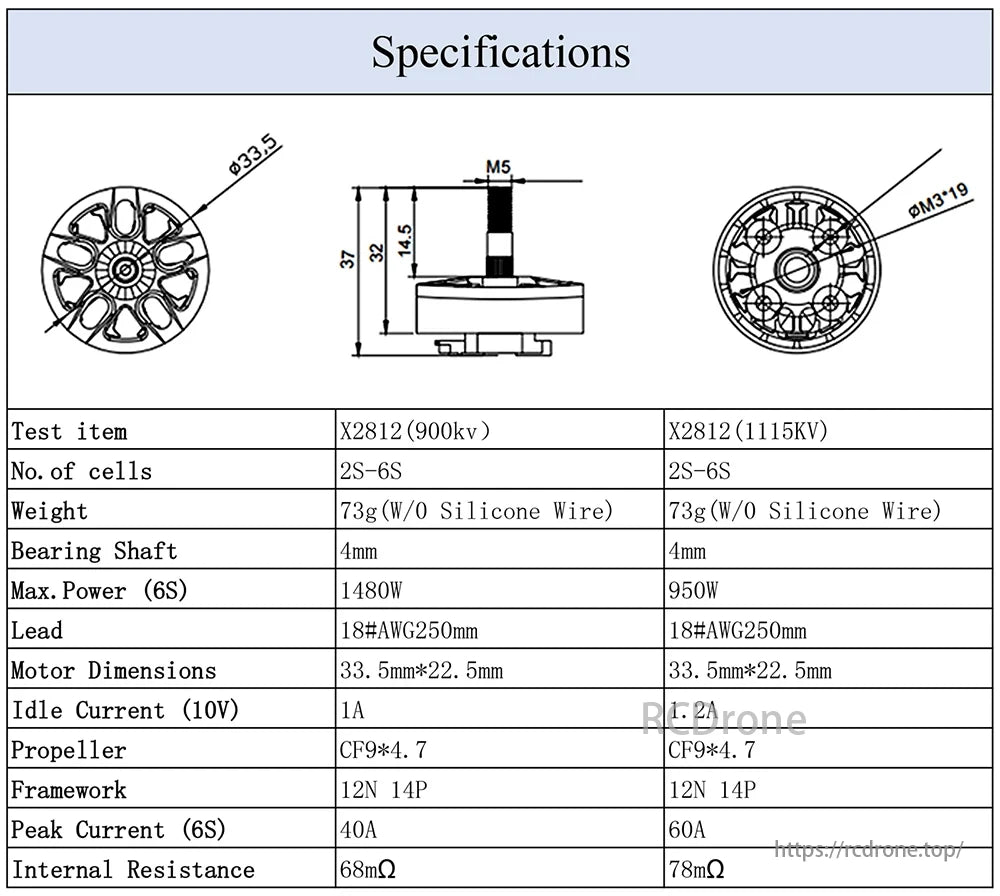

9IMOD Brushless Motor specs: X2812 models, 900KV/1115KV, 73g, 1480W/950W power, 33.5mm*22.5mm size, 40A/60A current, 68mΩ/78mΩ resistance.

Specifications for 9IMOD Brushless Motor: X2812 models with 900KV and 1115KV. Weighs 73g, max power 1480W/950W, dimensions 33.5mm*22.5mm, peak current 40A/60A, internal resistance 68mΩ/78mΩ.

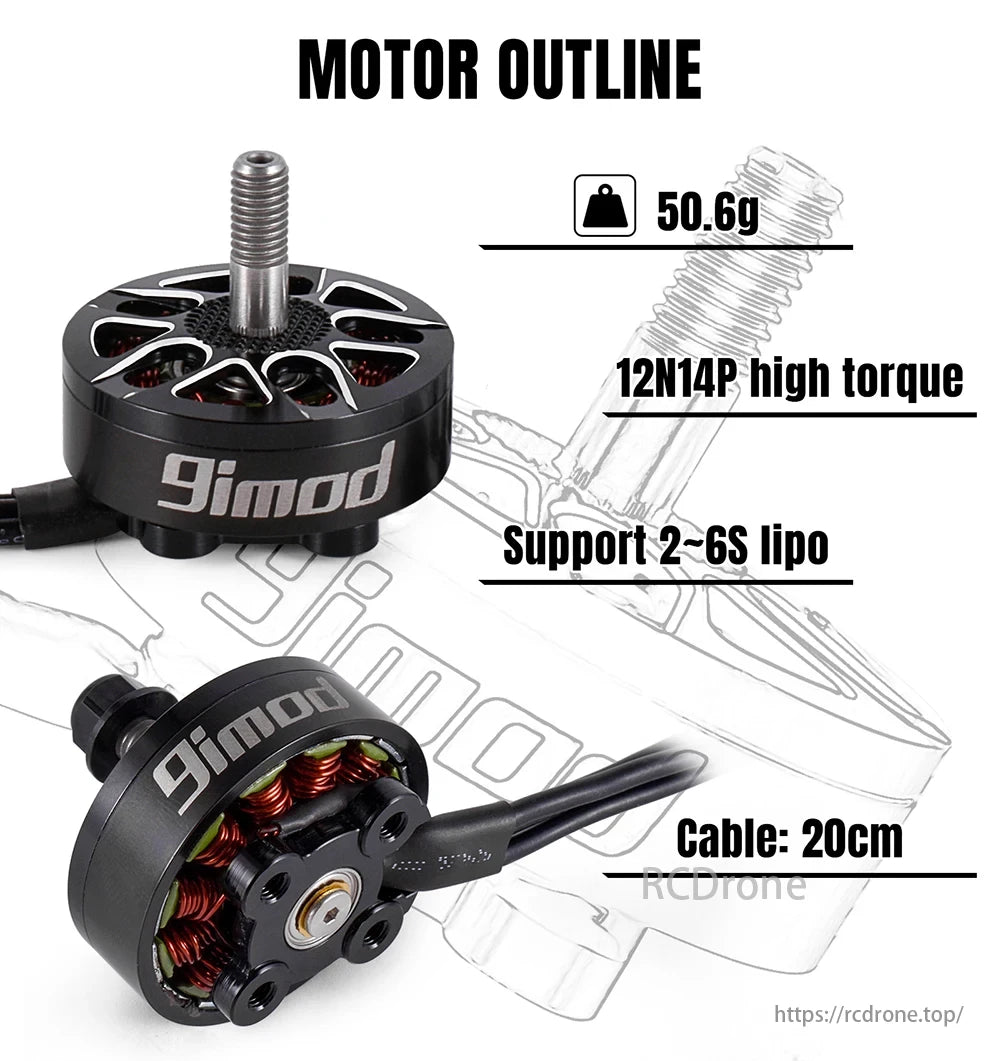

9IMOD Brushless Motor: 50.6g, high torque (12N14P), supports 2-6S lipo, includes 20cm cable.

9IMOD Brushless Motor: 50.6g, 12N14P high torque, 2-6S lipo, 20cm cable.

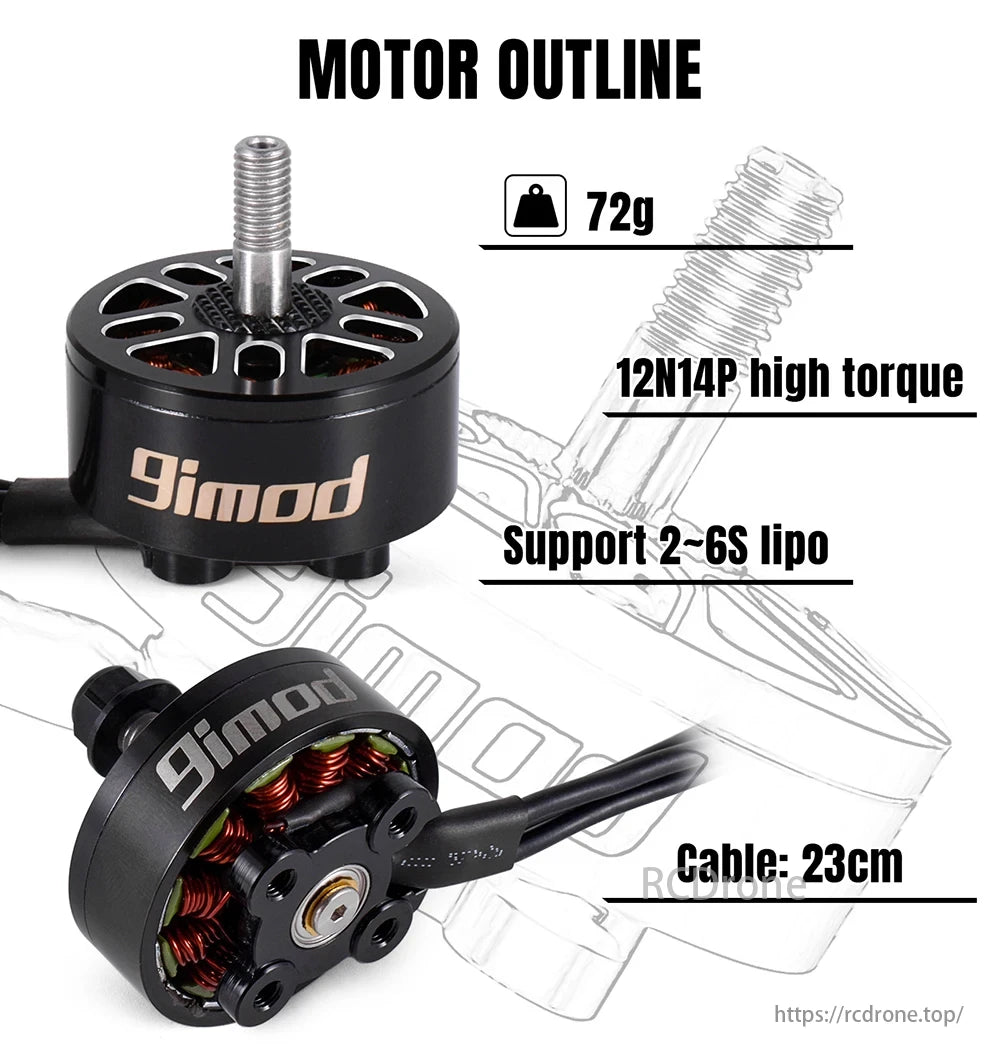

9IMOD Brushless Motor: 72g, high torque (12N14P), supports 2-6S LiPo, includes 23cm cable.

9IMOD Brushless Motor: 72g, 12N14P high torque, 2-6S lipo, 23cm cable.

9IMOD Brushless Motor, Please consult with us beforehand if you intend to leave a negative review.

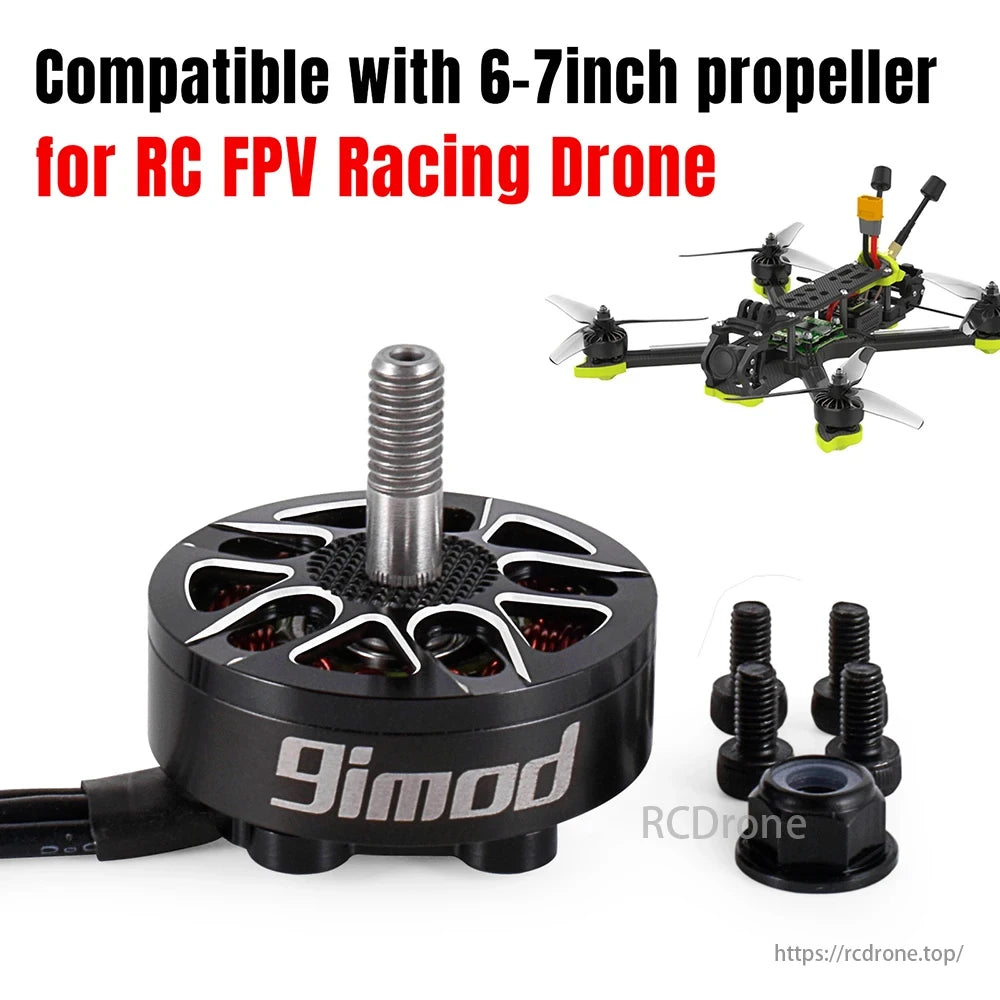

9IMOD Brushless Motor, IMOD Brushless Motor for 6-7 inch propellers, ideal for RC FPV Racing Drones.

9IMOD Brushless Motor compatible with 6-7 inch propeller for RC FPV Racing Drone.

9IMOD Brushless Motor, Allow 1-3mm deviation due to manual measurement variations.

9IMOD Brushless Motor, 9IMOD X2807 1300KV/1500KV/1700KV & X2812 900KV/1115KV Brushless Motor 2-6S 4mm/5mm Shaft for RC FPV Racing Drone Multicopter

9IMOD Brushless Motor, There is no warranty for defective items.

9IMOD Brushless Motor, Please allow 1-3mm deviation due to manual measurement and differing methods.

9IMOD Brushless Motor, The 9IMOD X2807 and X2812 brushless motors provide exceptional thrust and efficiency for small to medium-sized propellers with LiPo batteries.

9IMOD Brushless Motor, Due to monitor differences, colors may not accurately represent actual item colors.

9IMOD Brushless Motor, Before purchase, all goods are in stock and shipped immediately upon receiving the order.

9IMOD Brushless Motor, 9IMOD X2807 1300KV/1500KV/1700KV & X2812 900KV/1115KV Brushless Motor 2-6S 4mm/5mm Shaft for RC FPV Racing Drone Multicopter

9IMOD Brushless Motor, Due to monitor differences, colors may vary.

9IMOD Brushless Motor, Brushless motors with high-torque design, wide voltage range, and precision mounting for easy installation.

9IMOD Brushless Motor, Brushless motors offer excellent thrust and efficiency for small to medium-sized propellers and 2-6S LiPo batteries.

9IMOD Brushless Motor, 9IMOD X2807 1300KV/1500KV/1700KV & X2812 900KV/1115KV Brushless Motor 2-6S 4mm/5mm Shaft for RC FPV Racing Drone Multicopter

Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!

Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.

After purchase:
1.If you are satisfied,please express your use feeling.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems.
if you receive a defect item,please contact us at once with item picture or video.
