AGFRC A06CHR Metal Gears 3kg High Torque Coreless Motor Micro Wing Servo Ideal For Small Size Airplane F3P GLD Glider Sailplane

AGFrc A06CHR is a brand new 8mm thickness mini size wing servo, full CNC aluminium case to provide the good heat dissipation conditions, featuring a digital programmable circuit high voltage compatible. Enhance the coreless motor, so that we can ensure to output the 0.052sec lightning speed & 3.0kg-cm high torque at 8.4V. Two different mounting tabs option (A06CHR and A06CLS V2), suitable for wing or fuselage mounting. High accuracy and 7g light weight which is perfect for small size aircraft and glider wings with limit space requirements.

Feature

Sturdy Metal Ball Bearing

Fully CNC Aluminium Casing

Super Durability Metal Gears

More Efficient Coreless Motor

High Accuracy 8mm Micro Wing Servo

Two Different Mounting Tabs Option

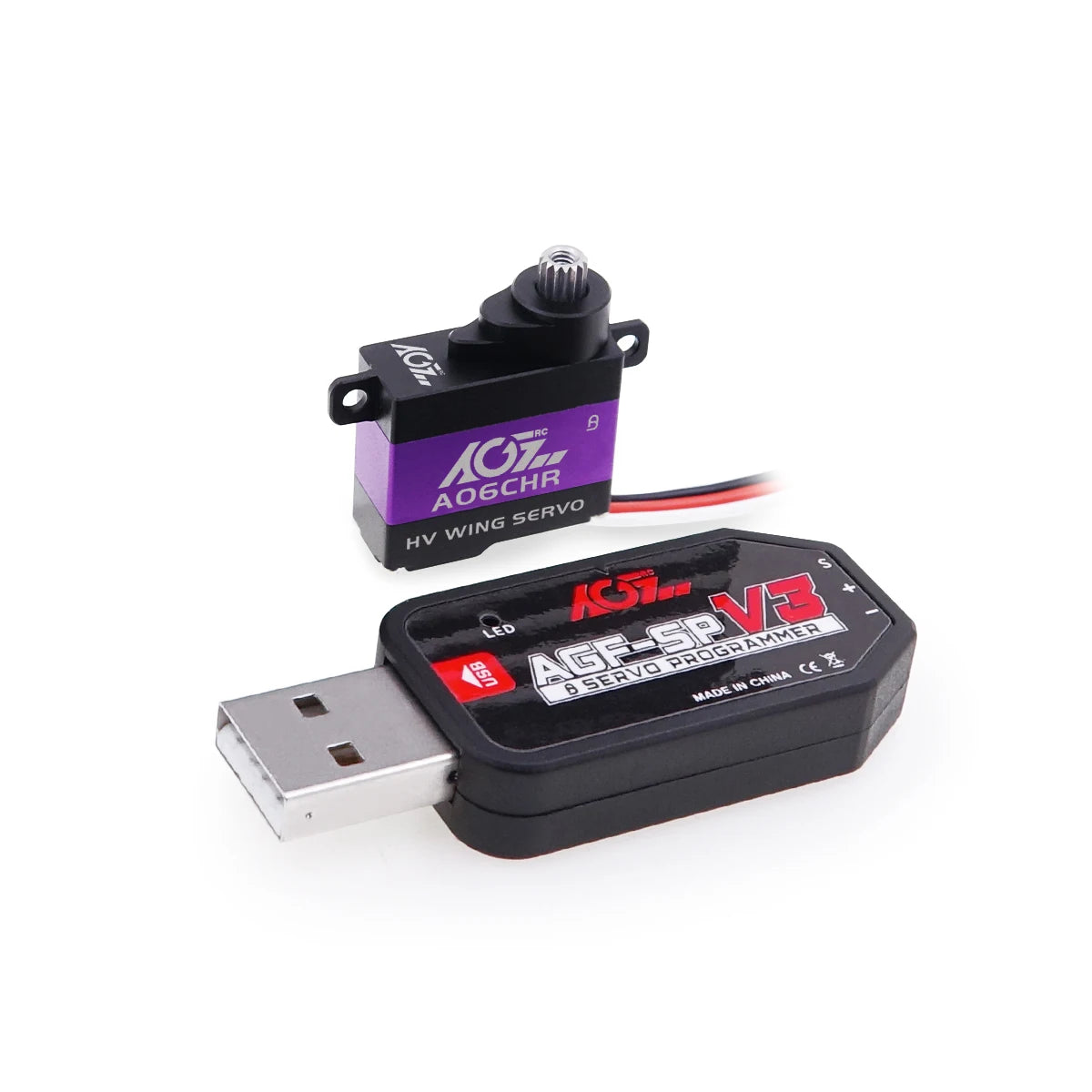

Parameter Programmable Available

Ideal for Small Size Airplane, Glider, Sailplane, such as F3P, GLD Airplane etc.

Specification

A06CHR

Operating Voltage: 4.8-8.4V

Operating speed: 0.075sec /60° @ 4.8V

Operating speed: 0.066sec /60° @ 6.0V

Operating speed: 0.058sec /60° @ 7.4V

Operating speed: 0.052sec /60° @ 8.4V

Stall Torque: 1.8 kg-cm (25 oz-in) @ 4.8V

Stall Torque: 2.2 kg-cm (30 oz-in) @ 6.0V

Stall Torque: 2.6 kg-cm (36 oz-in) @ 7.4V

Stall Torque: 3.0 kg-cm (41 oz-in) @ 8.4V

Gear: Titanium

Motor：Coreless

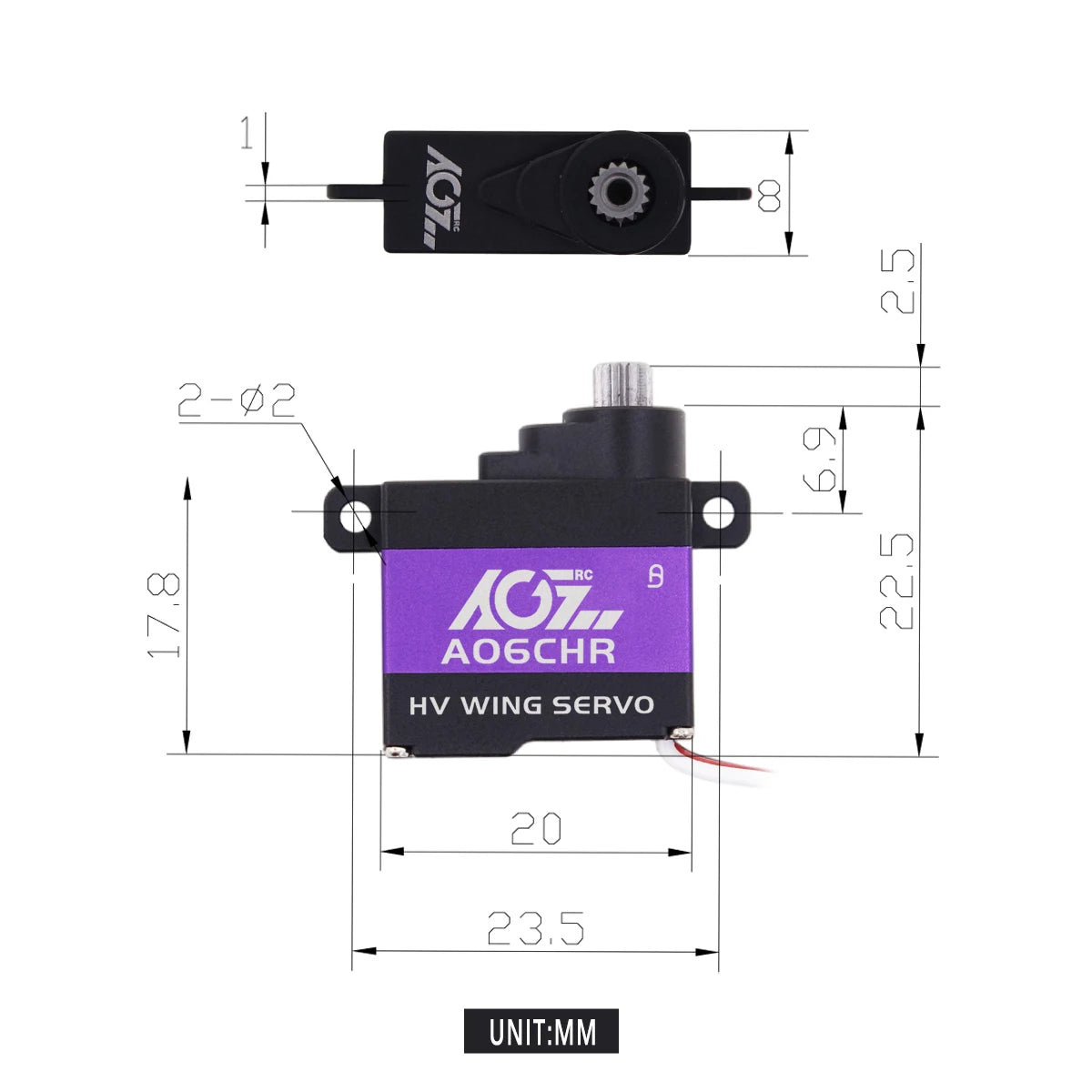

Size: 20*8*17.8mm (0.78 x 0.31 x 0.70 in)

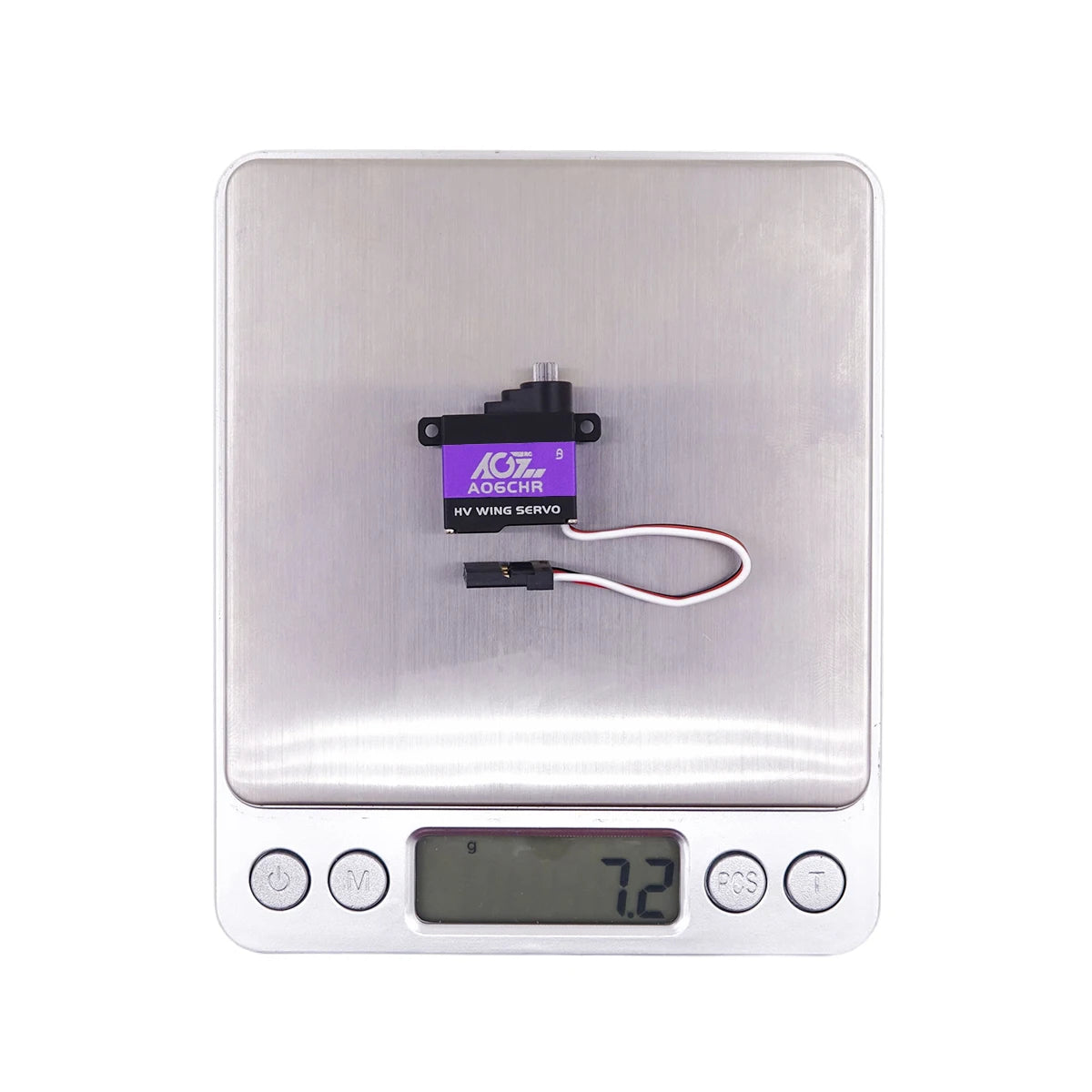

Weight: 7.0 g

Connector Wire:JST(JR) 165mm / 28AWG

1.

   0.052S High SPEED HNg SERVQ ULTR KOir Hv Ha 8mm 3KI High TORQUE Smooth Metal Bearing Durable Titanium Gear Hv HORELESS MOTOR 8.4V Wide Voltage Compatible 3 USB PROORAMMABLE DIGITAL HRGUIT Szrvo 0 Koi PedganNSE Connect like this . 180*+108 OPERATING VOLTAGE NET WEIGHT PULSE WIDTH MOTOR TYPE
