AGFRC A280BHMW A280BHLW 78KG 100KG 0.082Sec 5th Scale HV High Torque WP Brushless RC Racing Servo Large Aircraft Car Boat Model

A280BHMW is a 2s version 5th scale servo. It combines long-life brushless motor with monster torque design takes the driving experience of large model enthusiasts to a new level. It is ideal for 1/5 Monster Truck, Buggy, Crawler, Large Airplanes, Robot Arm, etc. Whether you are traversing the jungle or climbing over sand dunes, 5 ball bearings and strengthening gear structure improve the crashworthiness and life of the servo.

When you cross the mountains and pass the charming stream, fully magnetic waterproof IP67 grade can let your model play in humid environment or rainy day. This A280BHMW is suitable for most 1/5 scale models, which require to use with 2s lipo battery. 78KG superb torque and 0.082Sec lightning fast speed, believe that your model can give full play to its handsome charm. Ultra light unique design with heat sink machining for medium and bottom case, so that the internal structure of the servo can absorb heat and smooth operation. Of course! In this era of rapid development, free choice is also a kind of happiness! So how could we do without the programmable function? It is fully upgrade to be bluetooth APP programmable in the near future. Please don't hesitate to add a reliable new partner to your model!

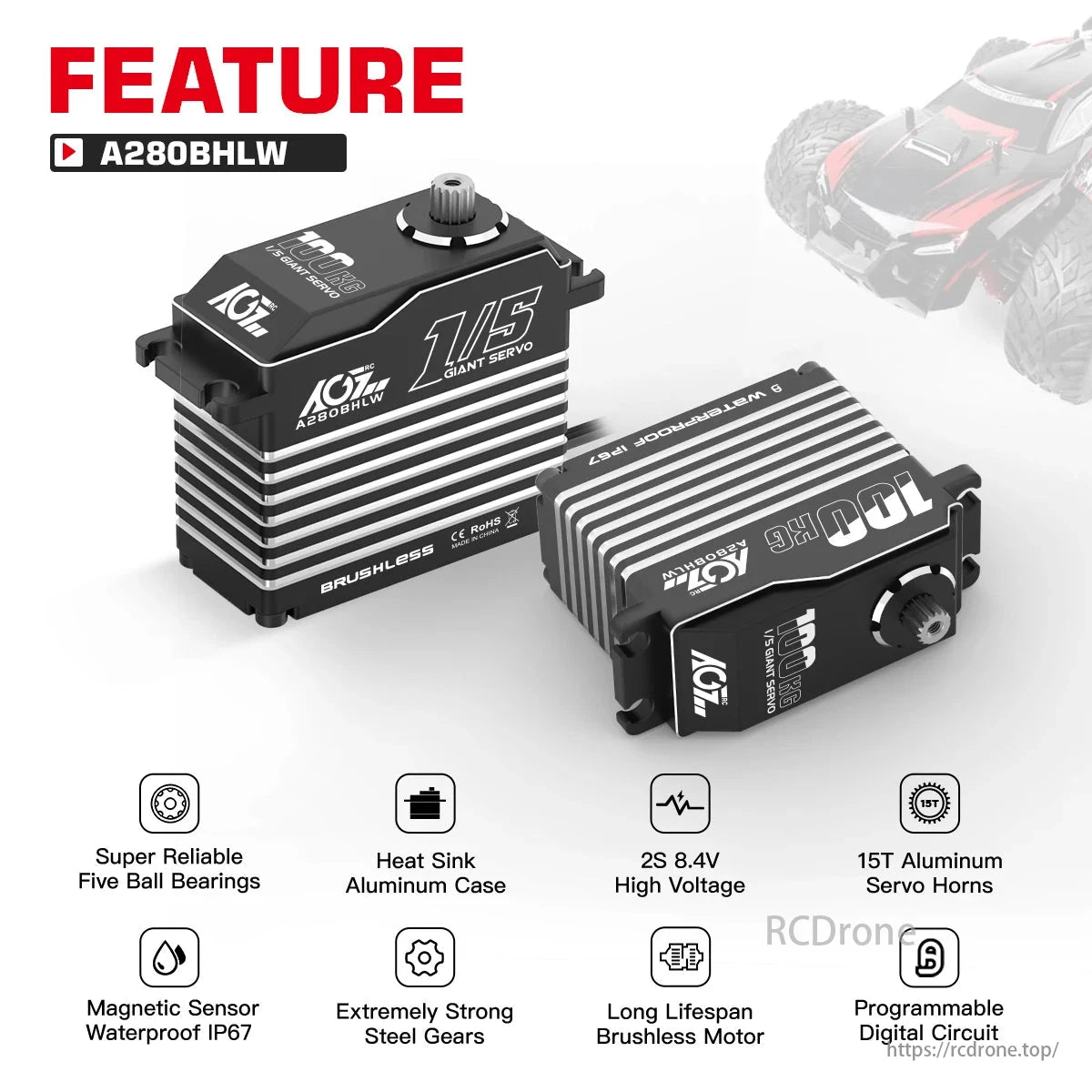

Feature

Heat Sink Aluminum Case
Extremely Strong Steel Gears
Super Reliable Five Ball Bearing
2S Lipo High Voltage Compatible
Associated 15T Aluminum Servo Horns
Magnetic Sensor Waterproof IP67
Easy Connection With Direct Power Wire
Bluetooth APP Programmable (Still not available now)

Specification

Item name: A280BHMW
Operating Voltage: 4.8-8.4V
Operating speed: 0.126 sec/60° @ 4.8V
Operating speed: 0.110 sec/60° @ 6.0V
Operating speed: 0.095 sec/60° @ 7.4V
Operating speed: 0.082 sec/60° @ 8.4V
Stall Torque: 48.0 kg-cm (667 oz-in)  @ 4.8V
Stall Torque: 58.0 kg-cm (806 oz-in)  @ 6.0V
Stall Torque: 66.0 kg-cm (917 oz-in)  @ 7.4V
Stall Torque: 78.0 kg-cm (1084 oz-in) @ 8.4V
Gear: Steel
Motor: Brushless
Size: 65.8*30.0*59.0mm(2.59 x 1.18 x 2.32 in)
Weight: 284.8g
Connector Wire: TYU 300mm / 22AWG

Item name: A280BHLW
Operating Voltage: 4.8-8.4V
Operating speed: 0.180 sec/ 60° @ 4.8V
Operating speed: 0.150 sec/60° @ 6.0V
Operating speed: 0.125 sec/60° @ 7.4V
Operating speed: 0.110 sec/60° @ 8.4V
Stall Torque: 53.0 kg-cm (736 oz-in) @ 4.8V
Stall Torque: 76.0 kg-cm (1056 oz-in) @ 6.0V
Stall Torque: 90.0 kg-cm (1251 oz-in) @ 7.4V
Stall Torque: 100.0 kg-cm (1390 oz-in) @ 8.4V
Gear: Strength Steel
Motor: Brushless
Size: 65.8*30.0*59.0mm(2.59 x 1.18 x 2.32 in)
Weight: 285g
Connector Wire: TYU+JST 300mm / 22AWG

ELDDRDAT ba8iC PARAMETERS Tonoangie Eut Lennn "Fing Faeko anonlaj USE STEPS Pm Poni: a SaSsn Open SenttictIiah LanLELdNDI La Aaauaann Daputt PROGRAMMING CARD Lovda aneoang AAascan ACI 48650177 Coecct commico Cotlan KG

ALLOW RAIN,WET JUNGLE,SWASIDE, SAND DUNES,AND MUD c€ 71/6 SERVO K6z GIANT Az8oBHLW RoHS CHINA MADE BRUSHLESS.

'SERVO GIANT': Zk Rohs _ 2SS BRUSHLI > VSGIANT ServO 2 Ip67 Limit 6.0V BrUshLESS CC RoHs . 65.8 53.0 kg-cm ( 736 0z-in) @ 4.8V .

a280BHMW Fully CNC Aluminum Case Fast Cooling Heat Sink Case 0 Magnetic Sensor Waterproof IP67 Reliable Five Ball Bearing Long lifespan Brushless motor High Strength Steel Gears Highly recommend for 1/ 5 rc cars 10 .
