Notice:

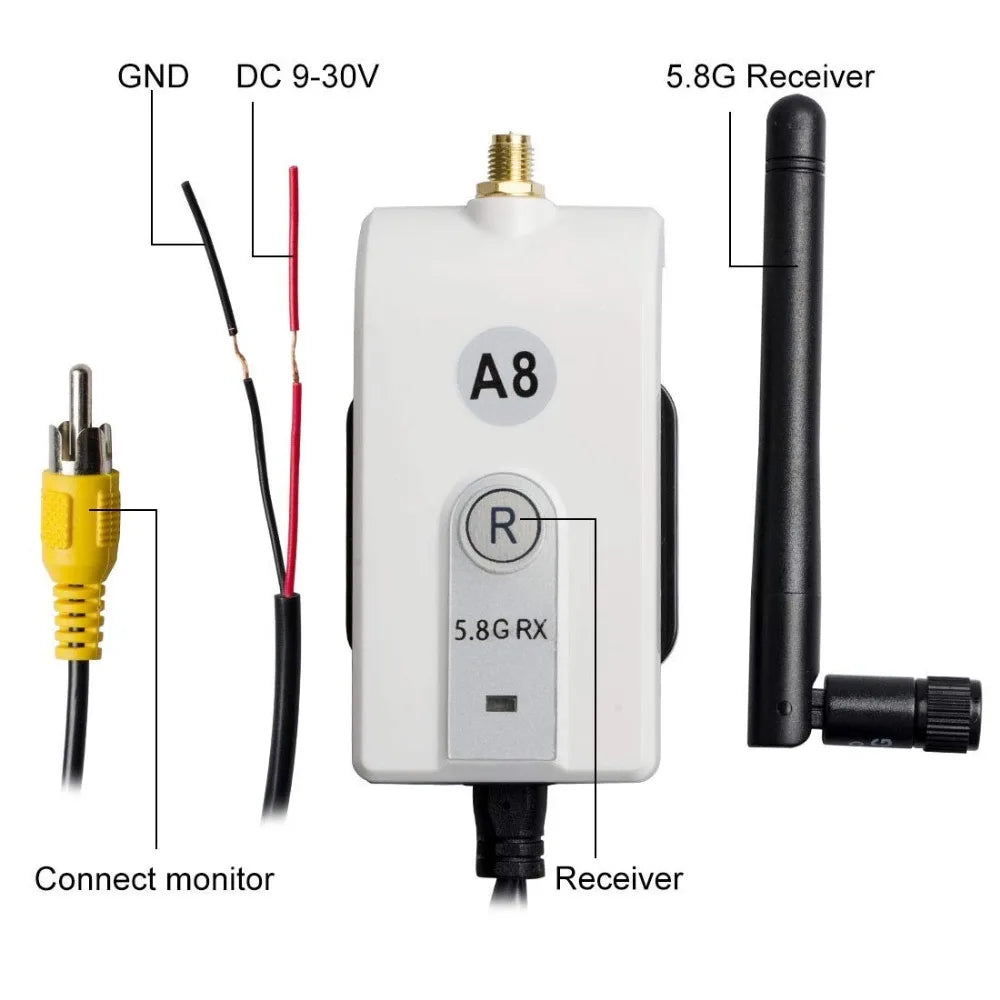

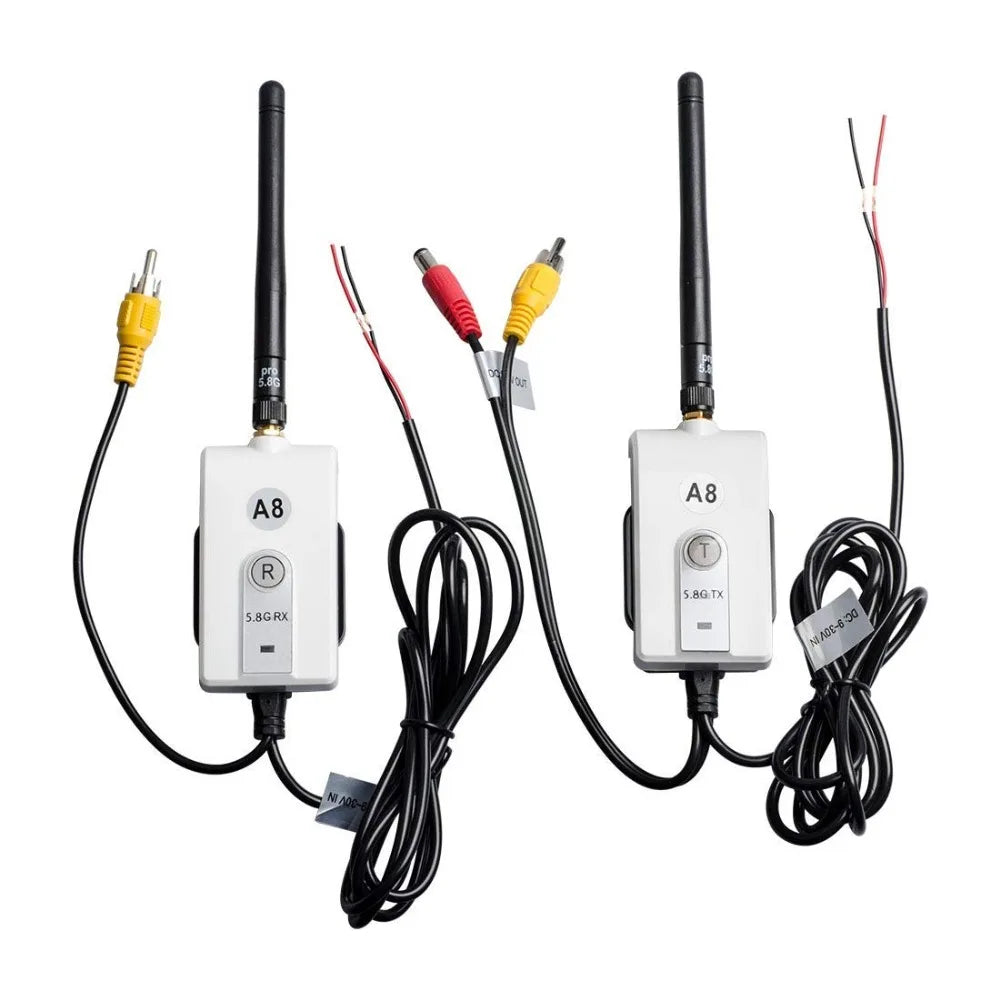

Connect receiver to monitor, and connect transmitterto rear camera. They are generally used as car backup camera.

Wireless Receiver& Transmitter Specification:

Receiver/ transmitter frequency: 5725 MHz

power output: 600 MW; 1000mw

voltage: DC 9-30V;

Video format: NTSC/PAL; Recommended use 12 V

Working TEMP: -10°c ~+80°c

Receiversensibility:- 85 Dbm;

Working current:DC 12V/ 300 mA;

AV OUTinterface: RCA jack.

Warning:

Transmittercan supply power to camera, power input equals to output. If you supply 12 V totransmitter, transmitter will supply 12V to camera.

Please do not supply high voltage(out of 12 V) totransmitter if your camera cannot withstands high voltage(over 12 V).

Please check the voltage range of your camera beforeconnecting it to transmitter.

Congratulation!  A8-625-23 has been advanced,  upgrated version power output 600MW.

we will send you upgrated version after you placed this order.

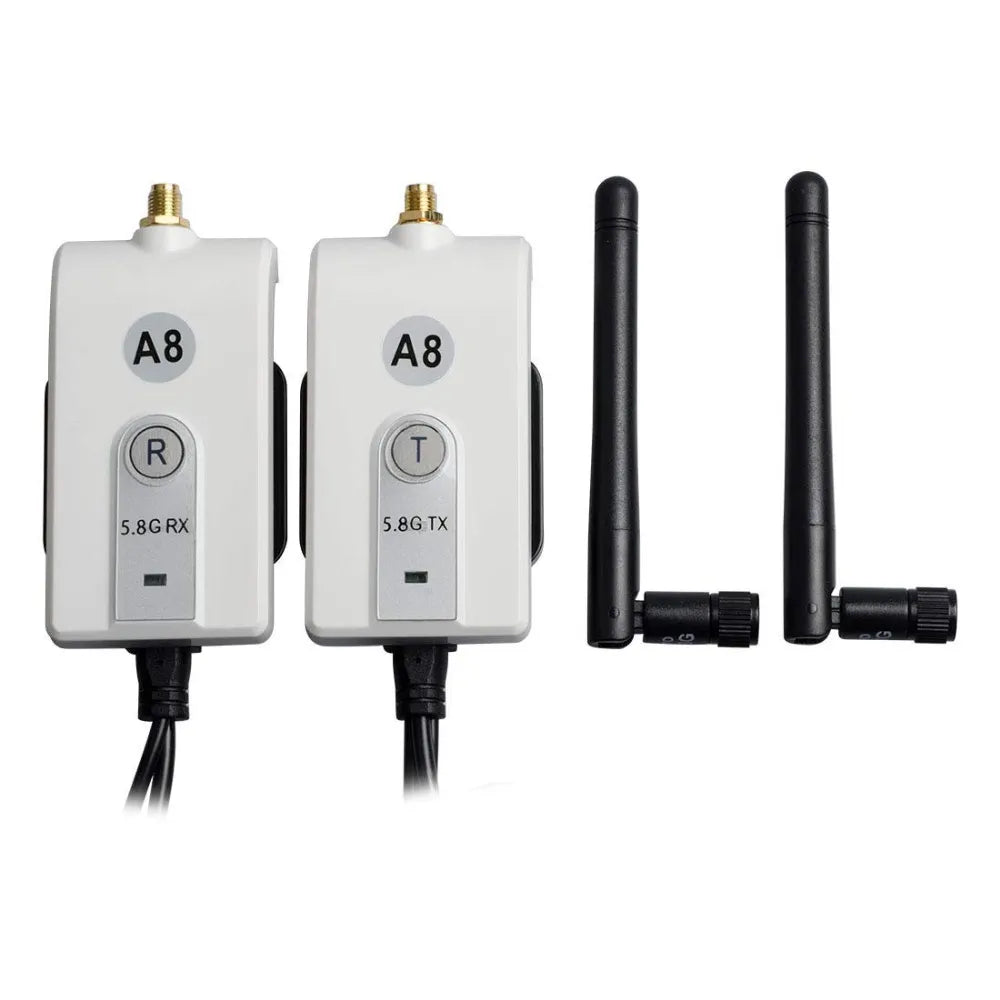

Package list:

1 x wireless receiver

1 x wireless transmitter

2 x 5.8 GHz antenna

1 x Manual
