AKK FX2-ultimate/FX2 5.8GHz VTX SPECIFICATIONS
Brand Name: akk
Origin: Mainland China
Material: Composite Material
Recommend Age: 6-12y
RC Parts & Accs: Transmitters
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: other
Remote Control Peripherals/Devices: other
Tool Supplies: Assembly Category
Model Number: FX2-ultimate
Four-wheel Drive Attributes: Assemblage
Note: This page includes AKK FX2-ultimare and AKK FX2 ,you can refer to the title and the picture of the product or the color to choose and to buy the best one you want.

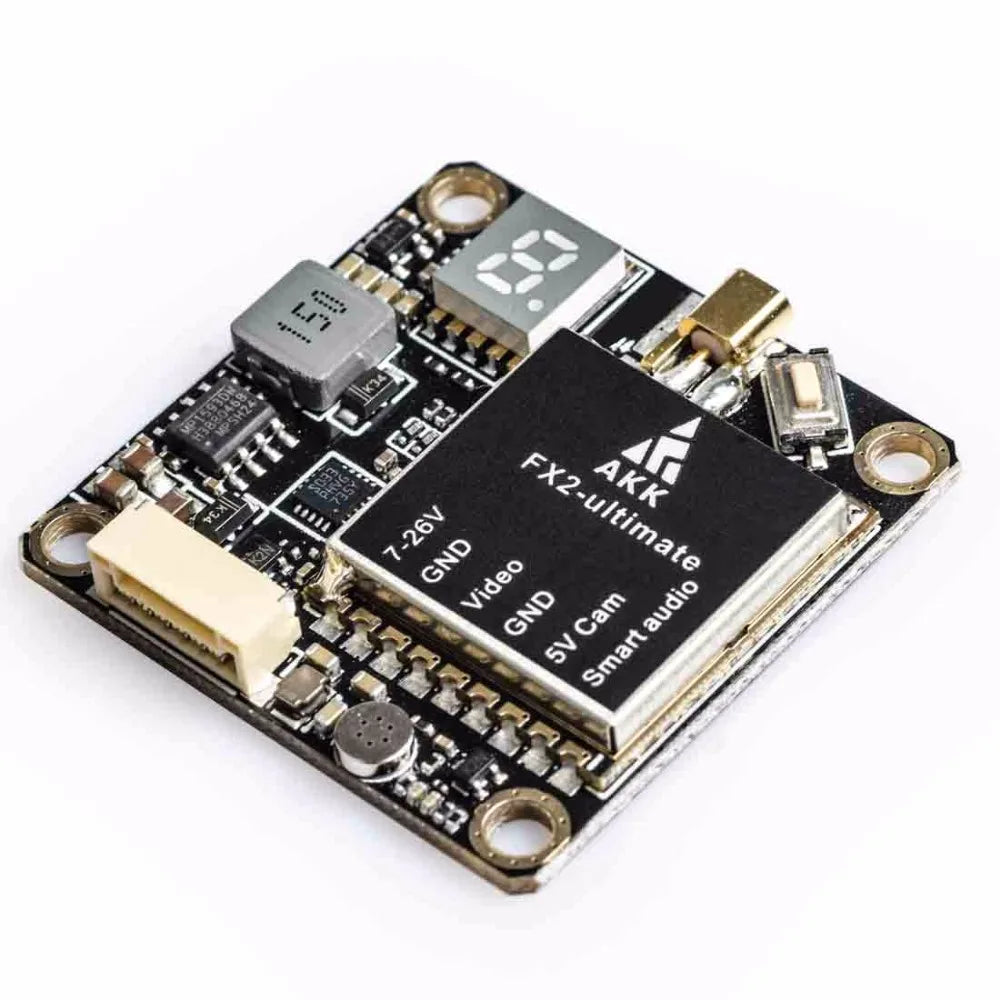

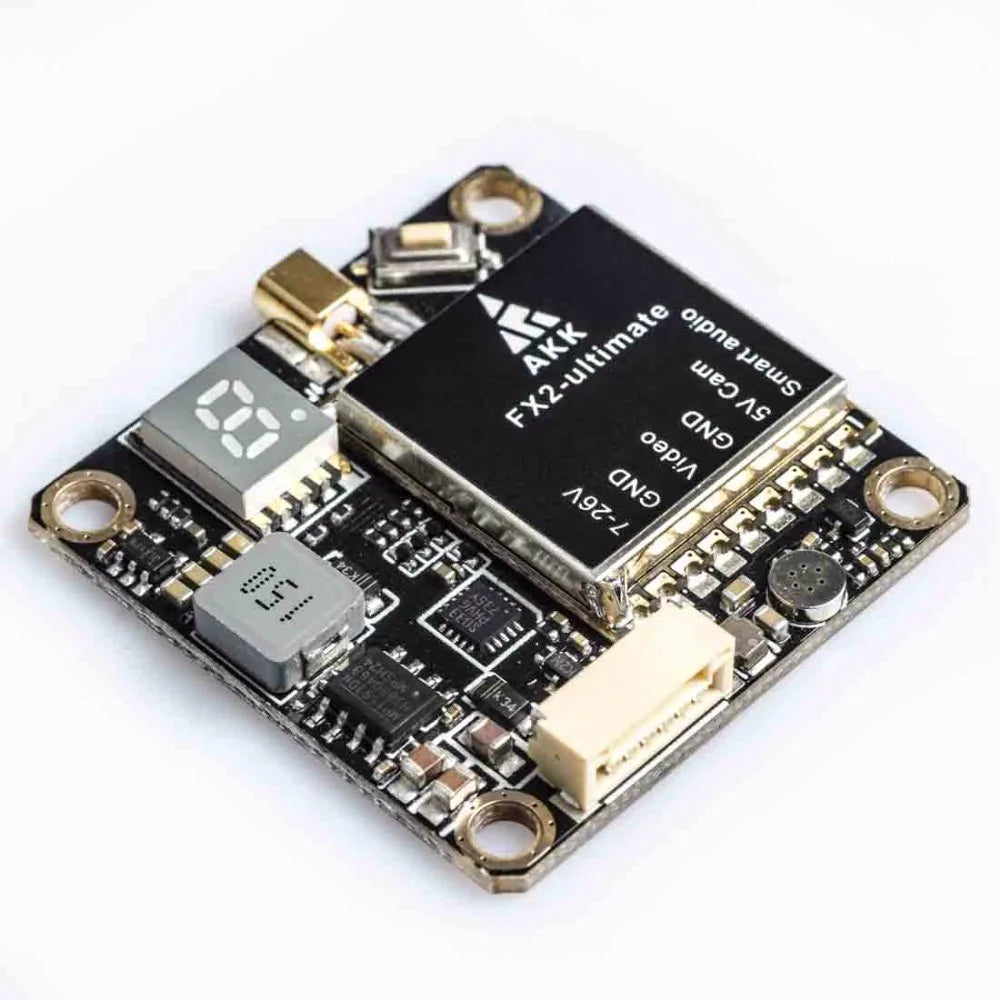

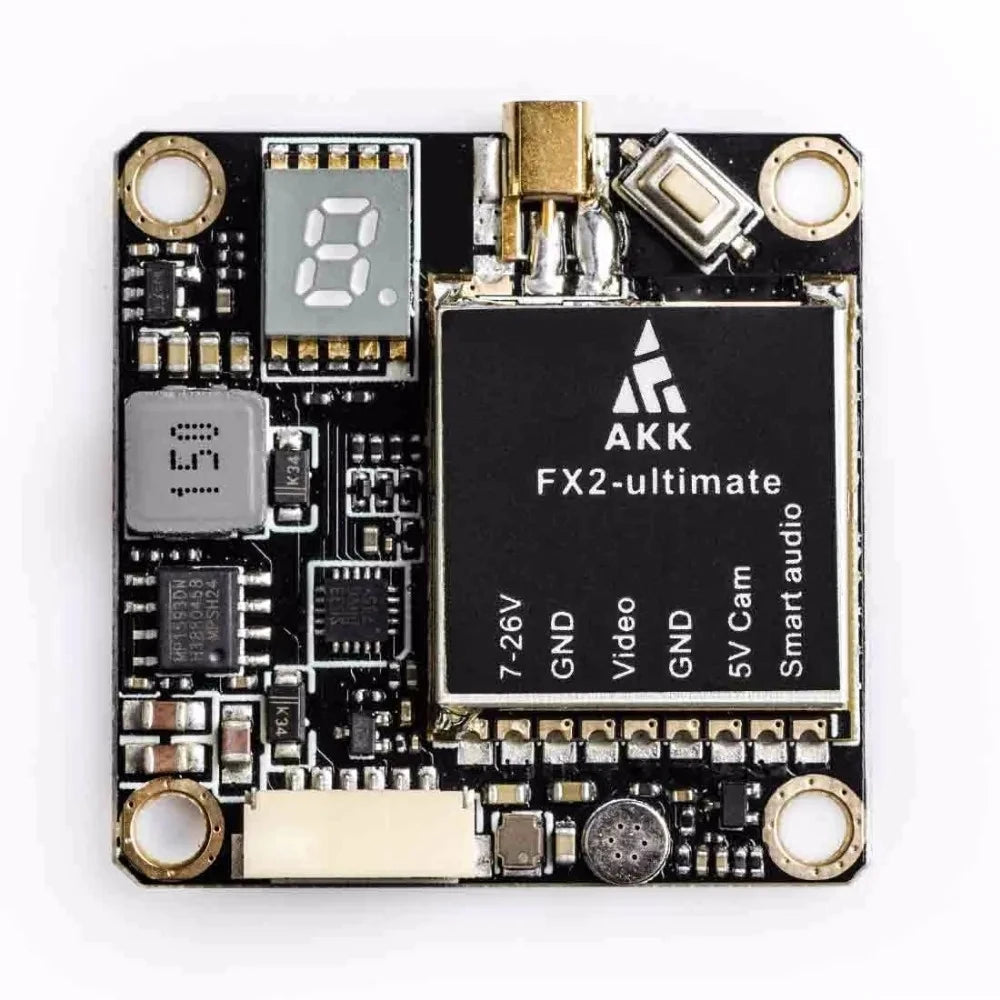

AKK FX2-ultimate 5.8GHz VTX Support OSD Configuring Upgraded Long Range Version
Features:
Support Smart audio
25mW/200mW/600mW/1200mW power switchable
One button frequency and power setup
OSD configuration using smart audio
7-26V input with 5V output
With MIC
Package includes:
1 x 5.8Ghz 25mW/200mW/600mW/1200mW Switchable FPV Transmitter

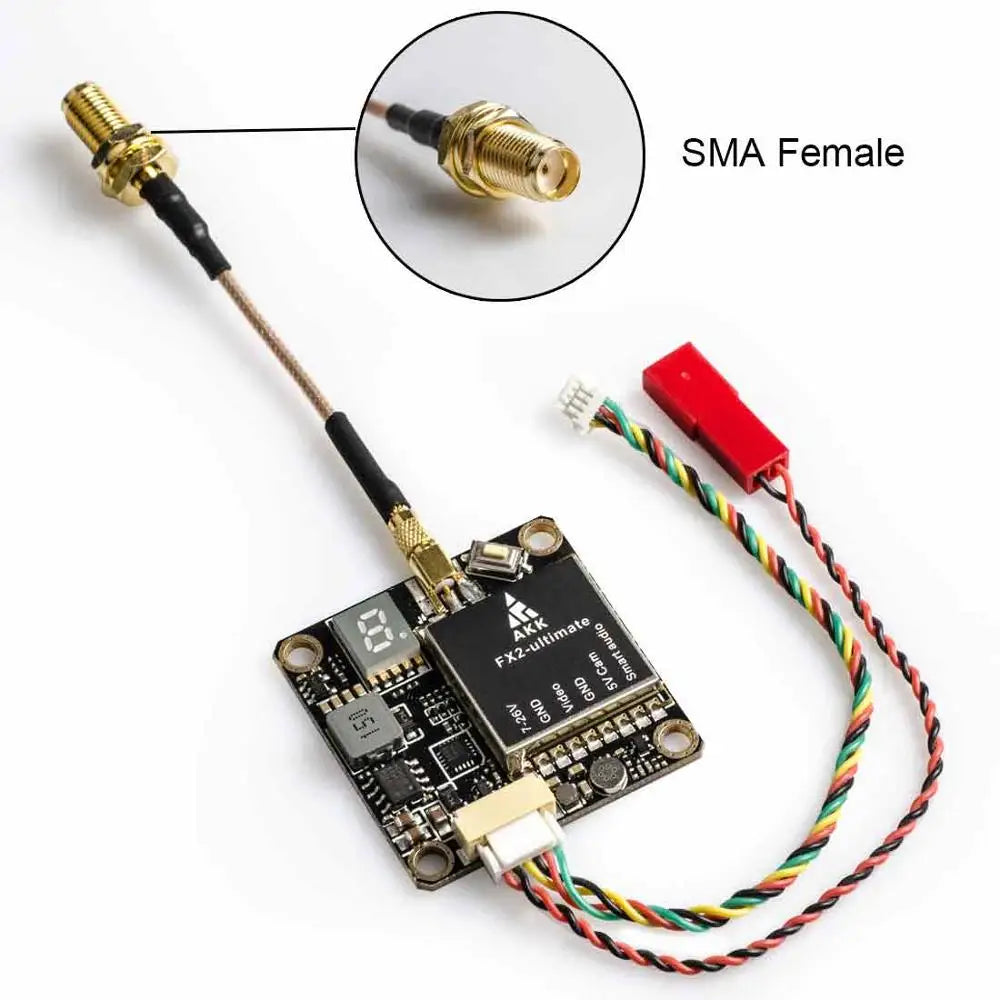

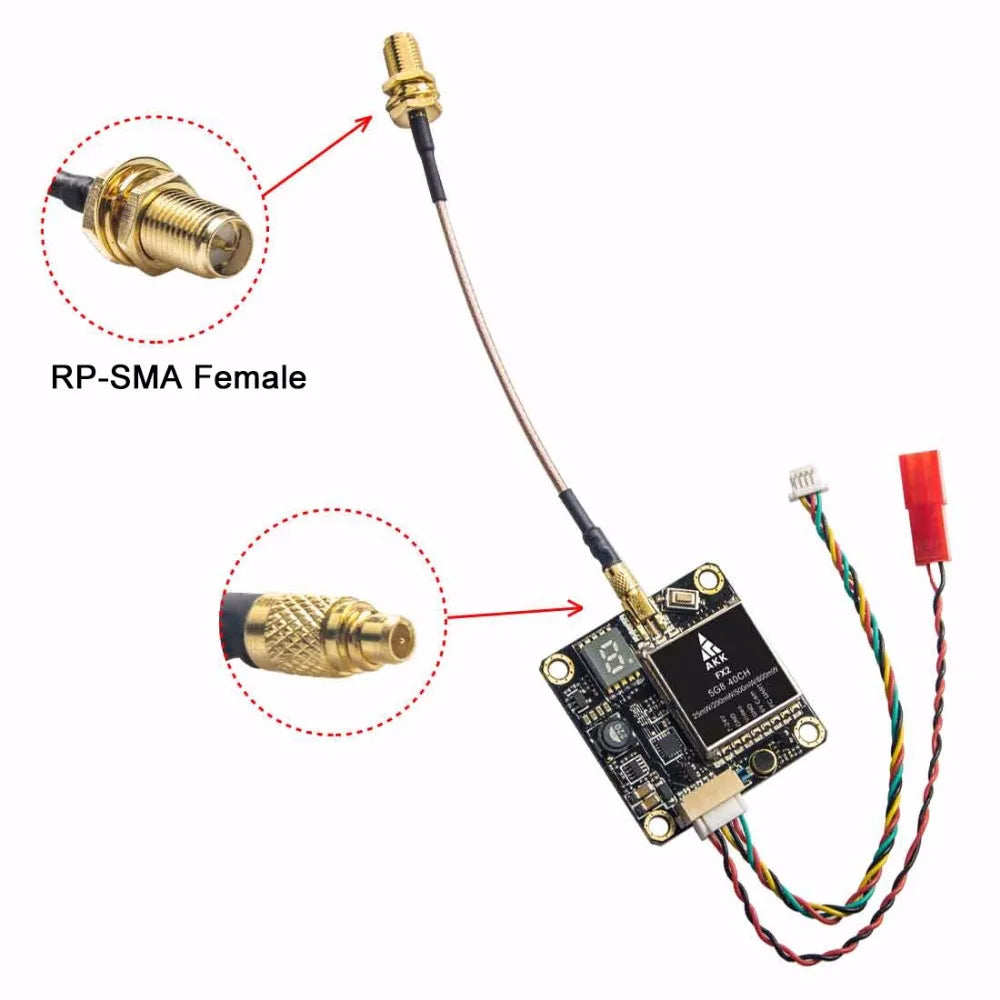

1x Antenna(MMCX to SMA / RP-SMA Adapter)and cable set
1x Product manual

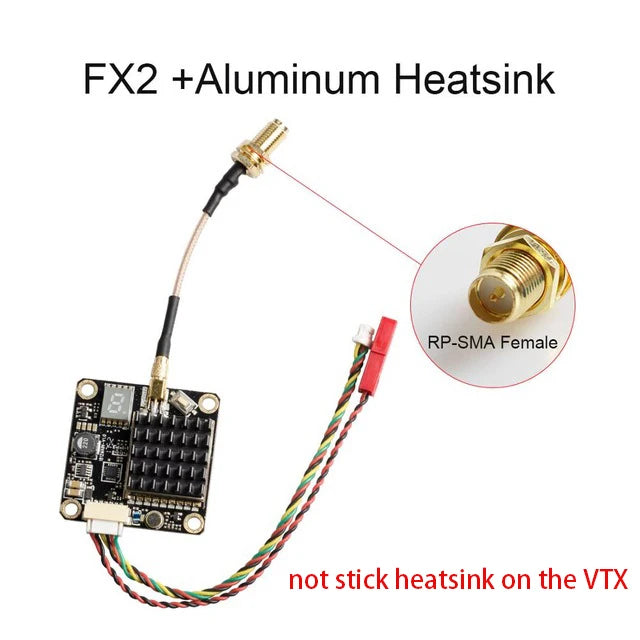

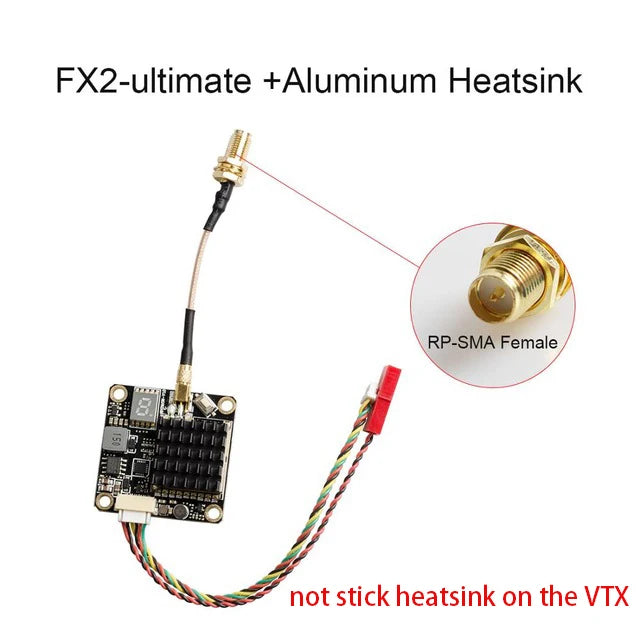

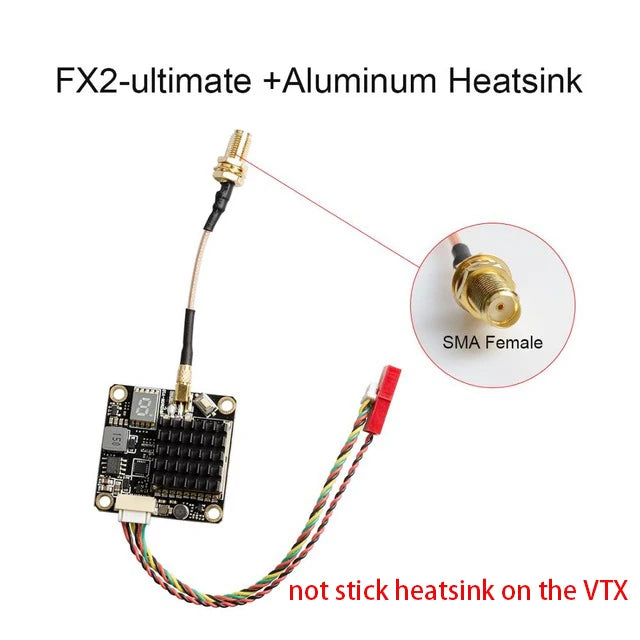

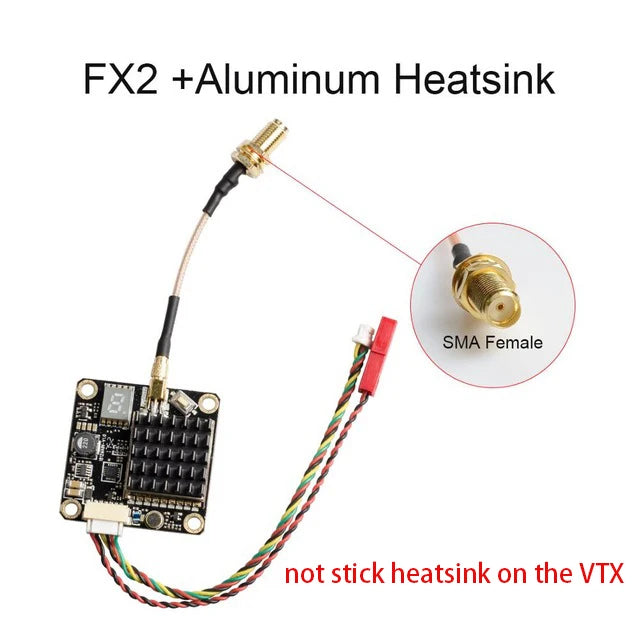

AKK Aluminum Heatsink Kit for AKK X2-ultimate, FX2-ultimate, X2, X2P, FX2
Specification:
Material: Aluminium
Size: 18.8x19x5(mm)
Weight: 2.2g
AKK FX2 5.8GHz 0.01/25/200/500/800mW 40CH Switchable FPV Transmitter with UART Support OSD Configuring via Betaflight Fligh
Specifications:
Operating Voltage: 7 - 24V
Power supply: 5V camera@under 0.3A max
Output power:
25mw: 120mA @12v
200mw: 200mA @12v
500mw: 280mA @12v
800mw: 330mA @12v
Range: Up to 4km with omnidirectional RHCP antennas

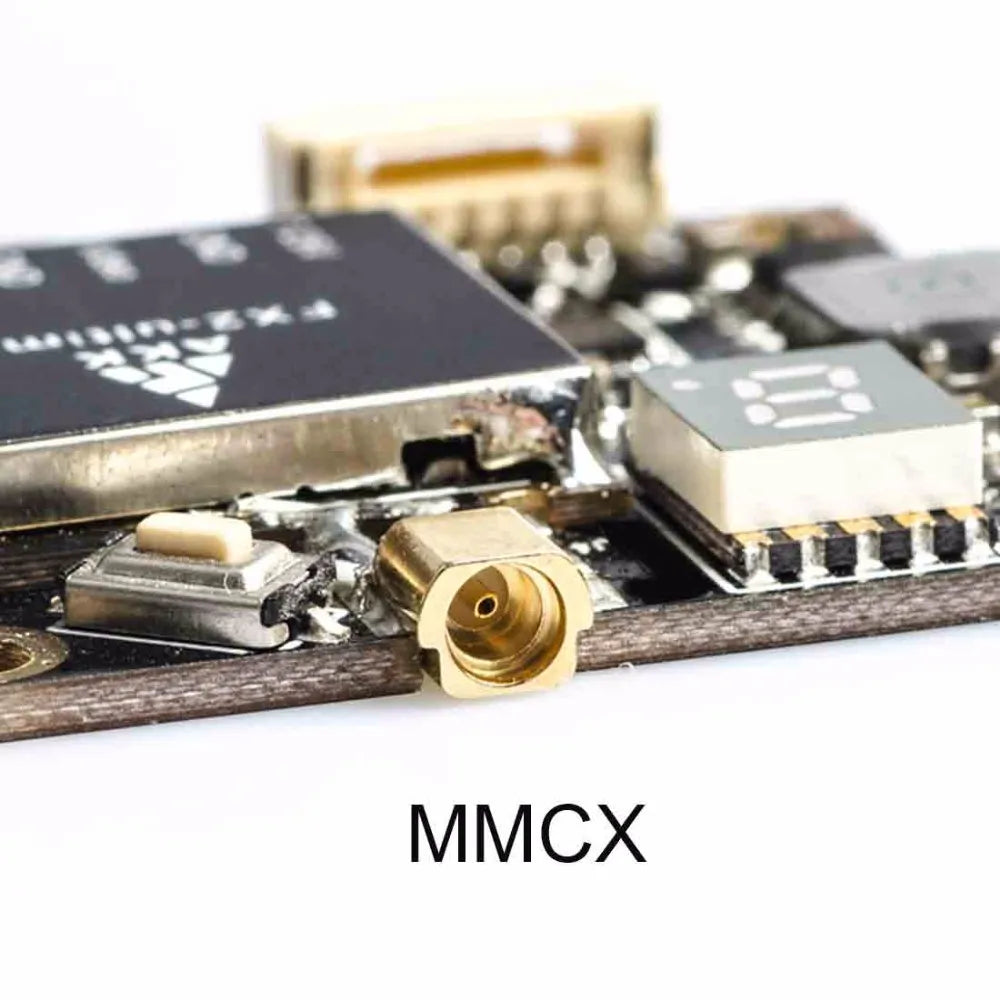

Antenna connector: MMCX
Video Format: NTSC/PAL
Port connector: JST,6pin
Dimensions: 36(W)x36(D)mm, 30.5x30.5mm(hole)
Weight:7.4g(excluding antenna)
Feartures:
All 40 standard channels
5V output for camera
2S-6S input power supported
LC filter allows ultra clean fpv video
0.01/25/200/500/800mW Switchable
Integrated with Uart, connectable to betaflight FC
0.01mW-Power up and test your system during a race with zero interference
Support parameter remotely adjusted by Betaflight, flight controller, OSD 5V BEC output, support power for receiver and camera
0.01mW-Power up and test your fpv system during a race with zero interference with any neighbor active channels
LED display for indicating CH/Band/Power
Package included:
1 x 5.8Ghz 40CH 25mW/200mW/500mW/800mW Switchable FPV Transmitter

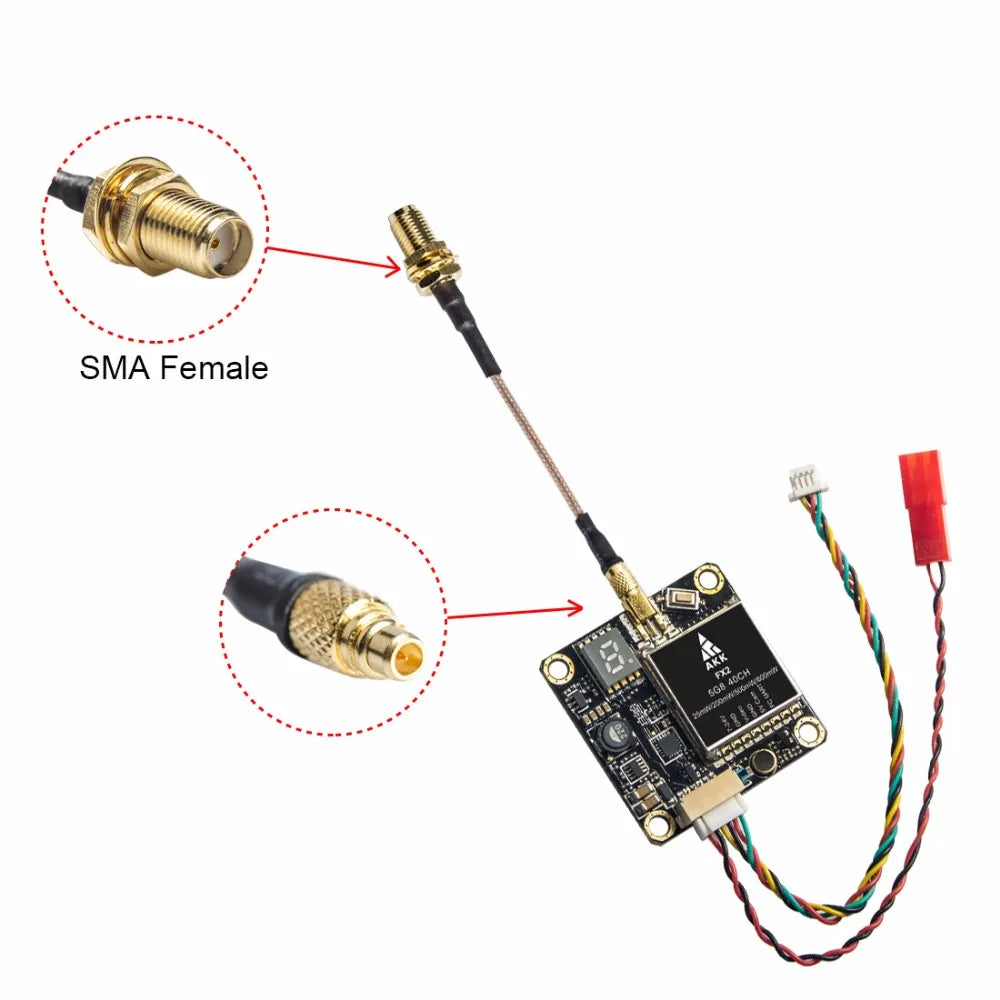

1x Antenna and cable set
1x Product manual
