AKK FX2-ultimate-mini VTX - 5.8GHZ 8Channel 10KM 25mW/200mW/600mW/1000mW/1200mW FPV Video Transmitter Support Smart Audio

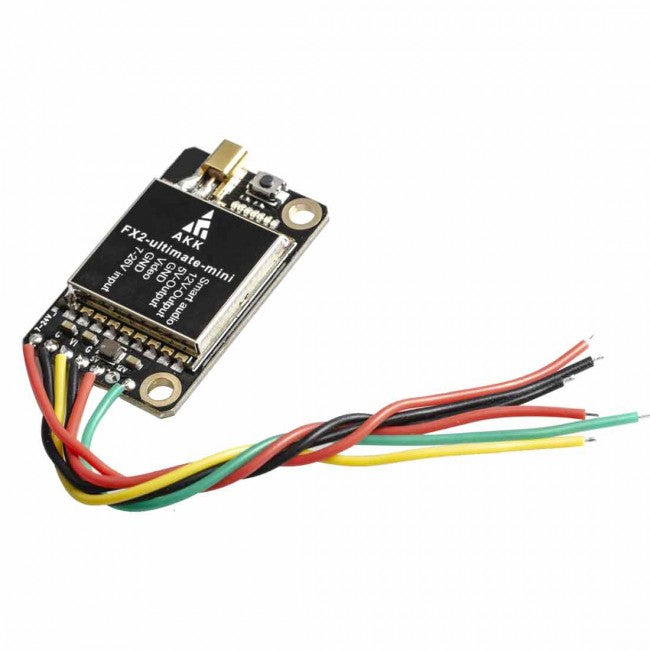

The AKK FX2-ultimate-mini VTX(International Version) is a rare FPV VTX currently on the market, which adapted smart audio， Betaflight and pit mode. It comes with microphone, led display and one easy-control button, very useful equipment in a racing game. The 1200mW power output makes it an actual 5.8Ghz long range VTX whose transmission distance can even arrive 10Km in the open space without any interference.

Key features:
Support Smart audio
25mW/200mW/600mW/1200mW power switchable (Internation Version)

25mW/200mW/600mW/1000mW power switchable( US Version)
One button frequency and power setup
OSD configuration using smart audio
7-26V input with 5V/12V output for camera
With MIC

For AKK VTX Table, please click here

Notice:
VTX has 5V&12V output to camera. Please solder 5V camera to
5V-out solder pad, or solder 12V camera to 12V-out solder pad.
Never solder 5V camera to 12V-out solder pad or solder 12V camera to
5V-out solder pad, which may damage camera.
Never solder 5V-out and 12V-out at the same time.

The selections in yellow are not available due to FCC regulation.
The use and operation of this product requires an amateur radio license.
Please apply license before purchasing and using this product.

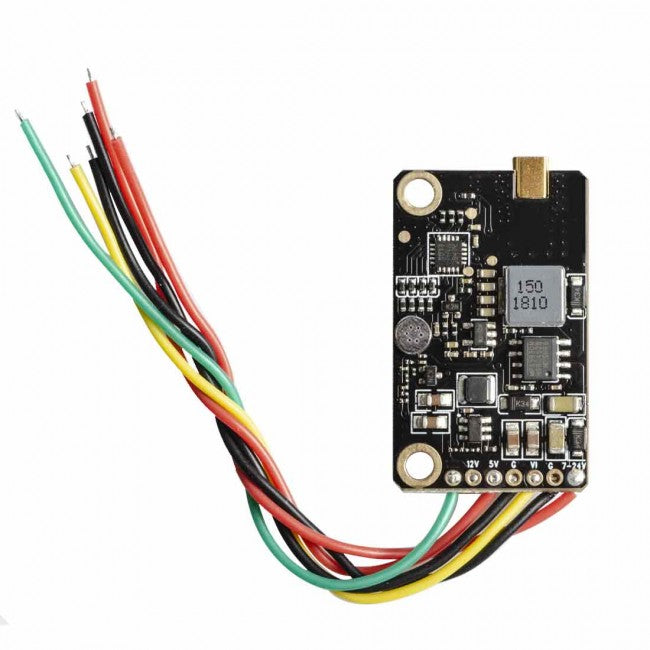

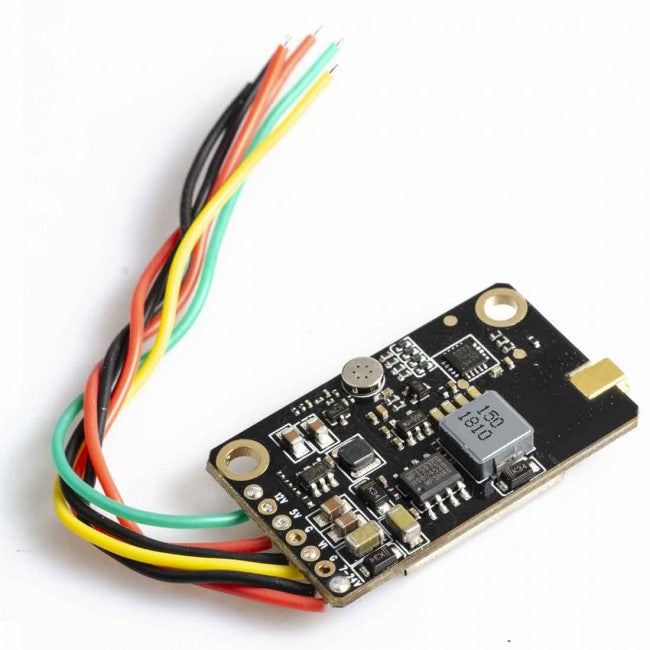

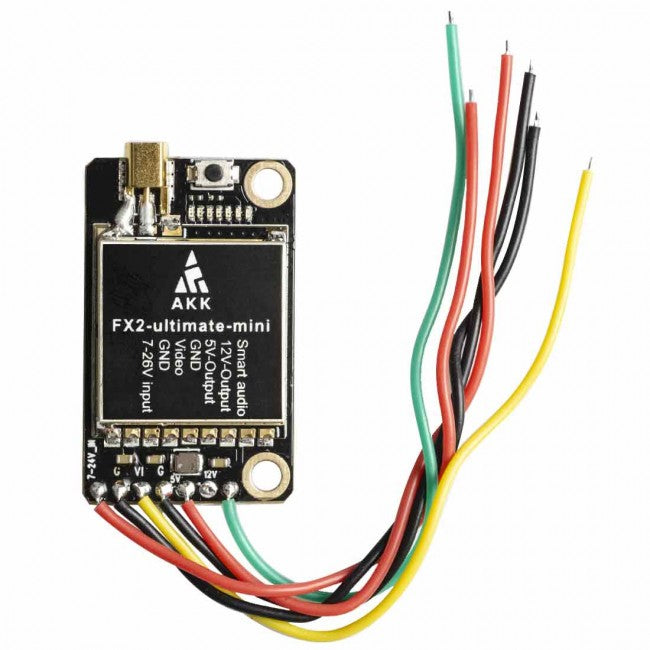

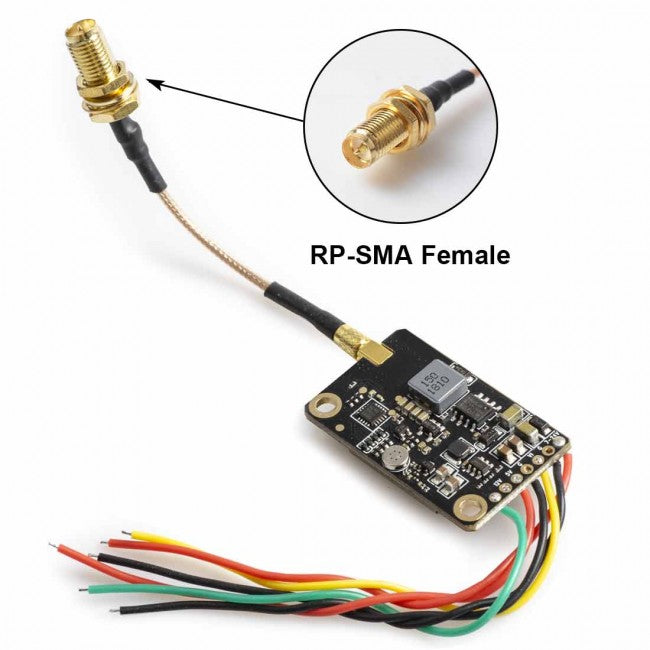

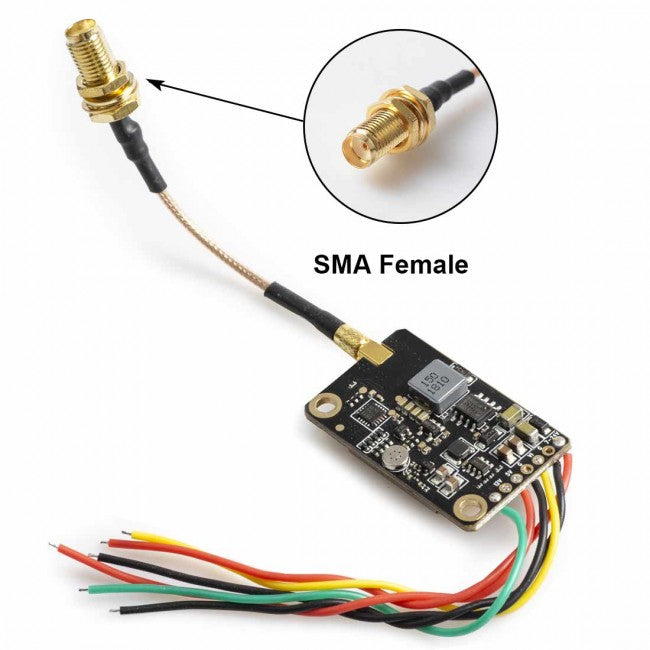

The AKK FX2-ultimate-mini VTX features an MMCX antenna connector, a 5.8GHz transmission frequency, and supports up to 8 channels. The device includes LED indicators for band selection (red), channel selection (blue), and a 3.2mm microphone jack. It is powered by a DC input voltage of 7V-26V with an output voltage of 12V, as well as a GND and 5V output. The specifications also include video GND output and support for smart audio features.
