AKK FX3-Ultimate-DVR VTX - 5.8G 2-6S 25mW/200mW/600mW/1000mW Smart Audio MMCX Video Transmitter for Long Range RC Drone Airplane

AKK FX3-Ultimate-DVR VTX for RC Drone Airplane Long Range(5.8G,25-1000mW, 2-6S, Smart Audio, MMCX)

Comparing to recording video from your video receiver, DVR VTX has its own advantage. It provides us clear footage directly from the FPV camera, so it minimizes signal interference from 5.8GHz transmission. If you are finding an FPV VTX with DVR(digital video recorder), this one may be the right one!

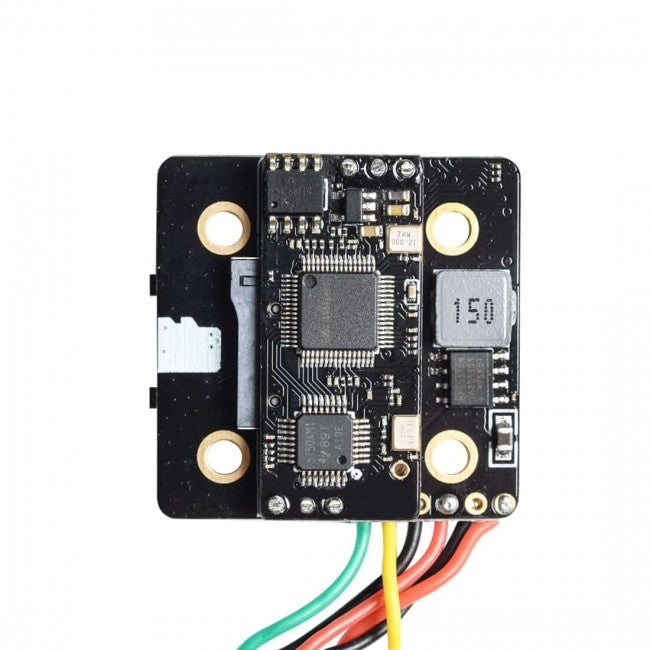

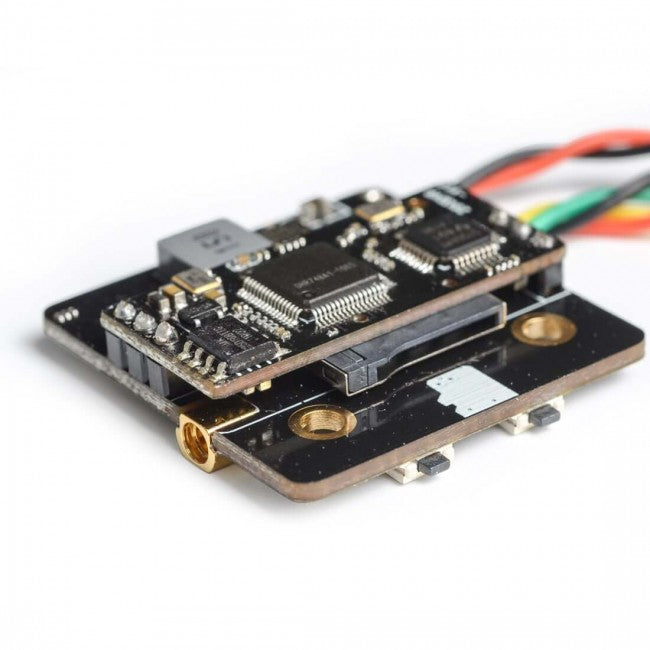

Novel design FPV VTX. The design of this FPV VTX is different from other DVR VTXs. It has a double layer stacking structure, one for video transmission, one for DVR. It can be normal use though you remove the DVR board!

Onboard Microphone. Hearing is important when flying your quad since you can learn more about the drone situation through the audio feedback.

20x20 VTX. It has taken the Infinite DVR and cut the mounted size to only 20mm! You can mount it directly to your FC.

Key features:

Smart audio support. This DVR VTX supports SmartAudio, and you can change VTX settings in Betaflight OSD, such as channels and output.

Easy to use.One button control frequency and power setup.

MMCX Adaptor. The weight, durability and cycle rating make MMCX connectors get greatly popular.

Wide voltage input. 7-28V input. The 2-6s battery is suitable for this DVR VTX.

5V output. This DVR VTX provides 5V output to your FPV camera.

25mW/200mW/600mW/1000mW power switchable.

AKK FX3-Ultimate-DVR VTX Table, please click here.

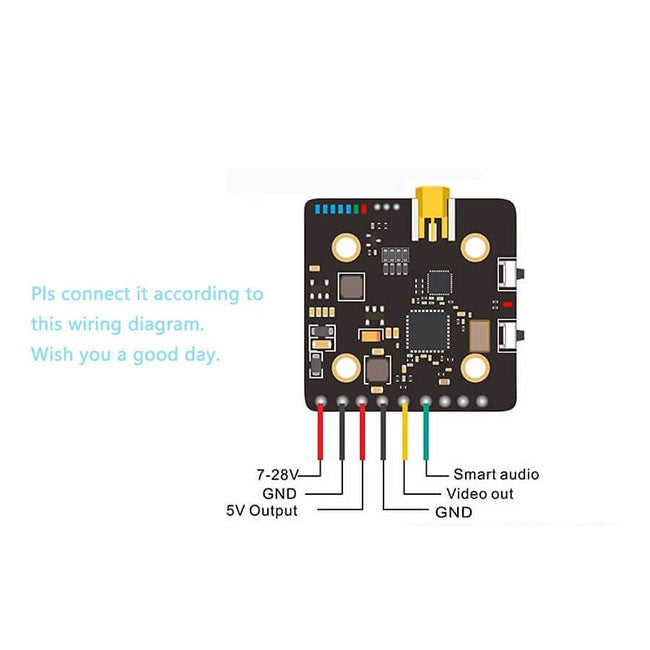

Green LED for CH Blue LED for Band MMCX Red LED for Power 00IE Button1 control DVR 8 DVR Indicator 8 Button2 control CHIBand/Power 7-28V- Smart audio GND Video out SV Output GND Specification Input voltage 7V to 28V Extra features Smart audio DVR Power supply SV output for camera Output power 25/200/600/100OmW Antenna connector MMCx Port connector Solder pads Dimensions 30.5(W
