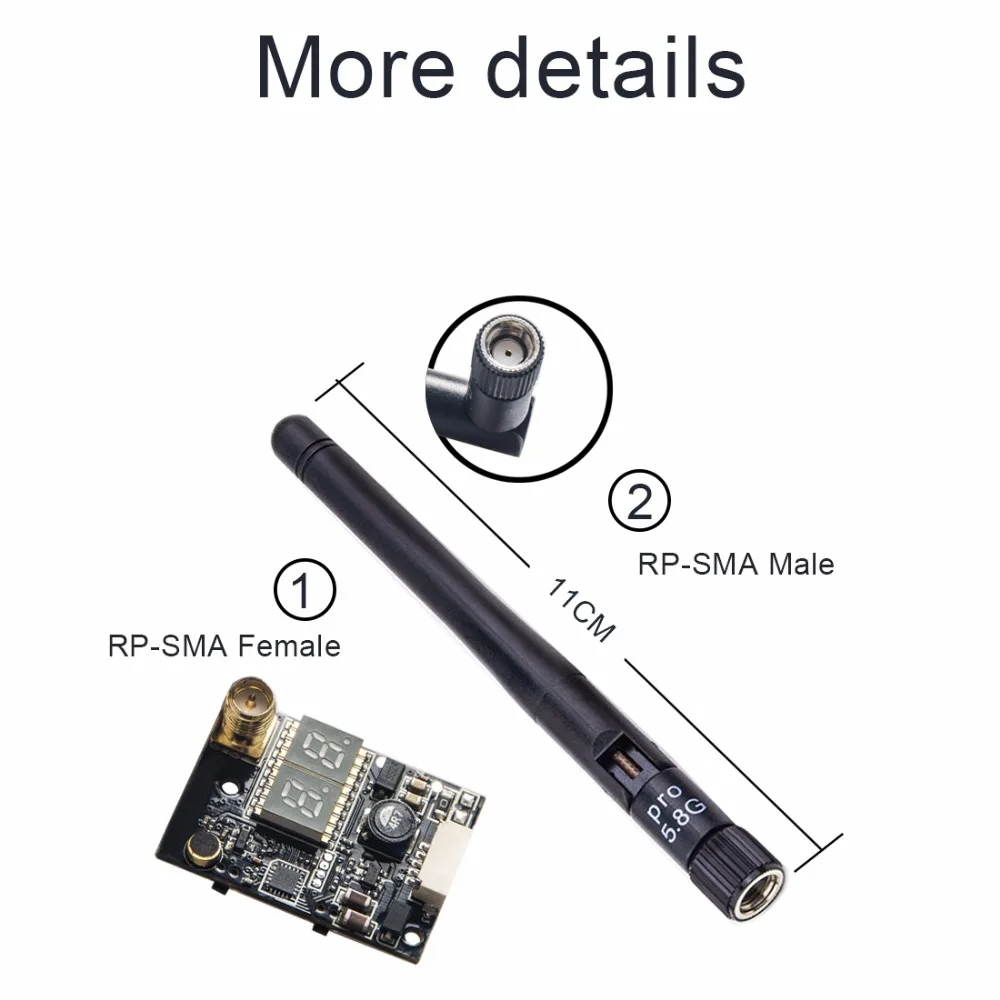

Note: Antenna ARL0/ABL0 fits this transmitter, but antenna ARL1/ABL1 dose not fit this transmitter, its antenna connector is RP-SMA Male(ARL0/ABL0). antenna ARL1/ABL1 is SMA Male, if you need this, you can buy it.

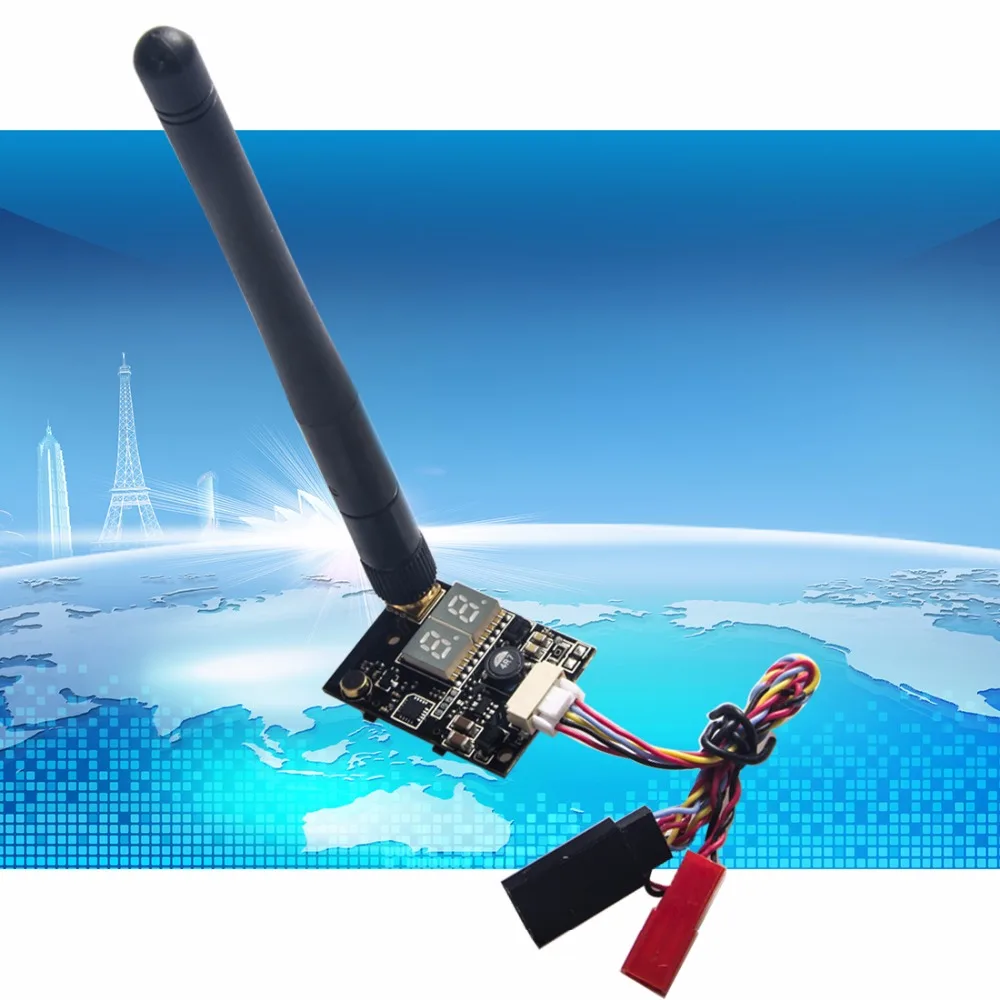

AKK K33 5.8G Double Screen Display 200mW FPV Audio Video Transmitter

• 40 channels, cover A, b, E ,F, r bands

• Push button to change channels and frequencies

• Double LED display for Channel and Frequency

• Power off memory: replay the very last frequency band and channel

• It supports full range of 40 channels including raceband 5645MHz-5945MHz.

  Feature:
  This 5.8GHz 40CH FPV transmitter has double push buttons for easy changing CH and FR.
  40 channels: Cover A, b, E, F, r bands. Small size and light weight.

  Specification:
  Video Format: NTSC/PAL
  Output Impedance: 50 Ohm
  Transmitter frequency range: 5645-5945MHz
  Transmitting distance: > 1000m (open area)
  Antenna connector: RP-SMA connector
  Operating Voltage: 7-24 V
  Output Voltage(VOUT): 5 V
  Supply current: 280 mA
  Operating Temperature: -10 +85 C
  Video Band Width: 0-8.0 MHz
  Audio carrier Frequency: 6.5 MHz
  Video Input Level: 0.8,1.0,1.2 Vp-p
  Video Input Impedance: 75 Ohm
  Audio Input Level: 0.5 ,2.0 Vp-p
  Audio Input Impedance: 10K Ohm
  Weight: 15g

  Package includes:
  1X5.8G FPV transmitter
  1X5.8G antenna
  1XConnector and cable set





  Note: 5645,5925,5945(E4,E7,E8) channels are not available due to FCC regulation.
  Selecting 5645/5925/5945(E4/E7/E8) will be invalid action.


  Recently, we changed PRODUCT BOX, because we received that someone is extra attention to this products mark, about this product, we hope you can look over the page of product. We have only one store on aliexpress, Please Remember and collections our store (AKK), We only deal with reputable guests, once we found bad credit buyers or attempt to fraud, we will add to blacklist and report. the product price is wonderful, because we hope do a good seller.No excuse, please attention to this.











  Features:
  5.8G four Leaf Antenna for FPV Multicopter
  Small size and light weight, Adjustable direction

  Impedance:50Ω

  Suitable for 5.8GHz drones, quadcopters, vtx/vrx, goggles, monitors.


  Color :  Red / Blue

  Height：88mm (ABL1), 88mm (ABLO), 88mm (ARL1), 88mm (ARLO)

  Weight : 8.45g (ABL1), 8.45g (ABLO), 8.62g (ARL1), 8.4g (ARLO)

  VSWR:<1.5:1

  Antenna Connector: SMA Male, RP-SMA Male

  Polarization:Circular polarization, Right-handed(RHCP)


  Gain:5dBI

  Max Power:50W

  Lighting Protection:DC Grounded

  Max diameter: 4mm(ARLO), 4mm (ARL1), 4mm(ABL1), 4mm(ABLO)

  Min diameter: 1mm(ARLO), 1mm (ARL1), 1mm（ABL1), 1mm (ABL1)




  Features:


  This 5.8GHz 40CH FPV transmitter has double push buttons for easy changing CH and FR.

  40 channels: Cover A, b, E, F, r bands. Small size and light weight.





  Specification:


  Video Format: NTSC/PAL


  Output Impedance: 50 Ohm


  Transmitter frequency range: 5645-5945MH

  Transmitting distance: > 1000m (open area)

  Antenna connector: RP-SMA connector

  Output Power: 26-28dBm

  Operating Voltage: 7-20 V

  Output Voltage(VOUT): 5 V

  Supply Current: 280 mA

  Operating Temperature : -10 +85 C

  Video Band Width: 0-8.0 MHz

  Audio carrier Frequency: 6.5 MHz

  Video Input Level: 0.8,1.0,1.2 Vp-p

  Video Input Impedance: 75 Ohm

  Audio Input Level: 0.5 ,2.0 Vp-p

  Audio Input Impedance: 10K Ohm

  Size: 31mm*25mm*8mm

  Weight: 10g

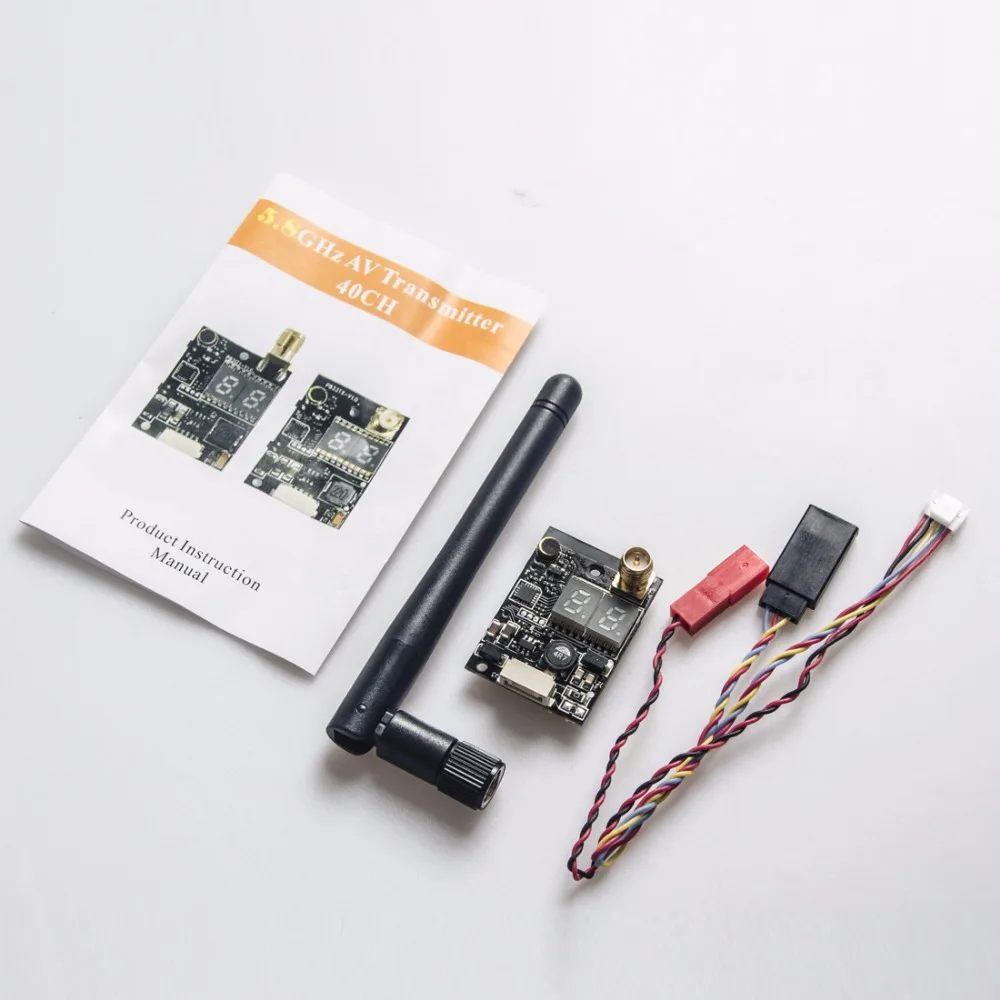

  Package includes:

  1X5.8G FPV transmitter

  1X5.8G antenna

  1XConnector and cable set

  1X Product manual





  ANT Microphone 90 CH Powering on press the"CH:" button to change LED display channel FR 6524 EQ 7-24V Video out GND GND Video in .
