AKK New Era Dual Antenna VTX
Support both Smart Audio and Tramp
Free Antennas
7-30V/20*20mm stackable

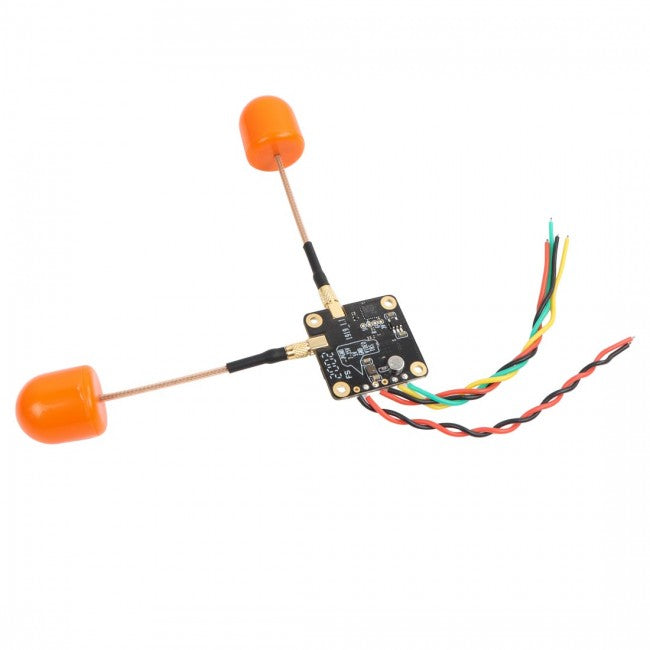

AKK VTX entering a new era, Dual antennas make a difference.
It transmits enhanced LHCP and RHCP signals, which makes transmission duple powerful.
Installed with AKK self-made antennas, experiencing the unprecedented strong signal.

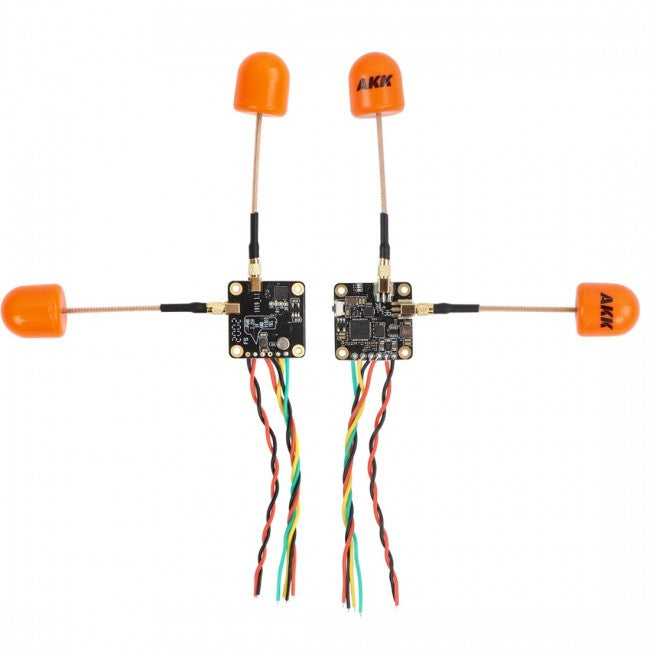

Dual Antenna VTX. This FPV VTX breaks entirely the old design and structures, which maximizes
the signal transmission possibility.
Wide voltage input. 7-30V super wide input satisfies nearly all FPV flight needs.
Stable power output. Stable power output, Enjoying smooth flight with NO dropping.
Key features:
Support Dual Antenna
25mW,50mW,200mW,400mW power switchable
One button frequency and power setup
OSD configuration using Smart audio.
7-30V input with 5V output
For AKK VTX Table, please click here
Learn about the Best AKK Video Transmitter

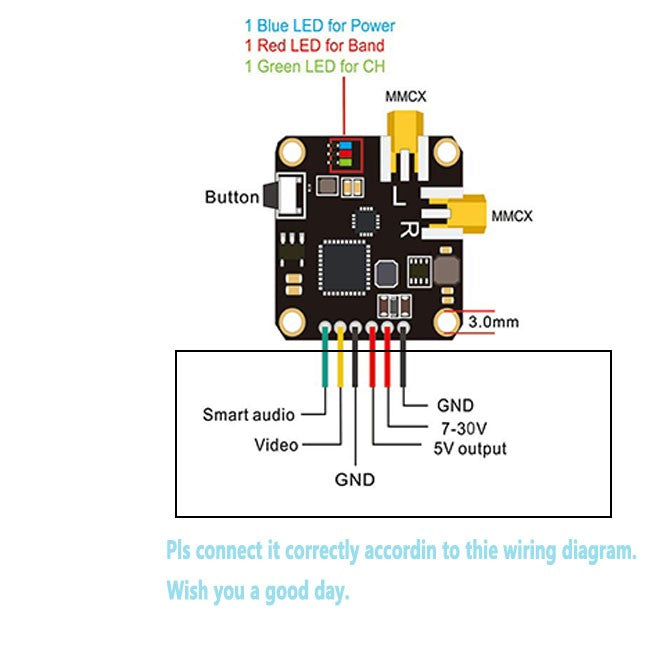

Blue LED for Power Red LED for Band Green LED for Button MMCX 20mm 26mm 3.Omm GND Microphone Smart audio 7-30V Video 5V output GND Specification Input voltage 7V to 30V . 5925/5945 are not available due to FCC regulation .
