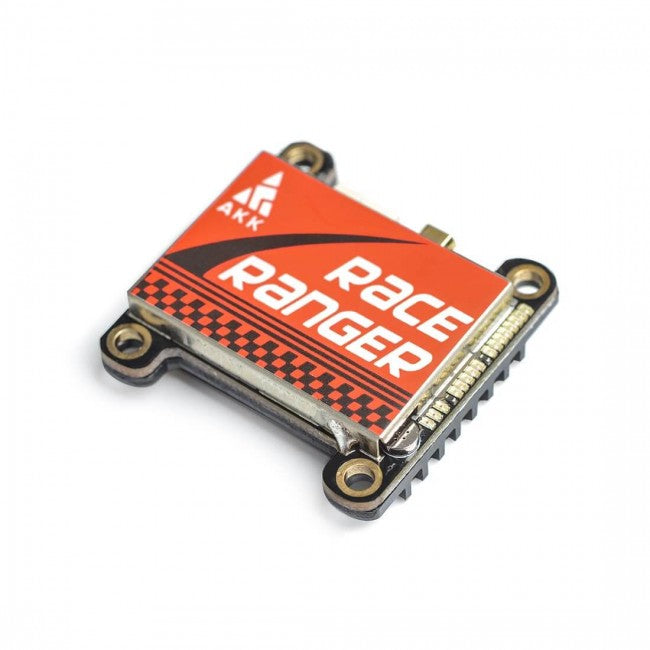

AKK Race Ranger 1W 5.8G VTX (US Version) - 2-6S 200mW/400mW/800mW/1000mW Power Switchable FPV Video Transmitter Support Smart Audio

AKK Race Ranger FPV VTX (5.8G,30*30,200-1000mW, 2-6S, Smart Audio, MMCX, US Version )

Full cover, Long-range, Obvious indicator.

AKK Race Ranger FPV VTX makes a significant improvement in comparison with all other AKK VTXs. It has far better cover protection, longer transmission distance and clearer indicator, which makes it a great 5.8Ghz Video Transmitter, bringing entirely new FPV experience for you!

Full cover protection. This AKK FPV VTX is full covered metal shell, so it may not be broken even in an accidental fall!

Clearer indicator. 8 blue led for CH,5 green led for the band and 3 red led for power. The new smart indicator design of this FPV VTX caters to visual needs and also the actual operation.

Longe range VTX. The power up to 1000mW(US Version) and the stable signal transmission enable it to create a new flying range record of VTX.

Key features:

Smart audio support. This FPV VTX supports SmartAudio, so you can change VTX settings in Betaflight OSD, such as channels and output.

One button frequency and power setup. If you don’t like smart audio, you can change of channel, band, and power by only one button on this FPV VTX.

Built-in Mic. It is a good thing about FPV VTX with a built-in microphone. It allows you to hear your quad though it flies too far.

Wide voltage input. 7-28V input. 2-6s battery is available.

5V output. This FPV VTX provides 5V output to your FPV camera.

200mW/400mW/800mW/1000mW power switchable.

Find AKK Race Ranger VTX Table(US Version), please click here.

Note: 5645(E4),5925(E7),5945(E8) channels are not available due to FCC regulation!

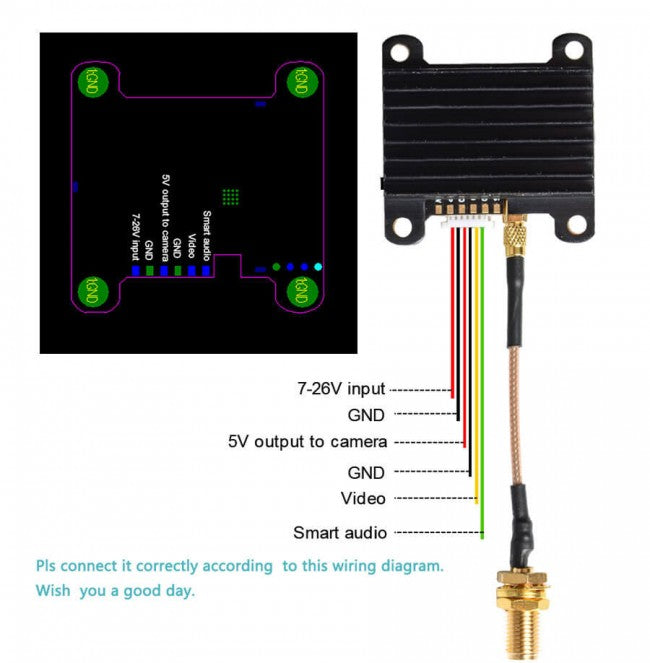

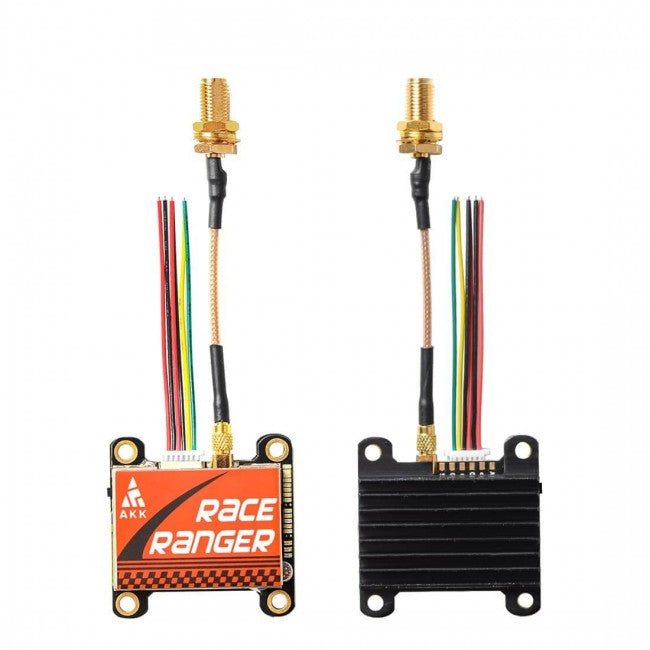

The product features a blue LED indicator for channel selection (CH), a green LED indicator for band mode (RANGER), and a red LED indicator for power status. The specifications include an input voltage range of 7V to 28V, with smart audio capabilities. Additional features include extra power options: 1000mW, as well as output powers of 200mW, 400mW, 800mW, and 1000mW. The product also includes a micro-mechanical (MMCX) antenna connector and a JST 6-pin cable connector. Its dimensions are 36mm x 36mm x 30.5mm.
