AKK Race VTX SPECIFICATIONS
Brand Name: akk
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Transmitters
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: other
Remote Control Peripherals/Devices: other
Tool Supplies: Assembly Category
Model Number: Race VTX
Four-wheel Drive Attributes: Assemblage

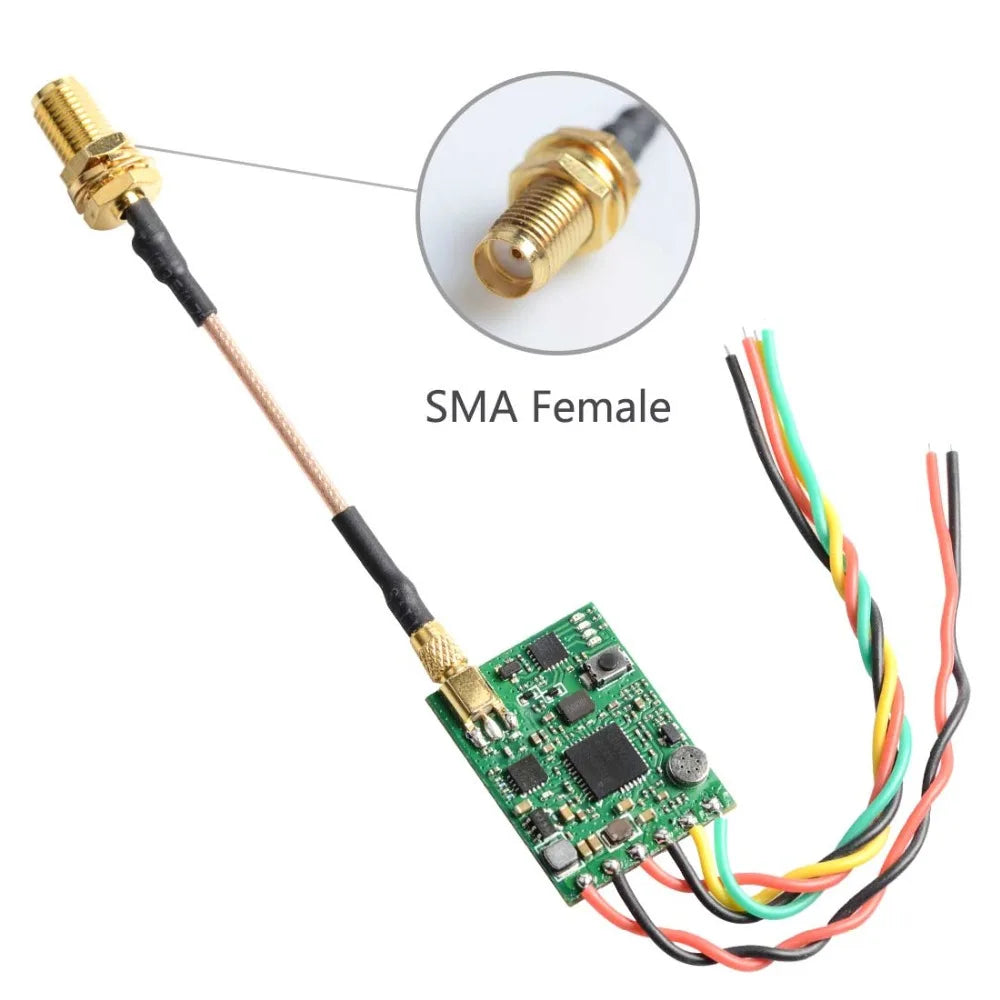

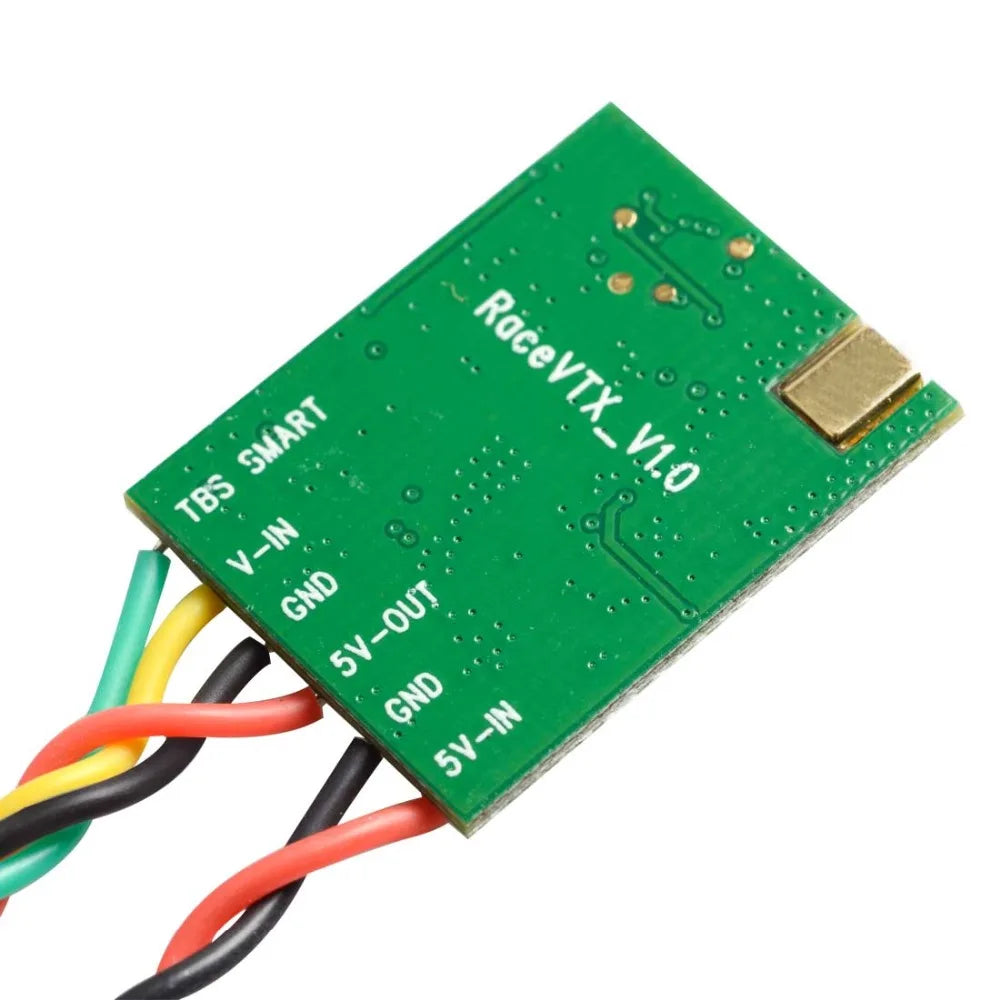

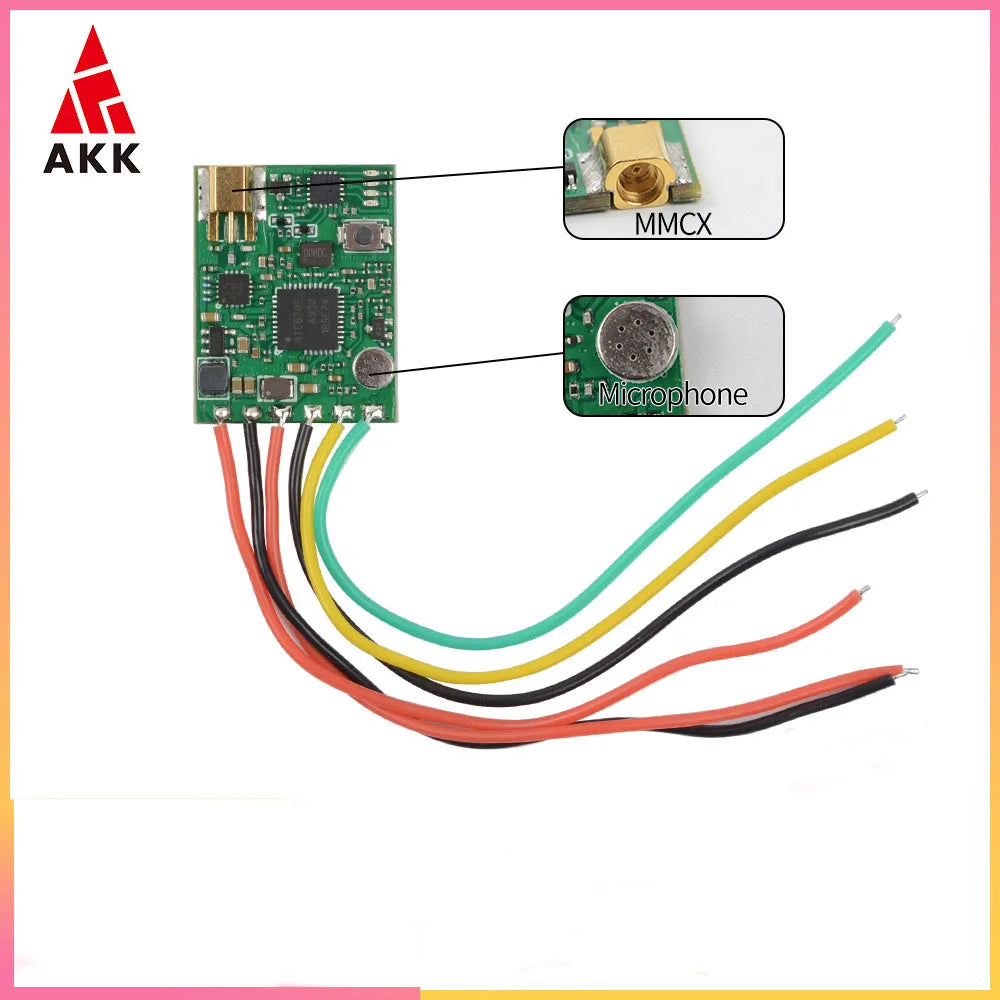

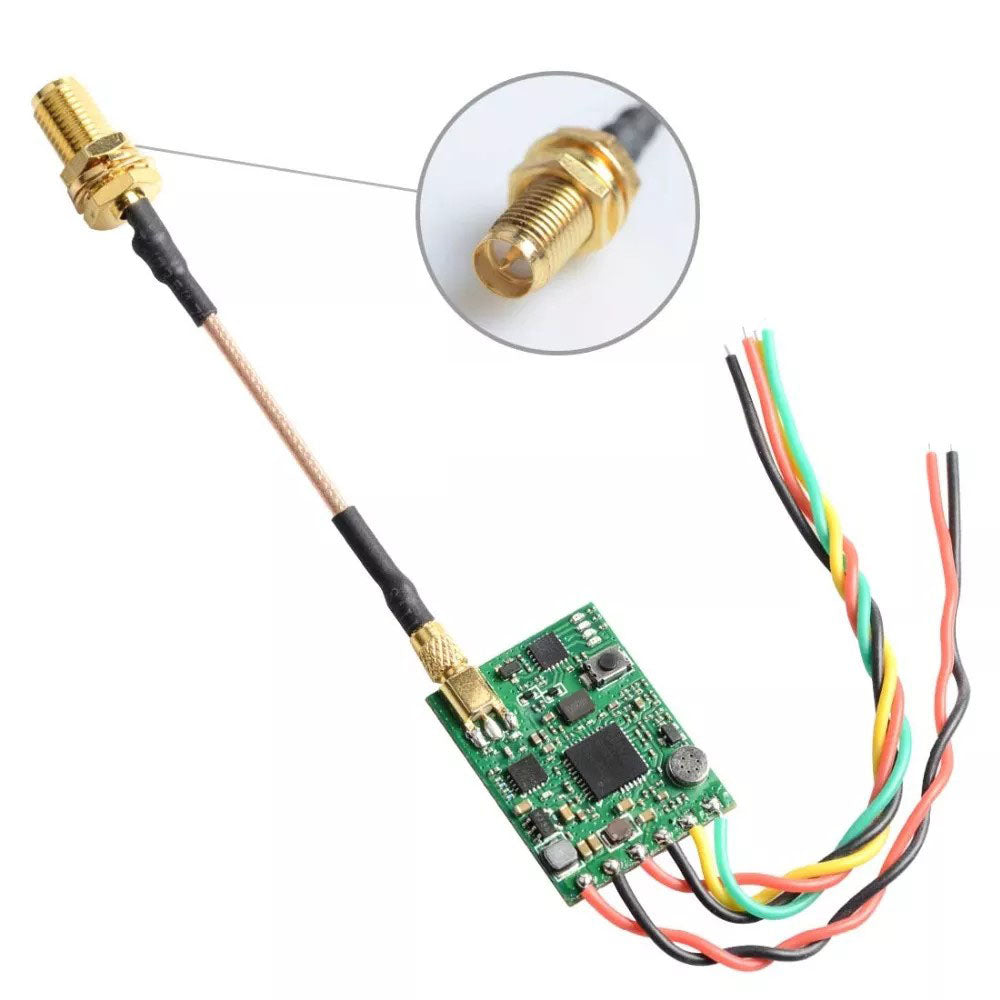

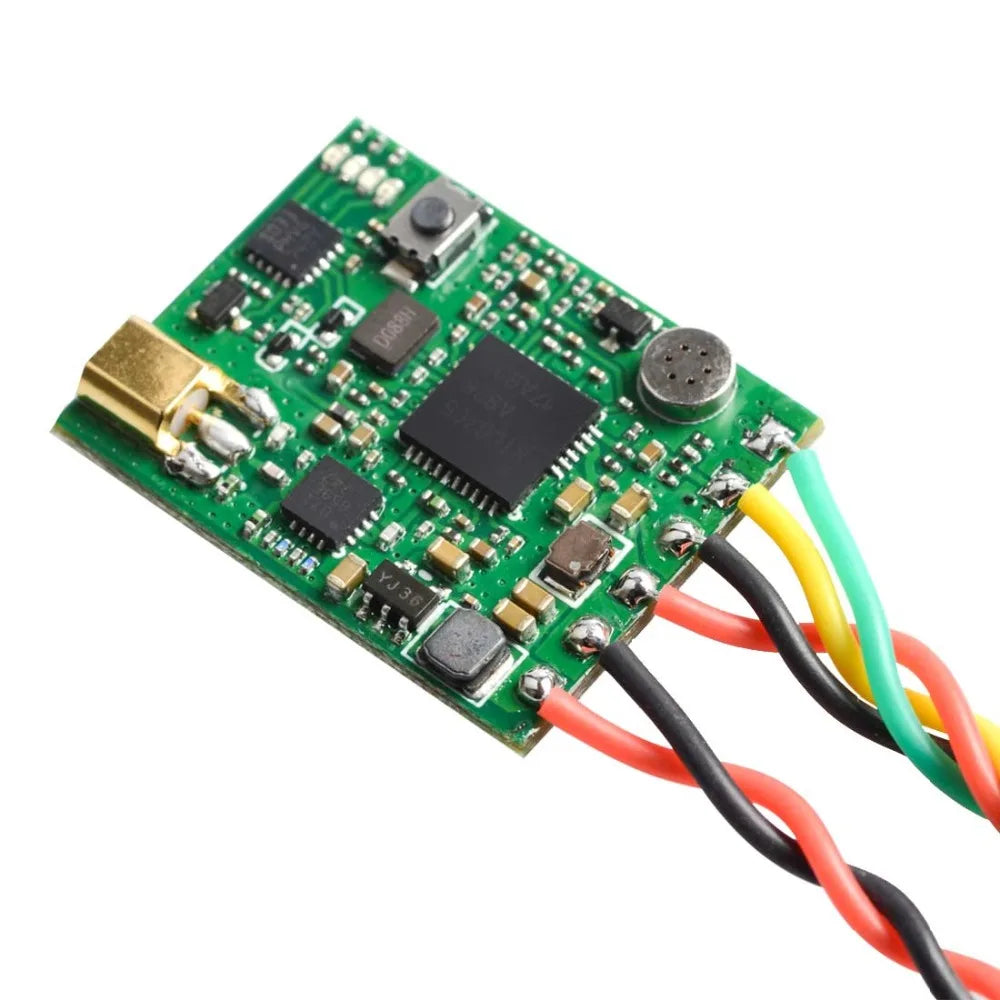

AKK Race VTX 25mw 200mW switchable OSD configuration smart audio
product show
Small and light VTX. This VTX is 20×25×3.5mm with a weight of 3.5g.
Little power drop. When using other VTXs, it is common that the power level drops quickly, but this VTX is steady. It beats many VTXs in this part!
With the LC filter. LC filter is one of the most basic filters in electronics, which is widely used by FPV hobbyists to suppress noise in power created by ESC and motors.
Key features
Support Smart audio. You can change the VTX settings in Betaflight OSD, such as channels and output.
Support Pit mode. The pit mode reduces interference possible, which allows you to start VTX at any time, even when the race has started.
LED display. The AKK Race VTX has 4 indicators for band, channel, and power. It is easy to use with obvious indicators.
One button setup channel/band/power.
25mW/200mW/ power switchable.
5V input with 5V output.
product features
Support Pit Mode
25mW and 200mW switchable
Slow Power On
OSD configuration via smart audio
5V to camera @ under 300mA
