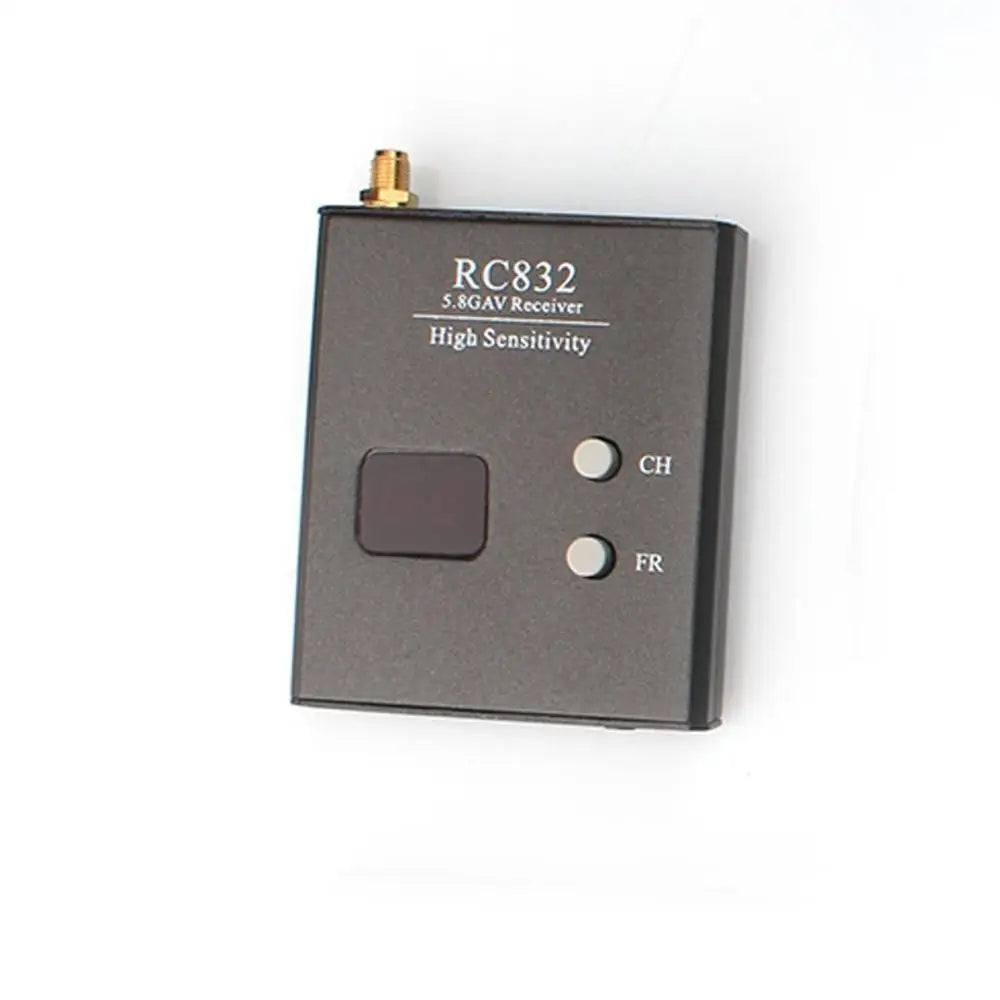

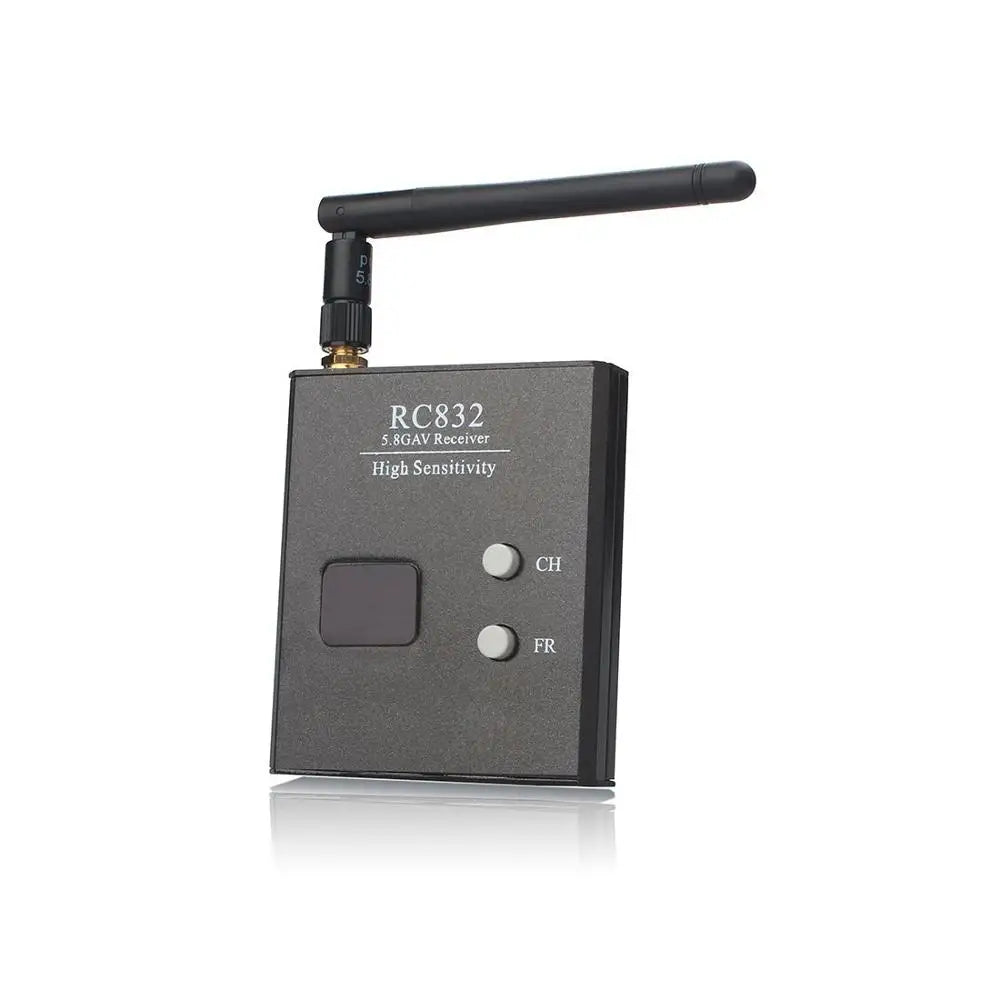

AKK 5.8G FPV 40CH RC832 Mini Receiver for Racing Drone and Multicopter

• This 40 Channel 5.8GHz AV wireless receiver has high power, designed for all kinds of drones.

• It supports 5 bands and all frequencies compatible

• Easily Change frequency channels and bands by pressing button

• Double-screen display for channels and bands

• It is a Plug and play FPV receiver for Aerial Filming


  Features:

  40 Channel 5.8 GHz 600mW AV wireless receiver, designed for areas with too many frequencies in the air.

  It supports 5 bands and all frequencies compatible. Easily Change frequency channels and bands by pressing button. Double-screen display for channels and bands.

  It is a Plug and play FPV receiver for Aerial Filming.


  Specification:

  Power Supply: DC 12V

  Antenna impedance: 50 Ohm

  Video impedance: 75Ohm
  Working Frequency: 5.8GHz
  Available Channel: 40CH
  Consumption Current: 200mA, Max
  Antenna Gain: 2db
  Antenna Connector: RP-SMA
  Audio Carrier: 6.5MHz
  Video Format : NTSC/PAL

  Dimension: 80x65x15mm
  Weight: 85g


  Package:
  1 x RC832 5.8GHz 40CH FPV Receiver
  1 x Antenna
  1 x Power cable

  1 x User manual

  1 x AV cable

         Notice:
         Please get a 12V lipo battery for the receiver. We do not suggest over-voltage battery or car battery.
         Please plug antenna before powering up, otherwise static electricity will damage the product.
