AKK X2P/X2 5.8Ghz 40CH VTX SPECIFICATIONS
Brand Name: akk
Origin: Mainland China
Material: Composite Material
Recommend Age: 6-12y
RC Parts & Accs: Transmitters
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: other
Remote Control Peripherals/Devices: other
Tool Supplies: Assembly Category
Model Number: X2P/X2
Four-wheel Drive Attributes: Assemblage
PICKED FOR YOU
J2ch Sansoom t Akk TS5823 Super easy to install on quads ad get to working within minutes; S 7.28 BUY NOW
AKK X2P/X2: A 5.8GHz, 40-channel video transmitter that can switch between four power levels (0.01mW, 25mW, 200mW, and 500mW/800mW) for flexible use in areas with high-frequency interference.
AKK X2P/X2 5.8Ghz 40CH 0.01mW/25mW/200mW/500mW/800mW Switchable FPV transmitter Compatible Betaflight OSD FC
AKK X2P Specifications:
Brand name: AKK
Model: X2P
Item name: FPV Transmitter VTX
Frequency: 5.8G
Channels: 40CH
Input voltage: 7V-24V
Power supply: 5V Camera @ under 0.3A max.
Output power:
25mW: 100mA@12V
200mW: 180mA@12V
500mW: 250mA @12V
800mW: 300mA @12V
Range: Up to 4 km with omnidirectional RHCP antennas
Port connector: JST, 6pin
Antenna connector: SMA female
Cable:
Blue: FC VART
Black: GND
Yello: Video
Red: Output voltage
Features :
0.01mW/25mW/200mW/500mW/800mW power switchable
7-24V input and can be provides 5V output for your camera
Filtered power ensure super clean video, born for racing.
Super mini size and light weight,One button frequency and power setup.
Support parameter adjusted and work with Betaflight,fligth controller,OSD
Package includes:
1x 5.8G X2P transmitter
1x Cable
1x Product manual
AKK X2 Specifications:
Brand name: AKK
Mode: X2
Input voltage: 7V-24V
Power supply: 5V Camera @ under 0.3A max.
Output power:
25mW: 100mA;
200mW: 180mA;
500mW: 250mA;
800mW: 300mA @12V
Range: Up to 4 km with omnidirectional RHCP antennas
Port connector: JST, 6pin
Antenna connector: RP-SMA female/MMCX/SMA female
Weight: 6.8g (without antenna)
Cable:
Blue: FC VART
Black: GND
Yello: Video
Red: Output voltage
Features :
0.01mW/25mW/200mW/500mW/800mW power switchable
Support parameter adjusted and work with Betaflight, fligh controller, OSD
Supper mini size and light weight, One button frequency and power setup.
7-24V input and can be provides 5v output for your camera.
Fitered power ensure super clean video, born for racing.
Package includes:
1x 5.8G X2 transmitter
1x Cable
1x Product manual
Notice: The VTX can supply 5V output for Camera. Please make sure your camera is less than 300mA.
Feb 3, 2018, the VTX be advanced,Upgrade Version Compatible with Betaflight 3.2 and 3.3

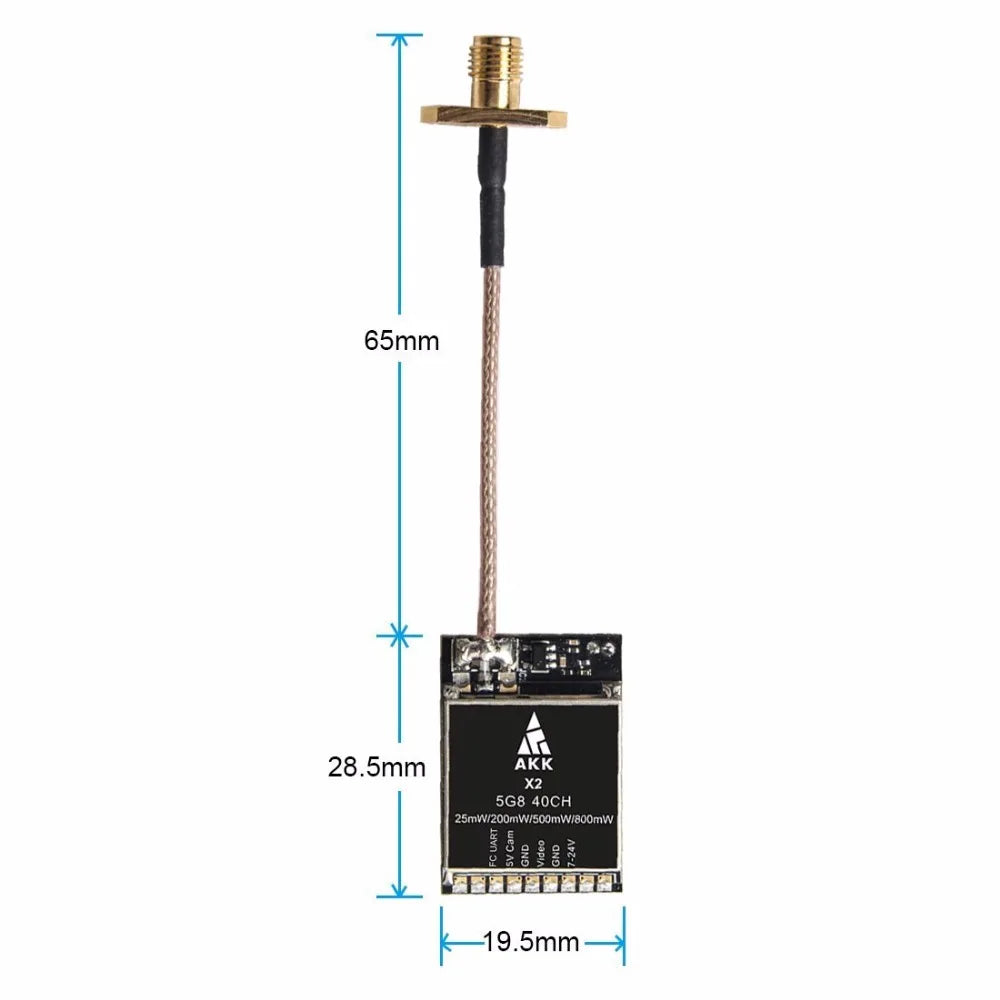

Product AKK X2P shows
AKK X2P 5.8 Ghz 4OCH 0.01 mW/25 mw/2oo mwatt/5O0 mwe/800 mmw Umschaltbar FPV Sender mit Zopf Kompatibel mit Betaflight OSD FC 46* Jw "an

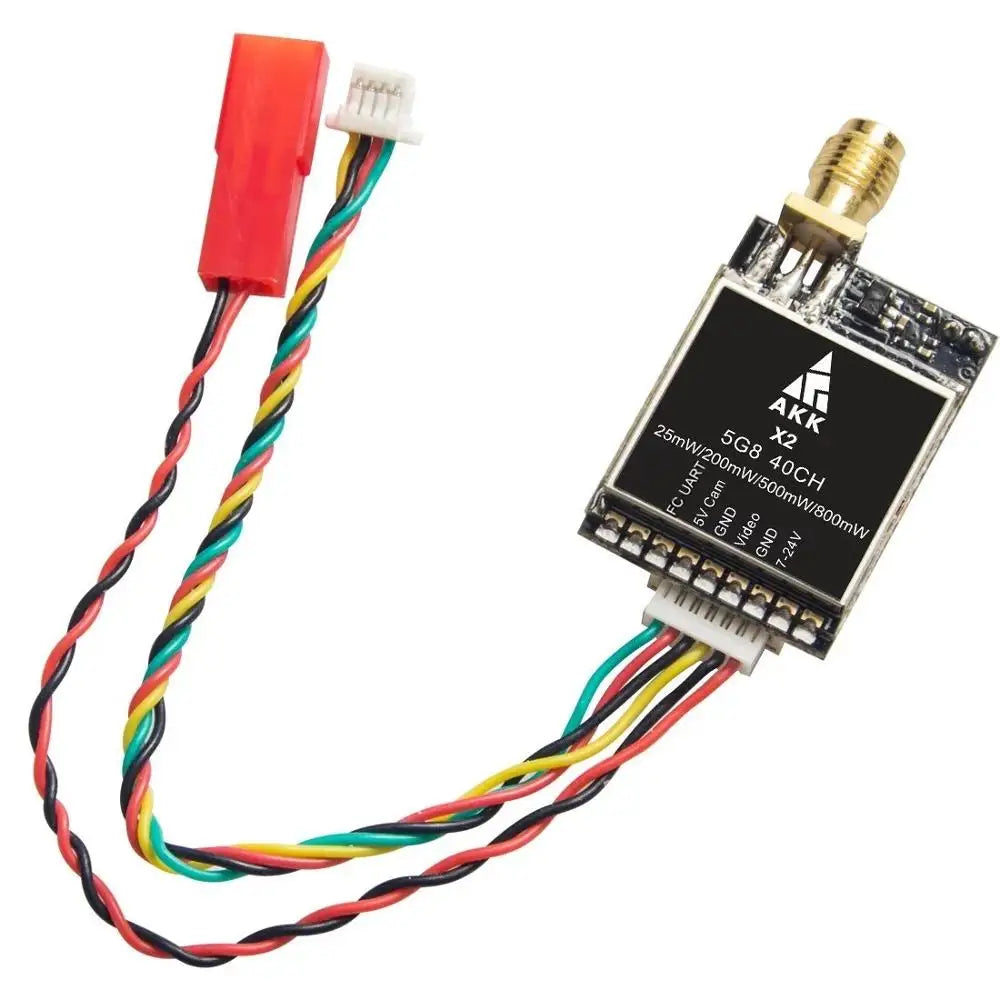

Product AKK X2 Shows

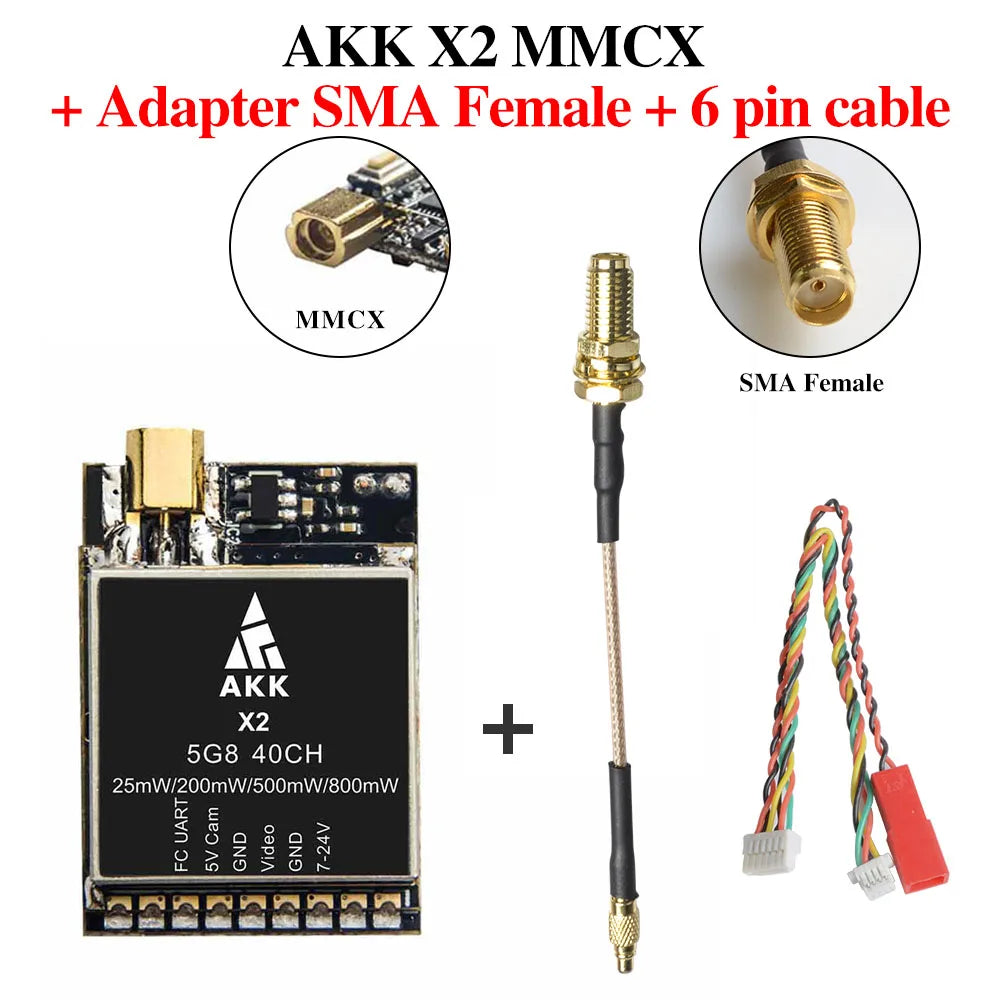

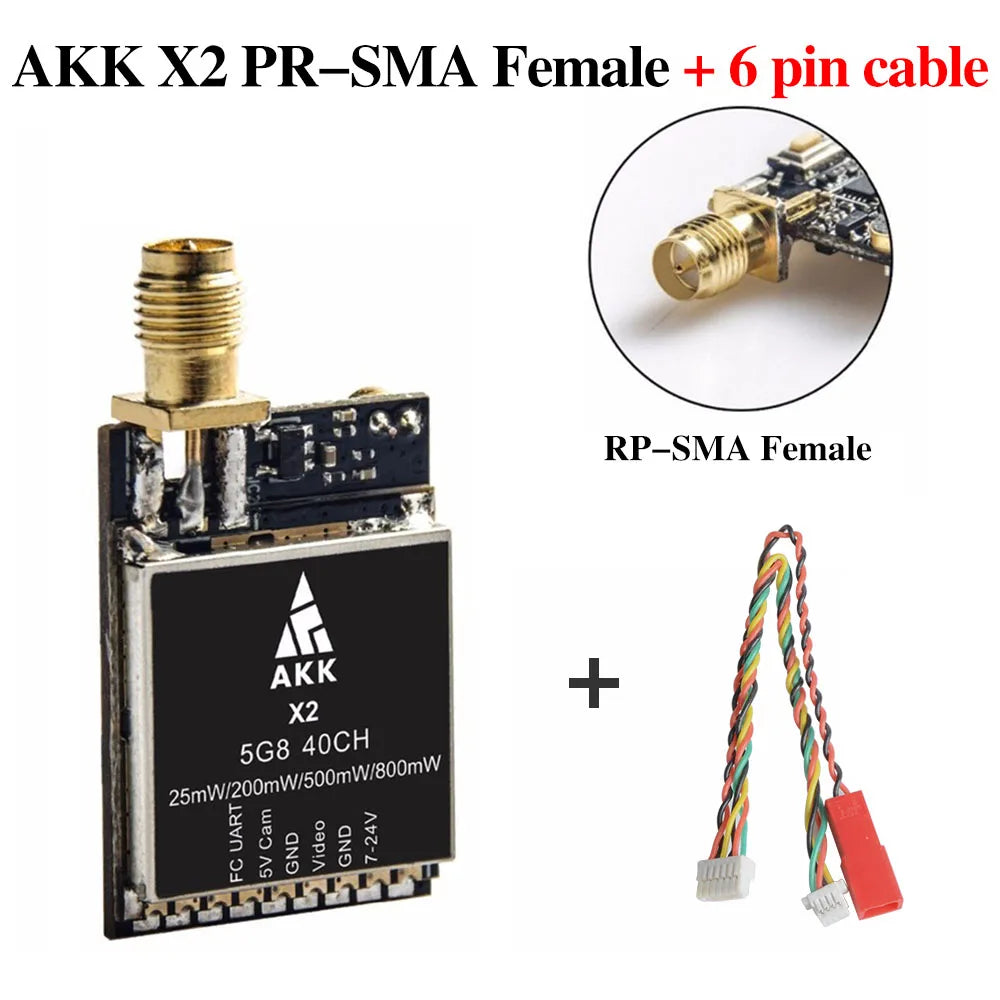

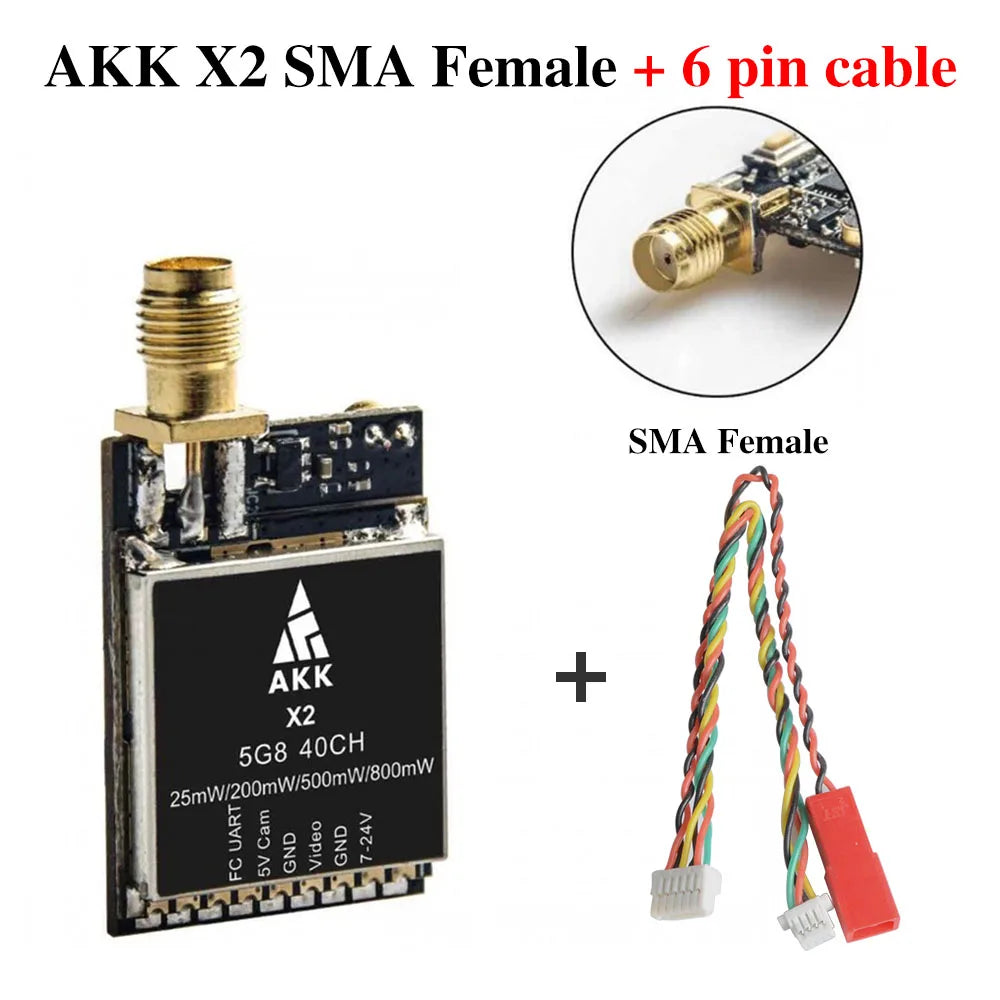

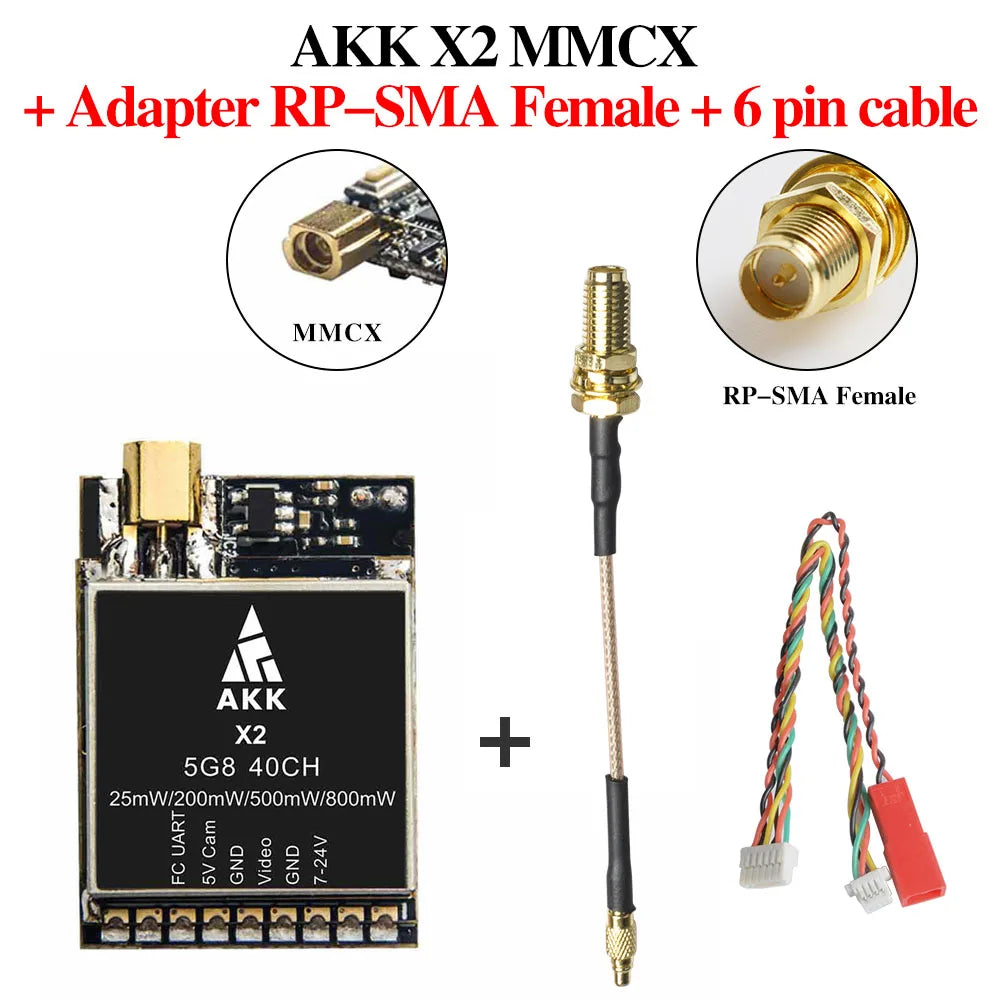

Three options for AKK X2 (sma female, rp-sma female, mmcx to sma female and mmcx to rpsma female).

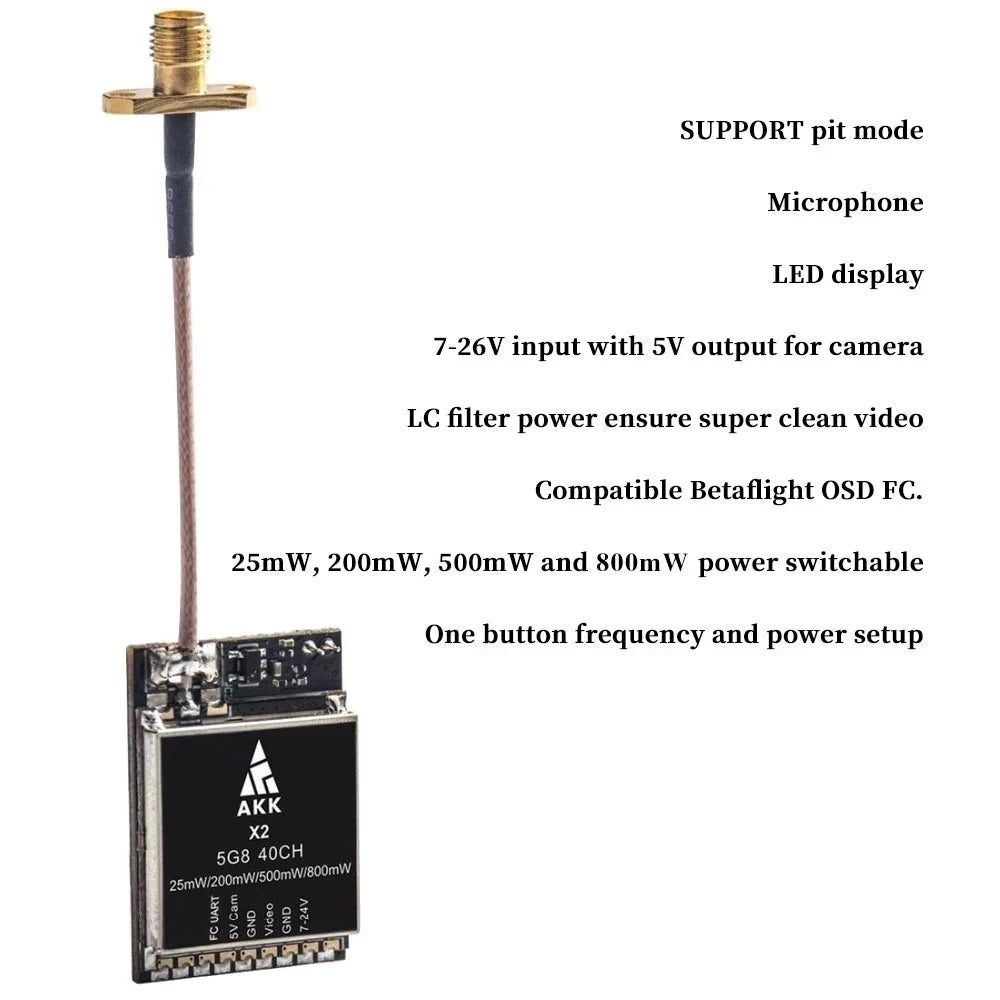

More pictures of AKK X2
