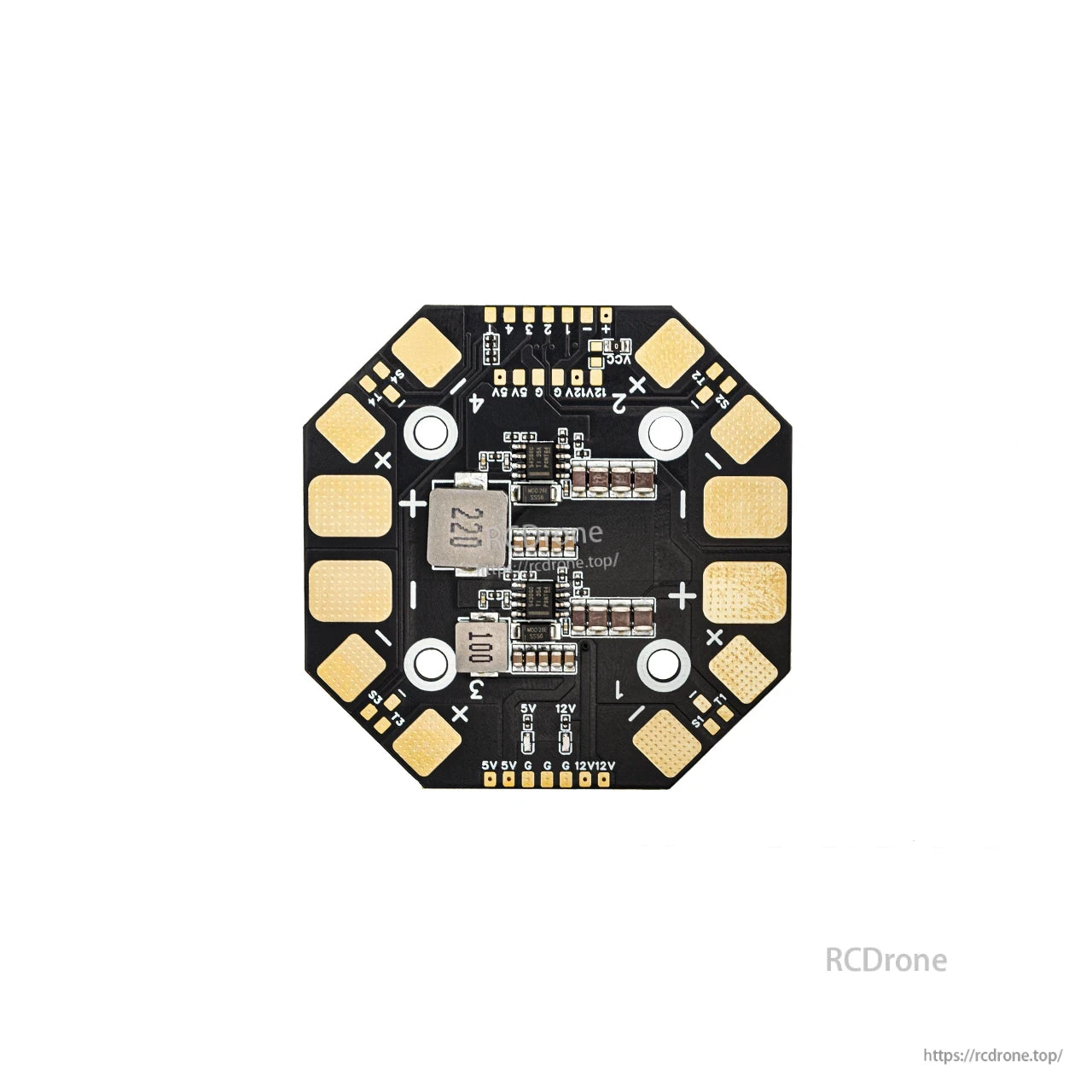

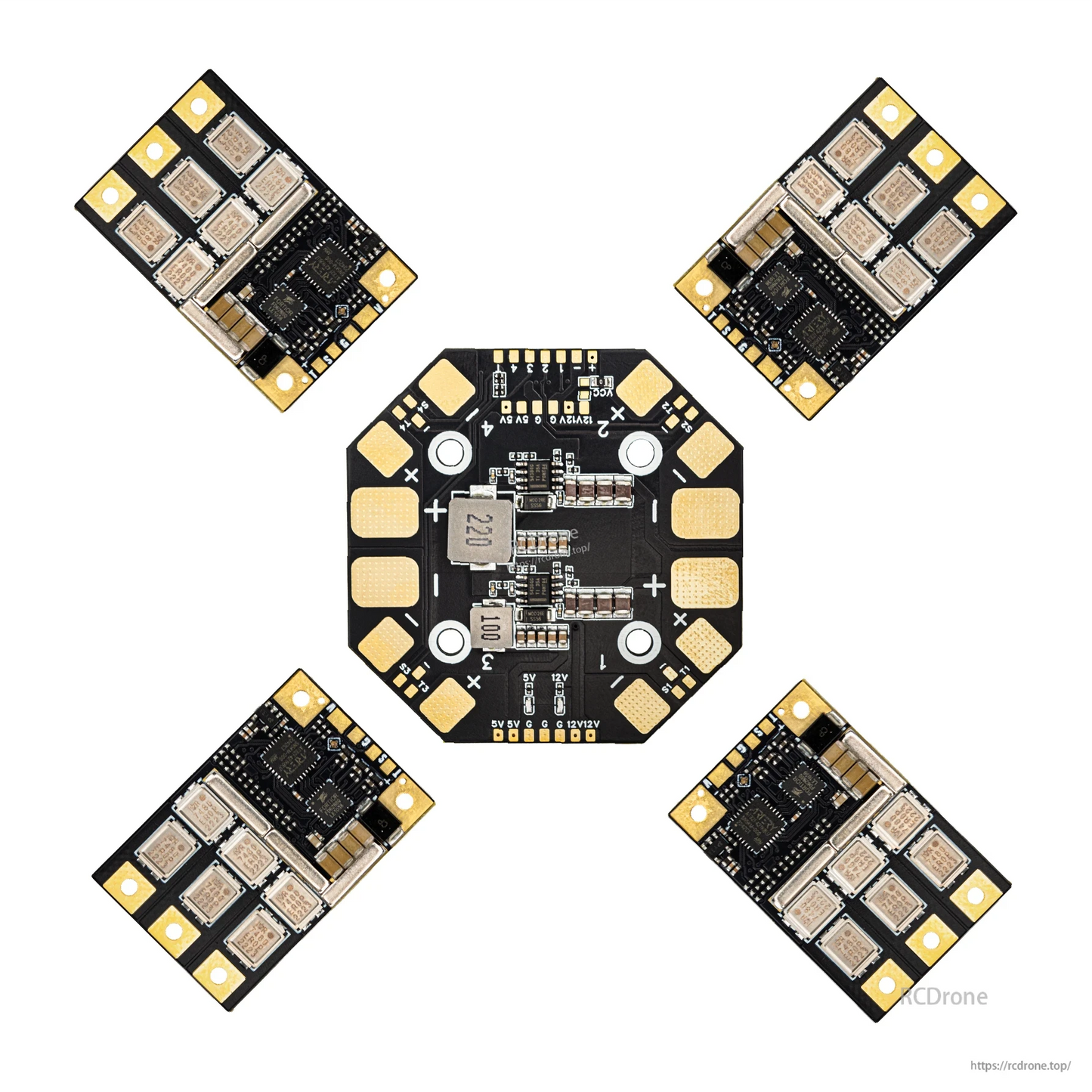

type AM32 firmware HF32 firmware PDB ESC KIT 1(AM32*4+PDB*1) ESC KIT 2(HF32*4+PDB*1)

quantity 1 pcs 4 pcs 8 pcs

Quantity

View full details

Overview

The OddityRC Vortex F80 is an 80A 3-8S single ESC for brushless (BLDC) motors, with AM32 or HF32 firmware options. In general, AM32 firmware is better for crawlers, while HF32 is better for airplanes and multirotors—please select according to your needs.

Key Features

OddityRC hardware design with a 6-layer PCB and 3oz copper thickness (inside and outside)

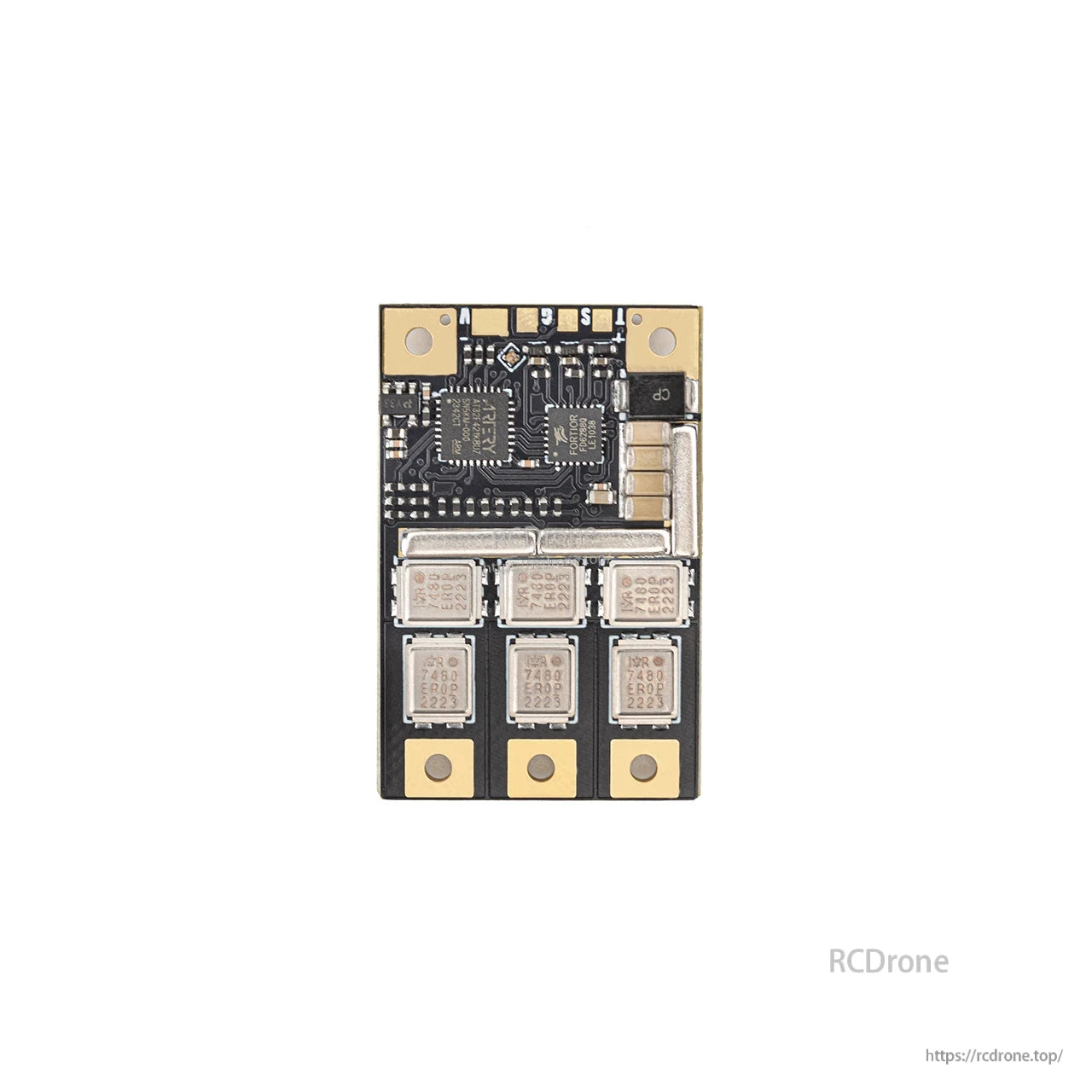

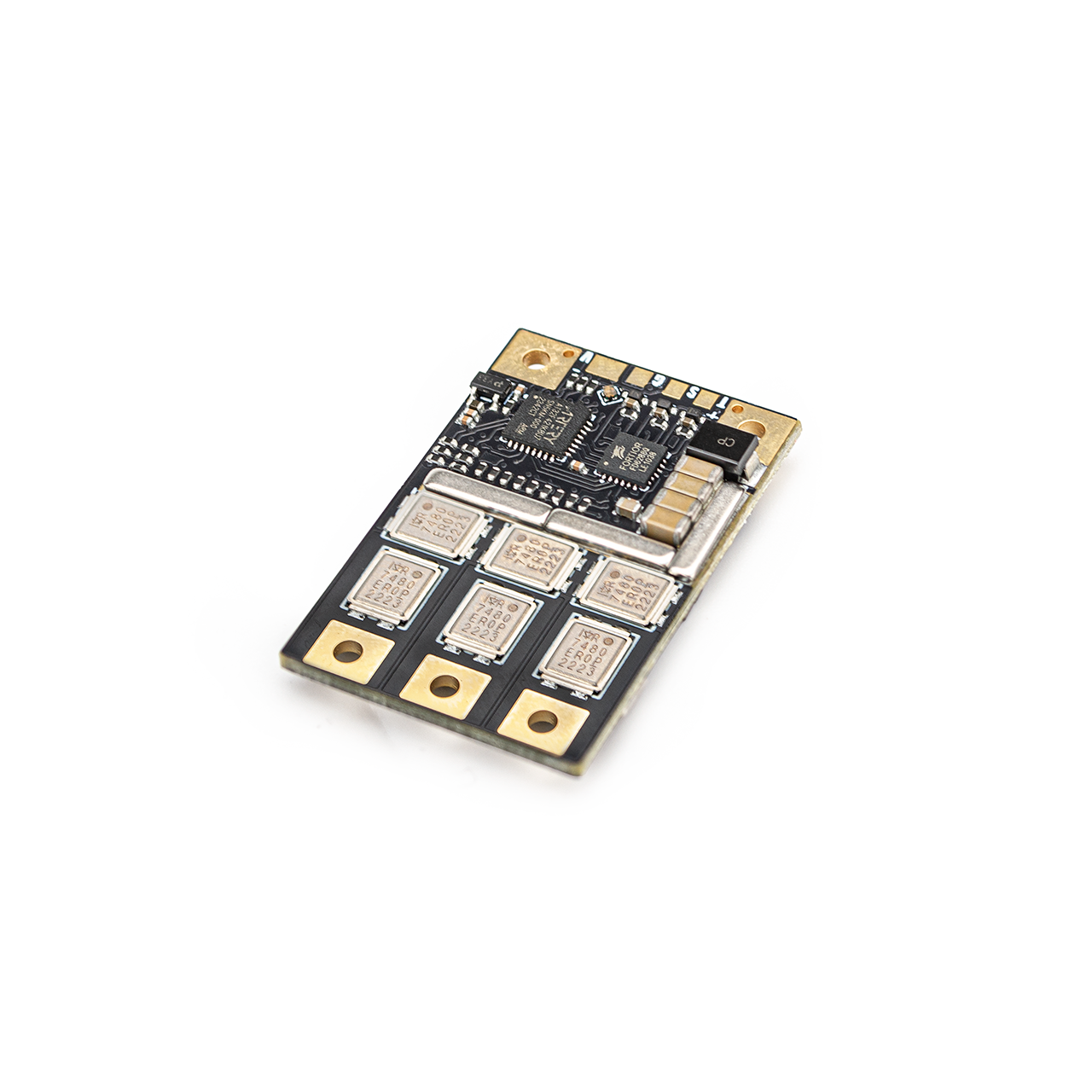

Metal-encapsulated MOS design for improved thermal performance and high current handling
AT32F421 MCU (main frequency up to 120MHz), ARM Cortex-M4 kernel
Telemetry support
5V 3A BEC
Protocols: DShot300, DShot600, PWM (HF32 does not support PWM), etc.

Specifications

Item name	OddityRC AM32/HF32 80A brushless ESC
Firmware	AM32 / HF32 (optional)
Protocol	DShot300, DShot600, PWM (HF32 does not support PWM), etc.
Telemetry	Support
BEC	5V 3A
MCU	AT32F421 (up to 120MHz operation speed)
Kernel	ARM Cortex-M4
Memory	Supports up to 64KB flash memory (Flash) and 16KB
Working temperature	-40 to 70°C
Continuous current	80A
Burst current	90A (Instant)
Peak power	2000W (Instant)
Voltage	10.8V-33.6V (3-8S) LiPo battery
PCB board	6-layer board with a copper thickness of 3oz inside and outside
Size	36.2 x 24.3mm
Color	Black

Firmware Options & Notes

AM32 is designed specifically for 32-bit ARM processors to control BLDC motors, with smooth quick start and linear throttle.
HF32 is designed for 32-bit BLDC motor ESCs aiming for brushless motors in high performance multirotors.
HF32 can be flashed to an ESC with AM32 firmware, but AM32 cannot be flashed to an HF32 ESC.

AM32 Features

Variable PWM frequency
Sine wave start mode

HF32 Features

Digital signal protocol: DShot150, DShot300 and DShot600
Bidirectional DShot: RPM telemetry
High performance: Low comminucation interference
Smoother PWM ramping
User configuration startup tunes
Numerous optimizations and bug fixes

Wiring / Pin Notes

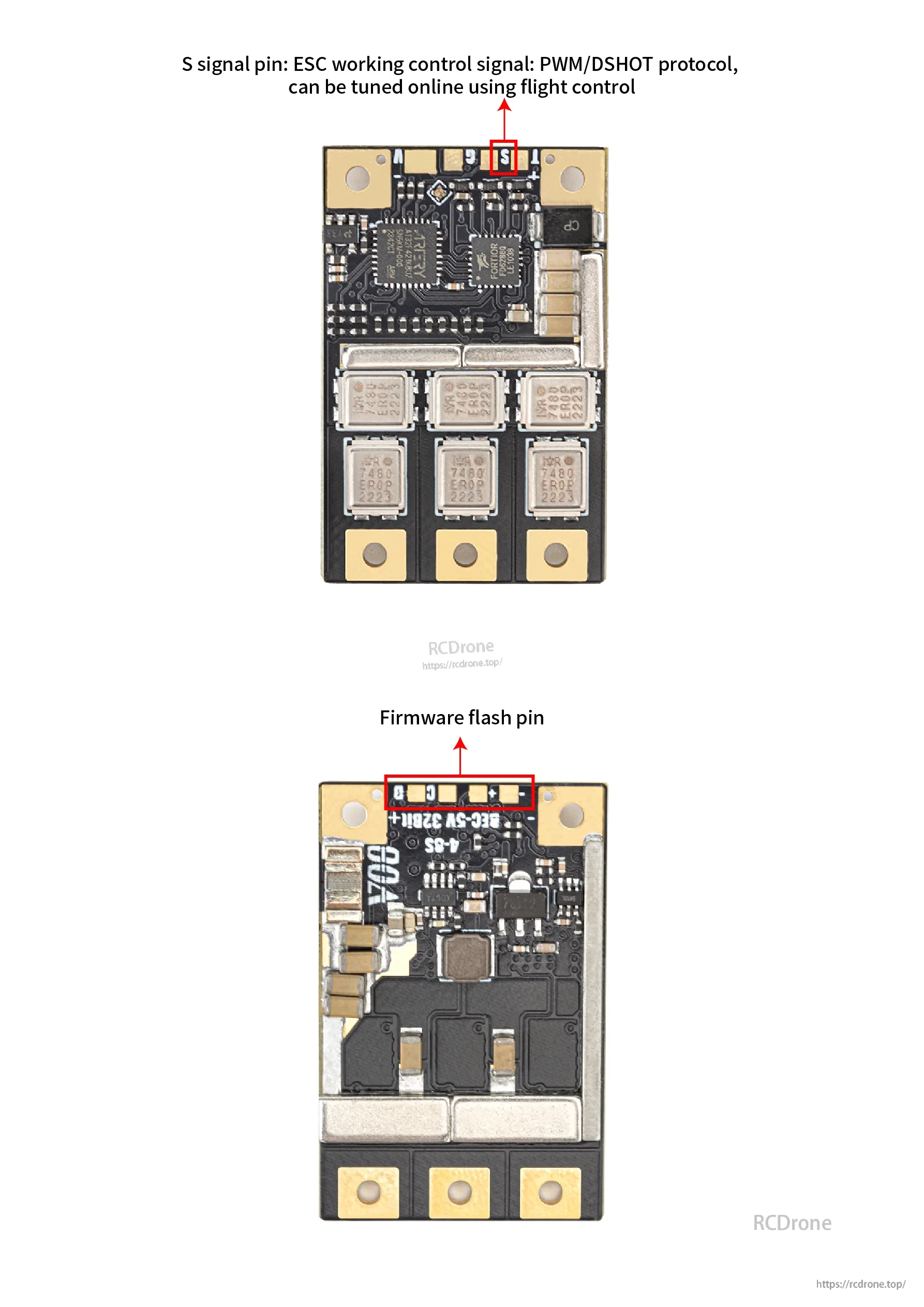

S signal pin: ESC working control signal; PWM/DSHOT protocol; can be tuned online using flight control.
Firmware flash pin is provided for firmware flashing.

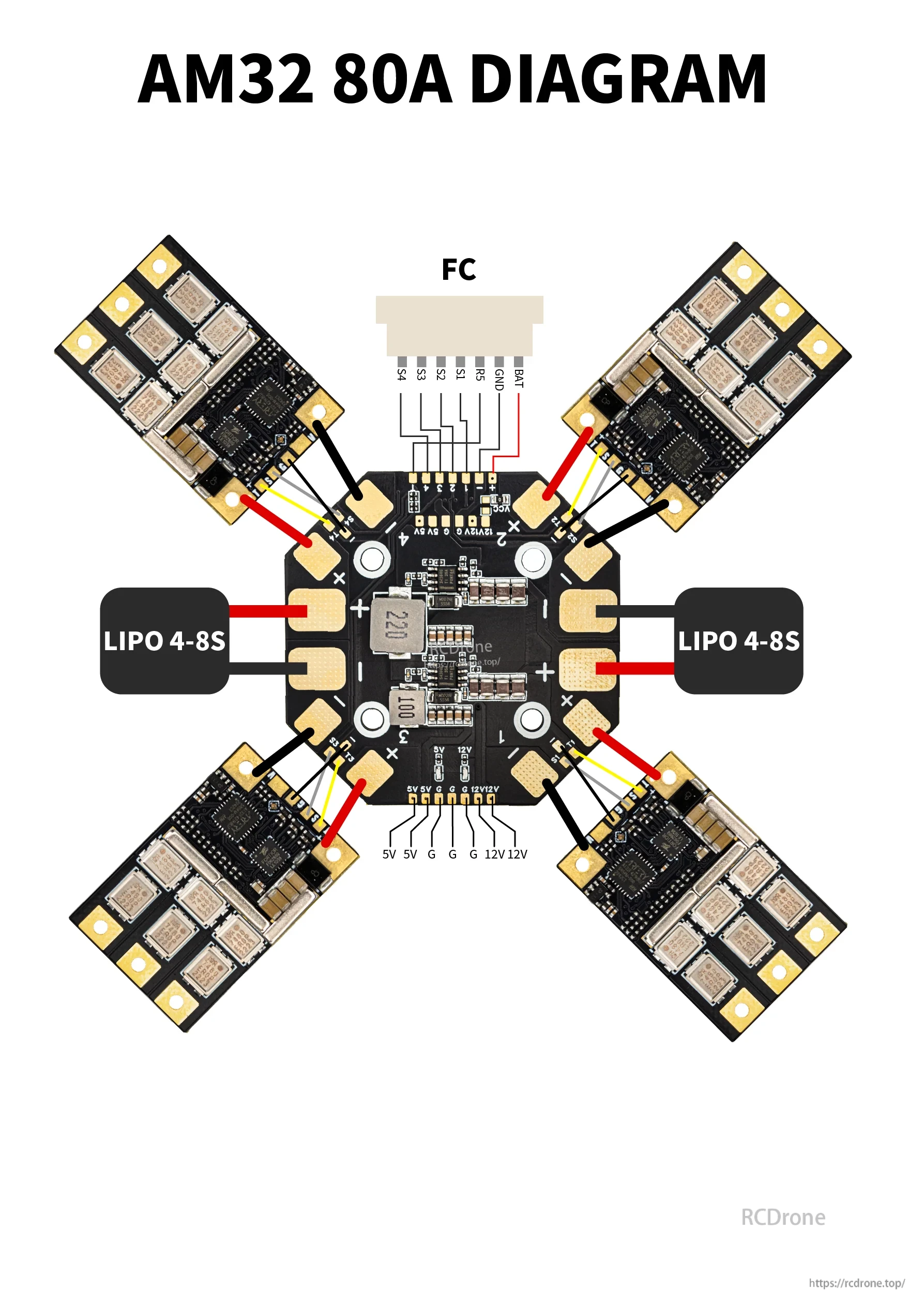

A wiring diagram is labeled “AM32 80A DIAGRAM” and shows connections to an FC and LIPO 4-8S (diagram label), with FC labels including S1, S2, S3, S4, 5V, GND, BAT.

Applications

13inch heavy payload FPV drone
Fixed wing airplane
Ship model
Car model

Matters Needing Attention

When operating with continuous high current, provide good heat dissipation for the ESC.
If the ESC cannot run after setting parameters, set the ESC parameters to default and adjust parameters again.
