Analog/HDZero Adapter CVBS NTSC to MIPI Converter + 3-to-1 Camera Switcher, Betaflight Switching

Overview

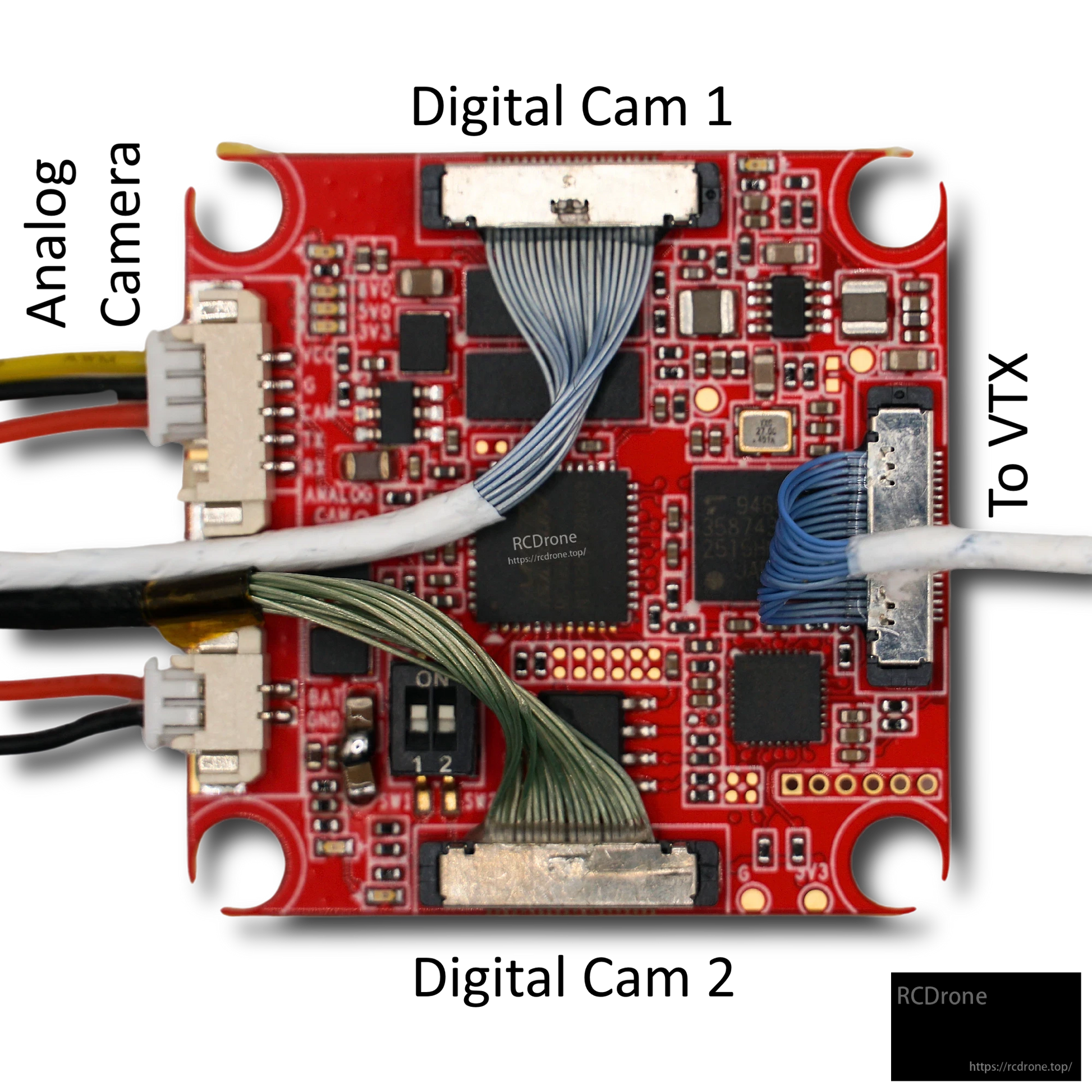

The Analog / HDZero Camera Adapter converts standard CVBS NTSC analog video into a digital MIPI format compatible with HDZero VTXs, allowing an analog camera to be used within an HDZero digital video system. It also works as a 3-to-1 camera switcher for mixed camera builds.

Key Features

• Converts analog CVBS NTSC camera signals to digital MIPI for HDZero VTXs
• Integrated 3-to-1 camera switcher
• Supports two digital MIPI cameras and one analog camera

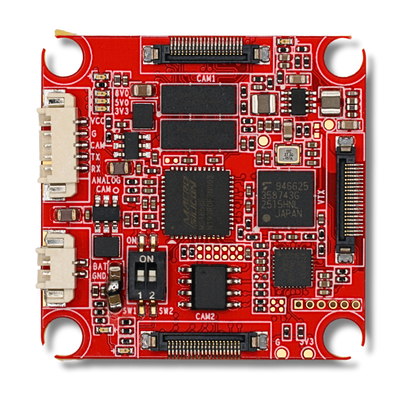

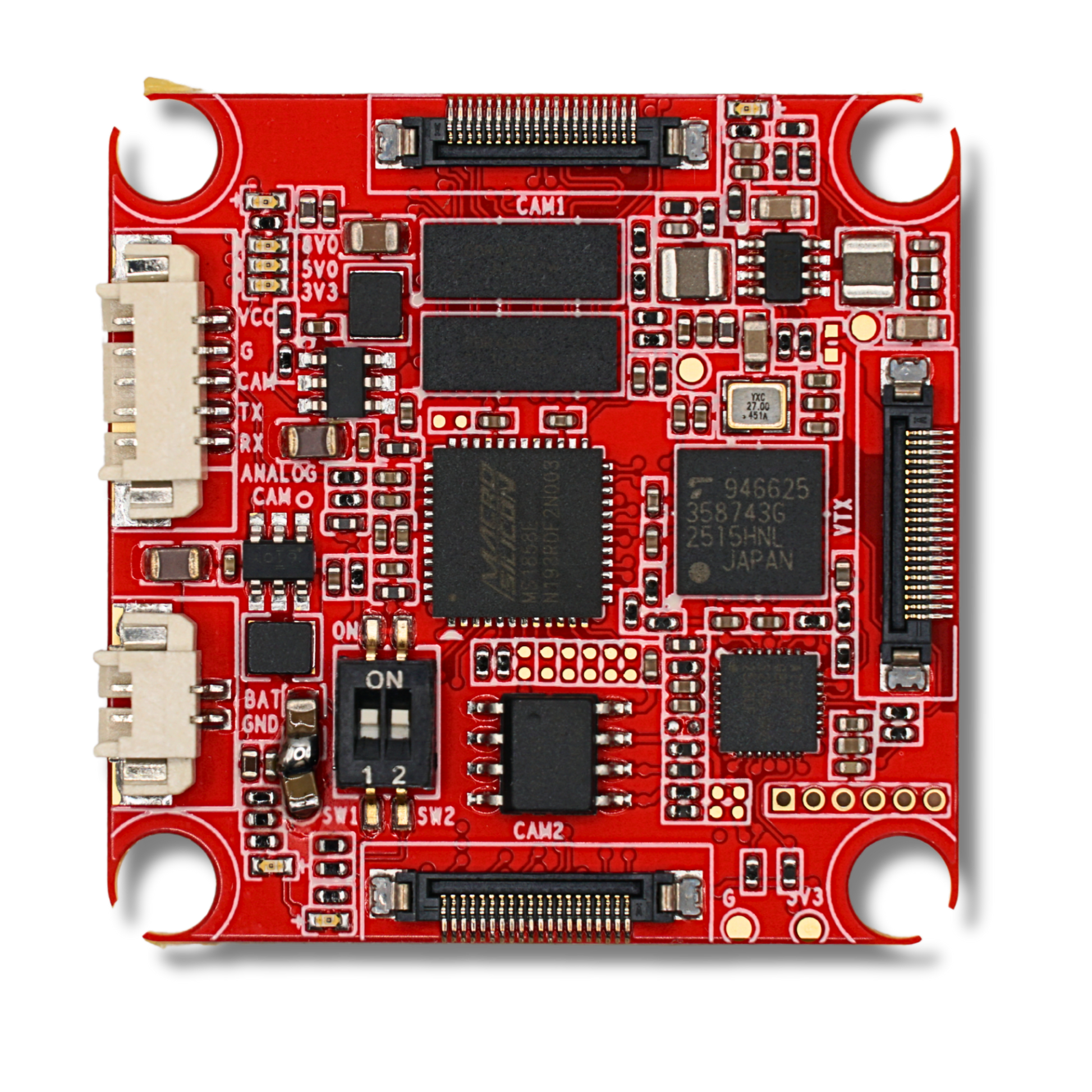

• Camera switching via dip switches or firmware/flight controller integration
• Betaflight integration using Cam1 / Cam2 / Cam3 switch mode options
• 30x30 soft mounting

Camera Switching

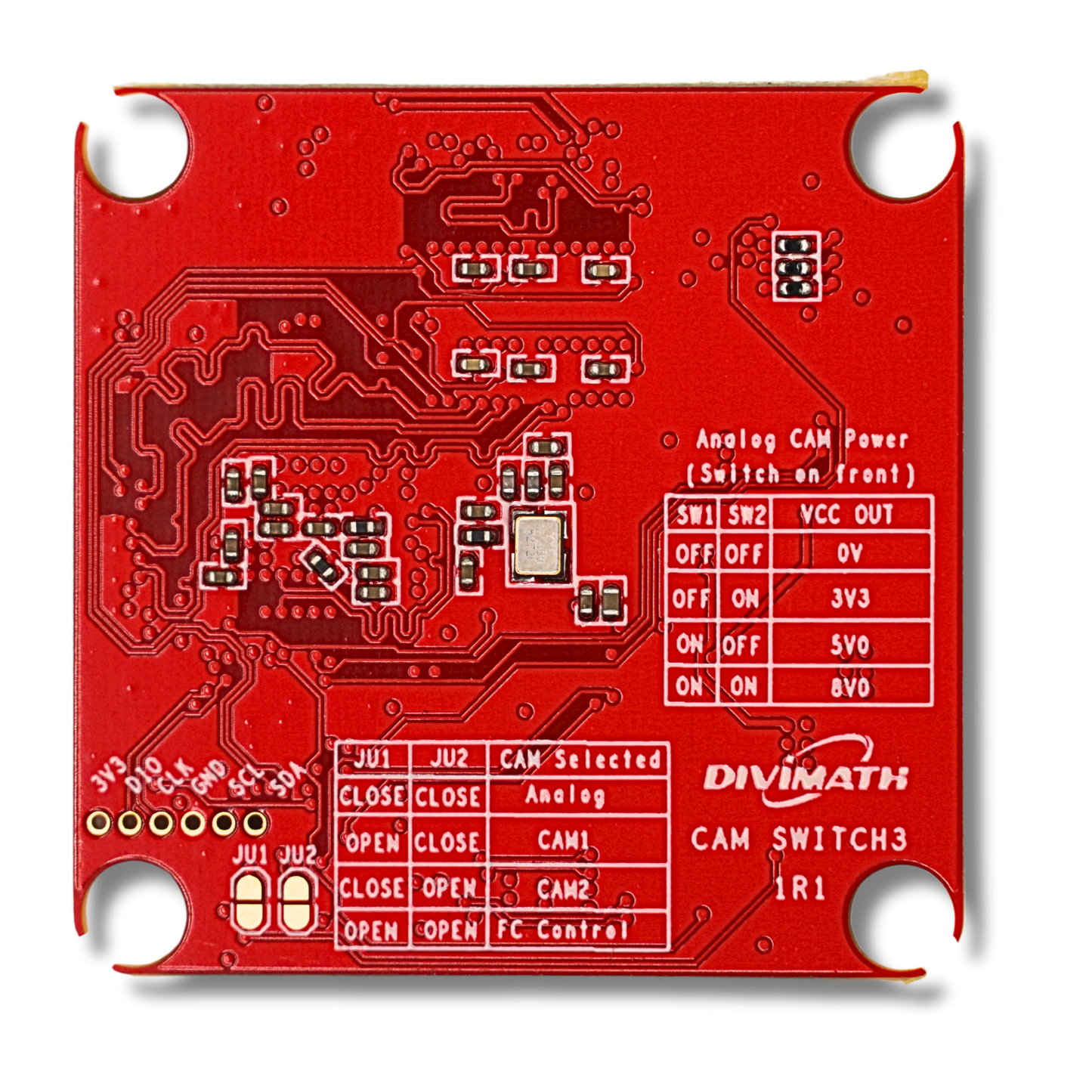

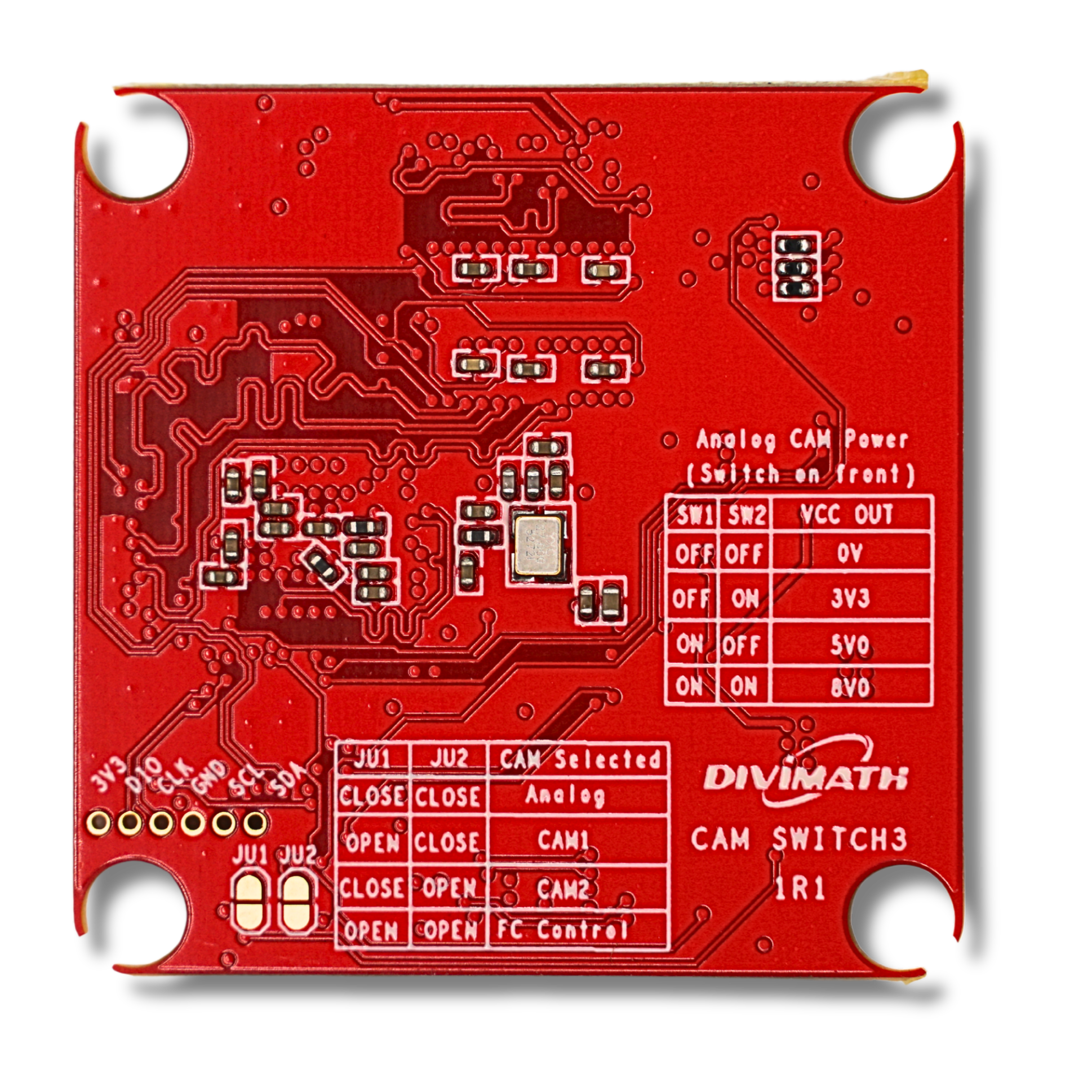

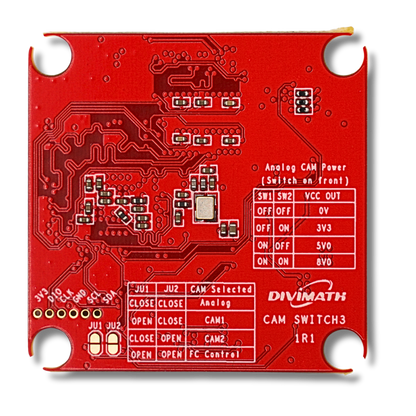

Camera switching can be done manually with dip switches or via software control. Firmware/flight controller control integrates directly with Betaflight, where switching can be assigned using Cam1 / Cam2 / Cam3 switch mode options.

Requirements

• HDZero VTX firmware: v1.7.1 or higher
• Analog camera video format: CVBS NTSC

Specifications

For setup questions and compatibility checks with a specific HDZero VTX/firmware build, contact support at https://rcdrone.top/ or support@rcdrone.top.
