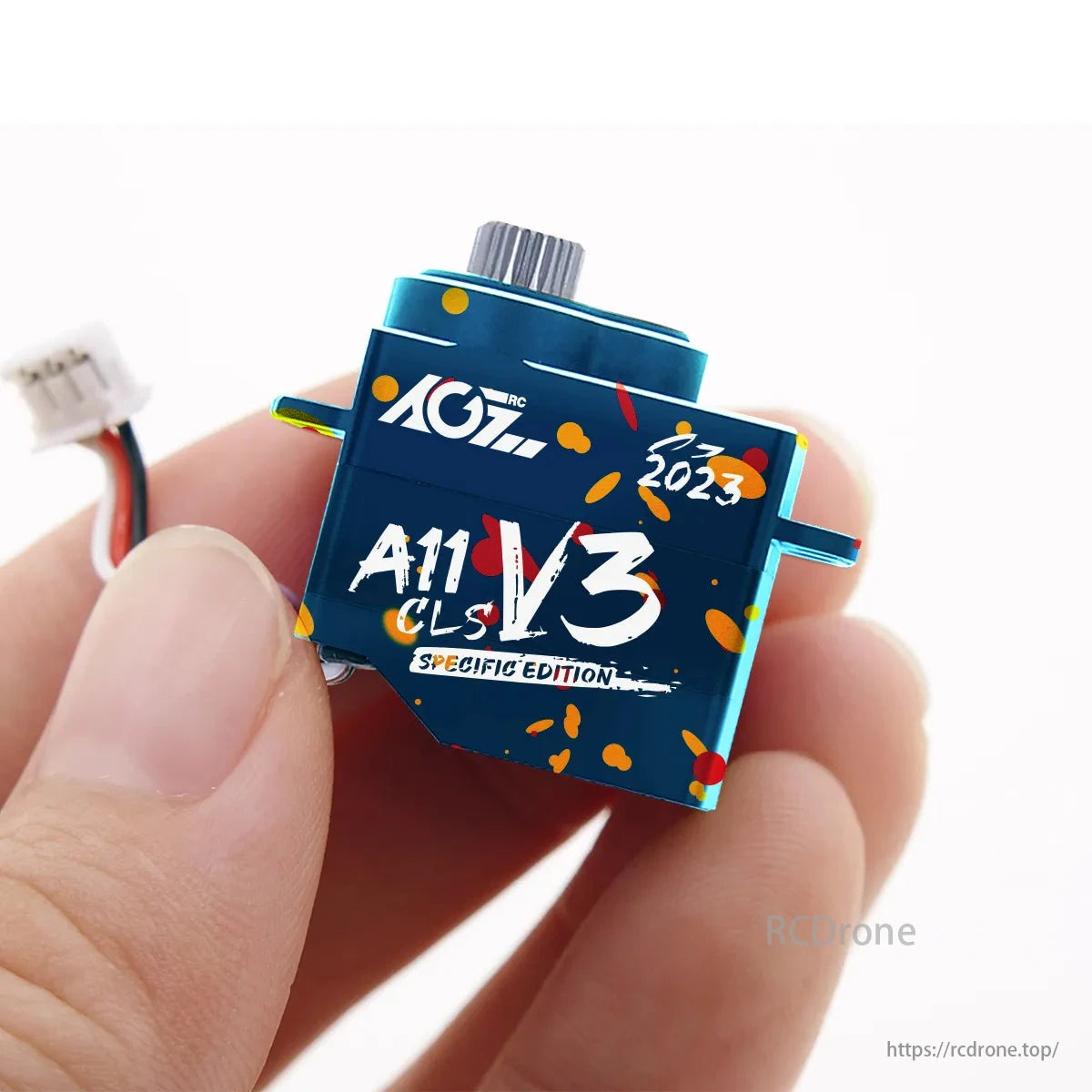

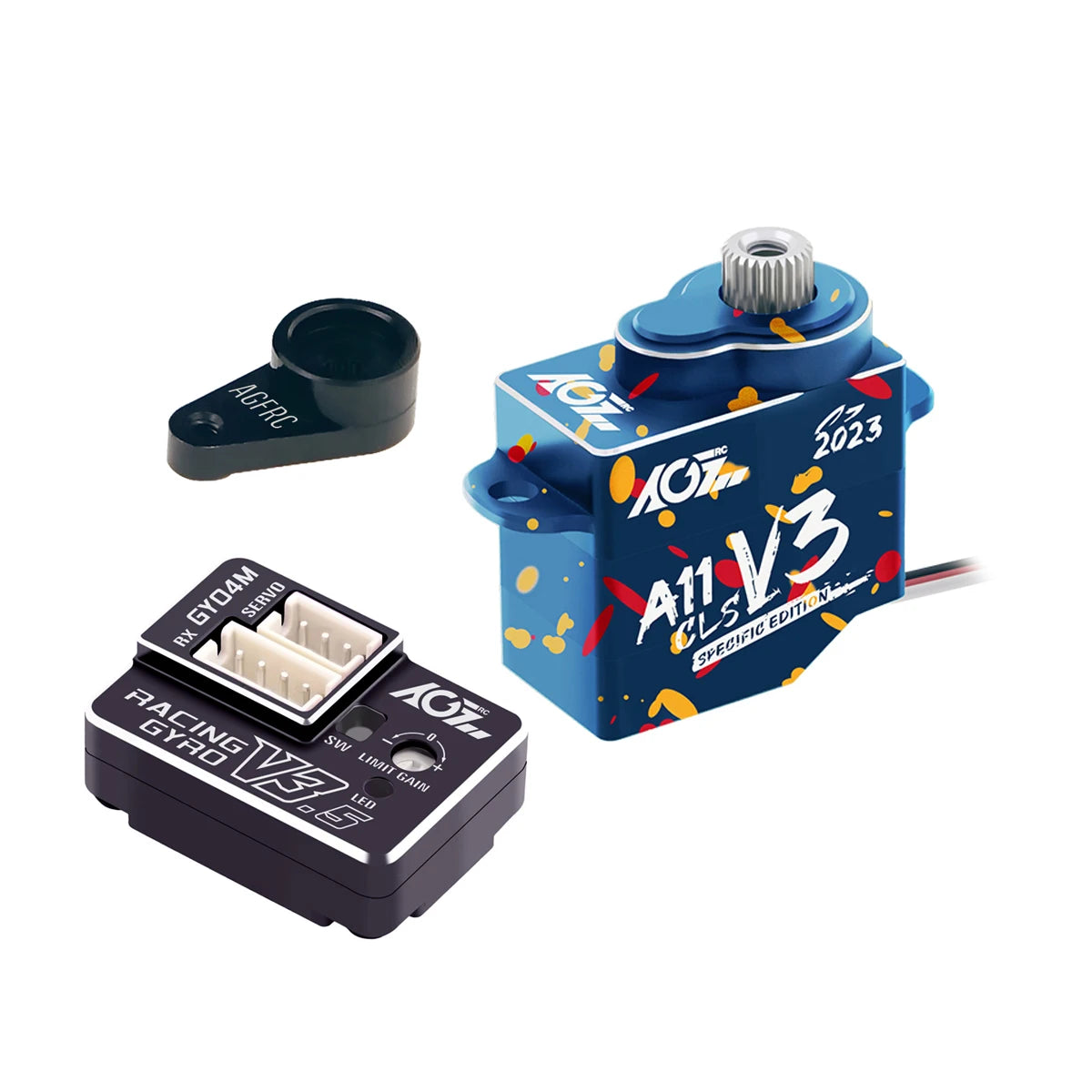

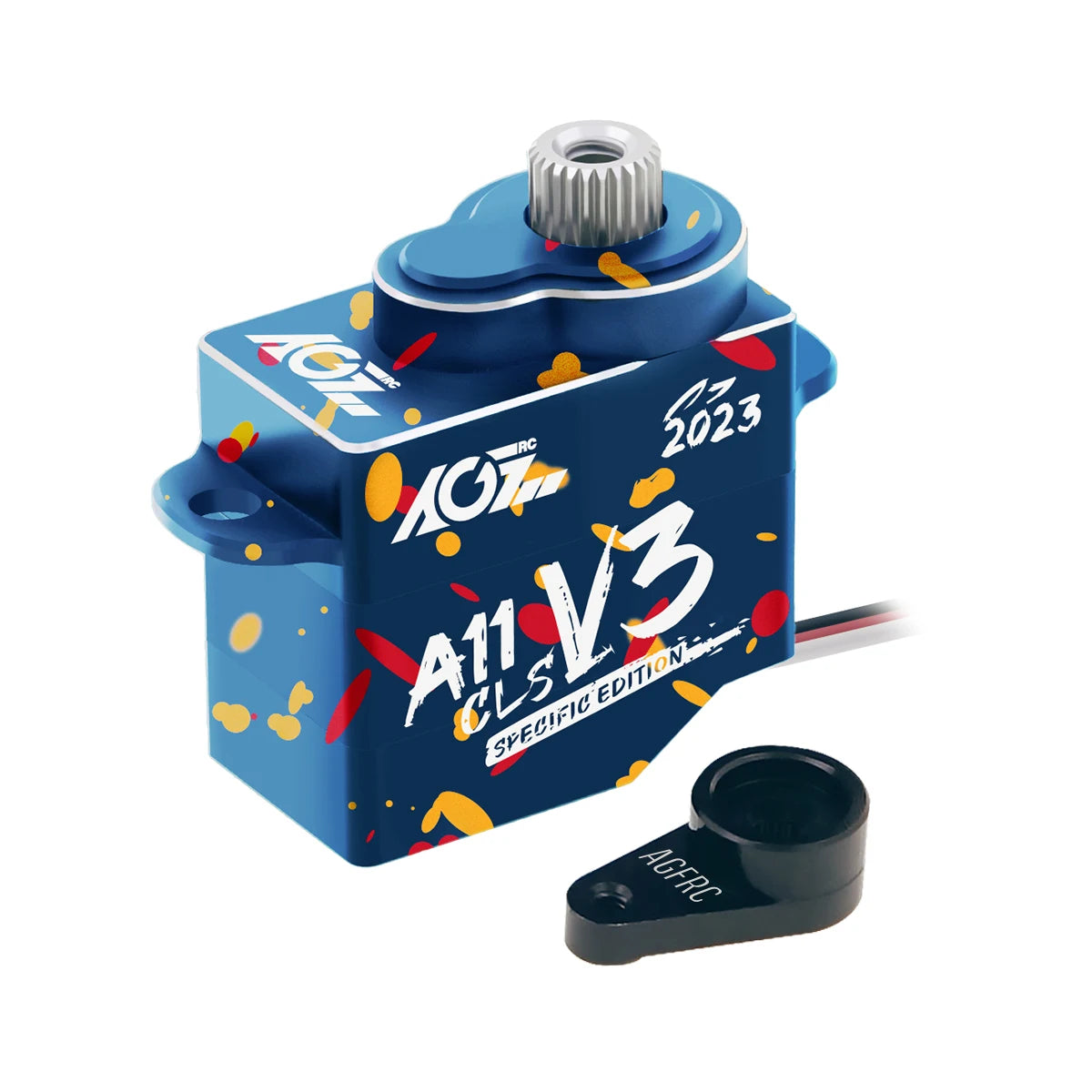

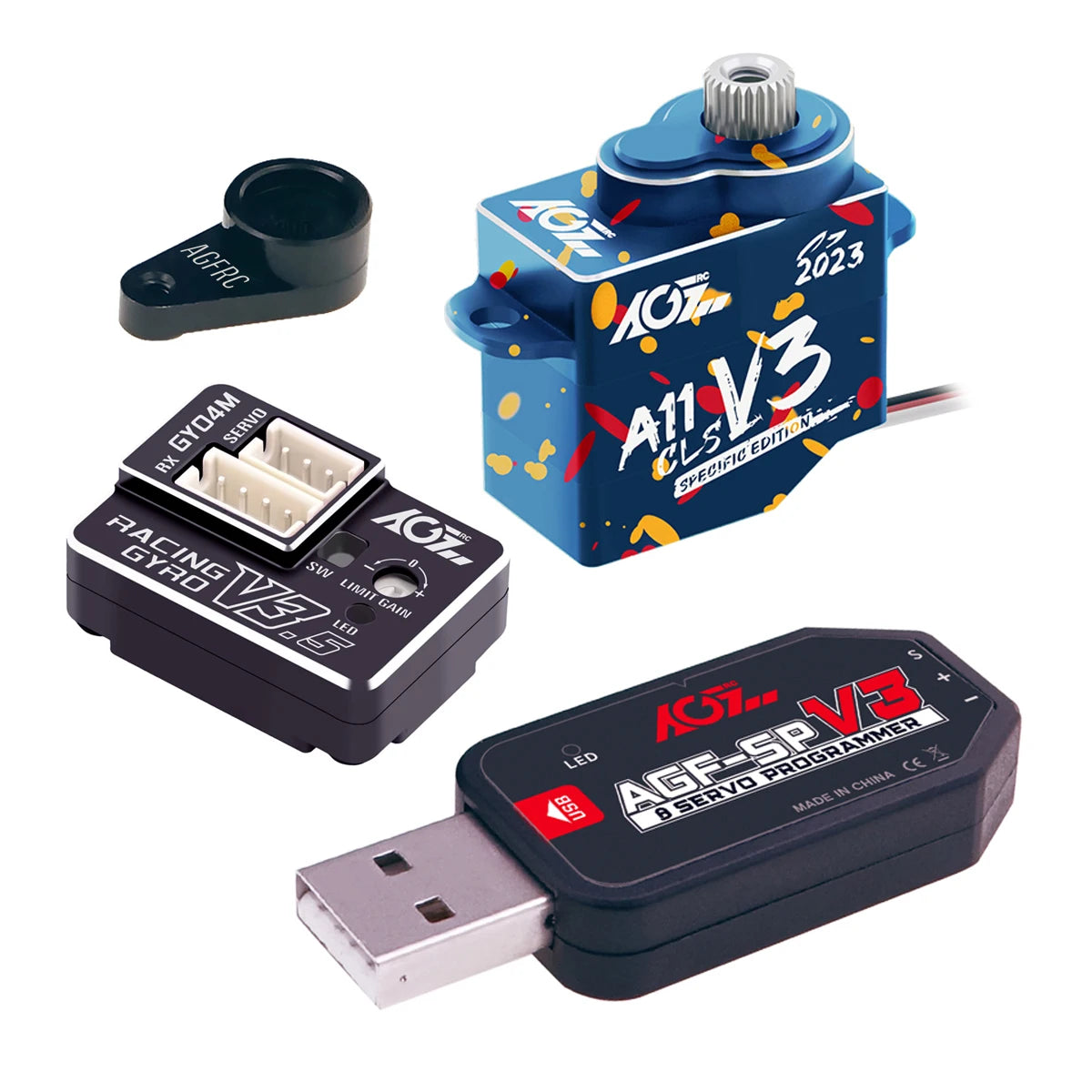

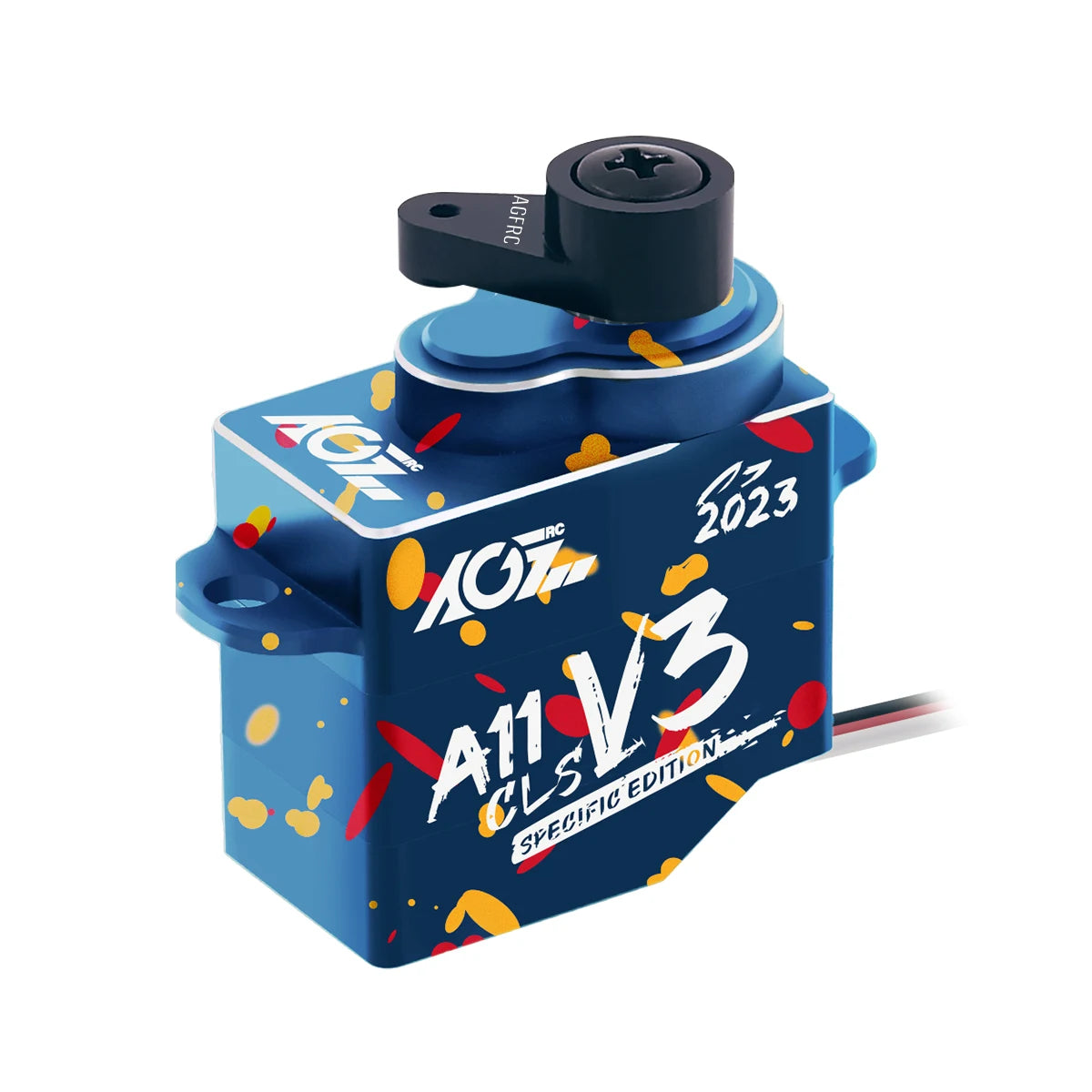

AGFRC A11CLS V3 Anniversary Edition SPECIFICATIONS
Brand Name: AGFrc
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Servos
Size: 20*22*11.3mm (0.78 x 0.82 x 0.44 in)
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Certification: CE
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Battery
Quantity: 1 pcs
Model Number: A11CLS V3
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Color: Anniversary Edition
Weight: 12.2g
Gear: Titanium
Connector Wire: JST1.5 80mm Option
Operating Voltage: 4.8V to 6.0V
Shop Anniversary: Launch of Special Edition(Limited quantity)
AGFRC A11CLS V3 Upgrade Programmable Reliable 0.05S Super Speed 1.4KG Micro Digital Coreless Servo For DRZ V2 BMR-X DriftArt WLtoys K989/969 Mini-Q 1/24 1/18 Mini Z Cars
9g Upgrade Metal Case 0.05sec Programmable High Speed High Torque Digital 1.4KG Servo JST/JR Plug For Mini Z RC Track Car
Feature
High Performance Mini-Z Digital Servo
High Precision Titanium Gear
High Quality Coreless Motor
Fast Cooling Aluminum Case
Programmable Digital Circuit For Parameter Adjustment
Ideal for Mini-Z Car, 1/18, 1/24, 1/27, 1/28 Scale Cars etc. (Such as DRZ V2, BMR-X, DriftArt 2 ,WLtoys K989/969, Mini-Q etc.)

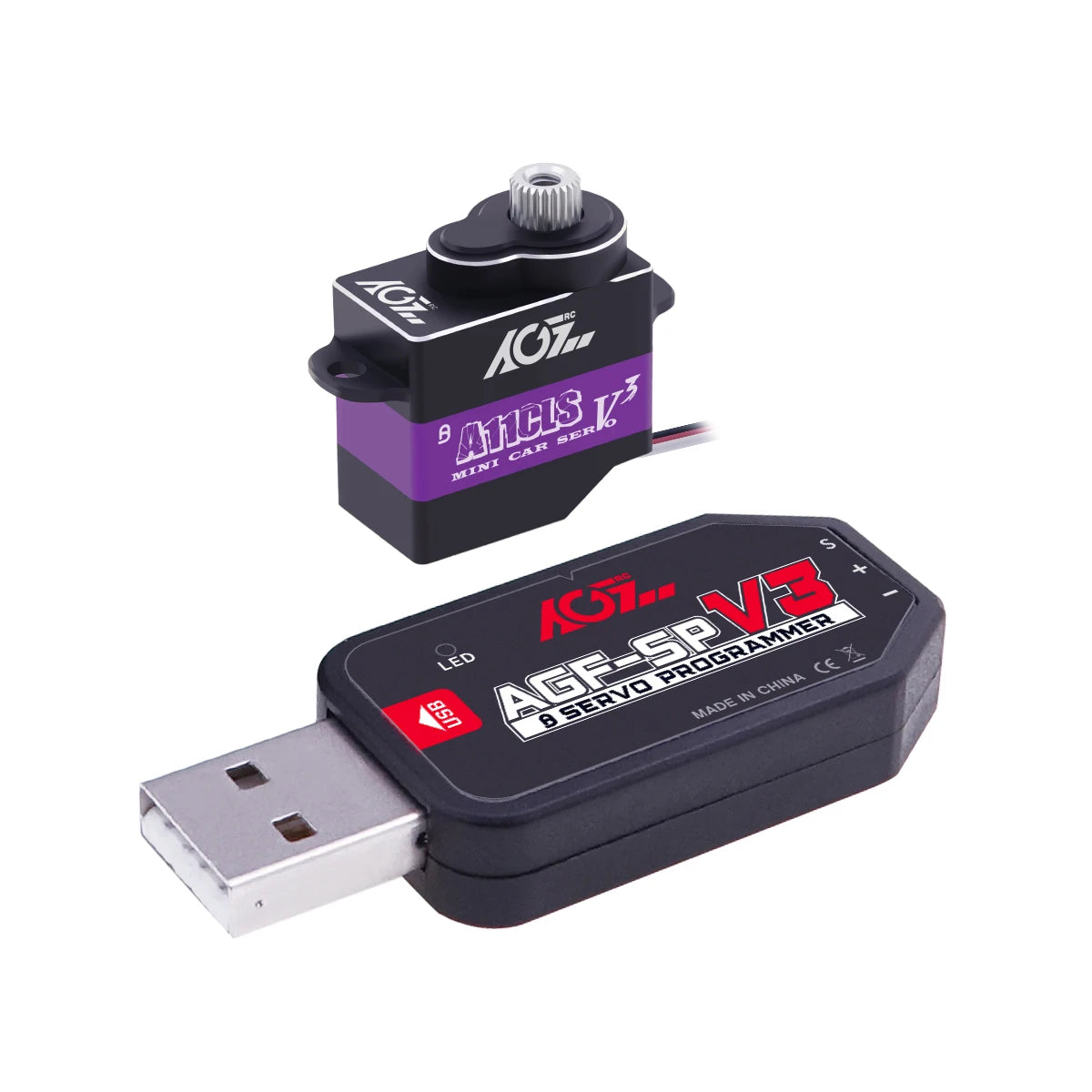

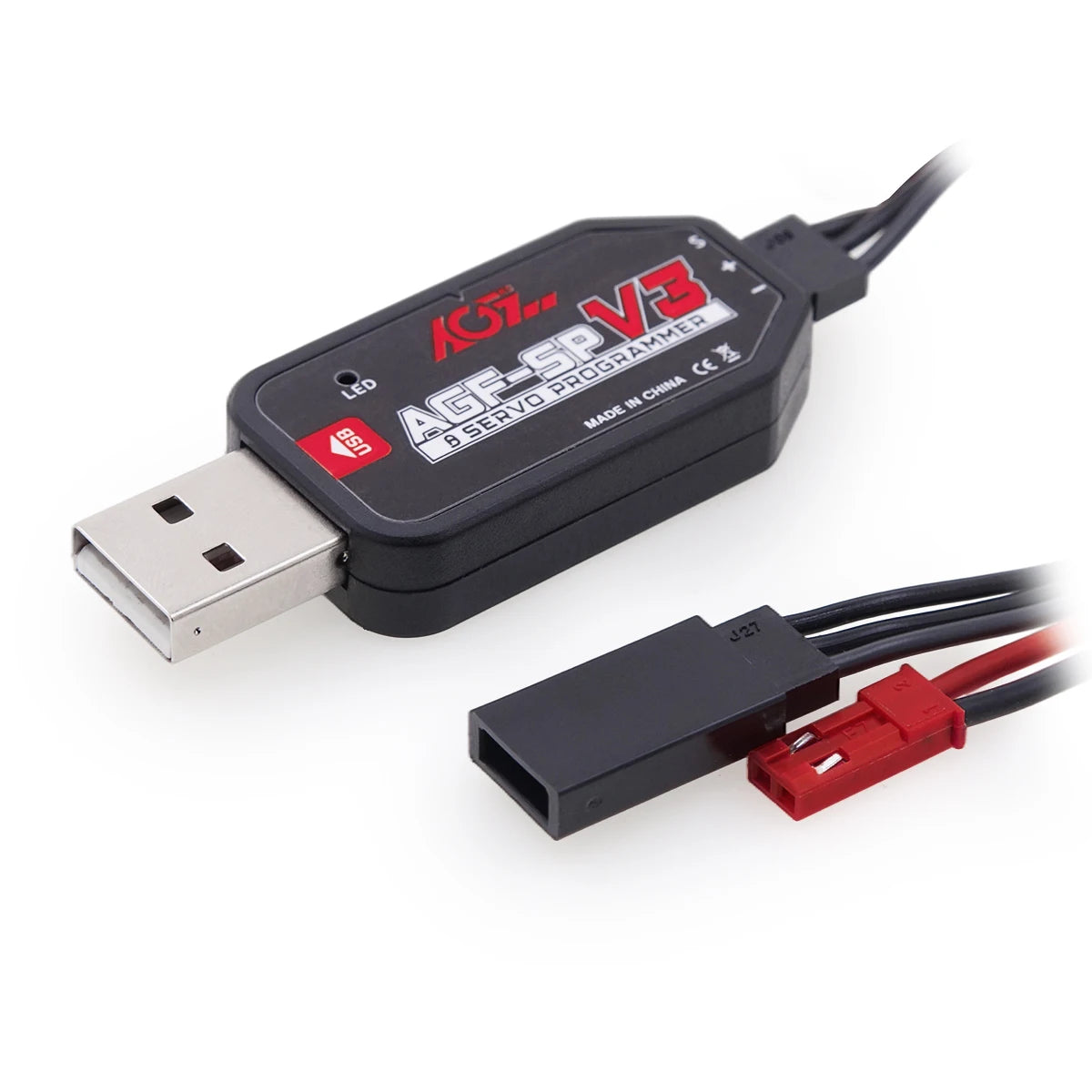

Note: Currently, USB programming cards are only applicable to Windows system.

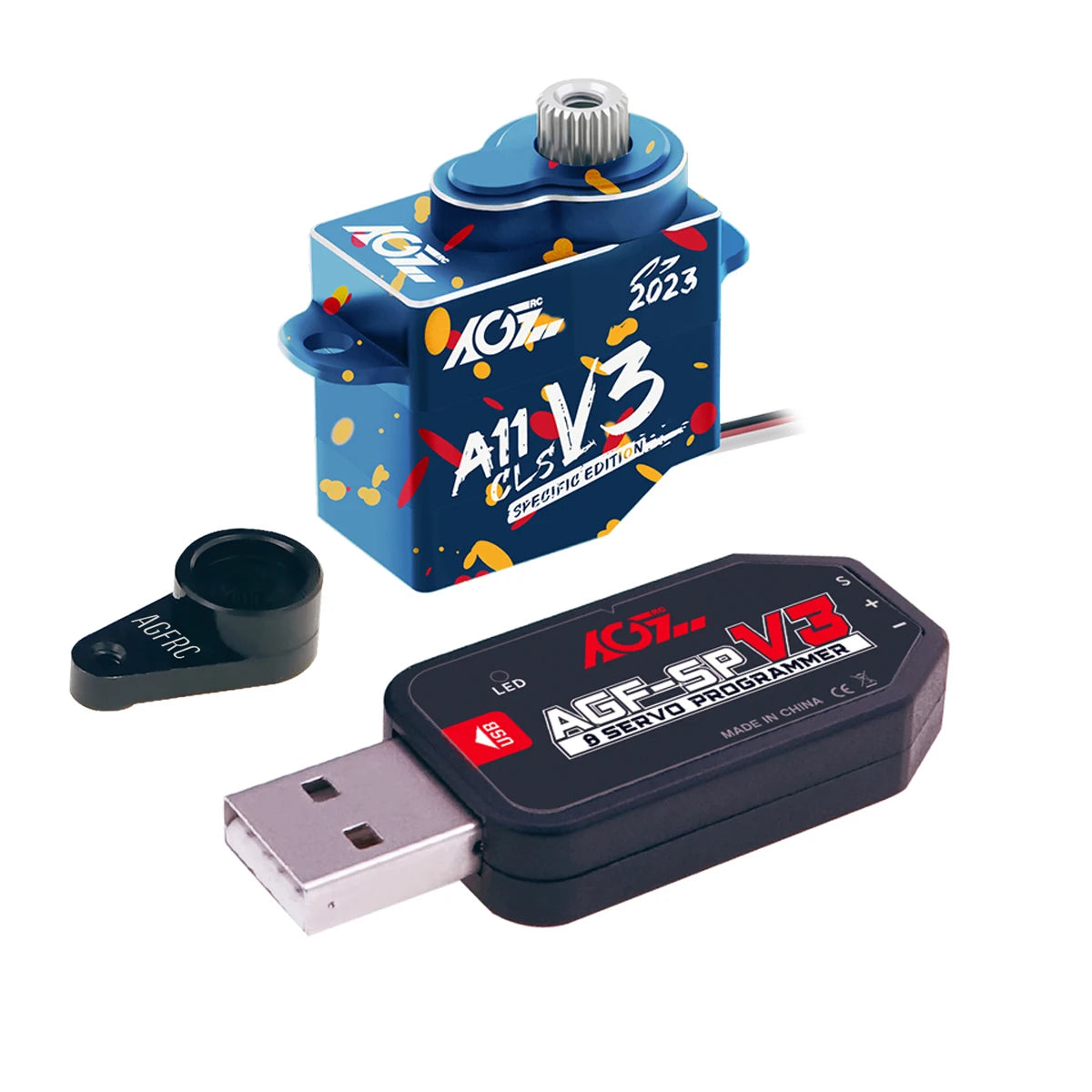

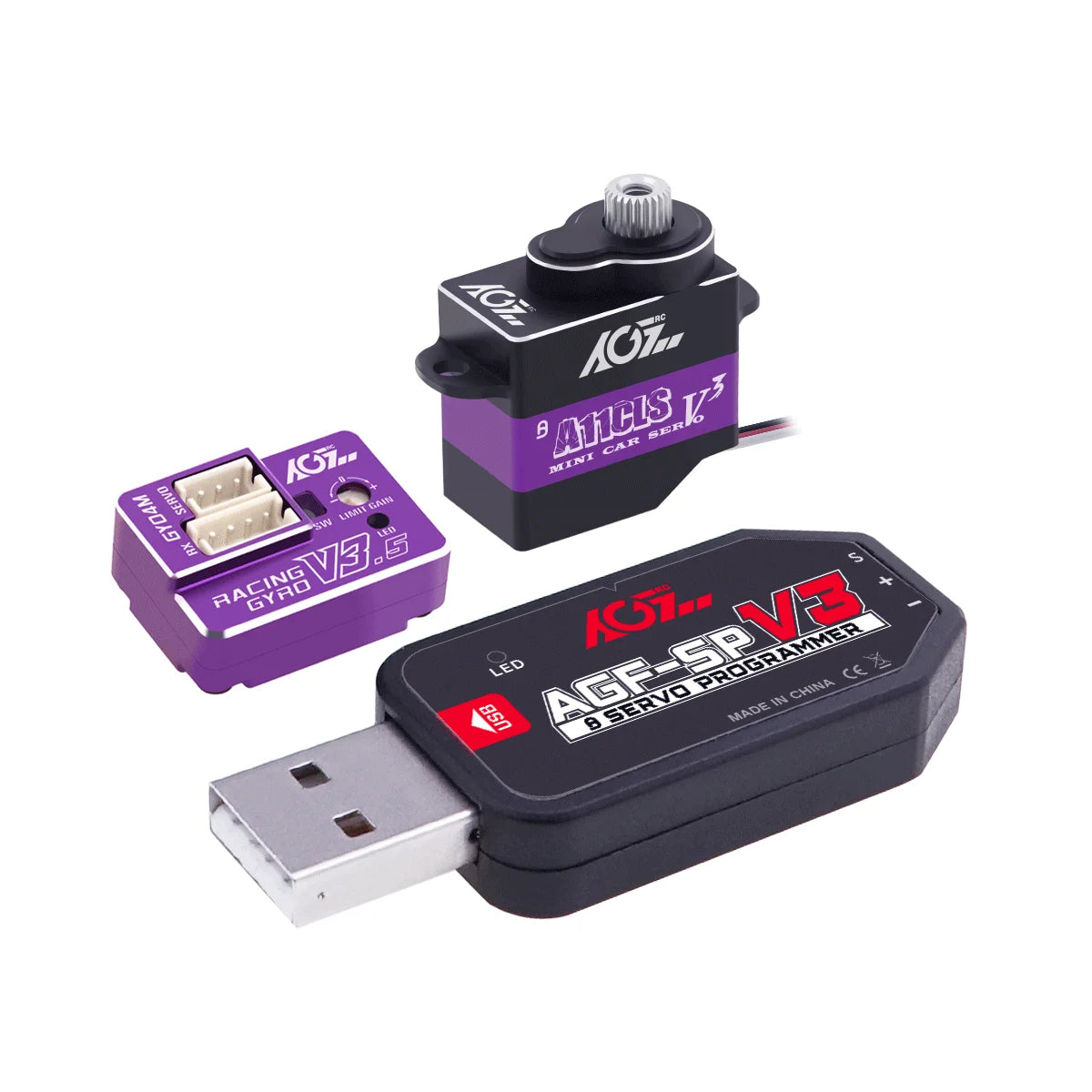

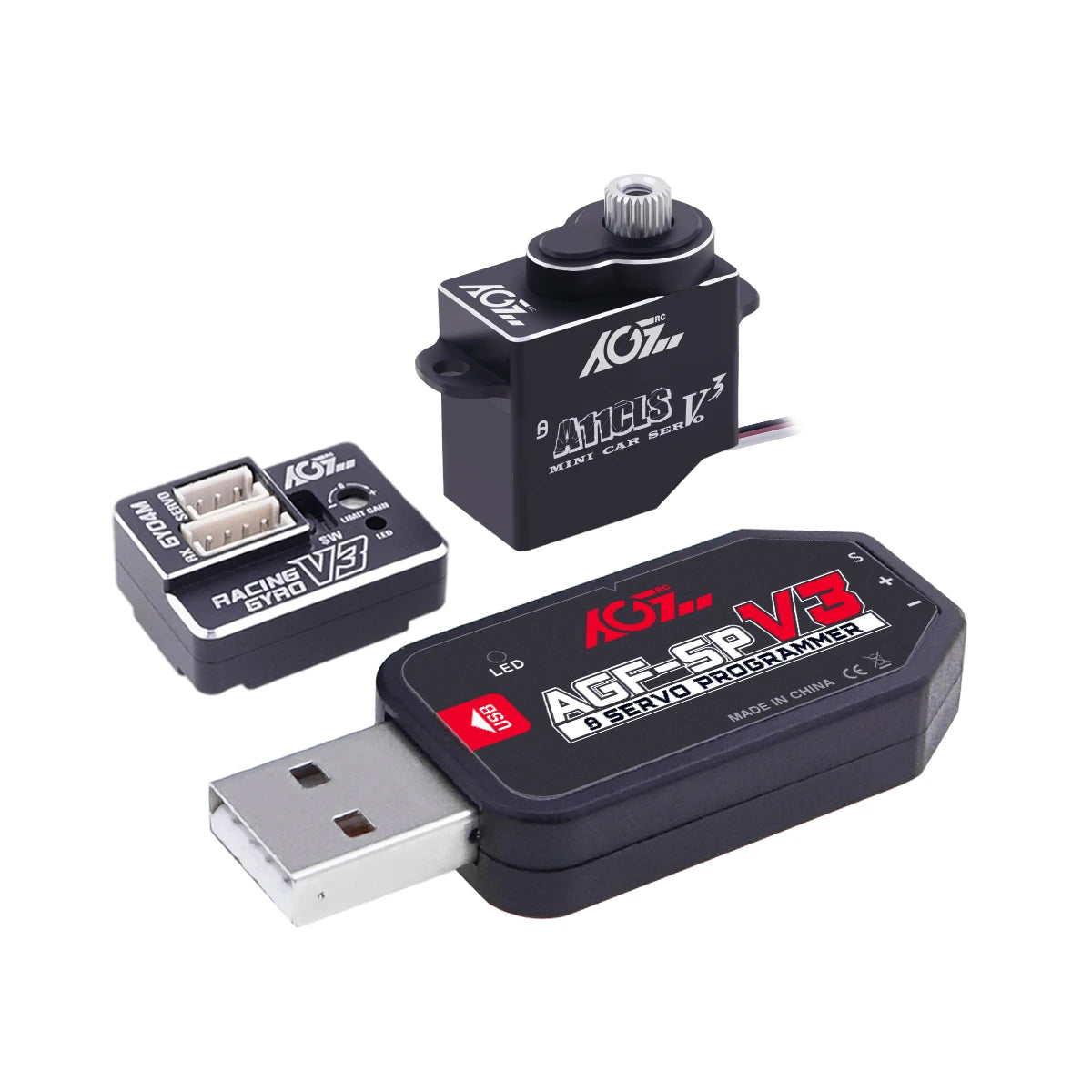

Kind Reminder: USB servo programmer and Horn is not included.
Specification

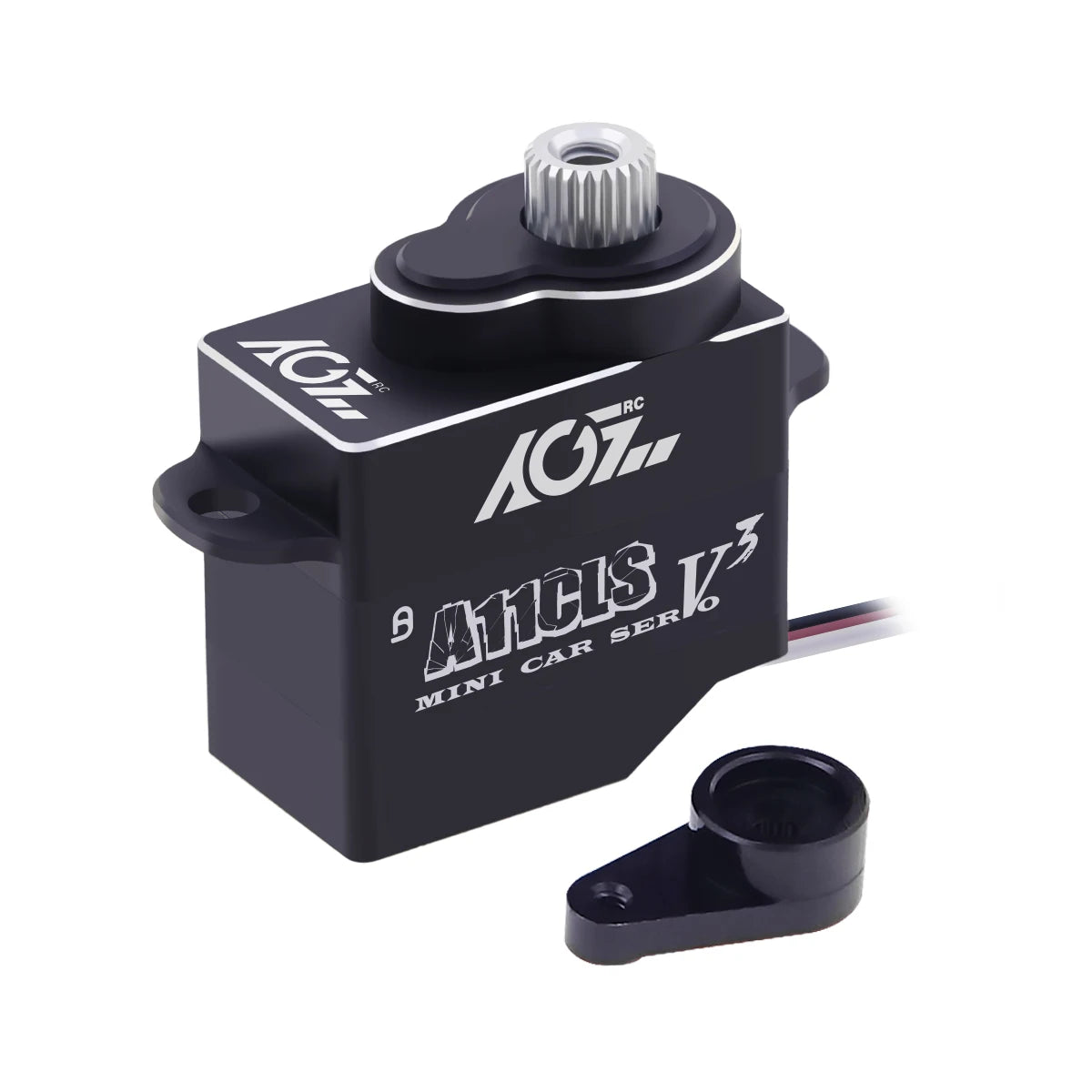

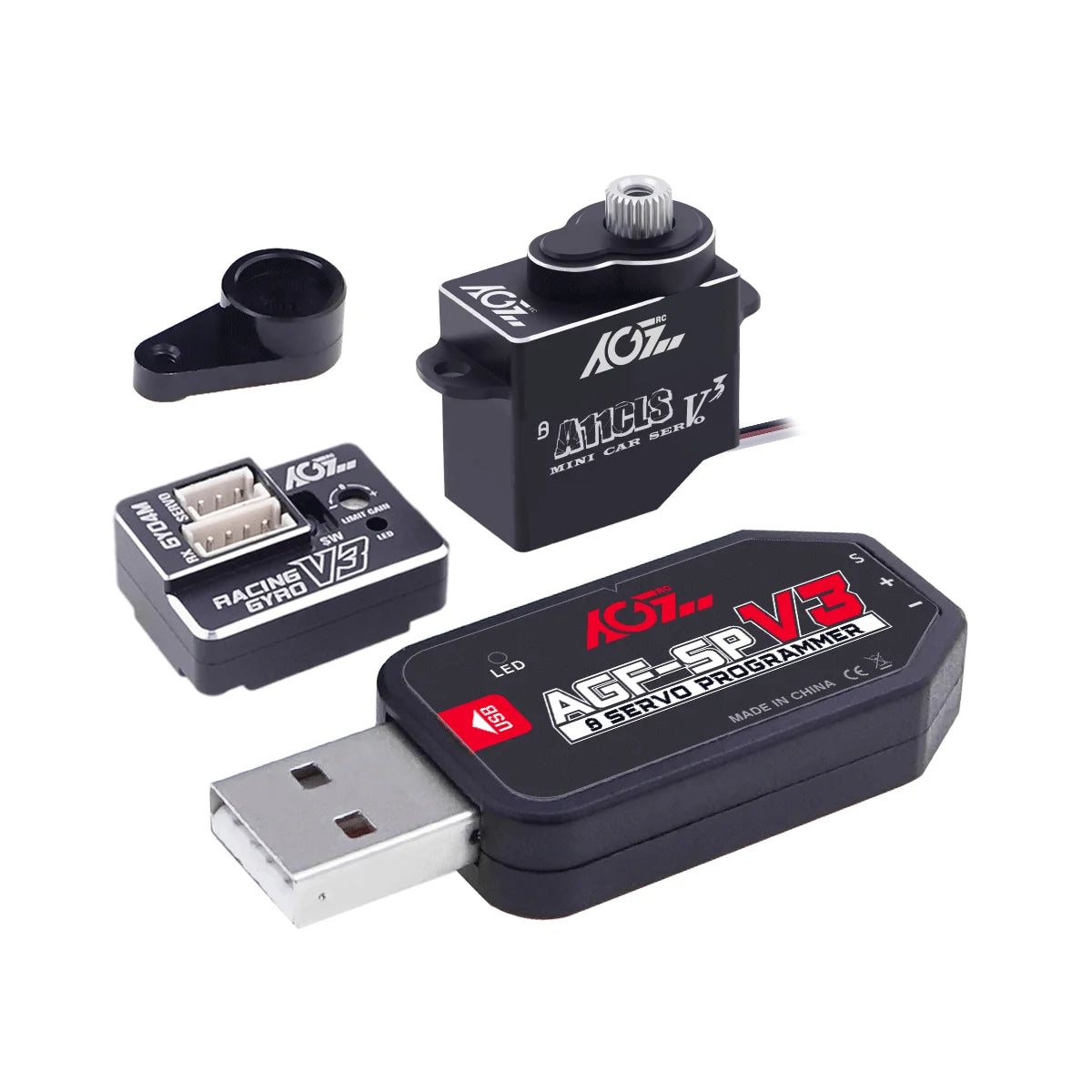

A11CLS V3
Operating Voltage: 4.8-6.0V
Operating speed: 0.065sec/60°@4.8V
Operating speed: 0.050sec/60°@6.0V
Stall Torque: 1.2 kg-cm (16.66 oz-in) @4.8V
Stall Torque: 1.4 kg-cm (19.44 oz-in) @6.0V
Gear: Titanium
Motor: Coreless

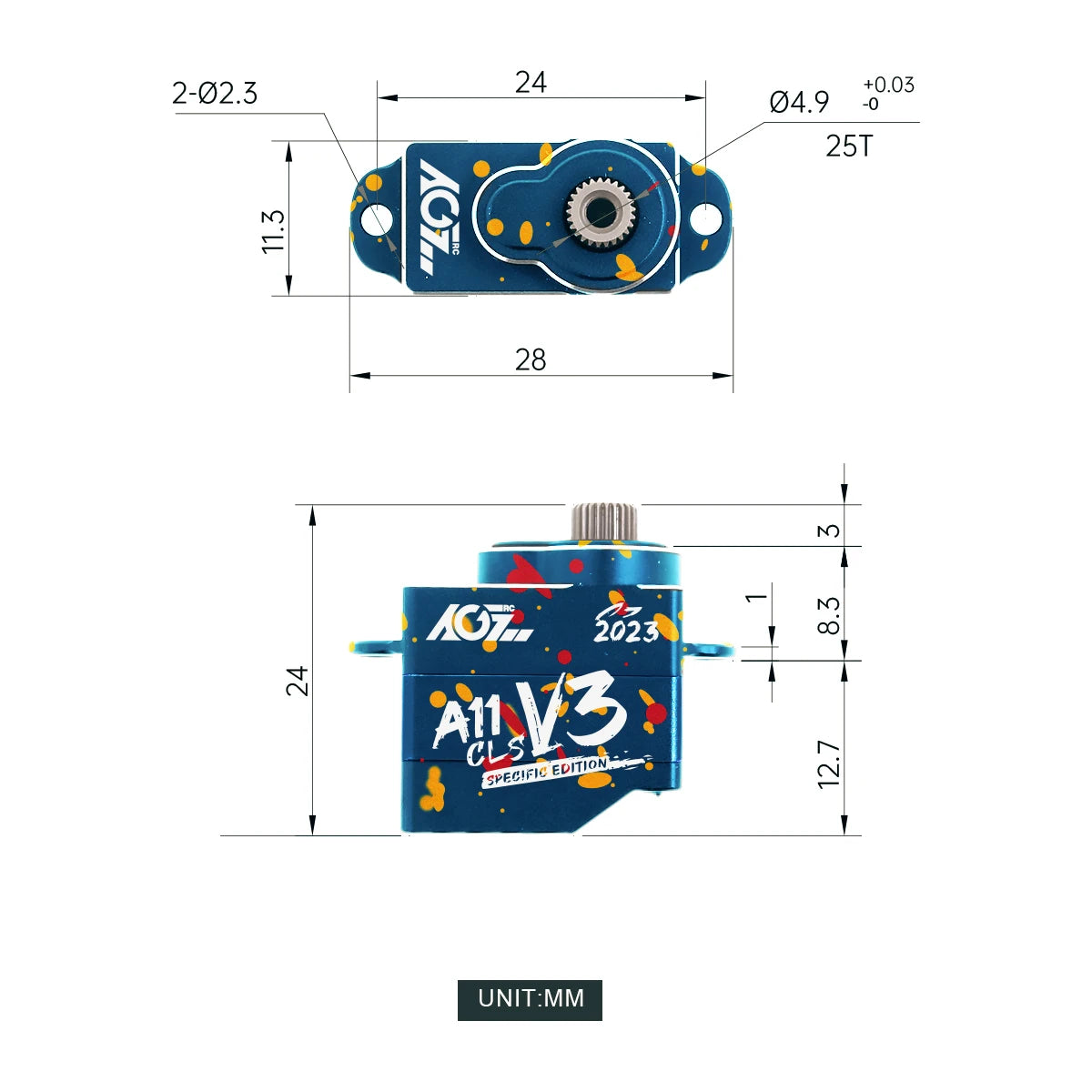

Size: 20*22*11.3mm (0.78 x 0.82 x 0.44 in)

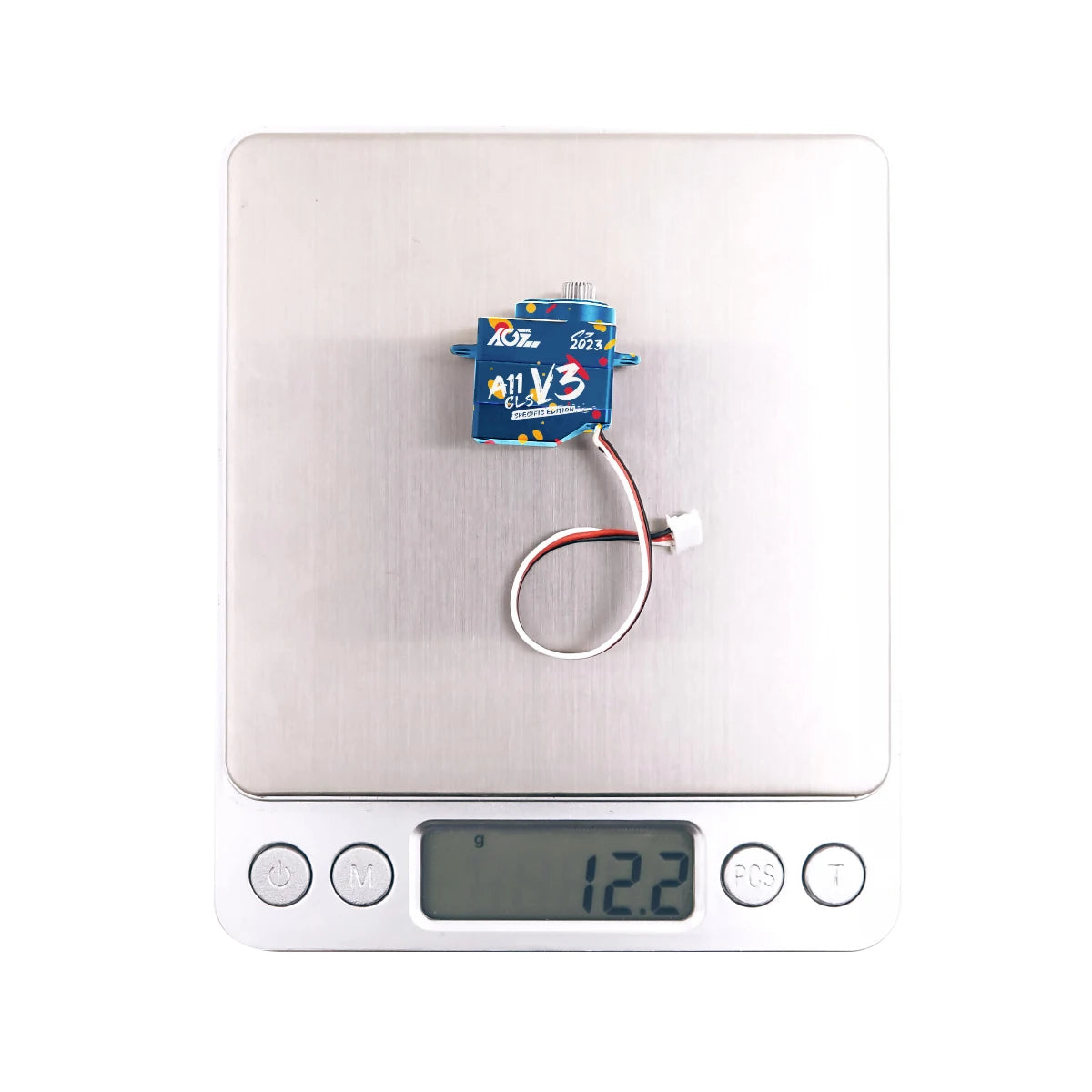

Weight: 12.2g

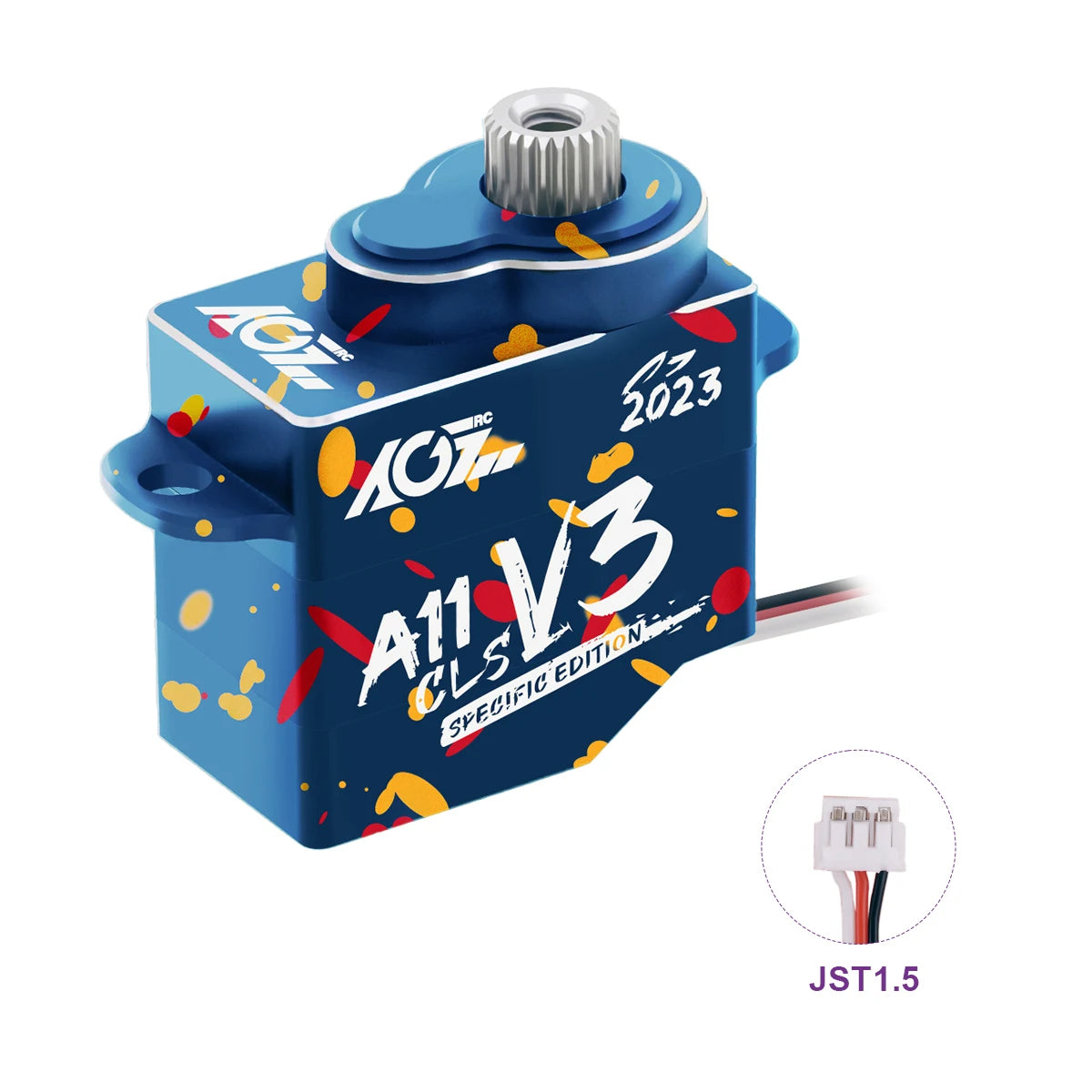

Connector Wire: JST1.5 80mm for selection
A11CLS V3 Control System Pulse width modulation control Refresh Rate 333Hz 2-22,3 16.35_ 4765 04 25T Neutral Position 1520uS Signal Mode Digital Dead band 3 uSec 1435 5165 Operating Voltage 4.8V 6.0V Operating Temperature -15C'_ +70C8 Bearing Double Ball Bearings Mechanical Angle No Limit Size 20*11.3*21mm Net Weight 11g Wire JRI JST1.5 8Omm 30AWG Operating Travel 180
Established in 2009, Huizhou AGF-RC Electronic Technology Co., Ltd. has been dedicated to developing and manufacturing high-quality RC servos, speed controllers (ESC), receiver modules, and car gyros. With over 1,200 square meters of dust-free electronic manufacturing workshop space, the company has obtained certifications from CE, ROHS, and FCC.
Our company provides premium quality services for Original Equipment Manufacturer (OEM) and Original Design Manufacturer (ODM) clients. With extensive experience in producing high-quality servos, receivers, gyros, ESCs, and other products, including our popular Agfac A738HLW model.
