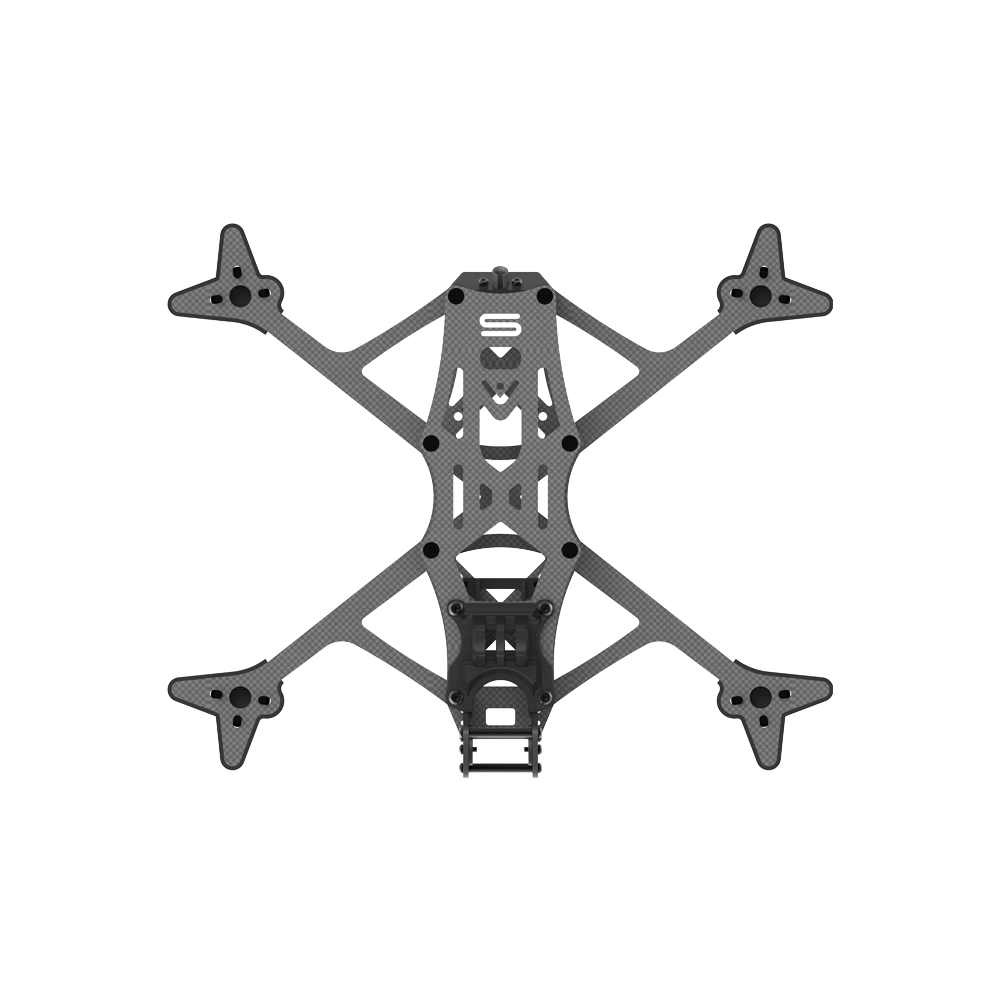

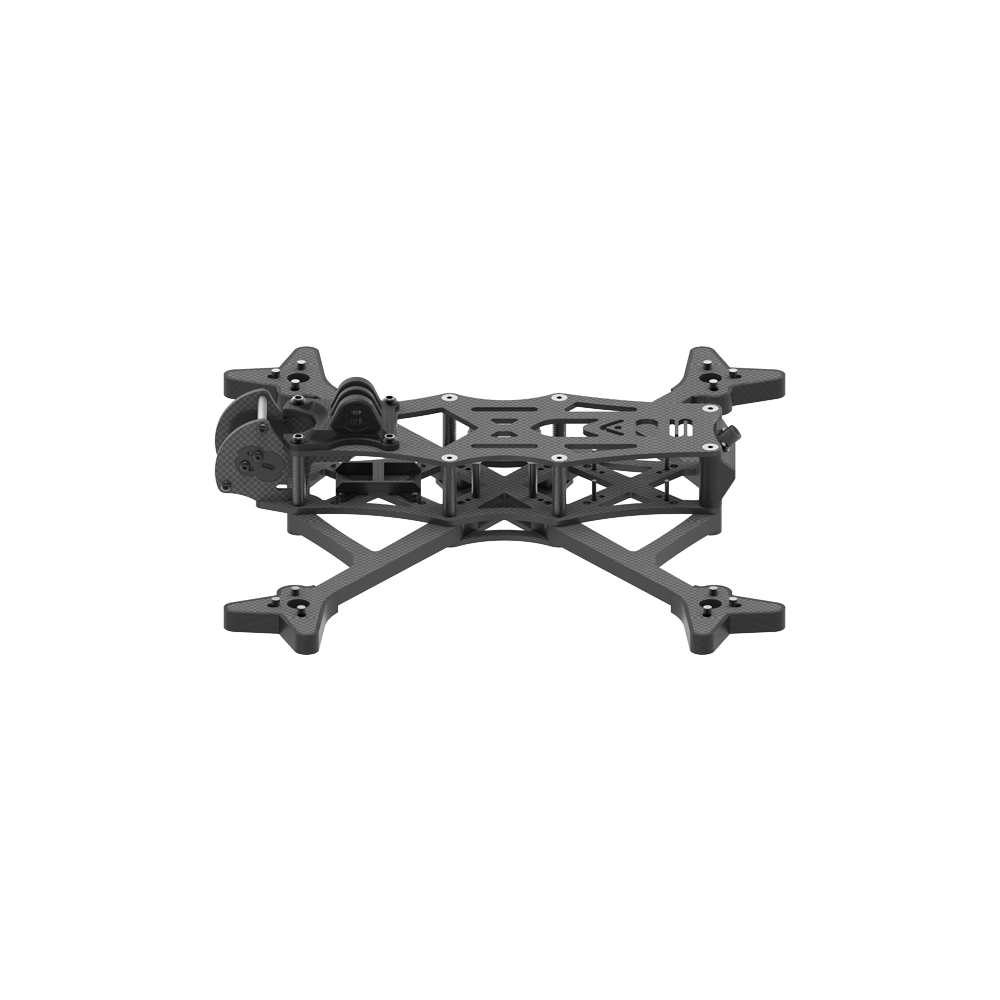

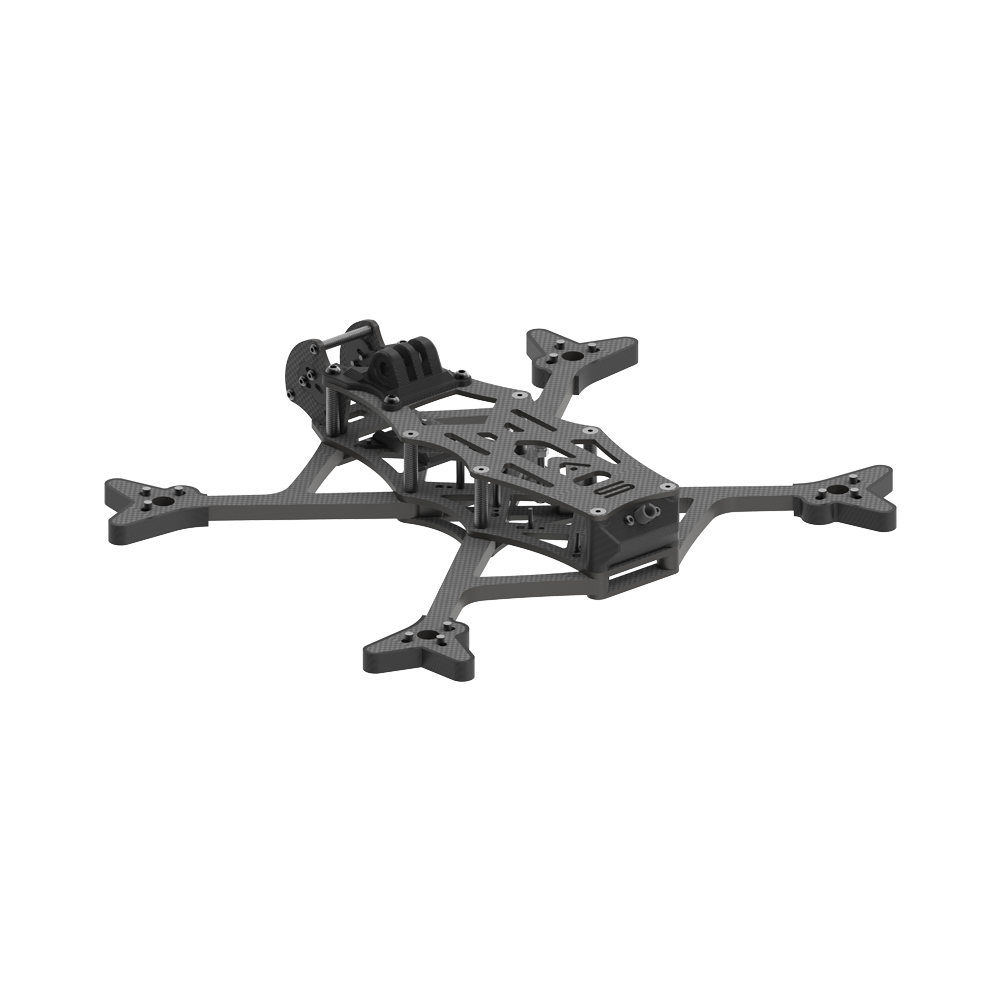

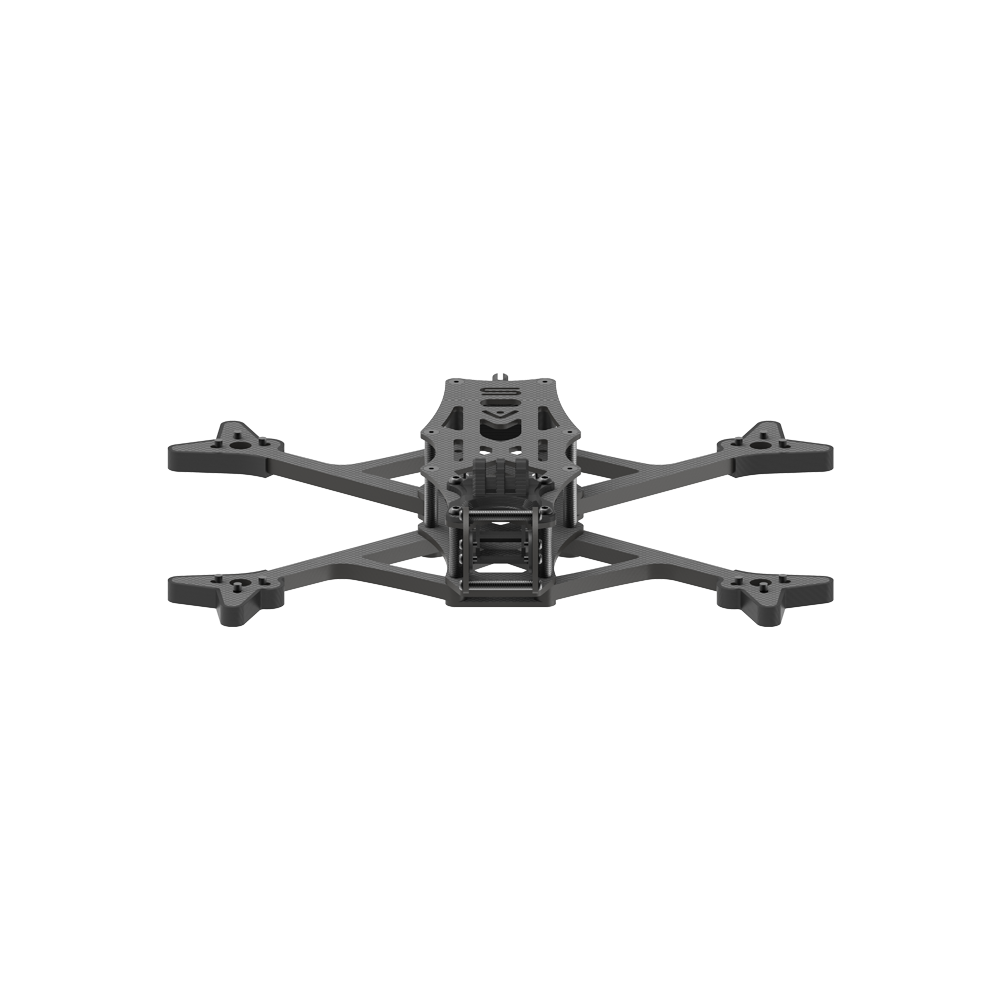

AOS 5 EVO V1.2 FPV Frame Kit with 6mm arm for FPV

AOS 5 EVO V1.2 FPV Frame Kit with 6mm arm for FPV

iFlight

Regular price $98.70 USD
Regular price $148.04 USD Sale price $98.70 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

193 orders in last 90 days

Ships From

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

AOS 5 EVO V1.2 FPV Frame SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Cutting

Technical parameters: Value 2

Size: 5inch

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: AOS 5 EVO V1.2

Material: Carbon Fiber

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description:
  • Built to be the ultimate 5" freestyle platform. The AOS 5 EVO has been updated to be compatible with the new DJI O3 Air Unit as well as existing 30.5x30.5mm, 25.5x25.5mm and 20x20mm electronics. The camera cage and arms have been reinforced to improve durability. As with all AOS frames exceptional vibration and resonance performance is guaranteed, eliminating IMU resonance issues with O3 image stabilization.
Changelog:
  • June 6, 2023: The frames have been updated to support DJI O3 ND filters, a soft mount for the FPV camera and hardpoints for XT30/XT60 mounting.
Features
  • Approx. 120g with all hardware
  • Designed for up to 5.1 inch props
  • 220mm wheelbase
  • 6 mm Arms
  • 30.5x30.5mm, 25.5x25.5 or 20x20 mm stack mountings in the front, centre and rear.
  • Fits the DJI O3 Air Unit, Caddx Vista or HDZero Freestyle VTX perfectly
  • Fits both 20mm (DJI and O3 camera) and 19mm (Micro sized) cameras
  • Motor mounting 16x16 up to 19x19 (2306, 2207 recommended)
  • Standoffs, frame and screws included
Specifications:
  • Product Name: AOS 5 EVO Frame Kit
  • Frame wheelbase: 220mm
  • Frame Dimension: L175*W135*H32.5 mm
  • Arm Thickness: 6mm
  • Top Plate Thickness: 2mm
  • Bottom Plate Thickness: 2.5mm
  • Upper Plate Thickness: 2mm
  • Motor Mounting: 16x16mm
  • VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm
Packing List
  • 1 x AOS 5 EVO Frame Kit
  • 1 x TPU Parts
  • 4 x Motor Wire Shield Tube
  • 1 x Screw Bag
  • 2 x Battery Strap
