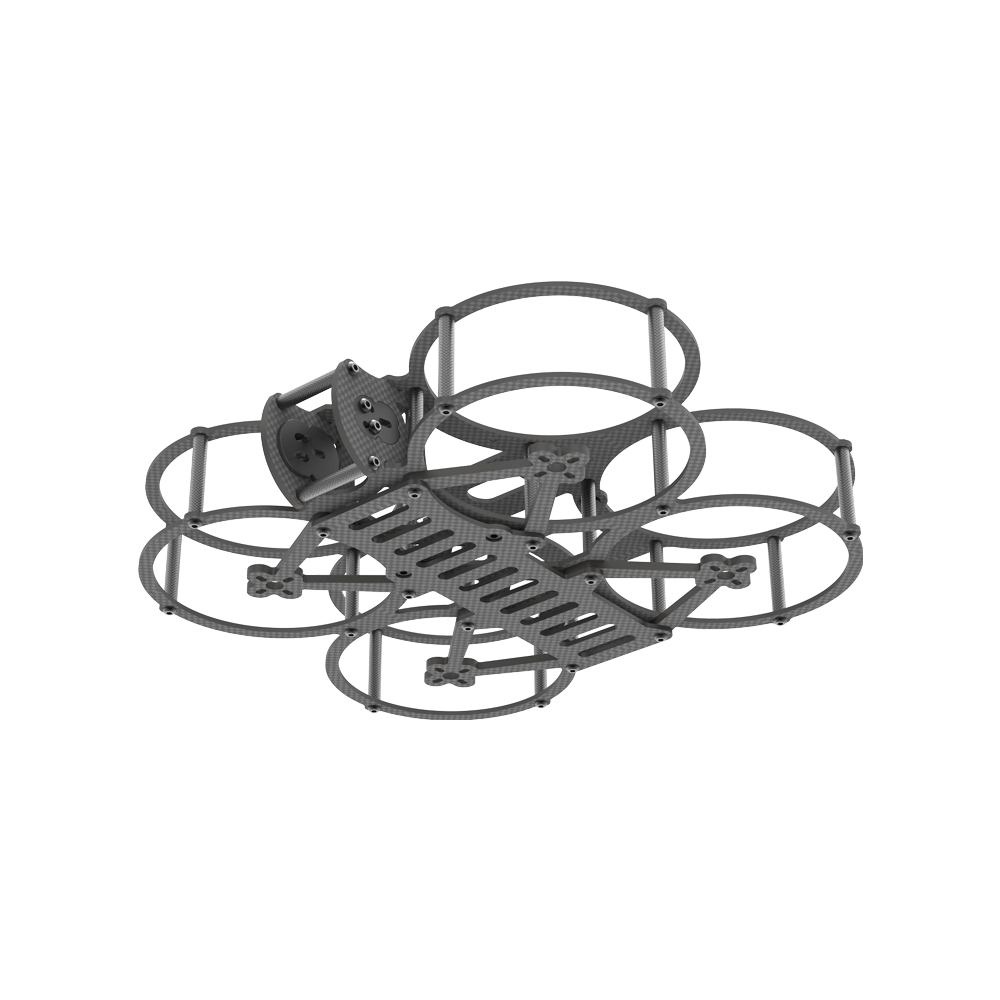

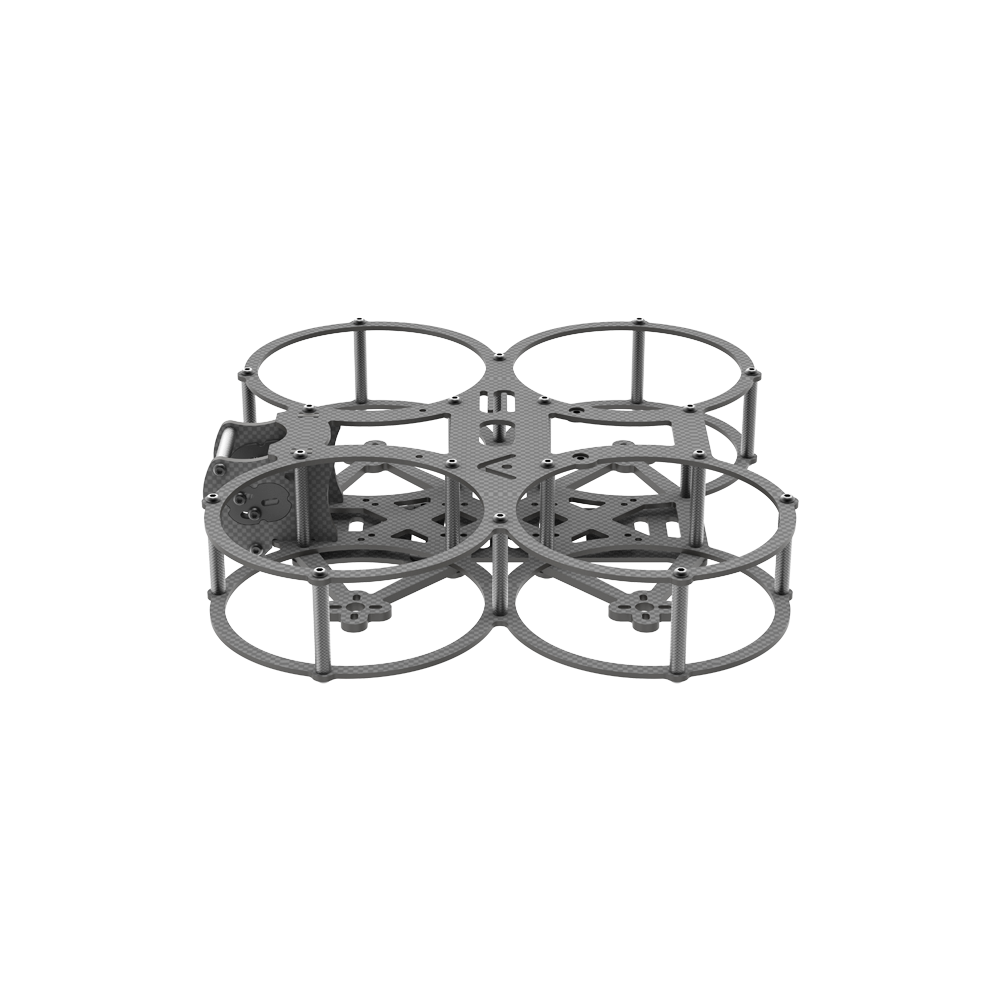

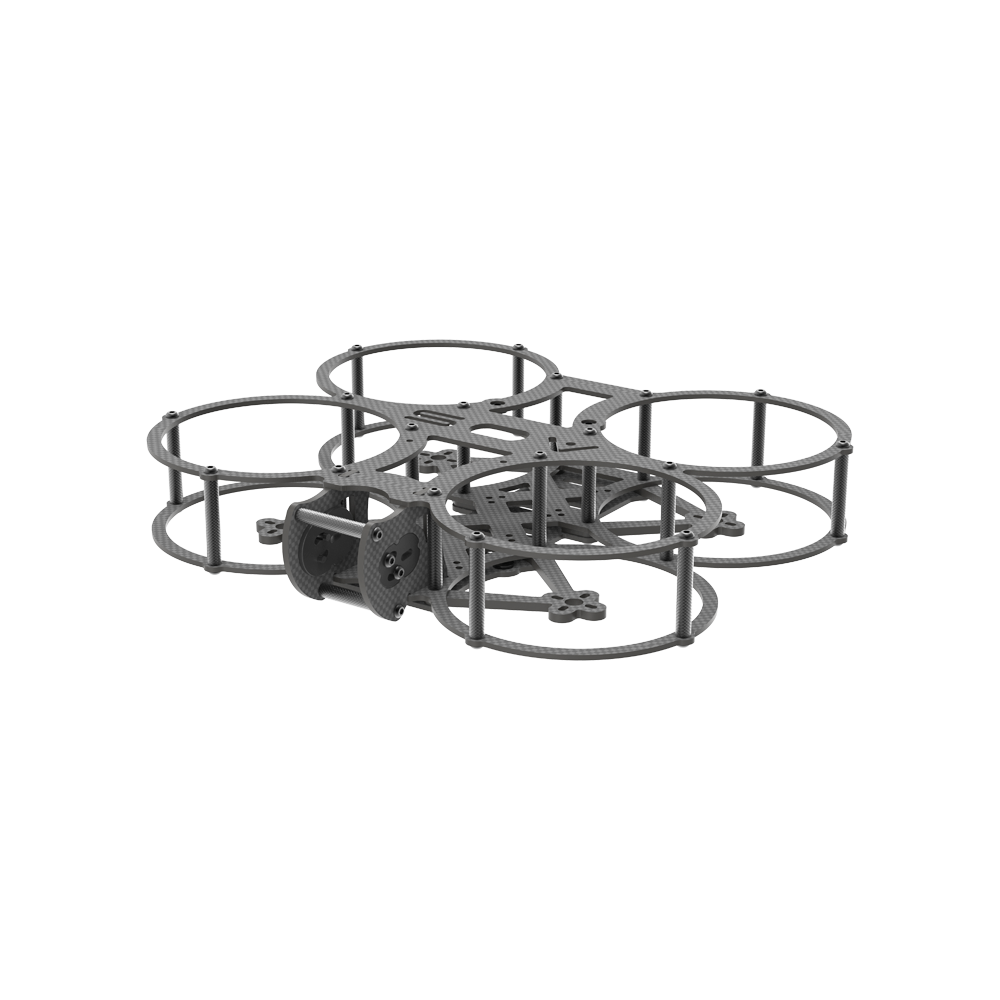

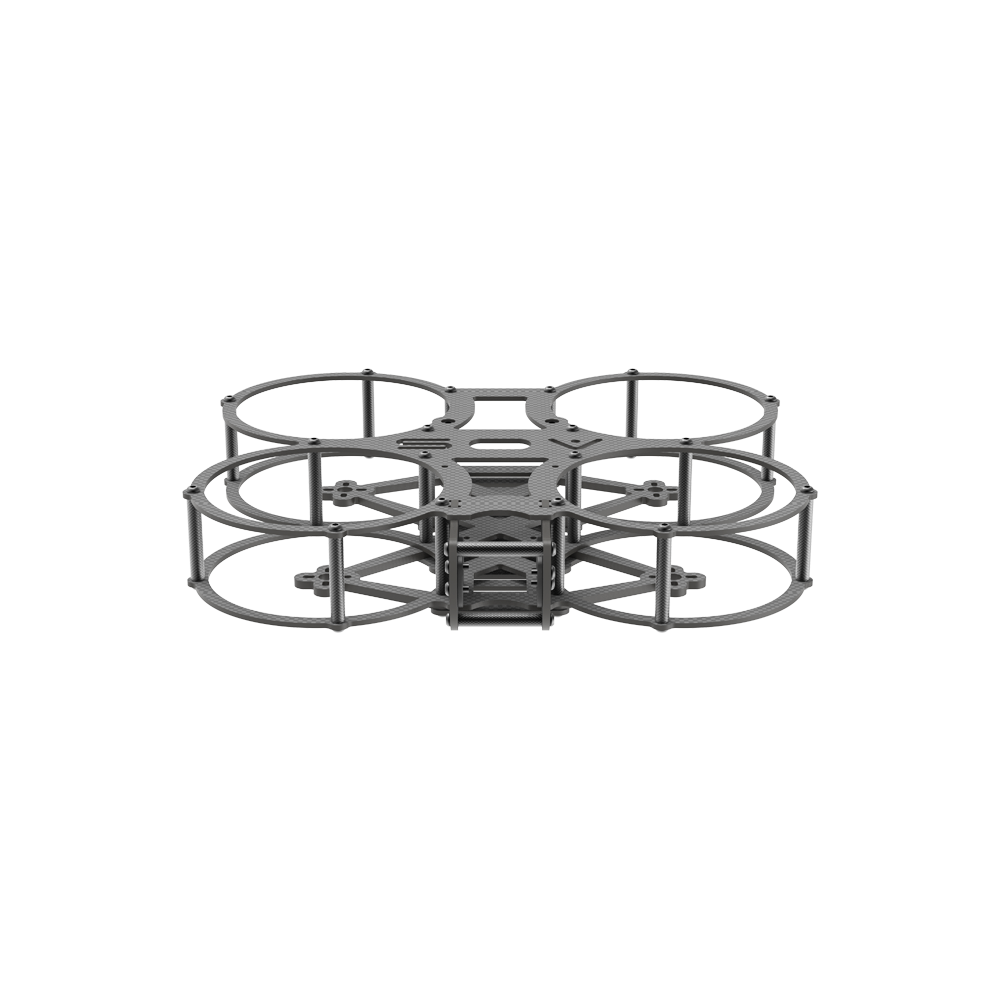

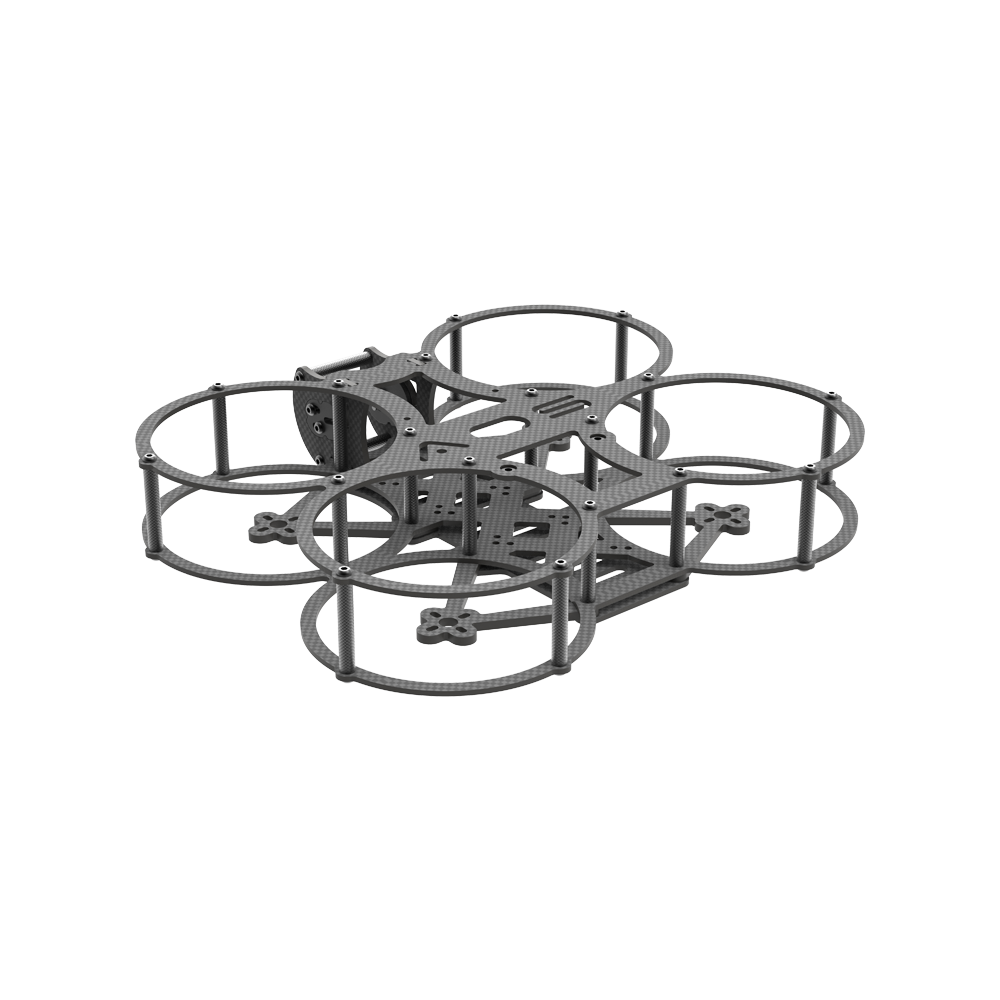

AOS Cine25 EVO V1.2 FPV Frame Kit for FPV

AOS Cine25 EVO V1.2 FPV Frame Kit for FPV

iFlight

$85.65 USD
$128.48 USD $85.65 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

118 orders in last 90 days

Ships From
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

AOS Cine25 EVO V1.2 FPV Frame SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Cutting

Technical parameters: Value 2

Size: 2.5inch

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: AOS Cine25 EVO V1.2

Material: Carbon Fiber

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description：
  • The latest version of this frame is the AOS Cine25 EVO. It has updated camera plates to support the DJI O3 Air Unit as well as all other 19-20mm FPV cameras.
Features
  • Designed for 2.5 inch props, no props in view.
  • 2.5 mm Truss Arms
  • Up to two 25.5 or 20 mm stacks (front and rear)
  • One 25.5 or 20 mm stack (center)
  • 32x32mm M2 GoPro mounting holes in top plate with installed press-nuts
  • XT30 pass through top plate
  • Captive battery strap slots for lengthwise or toilet tank mounting
  • Fits 19-20mm FPV cameras including DJI O3
  • Recommended motor size 1404
  • 9x9 mm motor mounting
  • Standoffs, carbon and hardware included
Specifications:
  • Product Name: AOS Cine25 EVO Frame Kit
  • Frame wheelbase: 125mm
  • Frame Dimension: L99*W75.5*H32 mm  / L175*W151*H32 mm (with propguard)
  • Arm Thickness: 2.5mm
  • Top Plate Thickness: 1.5mm
  • Bottom Plate Thickness: 1.5mm
  • Upper Plate Thickness: 1.5mm
  • Motor Mounting: 9x9mm / 12*12mm
  • VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm
Packing List
  • 1 x AOS Cine25 EVO Frame Kit
  • 1 x Screw Bag
  • 1 x Battery Strap
