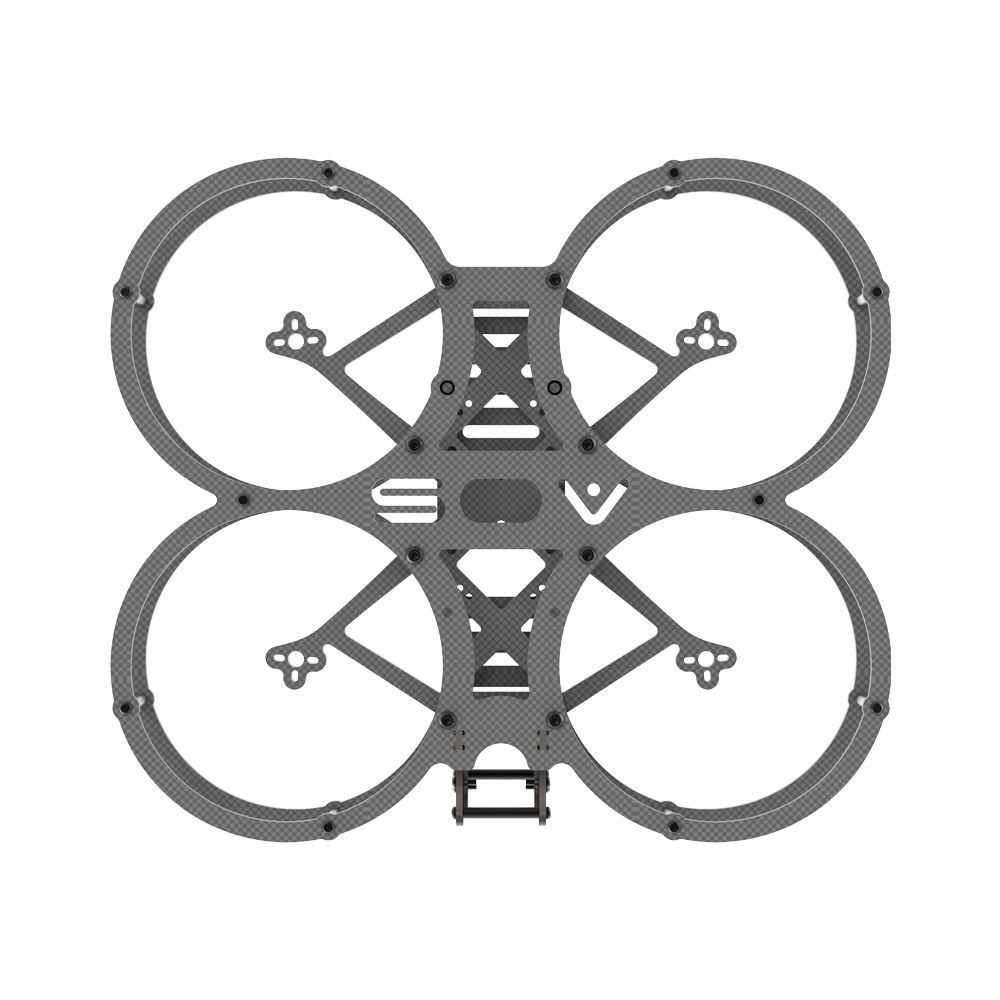

AOS Cine35 EVO FPV Frame Kit for FPV

AOS Cine35 EVO FPV Frame Kit for FPV

iFlight

$118.26 USD
$177.39 USD $118.26 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

43 orders in last 90 days

Ships From
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details
Description：
  • The latest version of this frame is the AOS Cine35 EVO. It has updated camera plates to support the DJI O3 Air Unit as well as all other 19-20mm FPV cameras.



Features
  • Designed for 3.5 inch props, no props in view.
  • 4 mm Truss Arms
  • Up to three 25.5 or 20 mm stacks (front, center and rear)
  • One 30.5mm stack (center)
  • 32x32mm GoPro mounting holes in top plate with installed press-nuts
  • XT60 pass through top plate
  • Captive battery strap slots for lengthwise or toilet tank mounting
  • Fits 19-20mm FPV cameras including DJI O3
  • Recommended motor size 2004
  • 9x9 up to 12x12mm motor mounting
  • Standoffs, carbon and hardware included



Specifications:
  • Product Name: AOS Cine35 EVO Frame Kit
  • Frame wheelbase: 161.5mm
  • Frame Dimension: L128*W99*H35 mm  / L233*W204*H35 mm (with propguard)
  • Arm Thickness: 4mm
  • Top Plate Thickness: 2mm
  • Bottom Plate Thickness: 2mm
  • Upper Plate Thickness: 2mm
  • Motor Mounting: 9x9mm / 12*12mm
  • VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm



Packing List
  • 1 x AOS Cine35 EVO Frame Kit
  • 1 x Screw Bag
  • 1 x Battery Strap
