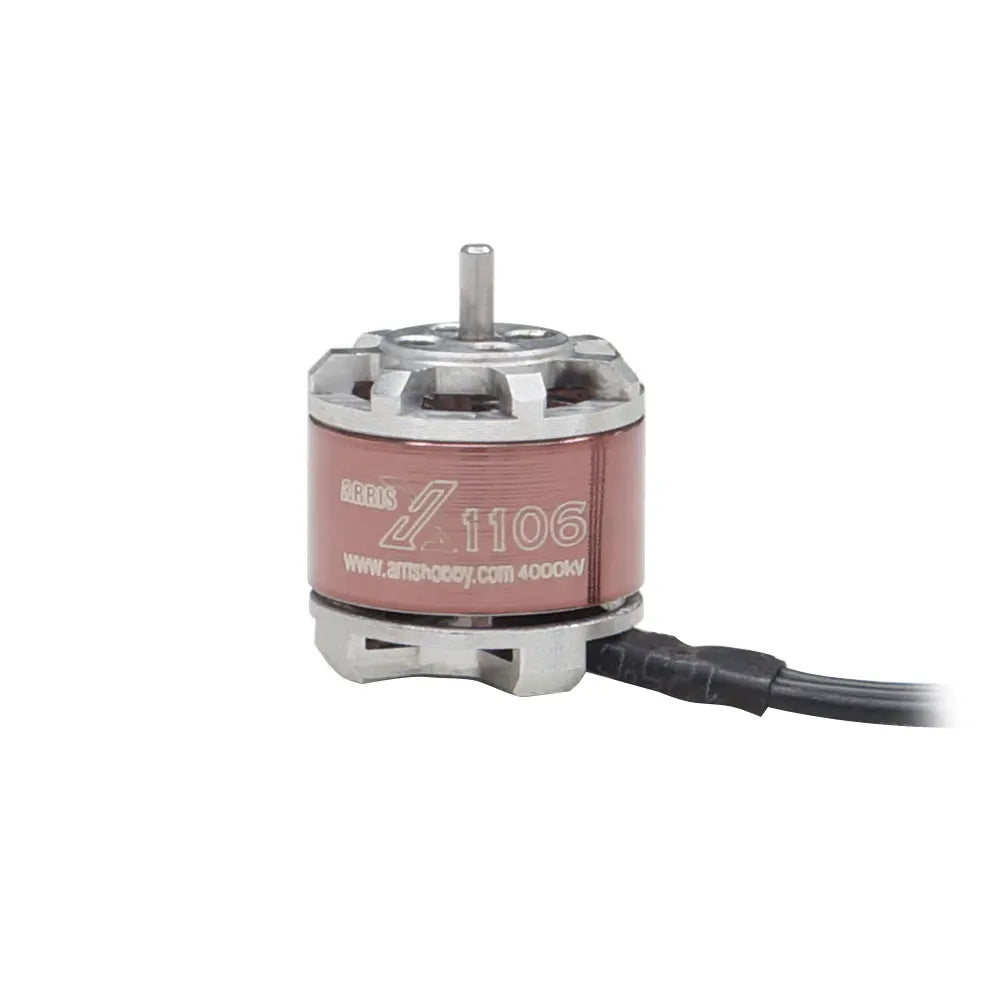

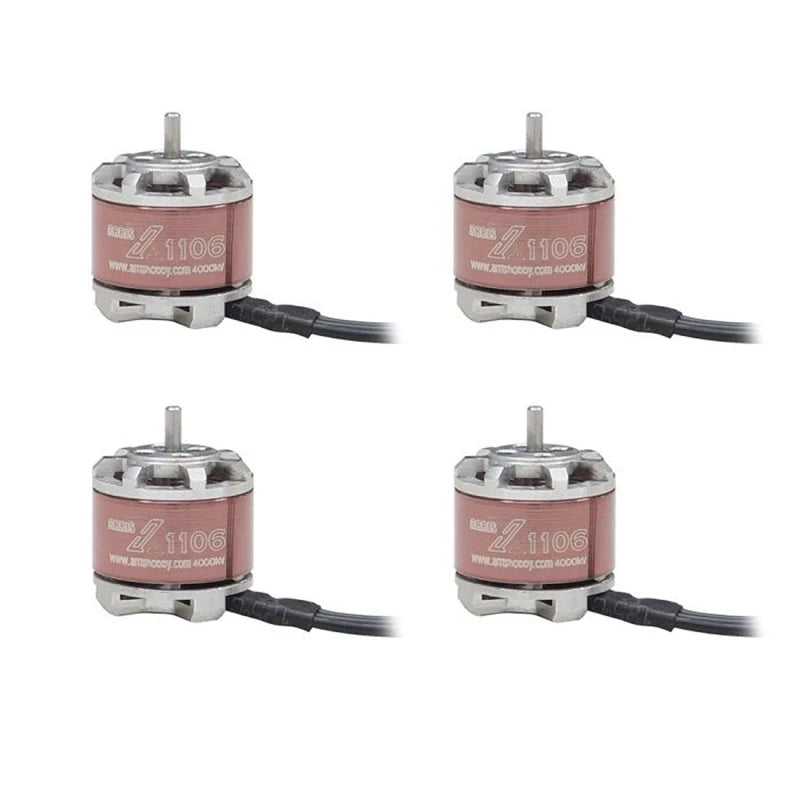

• 4PCS ARRIS 1106 4000KV Micro Brushless Motor, ARRIS 1106 4000KV micro brushless motor for 2-2.5-inch FPV racing drone, set of four with cables.

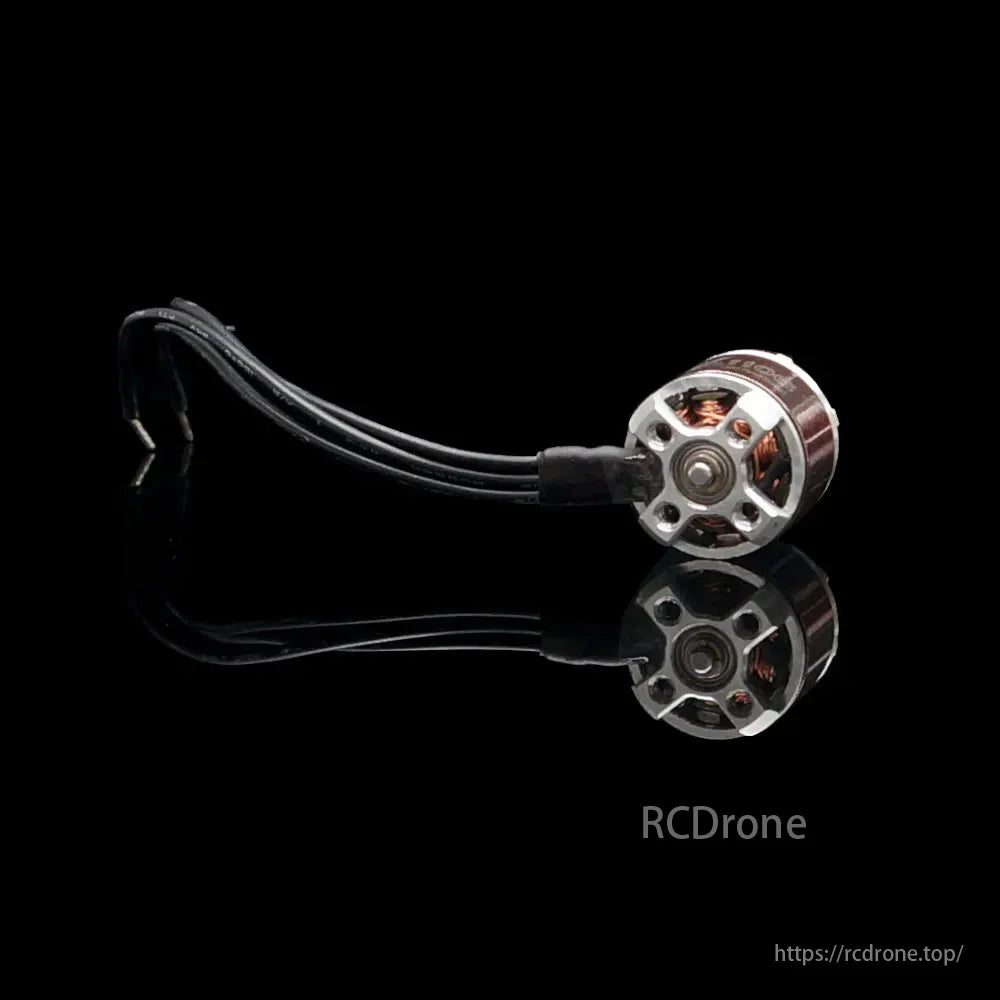

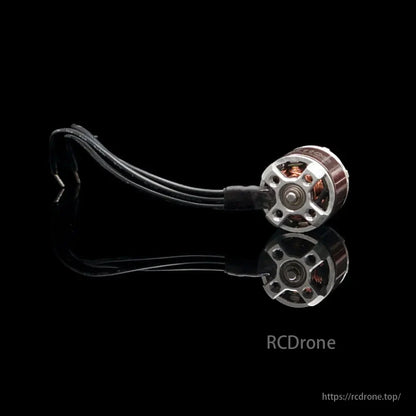

  • 4PCS ARRIS 1106 4000KV Micro Brushless Motor, ARRIS 1106 4000KV micro brushless motor for 2-2.5-inch FPV racing drone, featuring red casing and black cable.
  • 4PCS ARRIS 1106 4000KV Micro Brushless Motor for 2-2.5Inch FPV Racing Drone
1 3

4PCS ARRIS 1106 4000KV Micro Brushless Motor for 2-2.5Inch FPV Racing Drone

4PCS ARRIS 1106 4000KV Micro Brushless Motor for 2-2.5Inch FPV Racing Drone

ARRIS

$53.01 USD
$53.01 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Default Title
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

ARRIS 1106 4000KV brushless motor is specially designed for 2.5" to 2" fpv racing quads. It supports 2S to 3S lipo battery. The high quality material on the motor makes the motor of high efficiency, resistant high temperature and long life.

Specifications:
KV: 4000KV
No. of Cells(Lipo): 2-3S
Configuration: 9N12P

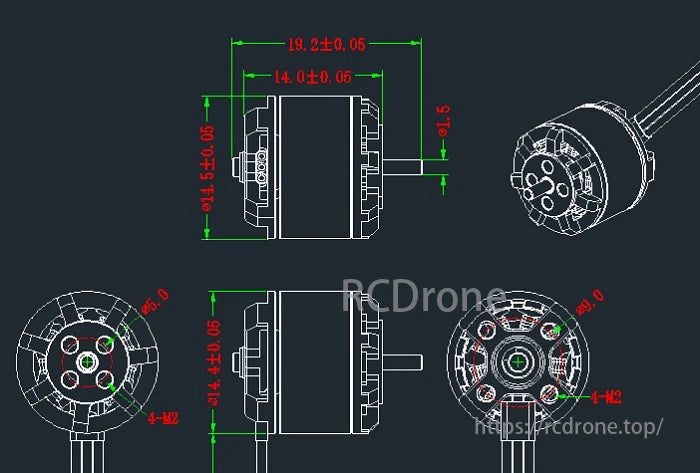

Motor Dimensions: 14.4 x 14mm
Stator Length: 5mm
Internal Resistance：63
No load current: 10V/0.7A
Weight: 7.5g

Package Includes:
ARRIS 1106 4000KV brushless motor x 4

Voltage/V

Propeller

Current/A

Power/W

Thrust/G

Efficiency/GW

8V

GF2535-5
1.5
12
39
3.25
2.5
20
63
3.15
3.5
28
80
2.86
Max.4.9
40
101
2.53

GF2035-4
1.5
12
41
3.42
2
16
55
3.4
Max.2.6
22
69
3.14

12V

GF2535-5
1.5
18
49
2.73
2.5
30
75
2.5
3.5
42
97
2.31
4.5
54
117
2.17
5.5
65
137
2.11
6.5
75
151
2.02
Max.7.7
93
171
18.4

GF2035-4
2
24
65
2.71
3
36
97
2.7
3.5
43
109
2.6
Max.4.5
53
133
2.52

4PCS ARRIS 1106 4000KV Micro Brushless Motor, A 4-piece brushless motor kit for small FPV drones, suitable for 2-2.5 inch models with a high KV rating.
