Specifications:

• MCU: STM32F405RGT6

• IMU: BMI 270

• BEC: 5V 3A

• Flash: 16Mbyte

• OSD: AT7456E

• PWN: PWN*8

• Serial Port:Uarts*6

• Barometer:SPL06-001

• External USB:BOOT/Type C

• VTX Voltage:5V/VCC

• LED:Support WS282 LED

• Ammeter:90A

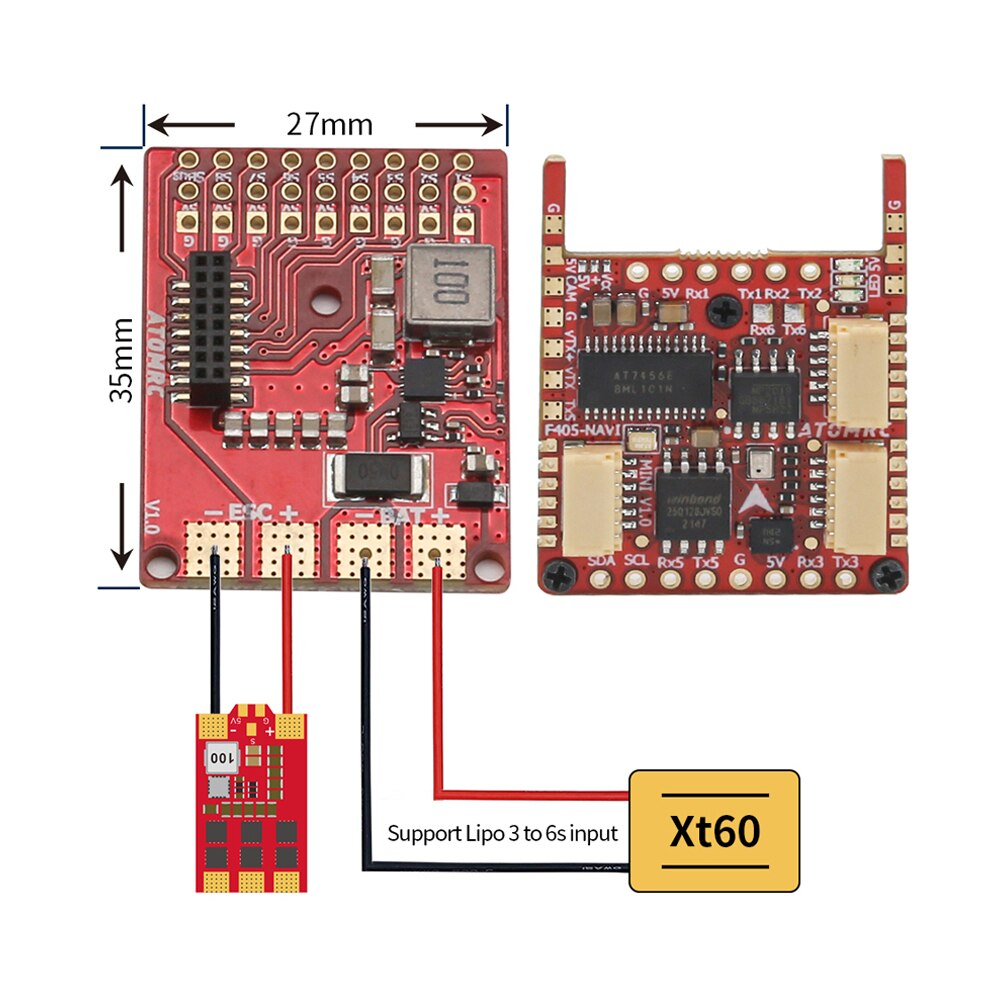

• Voltage Input:3-6s Lipo

ATOMRC F405 NAVI MINI MCU STM3ZF4OSRGT6 IMU BMI 270 BEC 5V 3A Flash 16Mbyte OSD AT7456E PWM PWM*8 Serial Port Uarts*6 Barometer SPLO6-001 External USB BOOT/Type € VTX Voltage SVCC LED Support WS282 LED ArduPilot:

ATOMRC's F405 NAVI Mini flight controller supports both INAV and Ardupilot firmware, allowing users to access all CLI parameters for their aircraft. Download compatible settings files from our website.

Supports both INAV and Arduplane firmware options. We support all CLI parameters for all of our aircraft, and regularly update these files on our website at [https://latomrc.com](https://latomrc.com). Easy to access and use.

Designed for seamless integration with DJI Air Unit. Simply plug in the RLI BE180/220 GPS module and you're ready to play. The controller is easy to use, making it simple to turn your FC on and start flying.

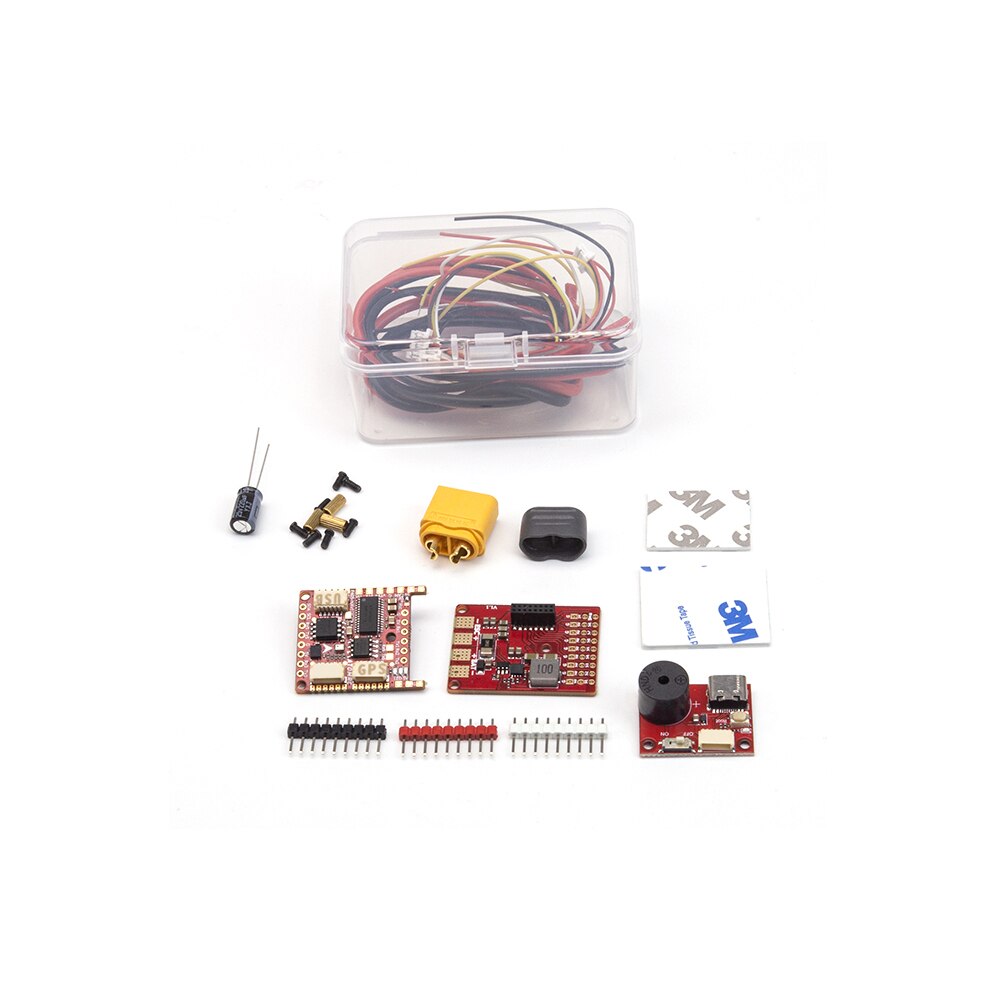

Package Contents: * LLLYE Eclo Driein (0DCD) and 3DC1o Weteed DOIO * 1000uF M2*4.5 screw TX60 Male standoff power cable * GPS cable * USB cable * DJI Air Unit (AU) cable * PBD board * F405 mini top board
