ATOMRC Insight7 SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Recommend Age: 14+y
Origin: Mainland China
Model Number: ATOMRC Insight7
Material: Composite Material
>>>Features

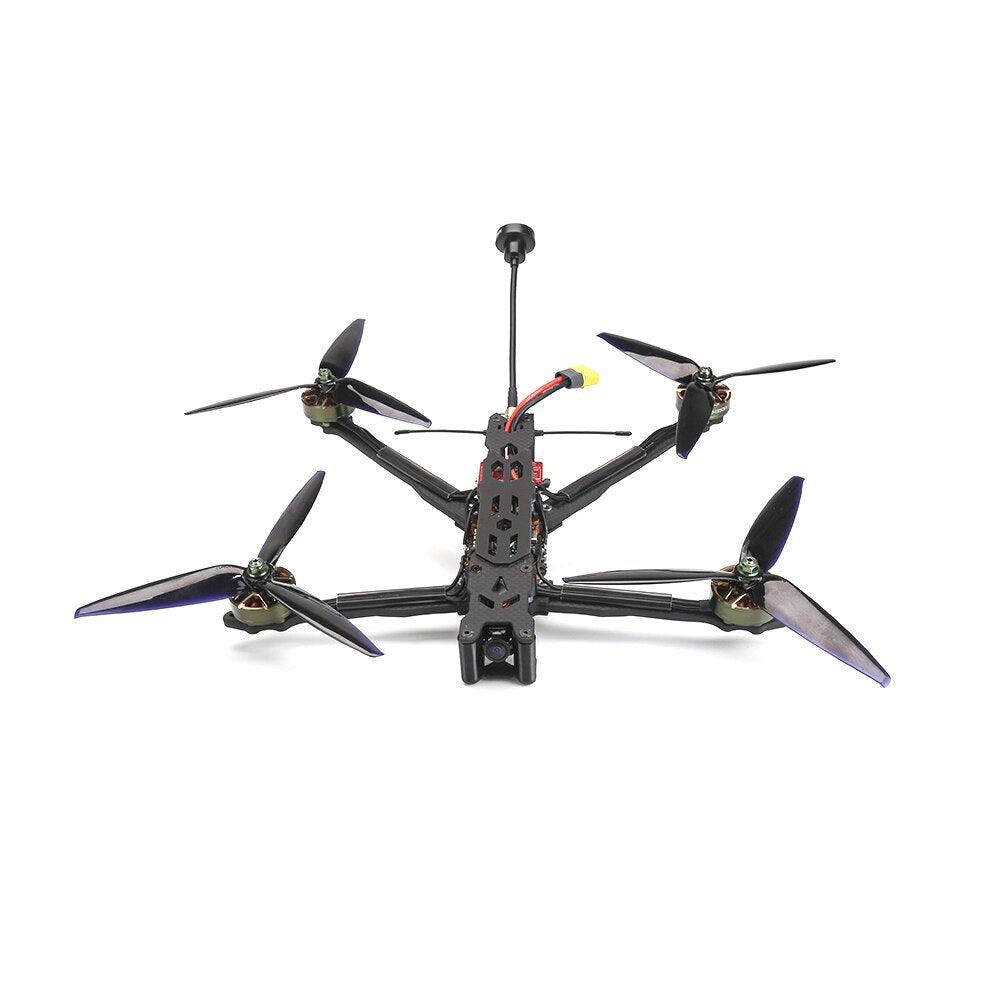

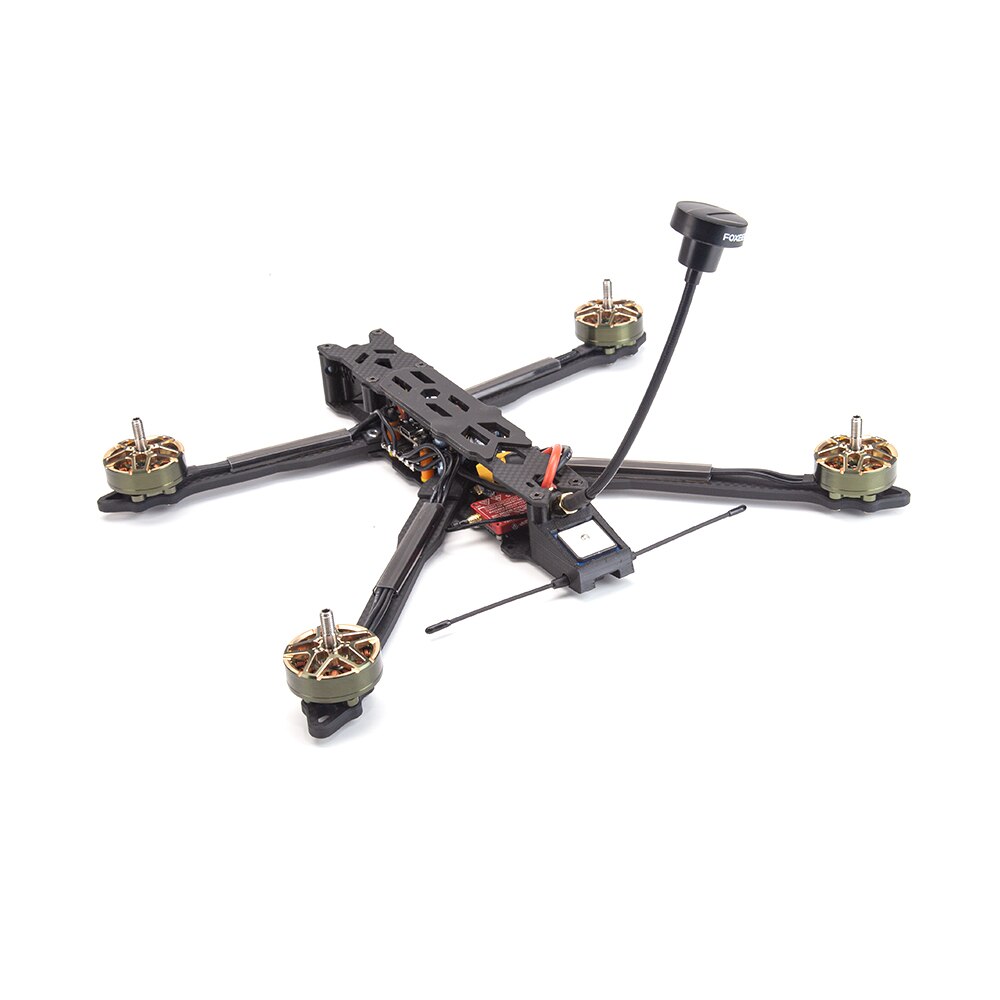

Atomrc Insight 7 Long Rang fpv Drone, build for Long range. Ready To Go, the Drone is Pre-build and Pre-turned. Light Weight, Carbon fiber frame, strong and light weight. Faster Heat Dissipation And Less Interference, VTX away from stack, avoid interference. Long VTX Antenna, Better Range,Better Coverage. GPS and VTX mount, easyto install, 3D printed GPS suit BE220 gps module, ELRS/CRSF/Antenna. 7075 aluminum alloy standoff, Light weight and high strength.
>>>Specifications
Frame Type:DC
Frame Size:300mm
Flight Controller:F405 FC
ESC:BLS 45A 6S 4IN1ESC
VTX:Rush Solo 1.6w
Antenna:Foxeer Pagoda Pro 5.8G
Camera:Foxeer Nano Toothless 2 1200TVL
Motor:2806.5 1350kv
Prop:7040-3
GPS:BE220
ELRS:ELRS 2.4G
Battery Recommend:6S-lipo 5000mah Battery
ATOMRC Insight 7 Analog Frame Type DC Frame Size 300mm Flight Controller F405 FC ESC BLS 45A 6S 4INI ESC VTX Rush Solo 1.6w Antenna Foxeer Pagoda Pro 5.8G Camera Foxxer Nano Toothless 2 1200TVL Motor 2806.5 1350kv Prop 7040-3 GPS BE22O ELRS 91SMhz Receiver (T
ATOMRC Insight 7 Long-Range FPV Drone: A high-performance build designed for long-range flights, featuring a durable DC frame, high payload capacity, and a wide-angle carbon fiber design for optimal stability.

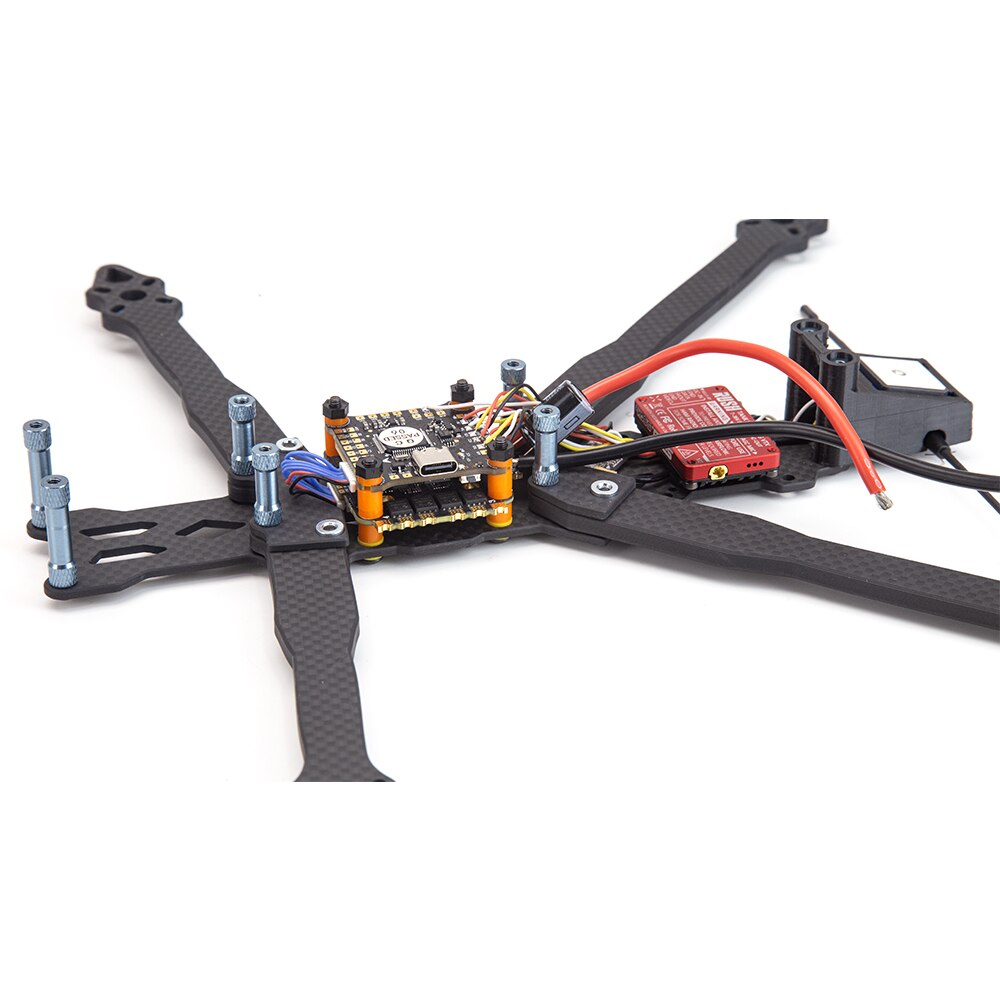

Features faster heat dissipation for reduced interference, with the VTX designed to be separate from the stacked components, avoiding potential electromagnetic interference between the flight controller and electronic speed controller.
Features an easy-to-install GPS and VTX mount, utilizing a 3D-printed GPS suit with the BE220 GPS module. Also supports ELRS (EnduroLink Racing System), CRSF (CleanRX Serial Frequency), and antenna configurations.

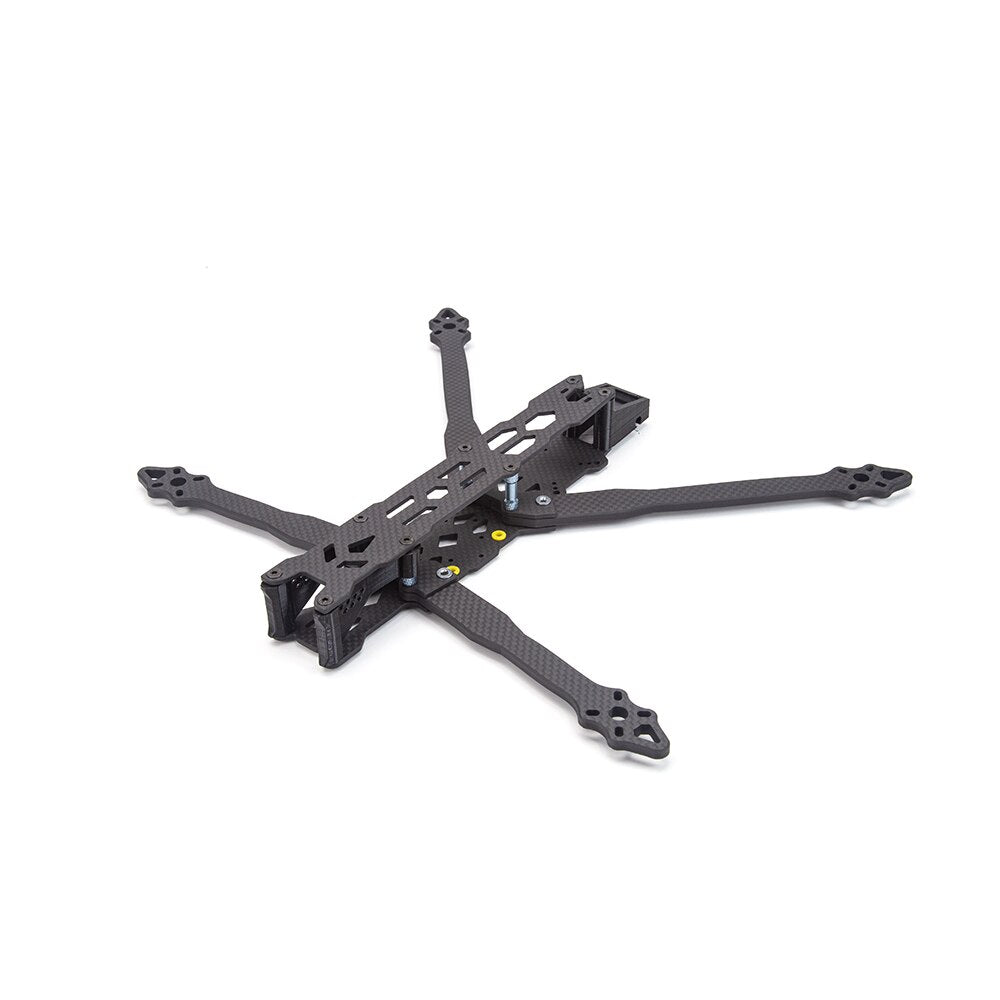

Widened arms improve rigidity, with a front arm designed for stability and a rear arm optimized for agility. The frame features an 8K configuration, with a reinforced 3-oring design at the 15cm mark, providing additional strength and durability.
