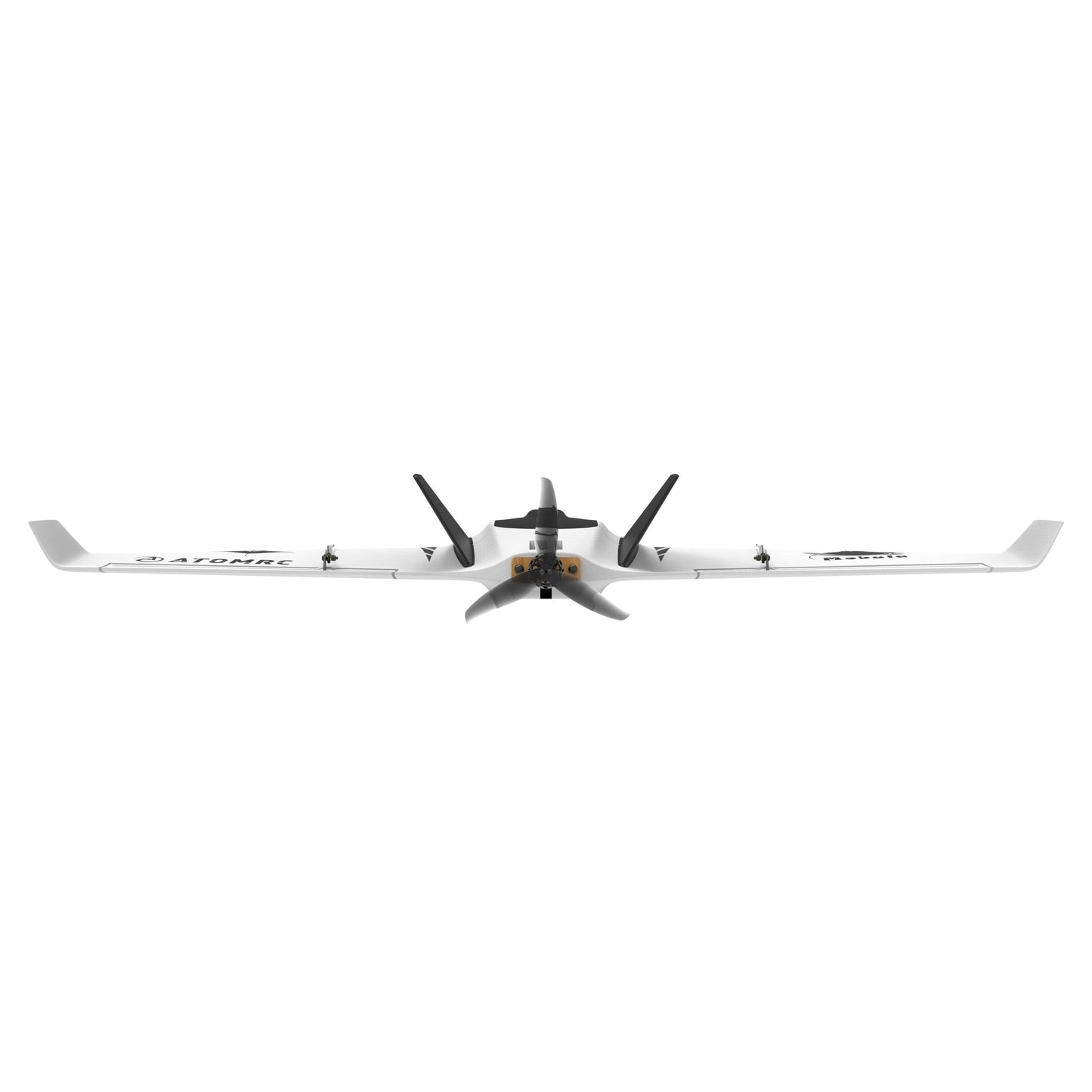

ATOMRC Mobula 650mm Wingspan Fixed Wing FPV Aircraft  SPECIFICATIONS

Video Capture Resolution: 1080p FHD,4K UHD,Other

Type: Airplane

State of Assembly: Unassembled Kit

Remote Distance: It depends on the environment and transmitter

Remote Control: Yes

Recommend Age: 14+y

Power Source: Electric

Package Includes: Original Box

Origin: Mainland China

Operator Skill Level: Beginner,Intermediate,Expert

Model Number: ATOMRC Mobula

Material: Metal,Carbon Fiber,Foam

Indoor/Outdoor Use: Indoor-Outdoor

Features: FPV Capable,Wi-Fi

Dimensions: 51cm-99cm

Controller Mode: MODE1,MODE2

Controller Battery: 4s 900mah 45C100g

Control Channels: 9 Channels

Charging Voltage: 4s 900mah 45C100g

Camera Mount Type: Other

Aerial Photography: No

Specifications
Wingspan:650mm

Length:305mm

Material: EPP

WingArea:7.05dm²

Package size:330*210*150mm

Recommend motor: 2004 2700KV

Recommend prop: 5125-2

Recommend battery: 4s 900mah 45C(100g)

Servo: 2Pcs 9gservo

Motor mounting hole:9*9mm~12*12mm*M2

Test parameters

The specs is testing by PNP version:

Recommend take off weight:  320g

Max. take off weight: 420g

Cruse speed:35km/h

Feature:
1. The mobula is designed for mid/high speed FPV wing, the V tail improve the stability of the route during high-speed FPV flight

2. The thrust line is special turning for high speed flight

3. Large room for electronics, made the wiring simple .

4. Special design camera mounting, made the nose clean and protect the camera,  no blocking the view, two extra cover for camera.

5. The EPP material made the wing durable during crush, small size made the wing fly Precise

6. The 2004 2700KV motor with 5125-2 prop is powerful combination for the wing.

7. The FPV version come with new ATOMRC TX500mw VTX, with clear image the powerful output. And the LED digital tube made the VTX easy to set the power and frequency..

Package included:

Mobula KIT Lite  (KIT LITE is All Loose Parts)

1 x Un-assembled KIT

Mobula PNP( The Foam is Pre Installed, User Need Install The Electronics )

1 x Pre-build plane

1 x ATOMRC 30A 2~4s BLS ESC

(with 5V3A BEC)

1 x2004 2700KVMotor

2x 9G Digital servo

1 x 5125-2 propeller

Mobula FPV PNP (The Foam is Pre Installed, User Need Install The Electronics )

1 x PNP Plane

1 x ATOMRC TX500 VTX

1 x Foxeer Razer Nano 1200TVL 14mm CAM

1 x 5.8G Antenna
