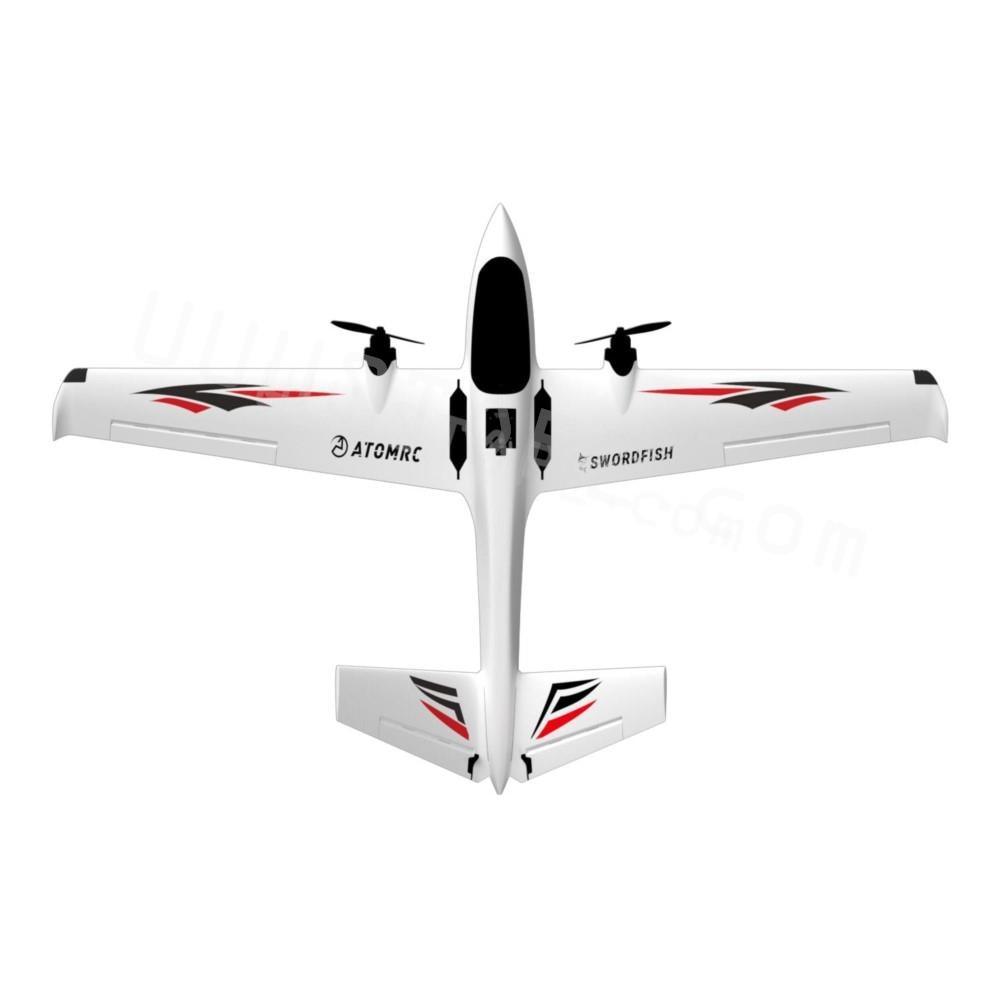

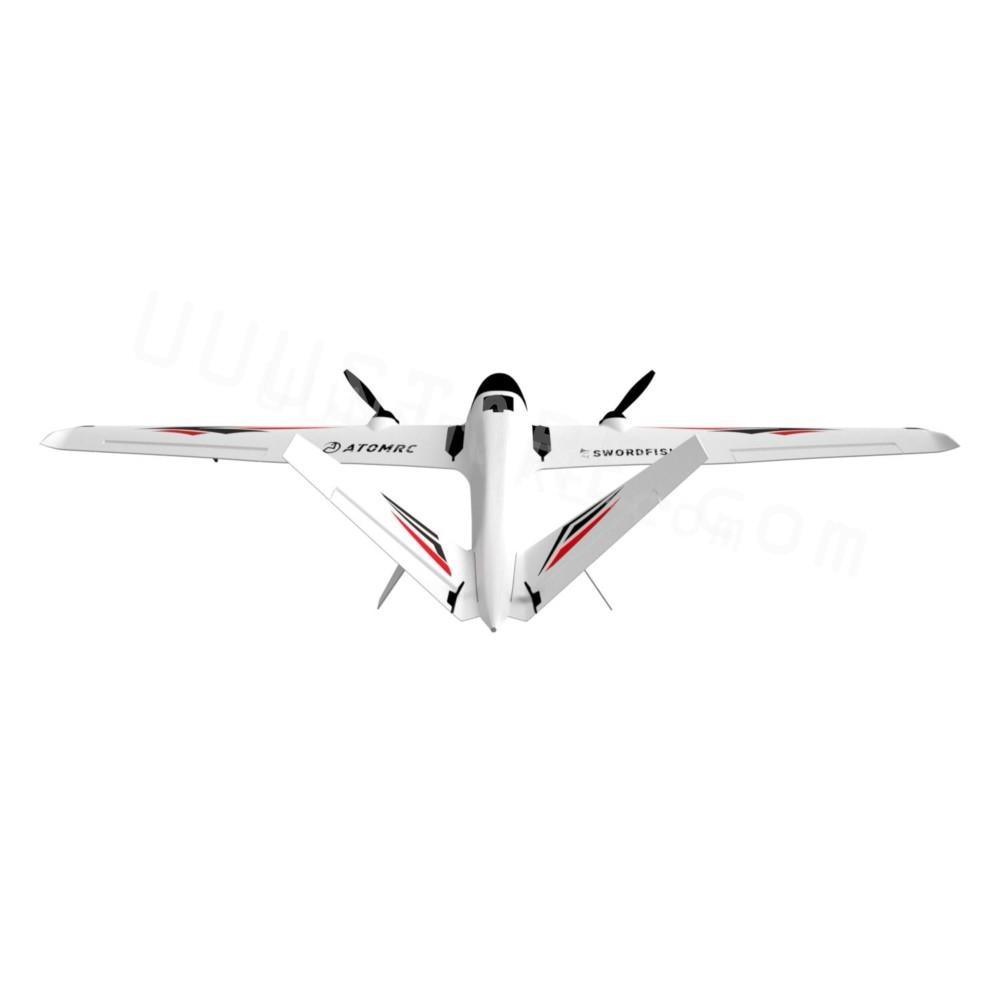

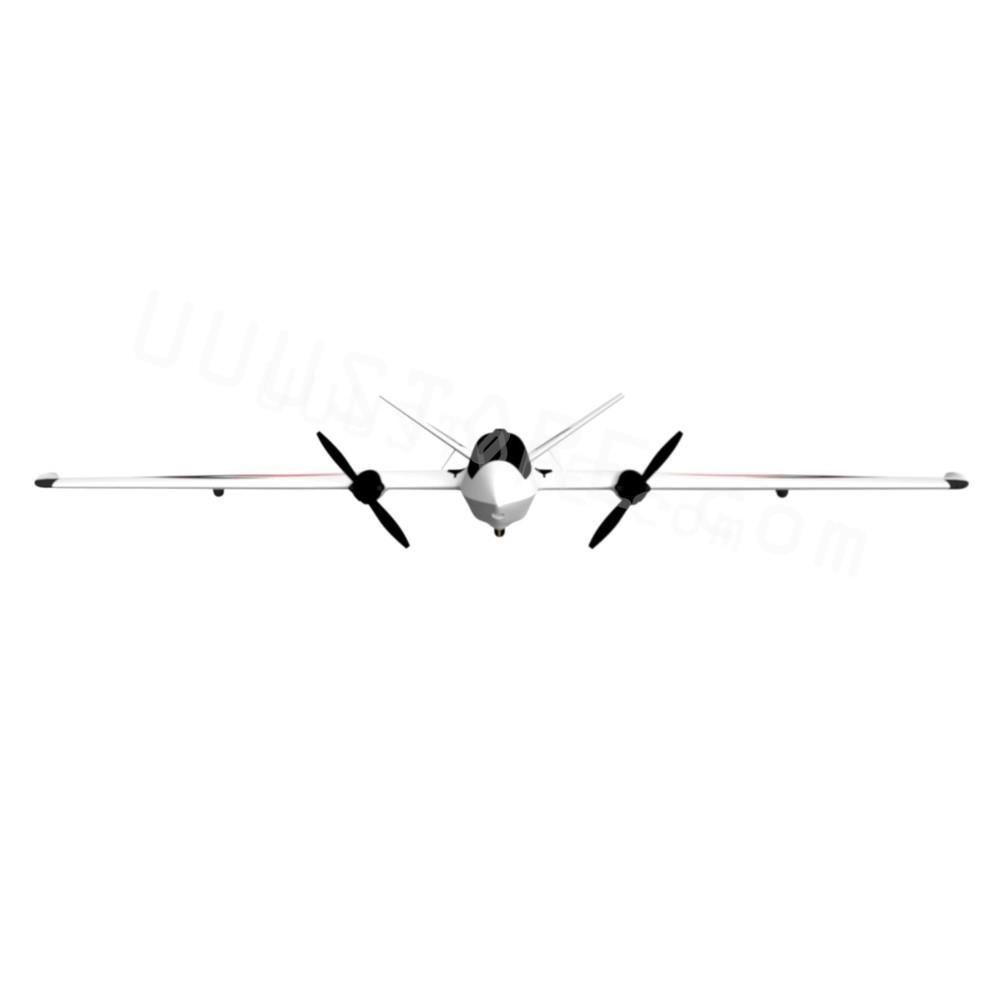

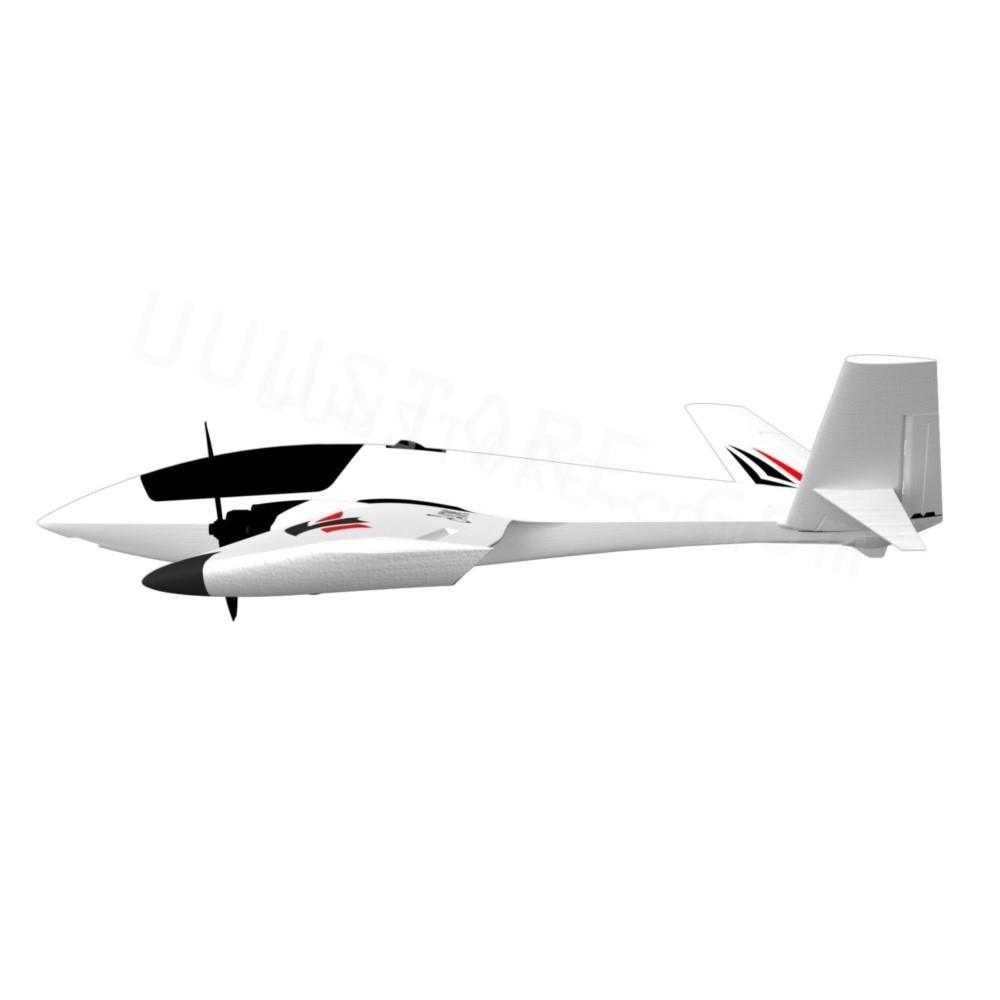

ATOMRC Swordfish - 1200mm Fixed Wing Wingspan FPV Aircraft RC Airplane KIT PNP FPV PNP Outdoor Hobby Toys for Children RC Model

ATOMRC Swordfish - 1200mm Fixed Wing Wingspan FPV Aircraft RC Airplane KIT PNP FPV PNP Outdoor Hobby Toys for Children RC Model

ATOMRC

Regular price $172.89 USD
Regular price $259.34 USD Sale price $172.89 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

42 orders in last 90 days

Color

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, can delivery to all countries.

ATOMRC Swordfish SPECIFICATIONS

Video Capture Resolution: Other

Remote Distance: 0-10km

Remote Control: Yes

Recommend Age: 12+y

Package Includes: Original Box

Origin: Mainland China

Operator Skill Level: Intermediate,Expert,Beginner

Model Number: ATOMRC Swordfish

Material: Foam

Indoor/Outdoor Use: Outdoor

Features: FPV Capable

Controller Mode: MODE1,MODE2

Controller Battery: 2-4S

Control Channels: 6 Channels

Camera Mount Type: Other

Brand Name: uuustore

ATOMRC Swordfish 1200mm Fixed Wing Wingspan FPV Aircraft RC Airplane KIT PNP FPV PNP Outdoor Hobby Toys for Children RC Model




Description:

Brand: ATOMRC Fixed Wing

Wingspan:1200mm

Length:810mm

Material: EPP

WingArea:15.35 dm²

Package size:815*220*185mm

Recommend motor: 2004~2306

Recommendprop: 7045

Recommend battery:4s 5000mAh/21700 1P4s

Servo: 4Pcs 9g servo



The specs is testing by PNP version:

Recommend take off weight: 1000g

Max. take off weight:  1300g

Cruse speed:50km/h



ATOMRC Swordfish Feature:

1.The swordfish is a 1200mm wing span middle speed twin motor glider, the large V-tail

improves the cruising speed stability, the aerodynamic shape and low cross-sectional

area reduce flight resistance and improve endurance.

2.We use lots of plastic injection parts to reduce the wight, size and  also improved the

strength.

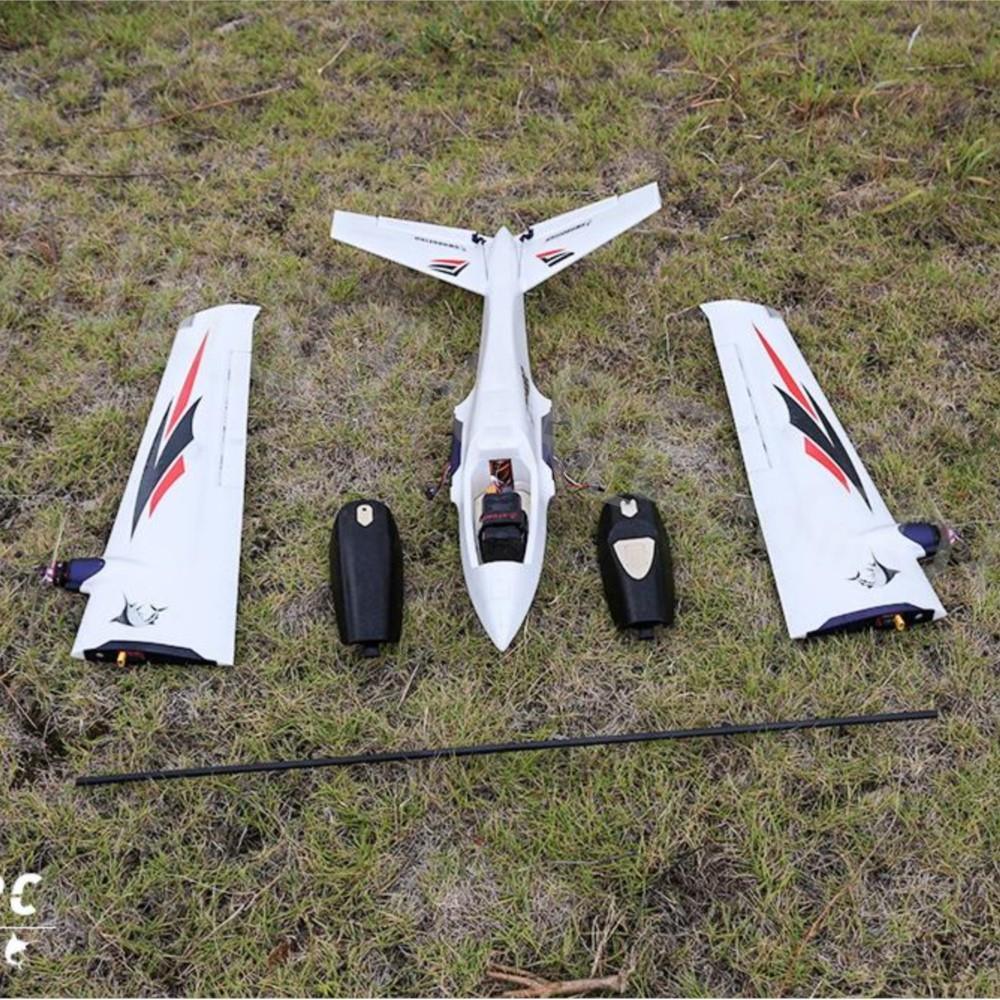

3.The fuselage and the wing are embedded with reinforced carbon tubes to maximize the

torsional rigidity of the wing during flight and the structural strength of the tail connection.

Improved the control of precise flight. The belly wheel and the tail skid design protect the

bottom of the fuselage from landing.

4.The glider support DJI air unit, also support analog system, the 1000g±200g take off weight

made the plane  achieves balanced load on the take-off wing, balanced cruise speed, and

convenient assembly and maintenance.





ATOMRC Swordfish Fixed Wing
Version KIT PNP FPV RTH RTF+FPV
Description Pre-glued Fixed WING KIT+Motor +ESC+Servo PNP+VTX+Camera PNP+Pre-turned FC+GPS, all electronics are installed RTH+VTX+Camera, all electronic are installed
Basic Pack Pre-Build KIT
Wood plate
Screws and Nuts
Sticker and user manual
Quick Release Connector
Flight Light
Motor ATOMRC 2306 2000kv 2pcs 2pcs 2pcs 2pcs
ESC ATOMRC BLS 30A 2~4S 2pcs 2pcs 2pcs 2pcs
Servo ATOMRC 9g *300mm 4pcs 4pcs 4pcs 4pcs
Prop 7040-2 4pcs 4pcs 4pcs 4pcs
Cam Foxeer Toothless NANO
VTX ATOMRC Exceed TX500 VTX
Antenna ATOMRC
FC ATOMRC F405 NAVI
GPS BN220
The specs will be slightly adjusted according to different,
actual specs are subject to the latest manual and real objects.
