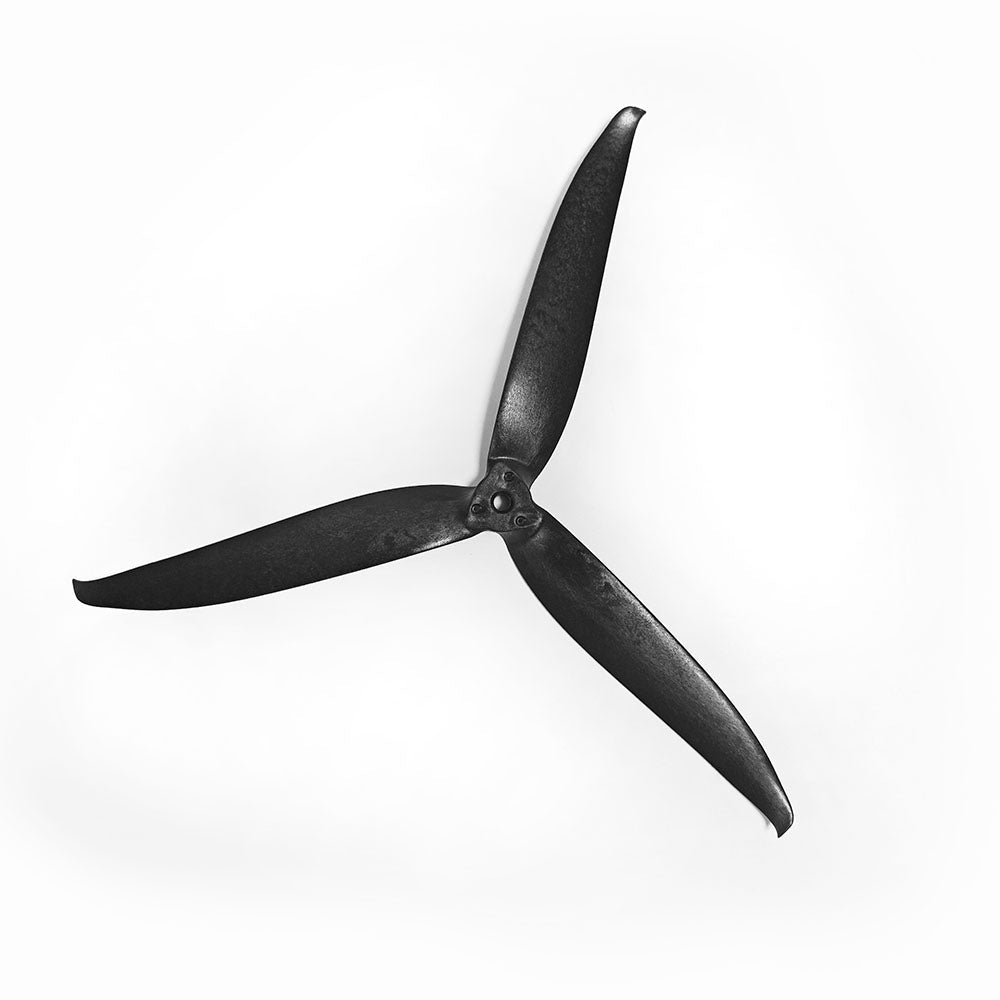

• EMAX Avia 1050-3 10 Inch FPV Propeller, black 3-blade prop on white background

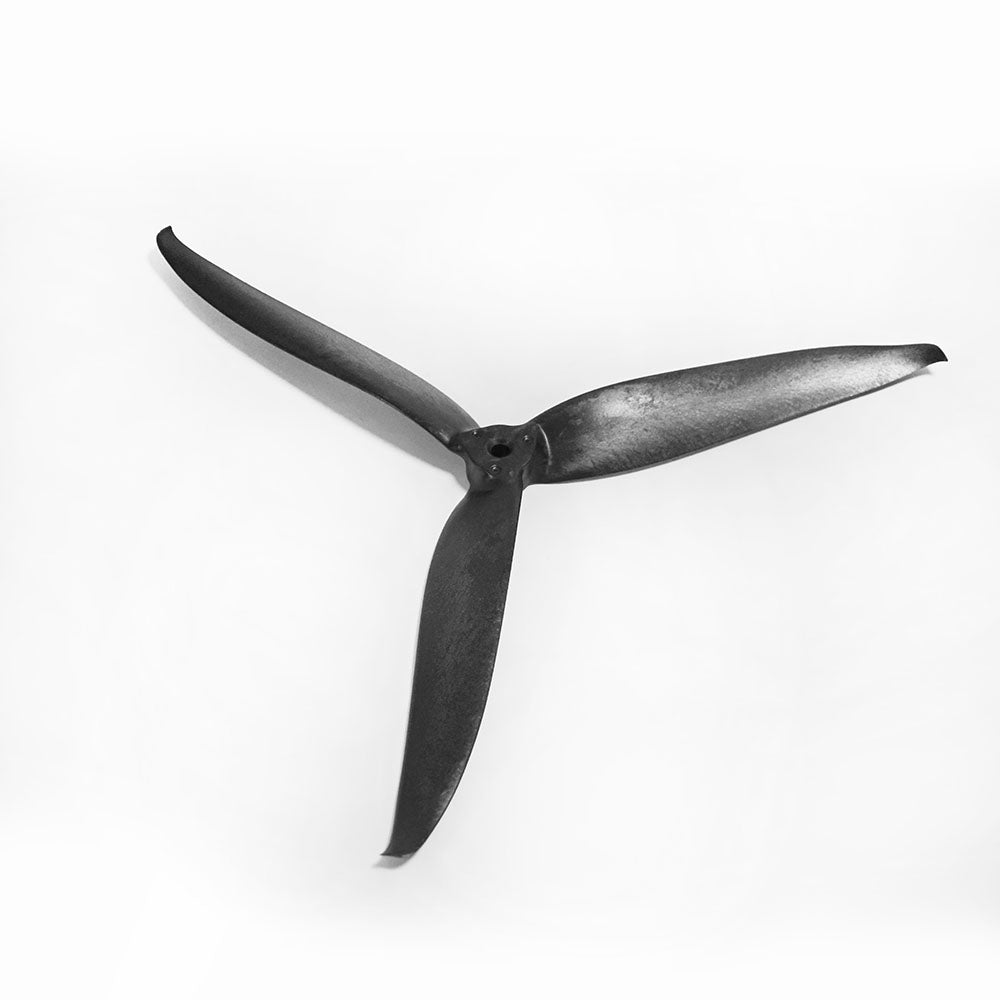

  • Three-blade FPV drone propeller in black, angled view showing blade shape and pitch

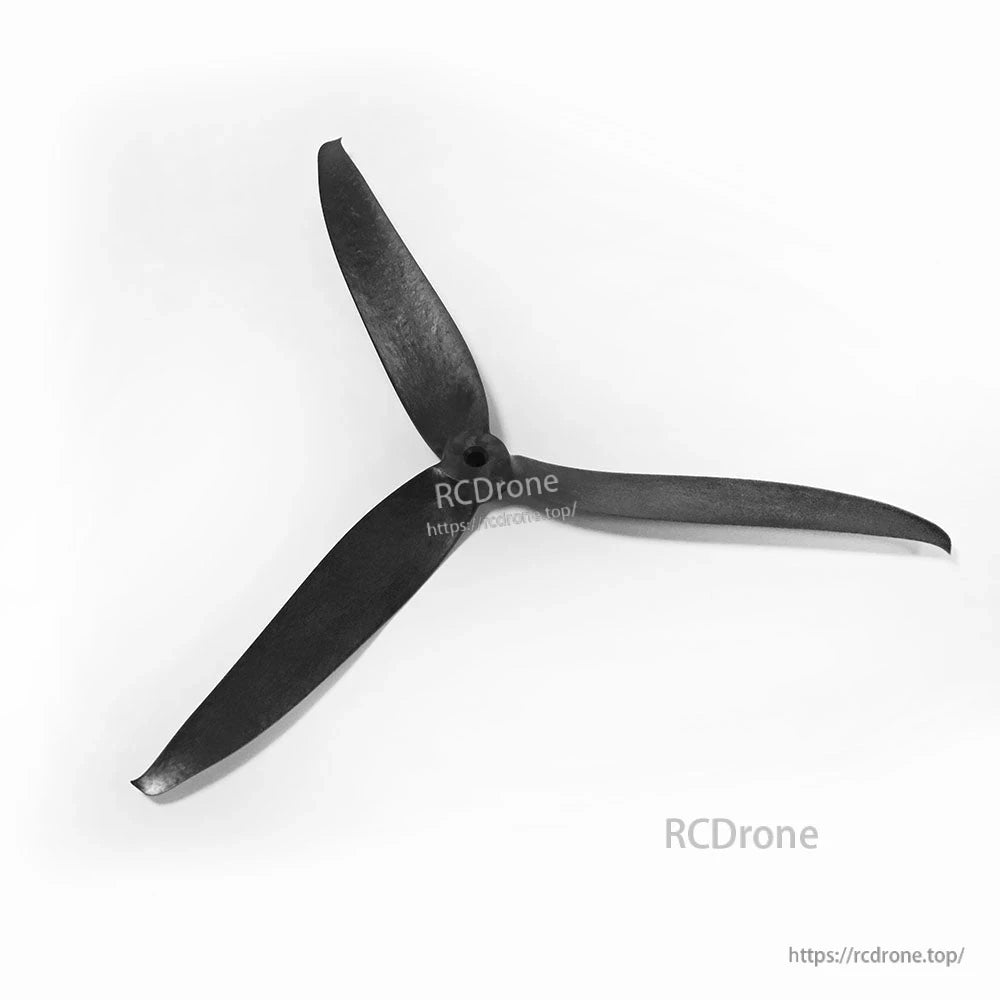

  • Black 3-blade drone propeller, alternate orientation with center mounting hole visible

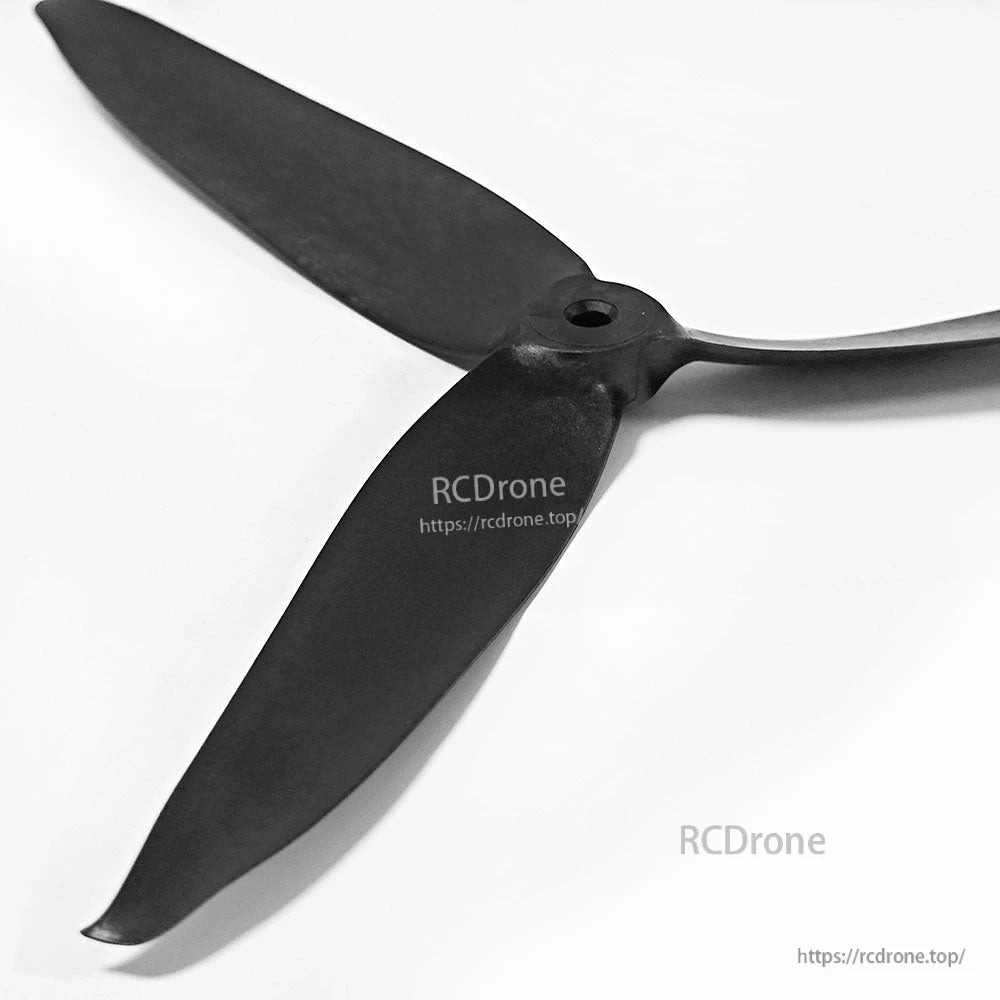

  • Close-up of propeller hub and mounting hole on black 3-blade FPV drone prop
  • EMAX Avia series propeller box packaging for Avia 1050-3 10 inch, CW/CCW options shown
1 5

EMAX Avia 1050-3 10 Inch FPV Propeller Single - Choose 1CW or 1CCW Direction Option

EMAX Avia 1050-3 10 Inch FPV Propeller Single - Choose 1CW or 1CCW Direction Option

Emax

$9.52 USD
$9.52 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Type
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The EMAX Avia 1050-3 is a 10 inch FPV propeller sold as a single piece, with direction options available in 1CW or 1CCW. It is a 3-blade propeller designed for builds that use the AVIA1050 size class.

Key Features

  • Model: AVIA1050 (Avia 1050)
  • 3-blade (tri-blade) design
  • 10 inch propeller size
  • Direction options: 1CW or 1CCW (choose the required rotation)
  • Single propeller (1 piece)

Specifications

Brand EMAX
Series / Model Avia 1050 / AVIA1050
Propeller size 10 Inch
Blade count 3-blade
Direction options 1CW or 1CCW
Quantity Single (1 propeller)

Performance Data (Measured Tables)

ECOII-2814-730KV / 25.2 V / Emax Avia 1050 3-blade propeller

The voltage (V) current (A) thrust (G) power (W) efficiency (G/W) speed (RPM)
25.2 2.2 360 55.44 6.49 4640
25.2 4.65 670 117.18 5.72 6030
25.2 8.28 1070 208.66 5.13 7320
25.2 13.1 1500 330.12 4.54 8500
25.2 19.2 1940 483.84 4.01 9620
25.2 26.7 2360 672.84 3.51 10600
25.2 35.3 2770 889.56 3.11 11460
25.2 47.1 3300 1186.92 2.78 Max

ECOII-2814-830KV / 25.2 V / Emax Avia 1050 3-blade propeller

The voltage (V) current (A) thrust (G) power (W) efficiency (G/W) speed (RPM)
25.2 3.12 480 78.62 6.11 5180
25.2 6.56 860 165.31 5.20 6700
25.2 11.5 1330 289.80 4.59 8030
25.2 18 1810 453.60 3.99 9310
25.2 26.3 2310 662.76 3.49 10410
25.2 36.3 2760 914.76 3.02 11330
25.2 47.1 3250 1186.92 2.74 12200
25.2 62.8 3800 1582.56 2.40 Max

ECOII-3115-400KV / 48 V / AVIA1050 3-blade propeller

The voltage (V) current (A) thrust (G) power (W) efficiency (G/W) speed (RPM)
48 1.44 470 69.12 6.80 5070
48 3.28 950 157.44 6.03 6840
48 6.2 1520 297.60 5.11 8490
48 10.3 2170 494.40 4.39 10100
48 15.6 2900 748.80 3.87 11530
48 22.2 3630 1065.60 3.41 12850
48 30.8 4440 1478.40 3.00 14100
48 37.9 5010 1819.20 2.75 Max

ECOII-3115-500KV / 40 V / AVIA1050 3-blade propeller

The voltage (V) current (A) thrust (G) power (W) efficiency (G/W) speed (RPM)
40 1.79 500 71.60 6.98 5130
40 4.06 1010 162.40 6.22 6900
40 7.67 1590 306.80 5.18 8560
40 12.9 2280 516.00 4.42 10130
40 20.1 3080 804.00 3.83 11510
40 27.9 3780 1116.00 3.39 12840
40 38.2 4590 1528.00 3.00 14060
40 46.4 5020 1856.00 2.70 Max

ECOII-3115-640KV / 32 V / AVIA1050 3-blade propeller

The voltage (V) current (A) thrust (G) power (W) efficiency (G/W) speed (RPM)
32 2.4 480 76.80 6.25 5210
32 5.39 1010 172.48 5.86 6990
32 9.98 1550 319.36 4.85 8610
32 16.6 2220 531.20 4.18 10170
32 25.1 2920 803.20 3.64 11540
32 34.8 3570 1113.60 3.21 12820
32 47.5 4320 1520.00 2.84 13920
32 58.7 4940 1878.40 2.63 Max

ECOII-3115-800KV / 25 V / AVIA1050 3-blade propeller

The voltage (V) current (A) thrust (G) power (W) efficiency (G/W) speed (RPM)
25 2.8 450 70.00 6.43 4990
25 6.3 910 157.50 5.78 6640
25 11.4 1430 285.00 5.02 8160
25 18.7 2020 467.50 4.32 9590
25 28.1 2630 702.50 3.74 10870
25 39.4 3240 985.00 3.29 11980
25 53.5 3900 1337.50 2.92 12940
25 64.5 4420 1612.50 2.74 Max

ECOII-3115-900KV / 25 V / AVIA1050 3-blade propeller

The voltage (V) current (A) thrust (G) power (W) efficiency (G/W) speed (RPM)
25 3.53 520 88.25 5.89 5450
25 7.96 1050 199.00 5.28 7250
25 14.5 1620 362.50 4.47 8850
25 23.9 2310 597.50 3.87 10370
25 35.8 3010 895.00 3.36 11650
25 48.4 3620 1210.00 2.99 12860
25 65.3 4300 1632.50 2.68 13840
25 80.6 4960 2015.00 2.46 Max

What’s Included

  • EMAX Avia 1050-3 10 Inch FPV propeller x 1 (CW or CCW option as selected)

For selection help (CW/CCW) or build compatibility questions, contact [email protected] or visit https://rcdrone.top/.

Details

Performance table for EMAX Avia 1050-3 10 inch FPV propeller on ECOII-2814 730KV at 25.2V

Test data for ECOII-2814 730KV at 25.2V includes thrust, power draw, efficiency, and RPM across the throttle range.

Emax Avia 1050 10 Inch 1050-3 FPV Propeller Single (Choose Direction Option) 1CW or 1CCW

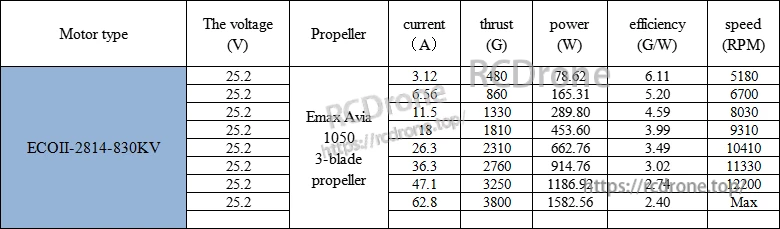

ECOII-2814 830KV bench results at 25.2V help compare thrust and efficiency for the Avia 1050 tri-blade prop.

AVIA1050 tri-blade 10 inch prop performance data table for ECOII-3115 400KV motor at 48V

Running ECOII-3115 400KV at 48V, the table summarizes current, thrust, watts, efficiency, and RPM.

AVIA1050 3-blade propeller performance table for ECOII-3115 500KV motor at 40V

A 40V setup with ECOII-3115 500KV provides another reference point for thrust versus power consumption.

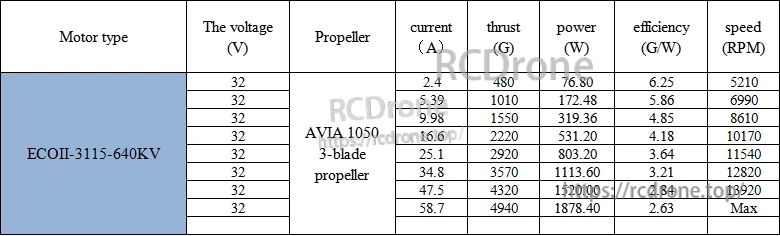

AVIA1050 10 inch 3-blade prop performance chart for ECOII-3115 640KV motor at 32V

For 32V builds, ECOII-3115 640KV measurements list thrust, efficiency (g/W), and RPM at multiple current levels.

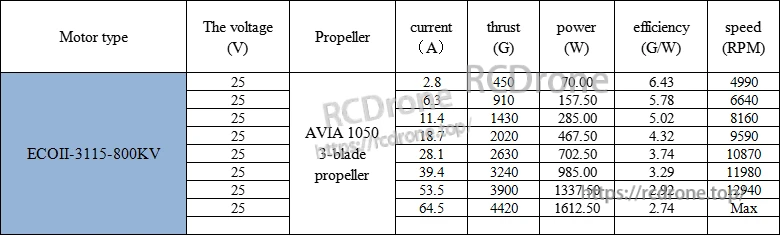

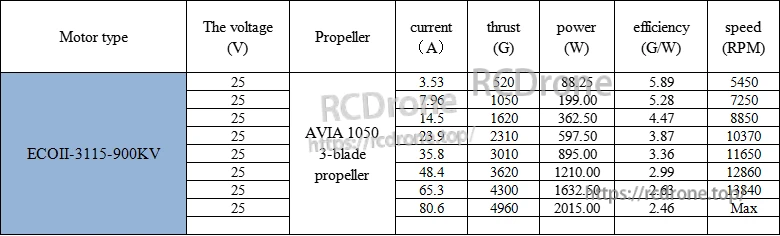

AVIA1050 3-blade propeller test table for ECOII-3115 800KV motor at 25VAVIA1050 tri-blade prop test data table for ECOII-3115 900KV motor at 25V
