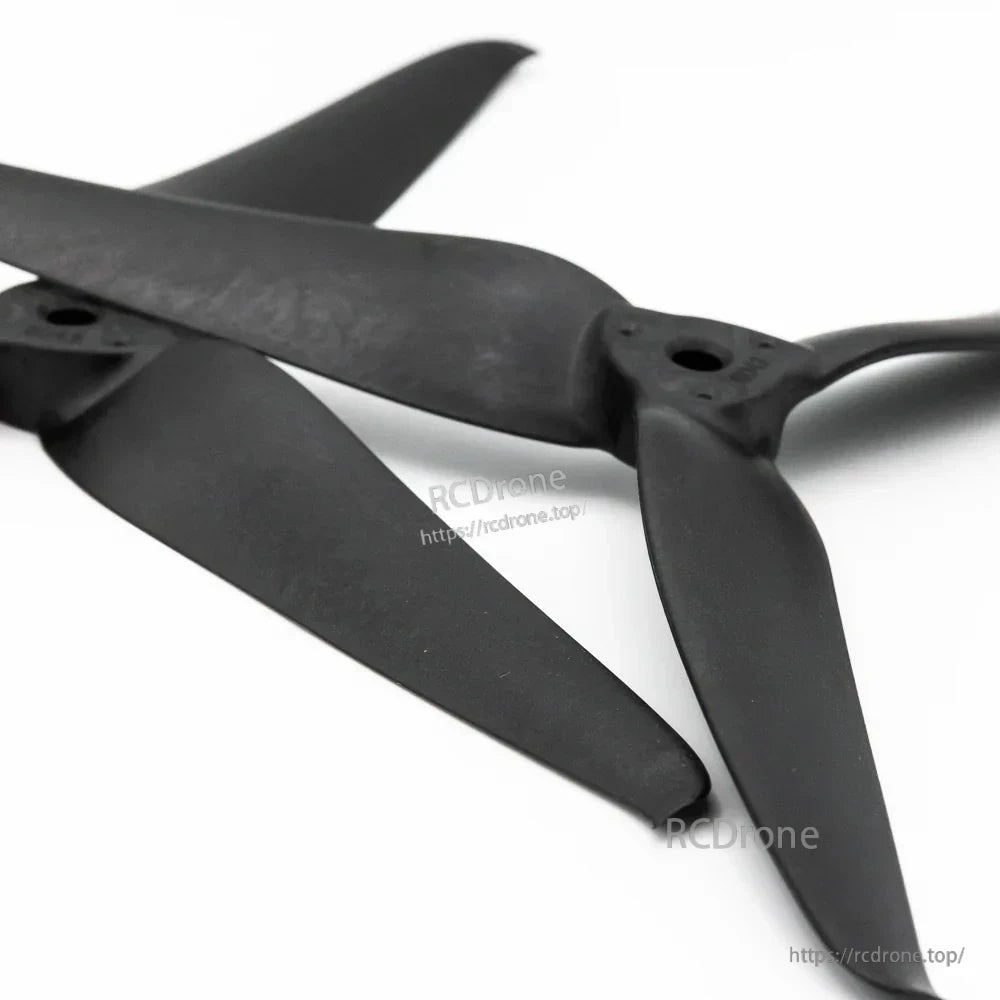

  • Angled view of two black 8043-3 tri-blade FPV drone props overlapping, showing blade shape and hub
1 5

Emax Avia 8043 8 Inch 8043-3 FPV Propeller Set (1CW+1CCW) AVIA8043 3-Blade Props

Emax Avia 8043 8 Inch 8043-3 FPV Propeller Set (1CW+1CCW) AVIA8043 3-Blade Props

Emax

$10.07 USD
$10.07 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The Emax Avia 8043 is an 8 inch, 3-blade FPV propeller set (8043-3) supplied as one clockwise (CW) and one counter-clockwise (CCW) prop for multirotor builds that use AVIA8043-size props.

Key Features

  • Model: AVIA8043 / 8043-3
  • Size: 8 inch
  • 3-blade propeller design
  • Includes matched rotation pair: 1CW + 1CCW

Specifications

Propeller

Series / Model Emax Avia 8043 (AVIA8043)
Size 8 inch
Blade count 3-blade
Variant 8043-3

Performance Data (Voltage: 25.2 V, Propeller: AVIA8043 3-blade propeller)

Test data below is provided for reference across different motor types.

Motor type: ECOII-2810-950KV

Voltage (V) Current (A) Thrust (G) Power (W) Efficiency (G/W) Speed (RPM)
25.2 2.2 280 55.44 5.05 6300
25.2 4.3 510 108.36 4.71 8100
25.2 7.6 800 191.52 4.18 9920
25.2 12 1120 302.40 3.70 11580
25.2 17.8 1450 448.56 3.23 12970
25.2 24.5 1800 617.40 2.92 14320
25.2 32.6 2110 821.52 2.57 15600
25.2 43.3 2400 1091.16 2.20 Max

Motor type: ECOII-2810-1150KV

Voltage (V) Current (A) Thrust (G) Power (W) Efficiency (G/W) Speed (RPM)
25.2 3.24 400 81.65 4.90 7290
25.2 6.64 712 167.33 4.26 9380
25.2 11.4 1075 287.28 3.74 11340
25.2 18.1 1445 456.12 3.17 13030
25.2 26.2 1840 660.24 2.79 14560
25.2 35.8 2237 902.16 2.48 15970
25.2 47.5 2560 1197.00 2.14 17090
25.2 63.8 2850 1607.76 1.77 Max

Motor type: ECOII-2812-1100KV

Voltage (V) Current (A) Thrust (G) Power (W) Efficiency (G/W) Speed (RPM)
25.2 3.4 430 85.68 5.02 7320
25.2 6.7 730 168.84 4.32 9360
25.2 11.7 1100 294.84 3.73 11360
25.2 18.3 1470 461.16 3.19 13100
25.2 26.7 1900 672.84 2.82 14760
25.2 37 2330 932.40 2.50 16250
25.2 49.4 2600 1244.88 2.09 17420
25.2 68.2 2900 1718.64 1.69 Max

What’s Included

  • Emax Avia 8043 8 inch 3-blade propeller: 1CW + 1CCW

Applications

  • FPV multirotor builds using 8 inch AVIA8043 / 8043-3 propellers

For product selection and compatibility questions, contact support at https://rcdrone.top/ or email support@rcdrone.top.

Emax Avia 8043 (AVIA8043) 3-blade propeller performance table at 25.2V: thrust, power, efficiency, RPM

Details

25.2V test results for AVIA8043 3-blade prop with ECOII-2810 and ECOII-2812 motors: thrust (g), power (W), RPM
