Axisflying C246 2406 1650KV/1850KV/2050KV Brushless Motor for Cinematic FPV & Freestyle Drones

With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series.

The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.

Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.

The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.

*Forword

- The C246 motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.

- We've designed the C series motors with the contribution of the cinematic FPV experts: Antoine DG (@Escape_fpv) and Fry (@Fry_fpv). Their cinematic knowledge and ideas led us today to introduce you to these top-grade cinematic motors.

- We want to thank David and Jasonfpv who helped us with their repeated testing and feedback to accelerate the presence of Axisflying in the growing cinematic FPV market.

*Bearing Shield Technology

- An IP53 rating dustproof and waterproof bearing placement design.

- BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .

- Increased thrust effciency and say goodbye to crush motor bearings

*Specs

- 1650KV is for 6inch props @6S of cinematic shooting

- 1850KV is for 5inch props @6S of speed cinematic shooting (such as motorcycle race)

- 2050KV is for 5inch props @6S of sbang freestyle

- Configuration: 12N14P / N52H arc magnet

- Motor stator size: 2406

- Motor mounting hole size: 4*M3 (Φ16mm)

- Motor cables: AWG 20#, 150MM

- Motor dimensions (Dia *Len): Φ29.3*31.8MM  / M5 shaft

- Motor weight (including 150MM cables) : 31g

- The motor is very powerful that can get over 2KG and most current is about 45A

*Package

- 1* C246 motor

- 4* M3*8 screws for motor

- 1* M3*4 screw for lock shaft

- 1* M5 Flanged Nylon Insert lock

- 1* O-ring

- 1* Washer

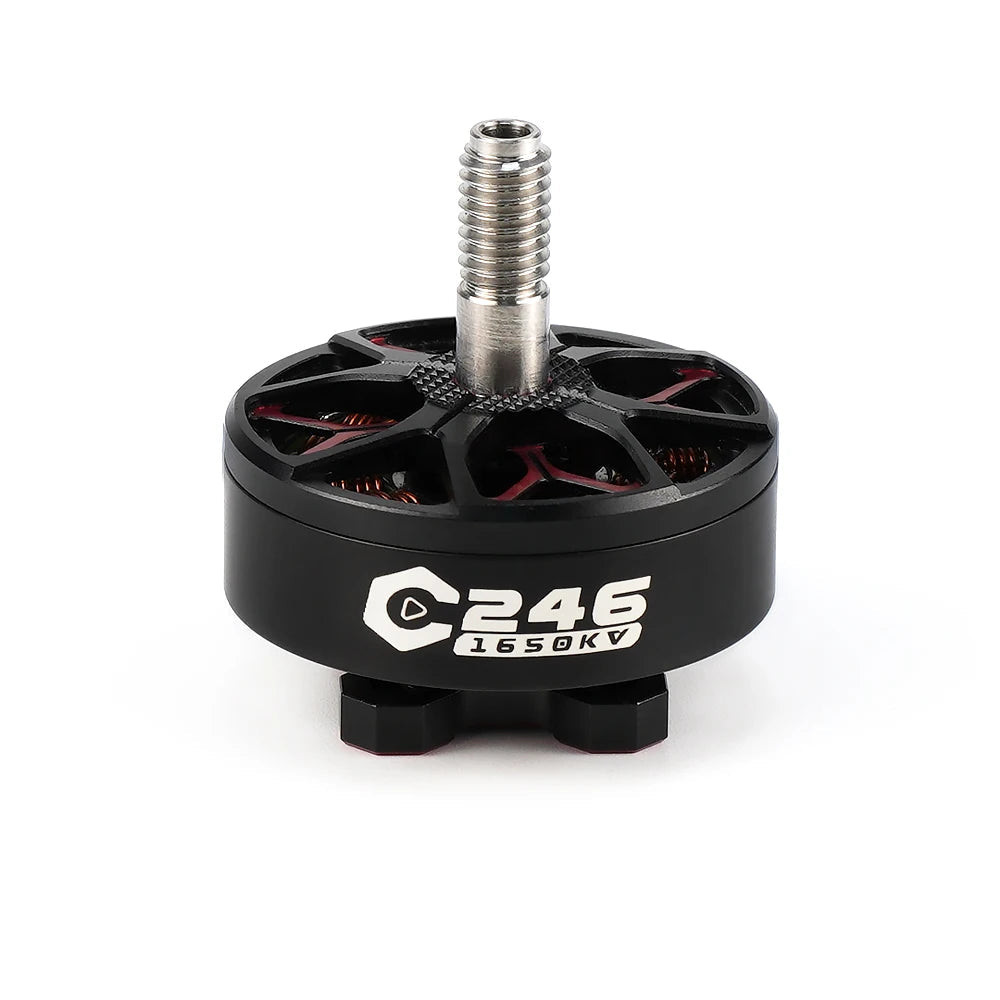

Axisflying C246 Brushless Motor for 5/6" FPV drones, 1650KV, compact design, efficient performance.

C246 brushless motor: KV 1650, 69.8 mΩ resistance, 5mm wheelbase, 4-6S battery, 1066.4W max power, 12N14P slots, 29.3x31.8mm size, 31.2g weight, 45.65A max current, silicone wire included.

Axisflying C246 Brushless Motor specs: KV 1850/2050/2650, internal resistance 59.44/36.8 mΩ, max power 970.1/1084.6/649 W, max current 41.5/46.5/42.31 A, size Ø29.3*31.8mm, weight 31.5/31/29.5g.

C246 1650KV motor with HQ 6x3.5 props tested at various throttle levels, providing voltage, current, thrust, RPM, power, and efficiency data for performance analysis.

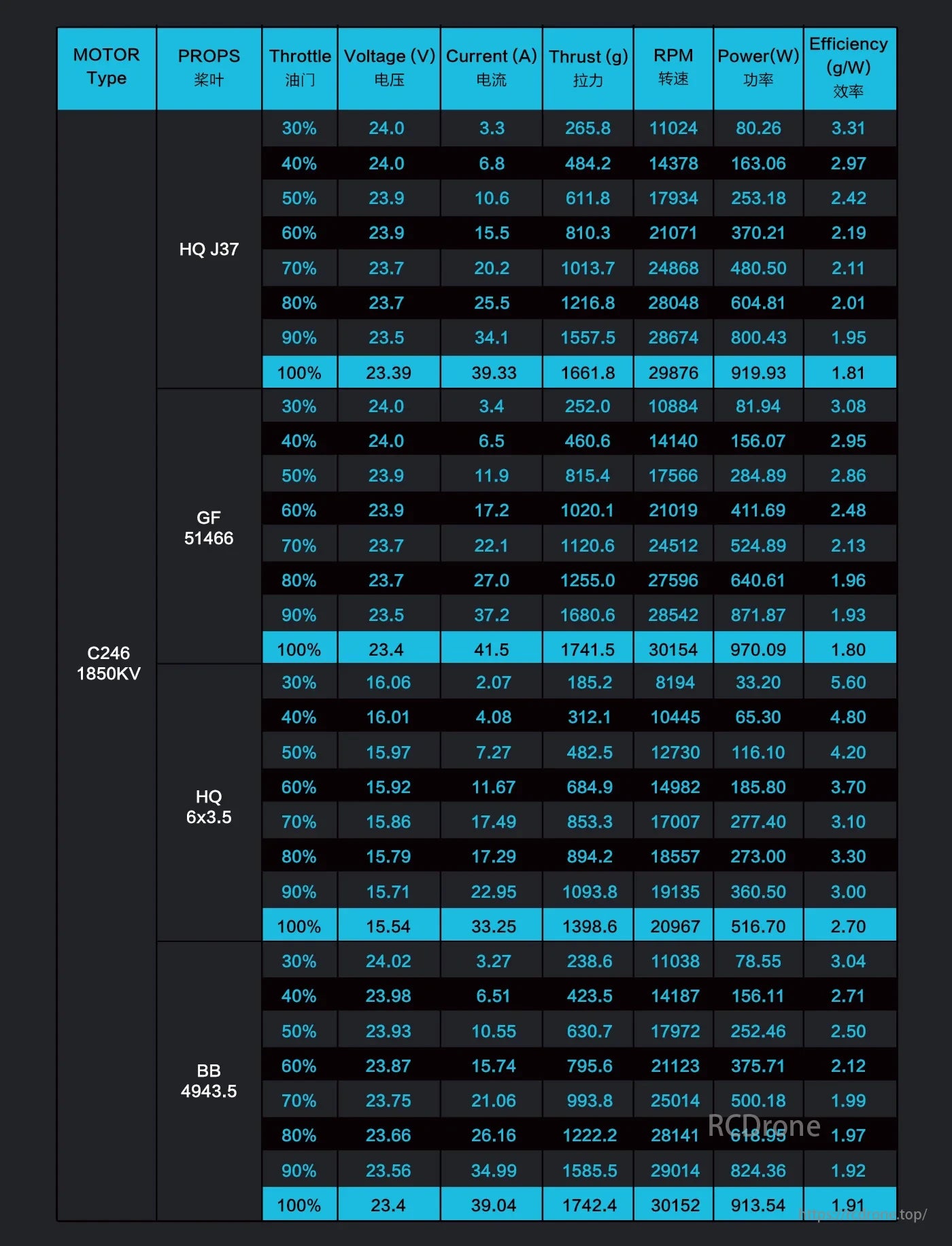

C246 1850KV motor performance data for HQ J37, GF 51466, HQ 6x3.5, and BB 4943.5 props at various throttle percentages, including voltage, current, thrust, RPM, power, and efficiency metrics.

C246 2050KV motor data with BB 4943.5, HQ J37, and GF 51466 props. Includes throttle, voltage, current, thrust, RPM, power, and efficiency metrics at various percentages.

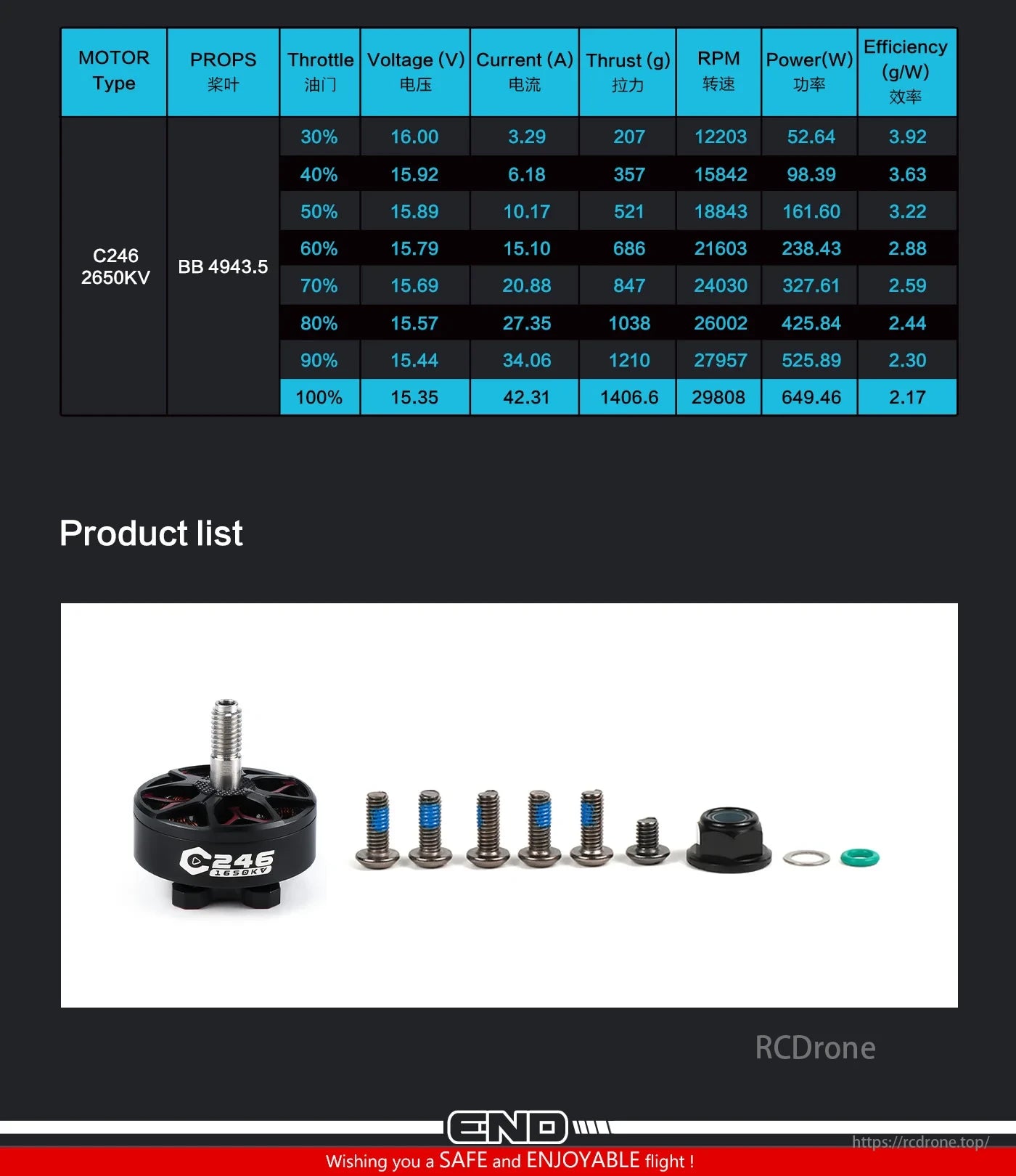

C246 2650KV brushless motor specs: voltage, current, thrust, RPM, power, efficiency at various throttle levels. Product list includes motor, screws, and accessories for safe, enjoyable flight.
